1250 mm width 1.2 mm thick galvanized steel grain bin corrugated sheet roll forming machine for silo granary water tank

Our company is a company that develops and produces supporting equipment such as metal granaries, steel silos, water silos, and supporting long and short ladders, upper and lower vertebral bodies, upper and lower adapters..

TEL : +86 13231741939

DETAILS

Product Overview

1250 *1.2 MM GALVANIZED STEEL CORRUGATED SHEET ROLL FORMING MACHINE FOR SILO GRANARY AND GRAIN BINS AND WATER TANKS

Our company is a company that develops and produces supporting equipment such as metal granaries, steel silos, water silos, and supporting long and short ladders, upper and lower vertebral bodies, upper and lower adapters, and protective rings. R&D and manufacturing of molding machines. Now has a unique management model and product research and development capabilities. Thousands of series of profiled steel production lines have been developed and manufactured, such as: wall roof panel production line; floor steel bearing plate production line series C-shaped steel, Z-shaped steel CNC belt production line, beam and column-free arched roof production equipment, The shielding room uses internal and external decorative board equipment, etc.; the company also produces electronic shielding room pressing equipment, steel coil slitting units, steel coil leveling and cross-cutting units and other equipment. The products are favored by various industries because of their light structure, reasonable design and continuous updating. The company's main business: granary processing equipment, water silo processing equipment, steel silo processing equipment, storage silo processing equipment, feed silo processing equipment, granary production equipment, water silo production equipment, steel silo production equipment, storage silo production equipment, feed Warehouse production equipment, welcome to buy more information or call for specific consultation!

FEATURES AT A GLANCE

00:0000:35

PRODUCT SPECIFICATIONS

MACHINE COMPONENTS

NO.	 Description	Quantity

ELECTRIC/HYDRAULICDECOILER1
FEEDING PLATFORM  1
FORMING PART	1
SIDE HOLE PUNCNIHNG PART 1
HEAD HOLE PUNCHING PART1
3-AXIS AUTOMATIC BENDING PART1
CUTTING PART1
ELECTRIC CONTROL CABINET 1
HYDRAULIC PUMP STATION 1
RUN OUT TABLE 1
11ACCESSORIES 1

No	Item	Data	Note
1	raw material	Galvanized steel / G550
2	raw material thickness	22 gauge to 18 gauge (0.8-1.27mm)
3	sheet coil width /	1220MM/ 1250mm	can customzied the effective width,too. If you need , welcome to connect Ms.Elena 0086-13231741939
4	cover width	1120 mm	customzied the machine sheet sizes as your drawing . Any requests , welcome to connect Ms.Elena 0086-13231741939
5	machine power	11kw (K serious main motor power)+5.5KW(hydraulic pump station motor power)	16.5kw.h
6	machine stands thickness	20mm	any request, welcome to connect Ms.Elena 0086-13231741939
7	machine transmission way	1 inches Double hanging drive chain	any request, welcome to connect Ms.Elena 0086-13231741939
8	base frame material	400H beam welded	any request, welcome to connect Ms.Elena 0086-13231741939
9	Length counting method	OMRON (JAPAN ) brand encoder
10	Electric Control brands	PLC,Inverter : DELTA Touch Screen: DELTA Hydraulic brand: HUADE	can do other brands as clients' requests
11	Voltage	415V/ 480V/220V ,50HZ/60HZ, 3 Phases or customized	voltage can be customzied as clients' request. Any requests , welcome to connect Ms.Elena 0086-13231741939
12	Side Perforation Part	2 groups, cylinder diameter 80mm, manual adjustment of punching position
13	Horizontal head perforation part	Cylinder: 110mm diameter * 2, the head hole punches 1 row of holes at a time, the punching range, 0.8-1.2 mm thick.
14	Curving part	Bending arc computer PLC automatic type change, 3-axis form, equipped with 2 * 5-ton lifts.
15	Forming Shaft	45# steel with tempering treatment
16	cutting Die Material	Material : Cr12 processing technology: rough material milling machine processing - vacuum heat treatment HRC58-60 - flat grinding processing end face - wire cutting processing outline - engraving machine fine carving shape.
17	Cutting type	Enlarged and thickened mid-plate shear style with 2 * 100mm hydraulic cylinders
18	Bearing brand	6212 type bearings HRB brand
19	Forming Roller	Gcr15 Bearing steel with hard chrome coating adjust different sizes manually
20	Forming Speed	1-3 m/min
21	Machine size	L13.5mW1.95mH1.2m	( 31.59CBM)
22	machine weight	8000 KGS
23	Forming station	15stations
24	shafts' diameter	90 mm solid shafts
25	decoiler	with one 8tons electric decoiler	can be customized to hydraulic decoiler
26	run out table	1 piece	High-quality

PRODUCT CONFIGURATION

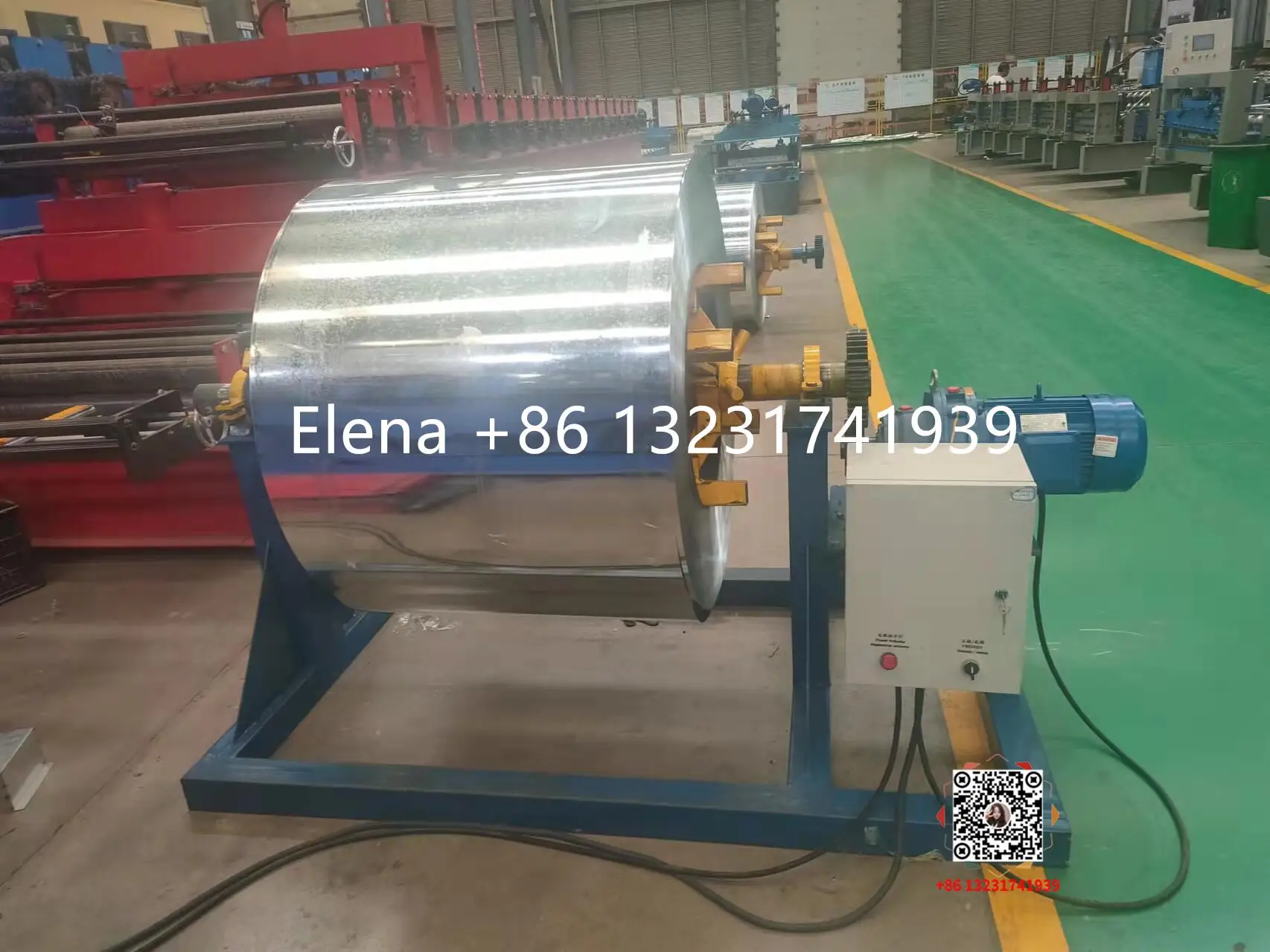

8 Tons Electric Decoiler

Features:Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement;
Power: powered;
Power of the open and closure of segments: electric way;
Power of rotation of segment: manual;
Number of segment: 4;
Range of segment expansion:480 ~ 520mm;
Height of center of the mandrel: 0.65m;
Approximate Size: 1.5 m * 1.1m *1.2 m;
Speed control: By mechanical brake;
Methods of operation: mechanical;
Bearing Weight: 8 Tons

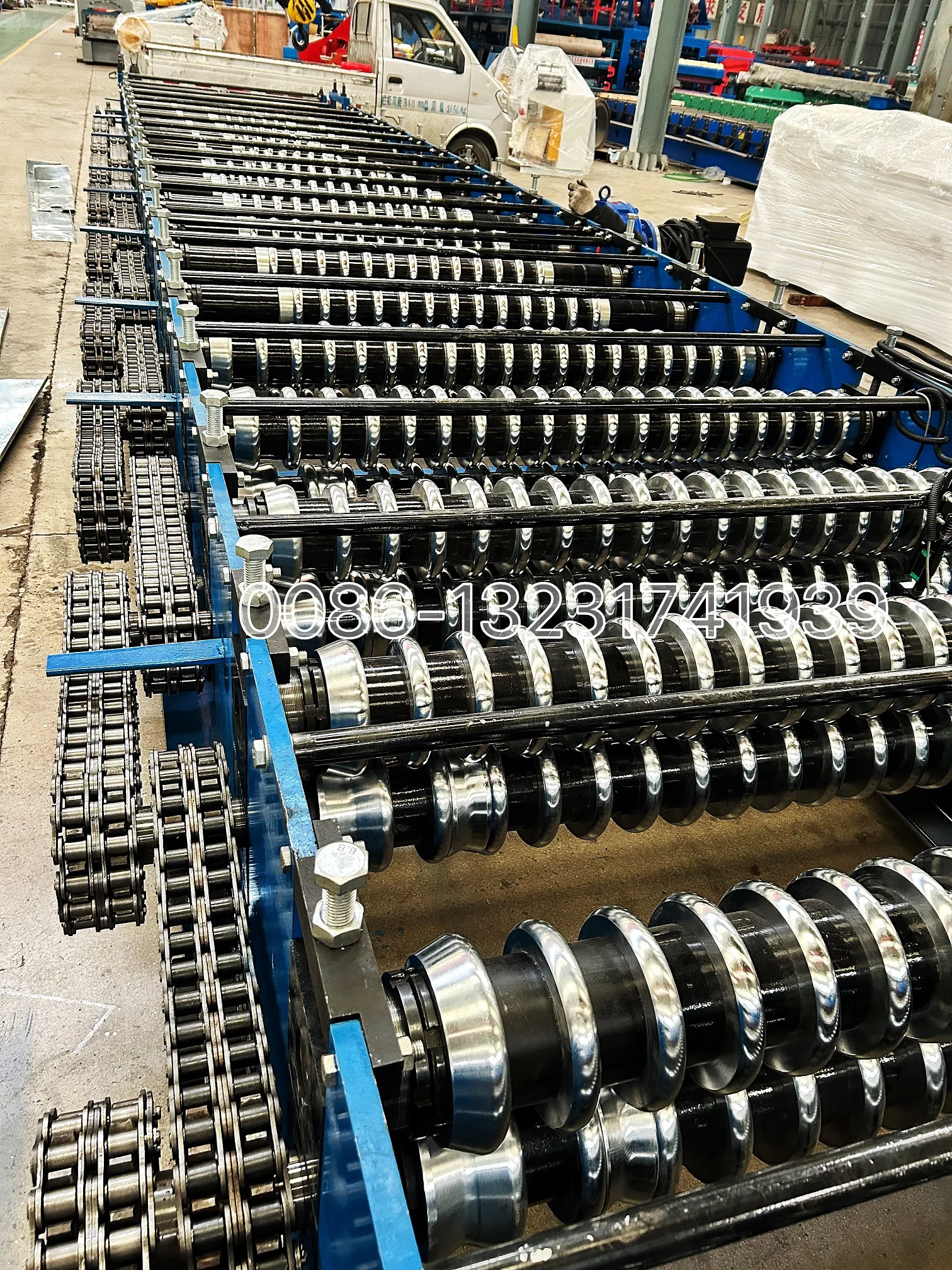

Feeding platform and leveling shafts

feed material : 2 pinch rollers + 2 guide rollersleveling part: upper 3 and lower 4

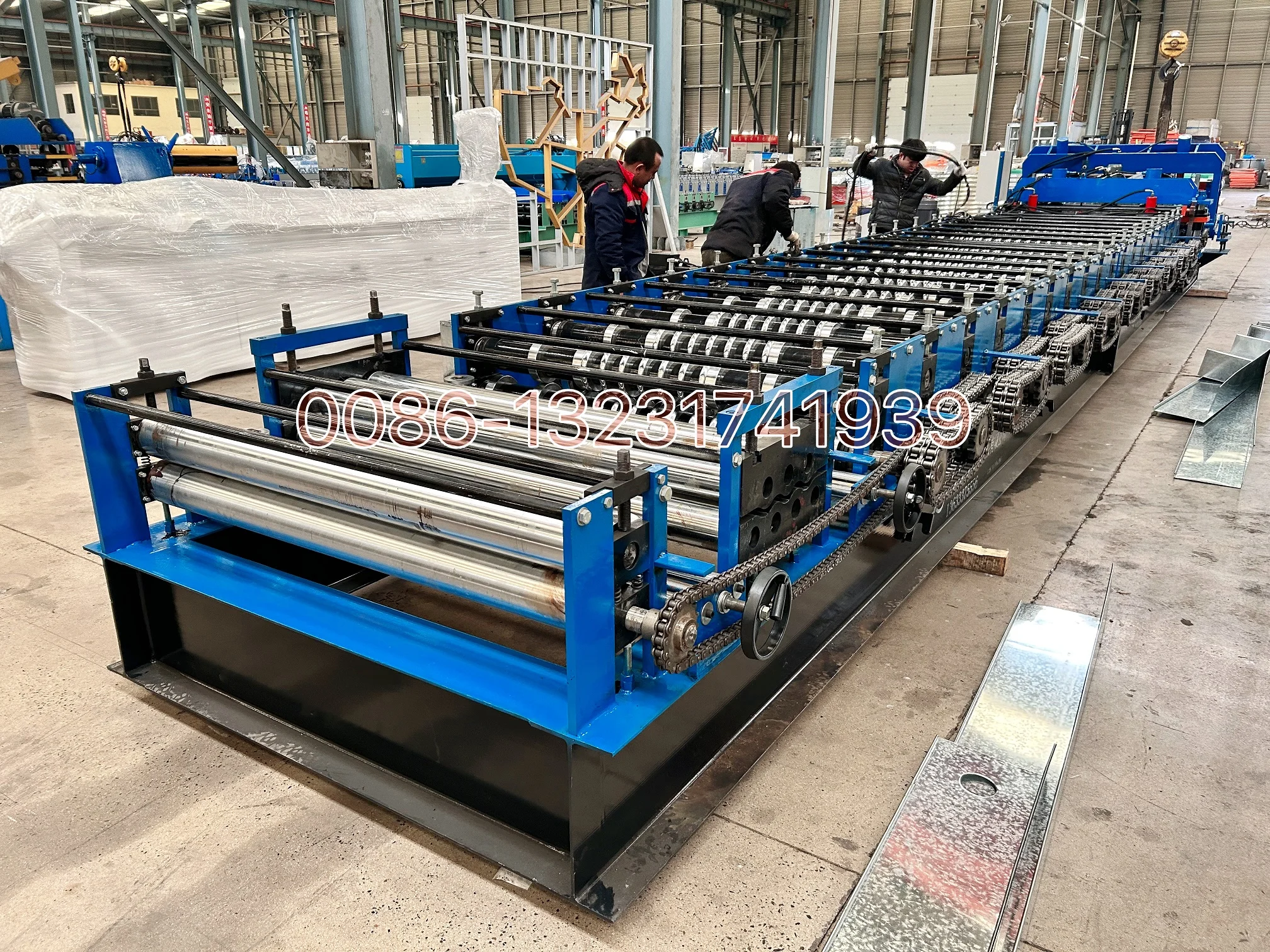

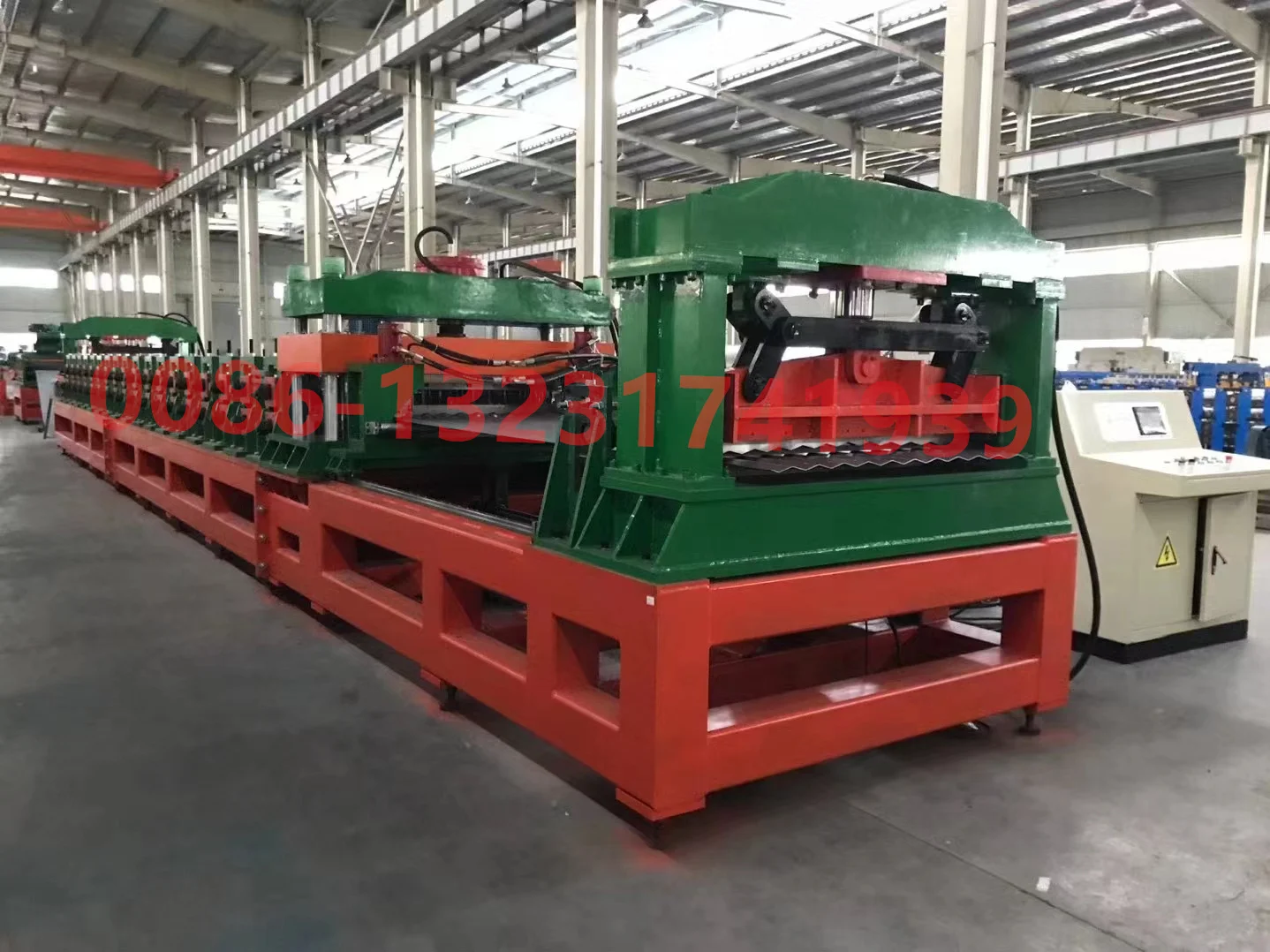

Silo Granary Machine Base Frame

400 H beam welded

FormingPart

90mm solid shaft .
45# steel with hard chrome coating
Base Frame: 400H steel welded
Machine Stand Thickness: 20mm thick
Chain: 1 inches * 2 with chain guard

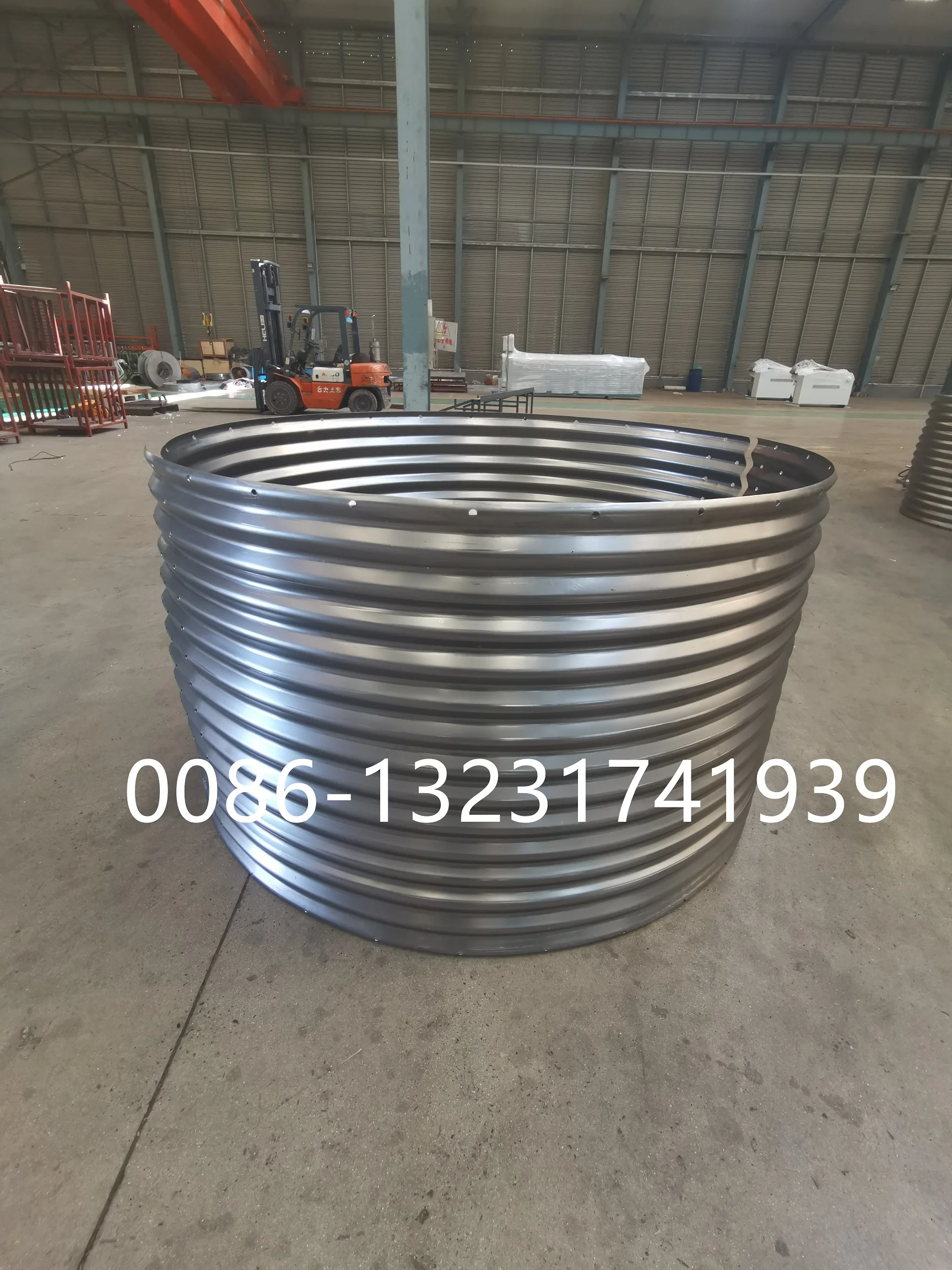

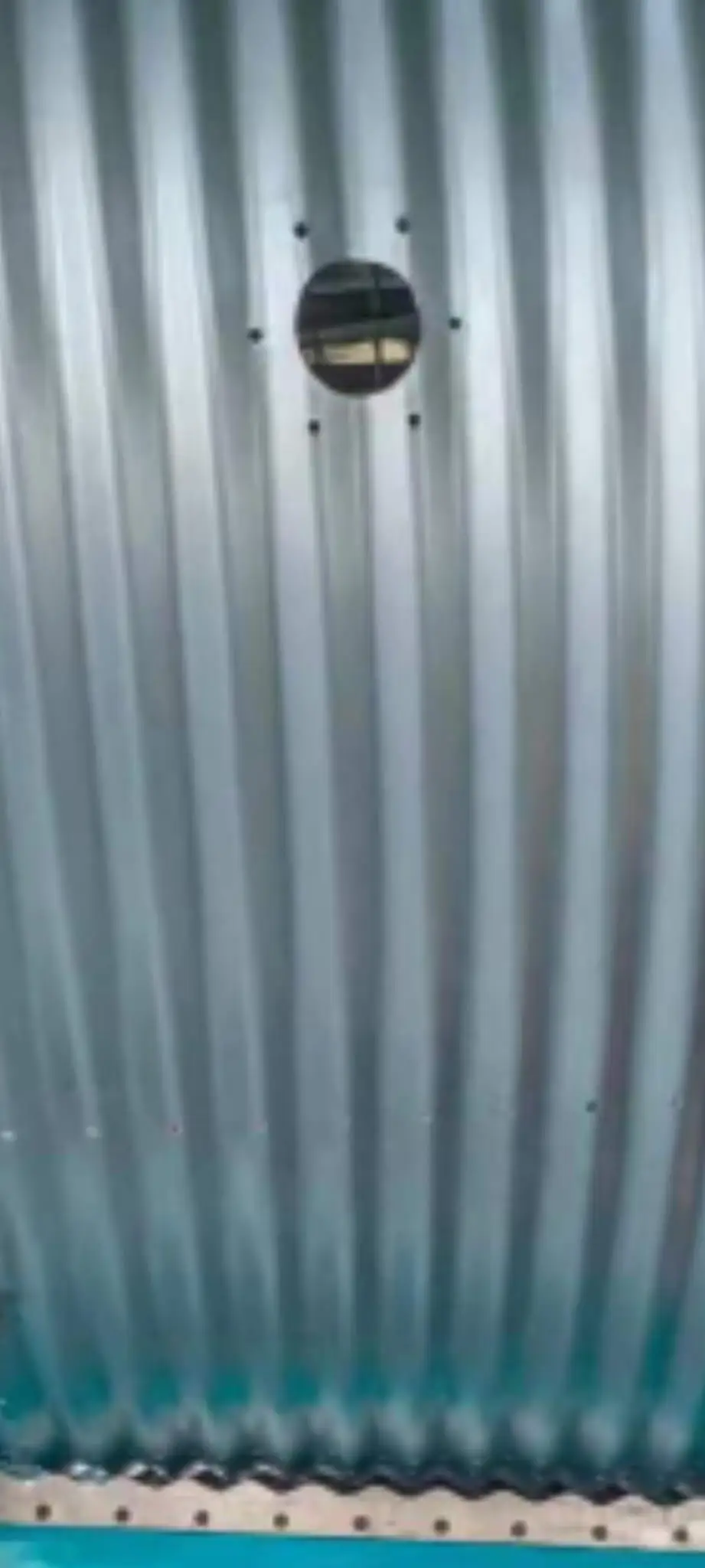

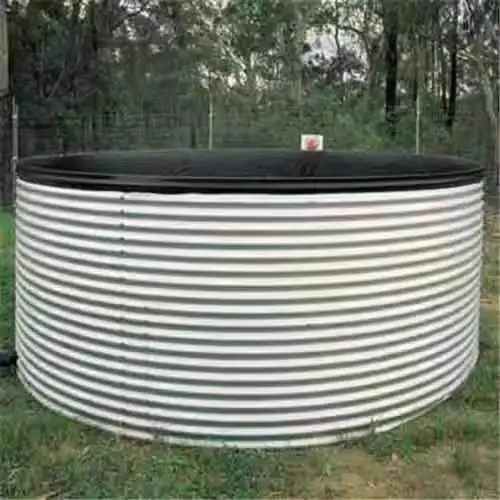

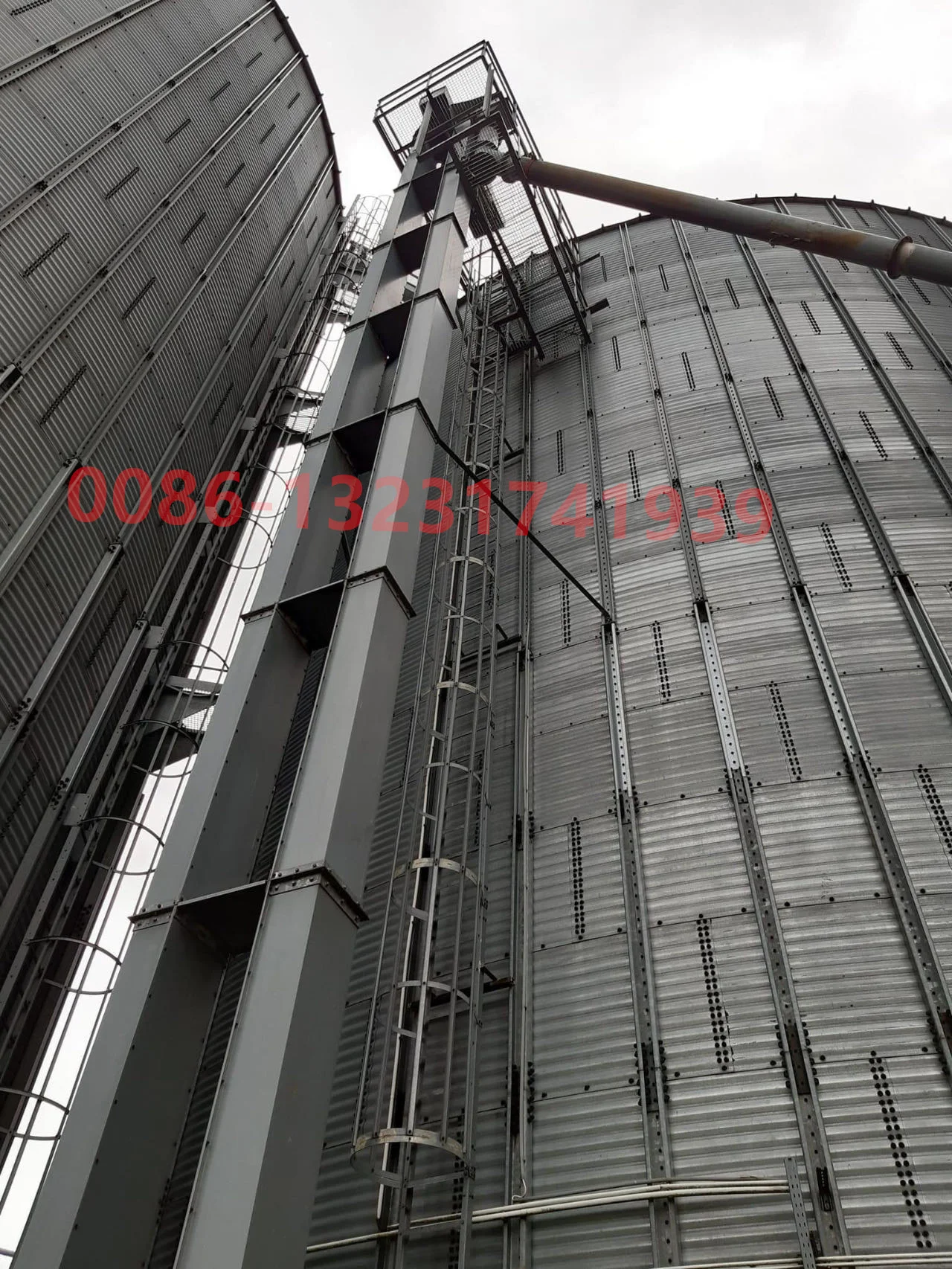

Finished water tank / silo granary/ grain bin Effects

overlapping effects great

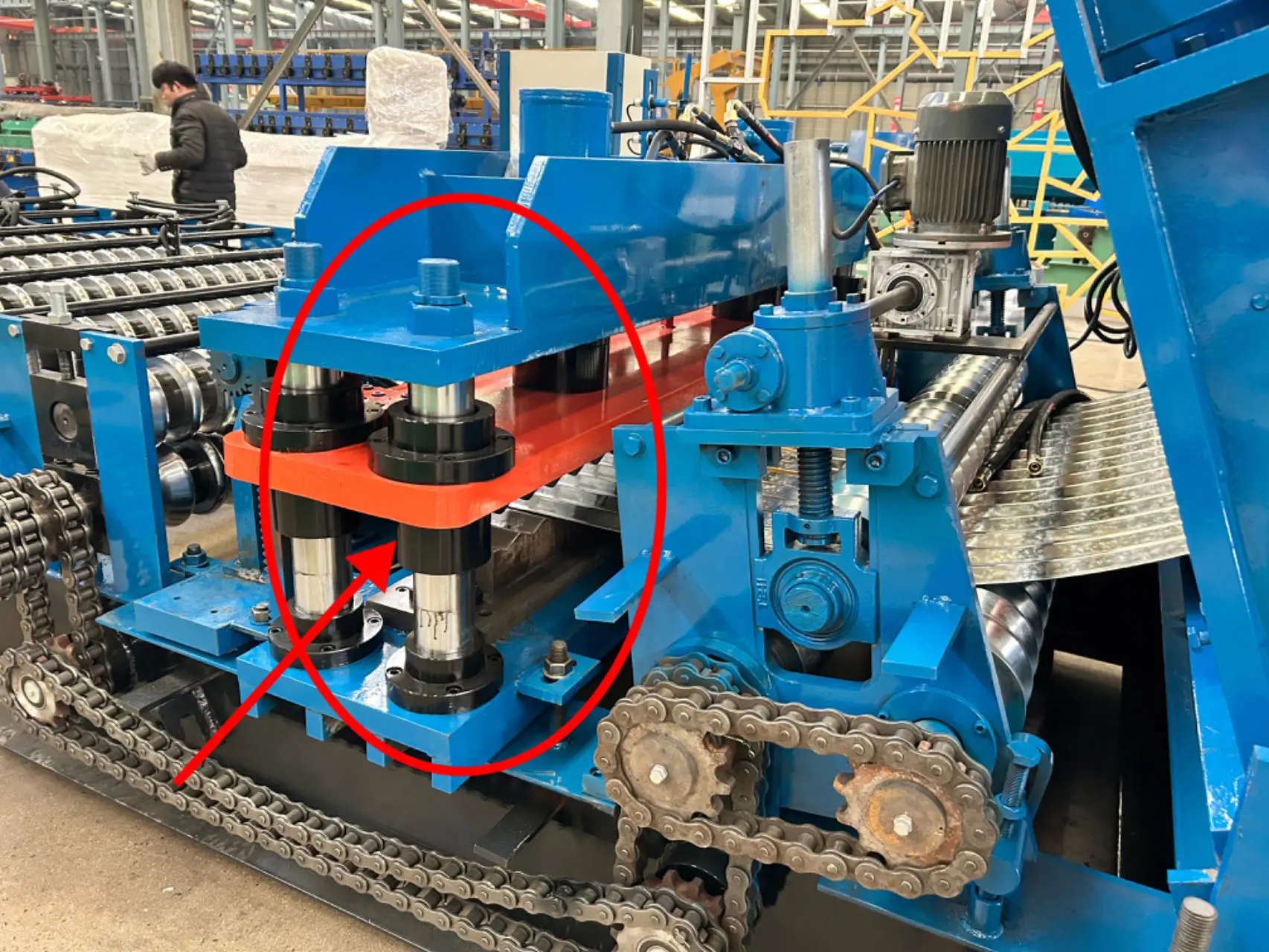

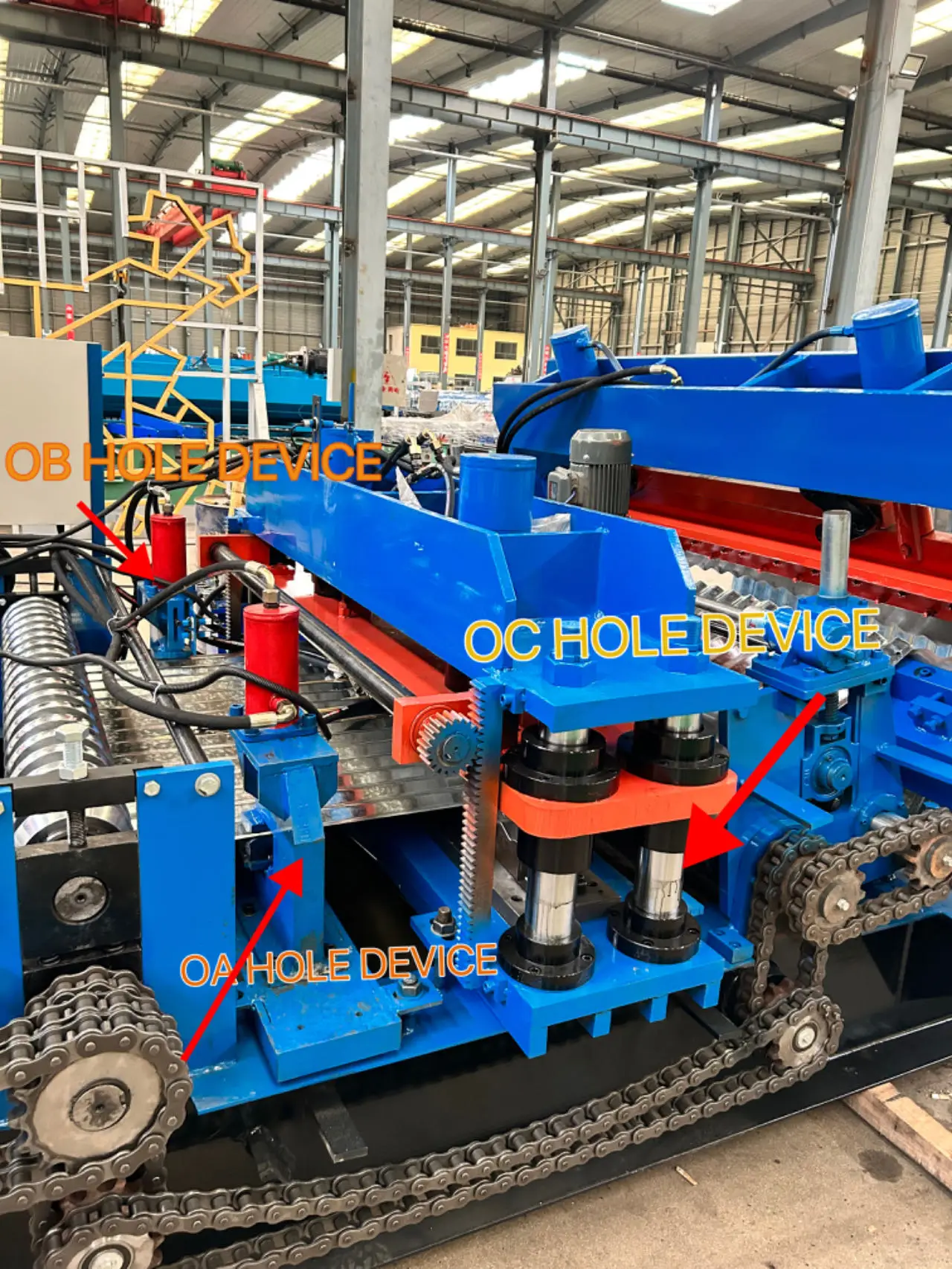

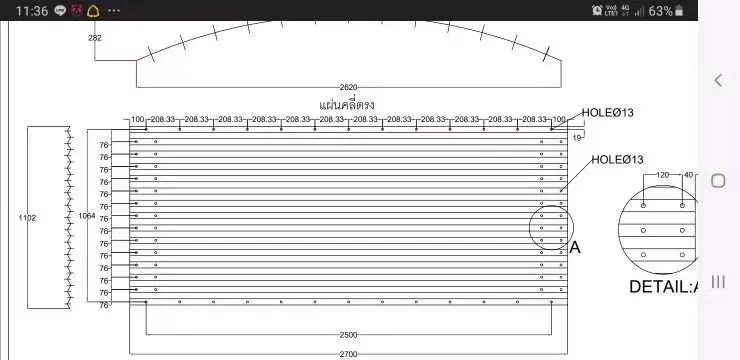

Side punching devices

perforations customized as clients needed

Hydraulic Horizontal Punching

Cylinder: 110mm diameter * 2, the head hole punches 1 row of holes at a time, the punching range, 0.8-1.2 mm thick. The punch is a consumable part, and 10 pieces are included with the machine

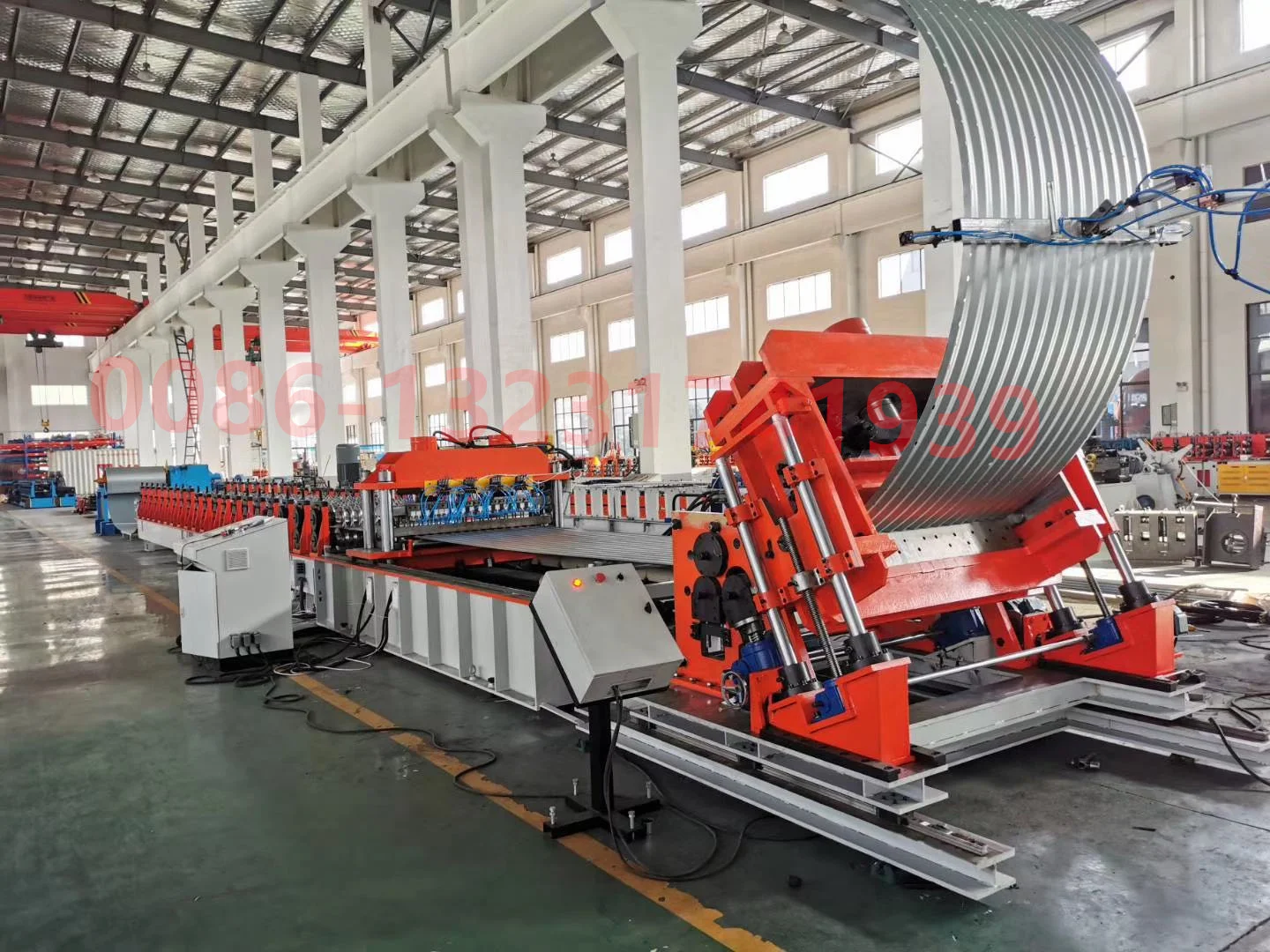

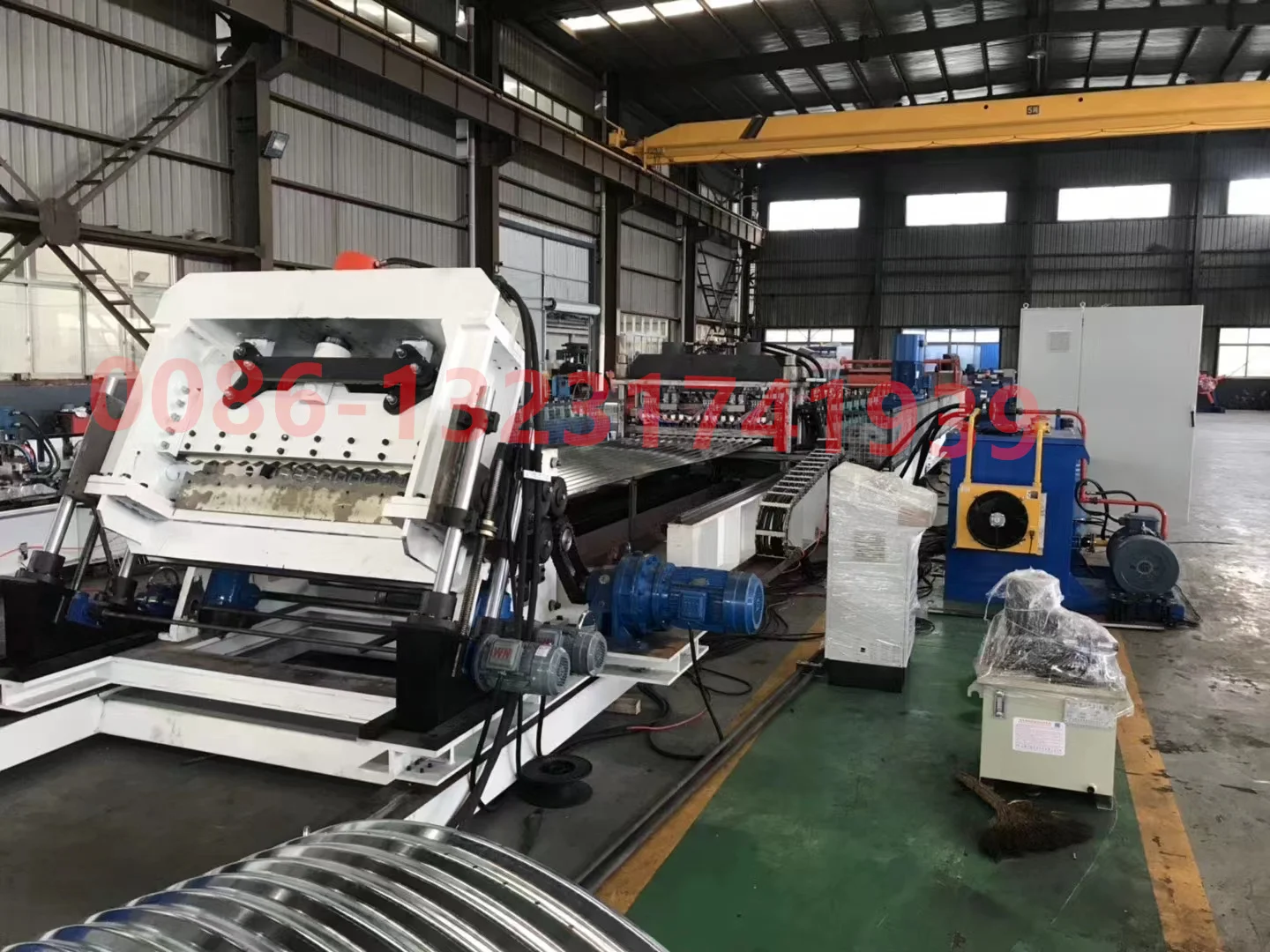

3 Axis Automatic Bending part

Bending arc computer PLC automatic type change, 3-axis form, equipped with 2 * 5-ton lifts.
Suitable for curving your 1.2 mm galvanized material

Inside Type Motor And Hydraulic Pump Station

1. main motor power:11 kw
2. Hydraulic motor power:5.5 kw

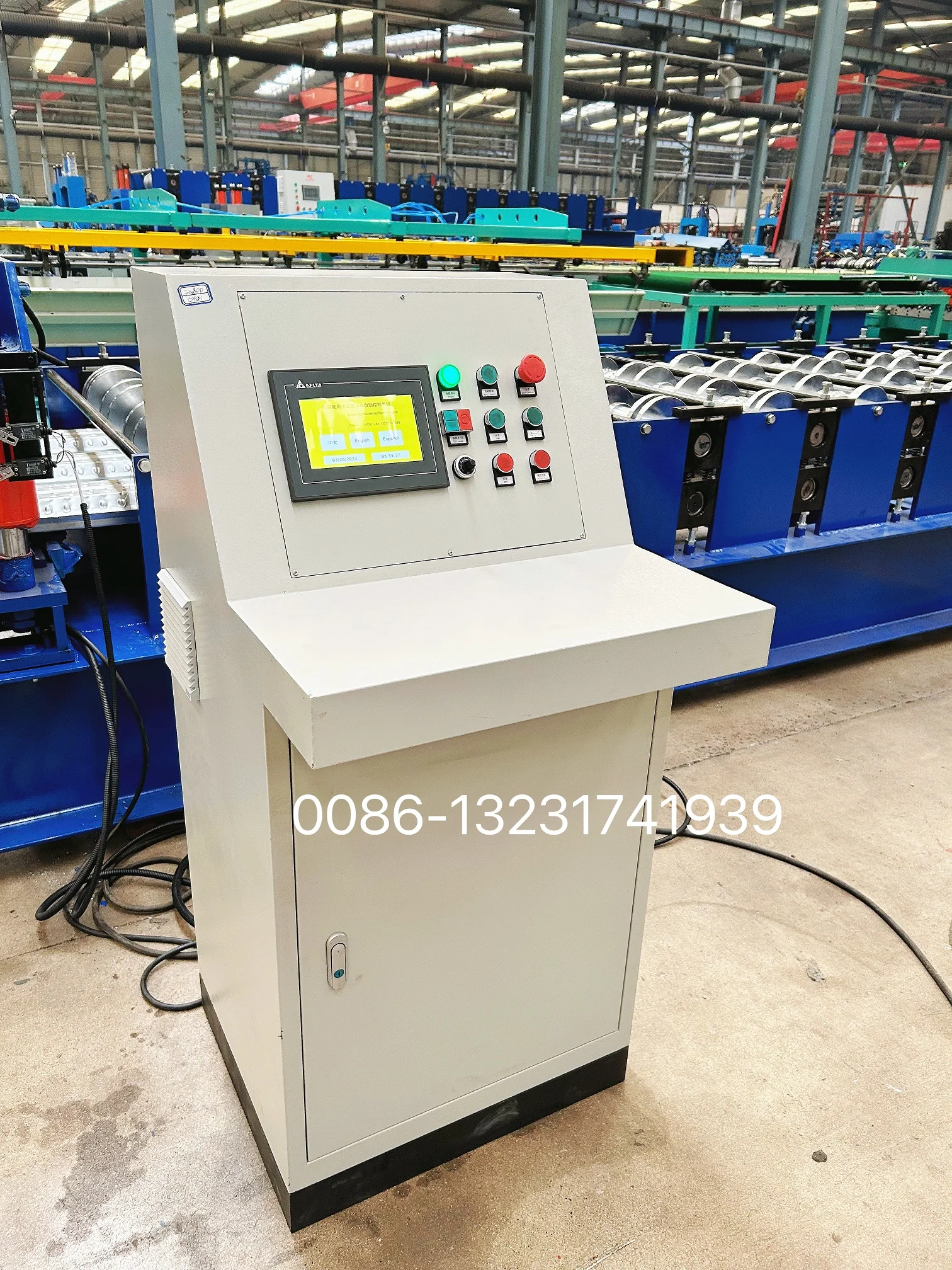

electric control cabinet

 The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Lengthmeasurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:415V, 3 Phases 50Hz （ voltage can becustomized as your needed)

Automatic Hydraulic Cutter

1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. 2.Power supply: 5.5kw hydraulic pump station 3.Frame: 400H beam welding 4.Stroke switch: non-contact photoelectric switch 5.Cut : cut the sheet after roll forming to required length 6.Length measuring: automatic length measuring 7. Blade material:Cr12 material with finishing

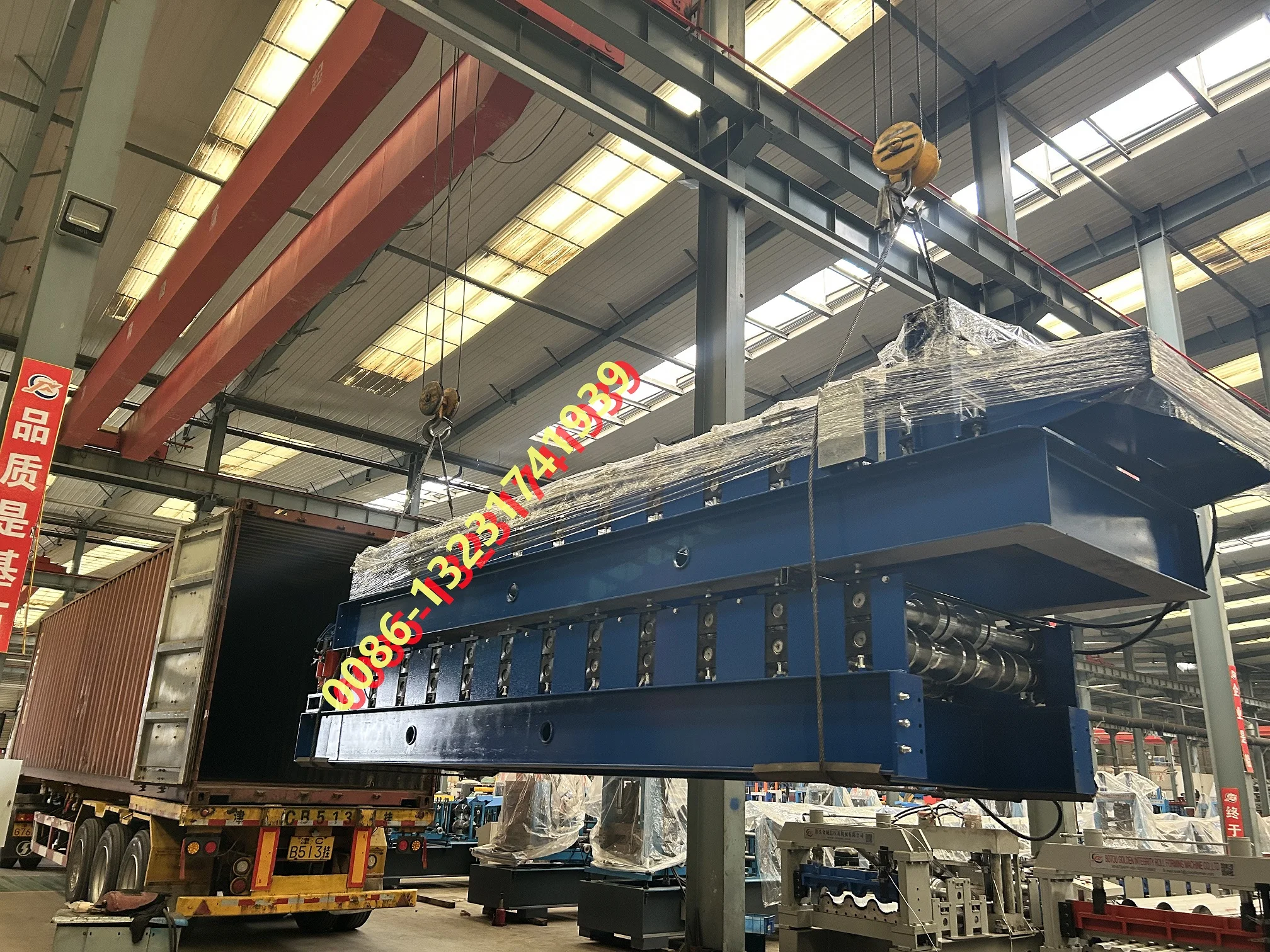

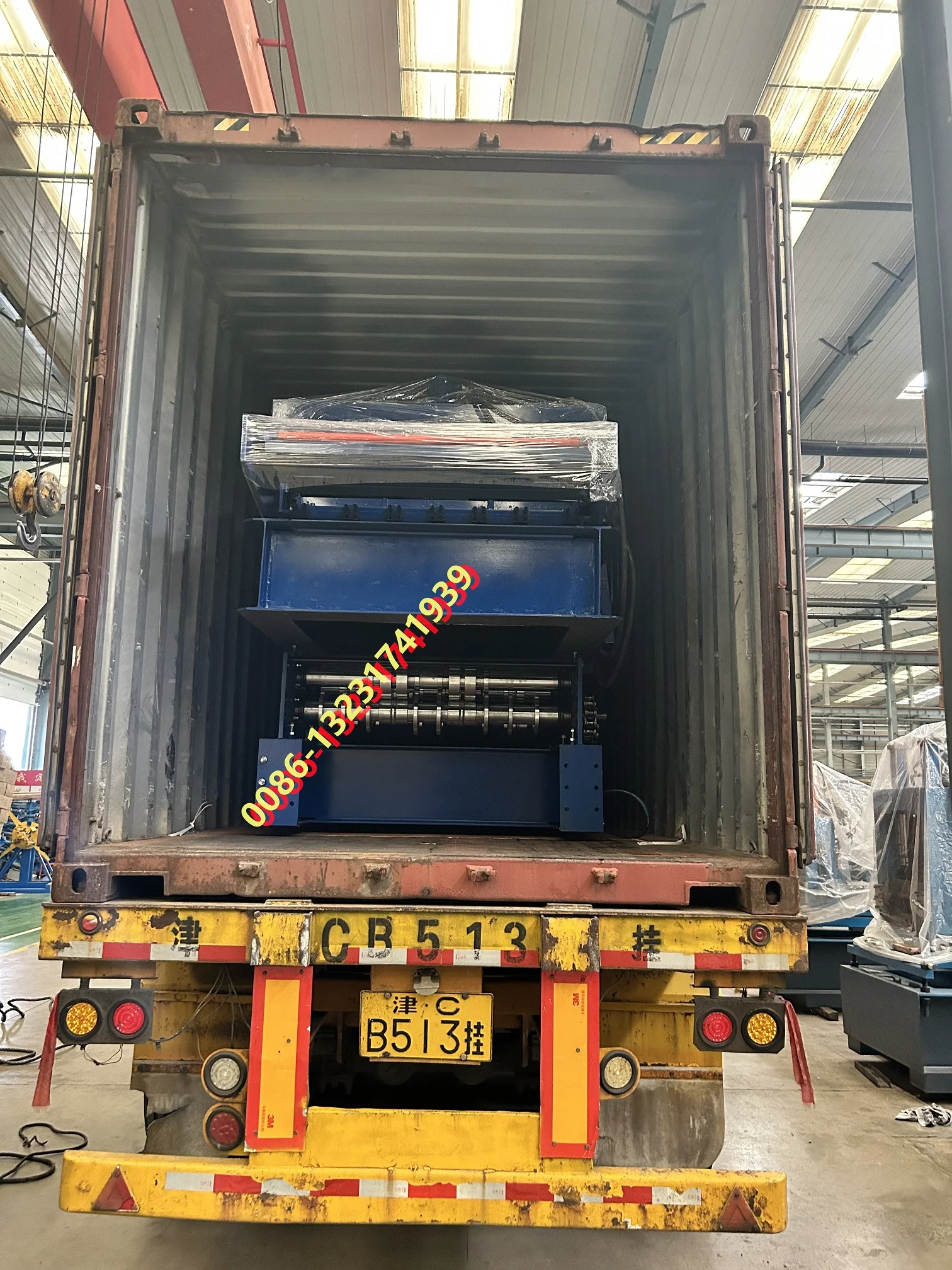

Product packaging

SALES AND SERVICE NETWORK

Successful Project

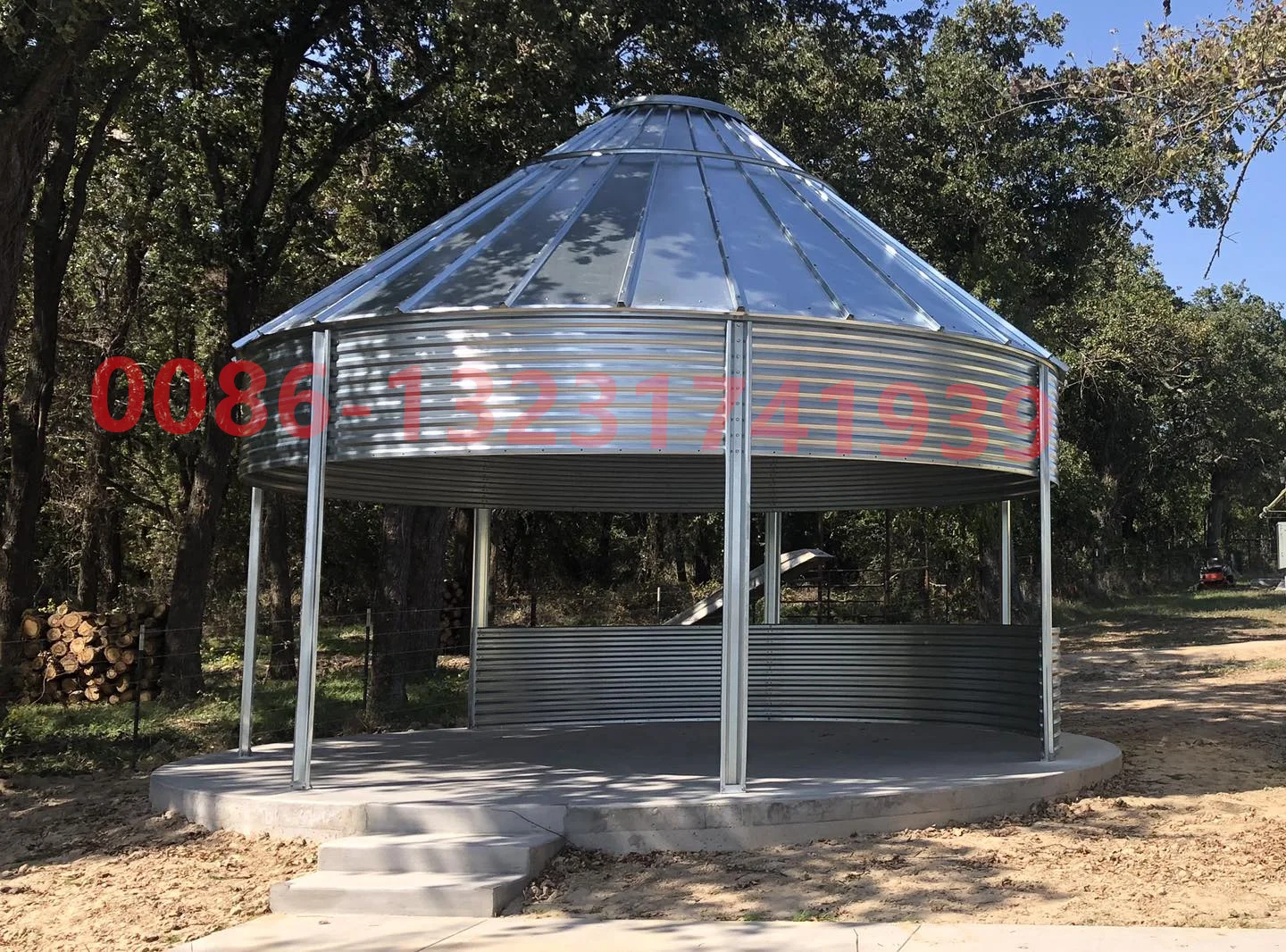

Water tank Projectin UK
