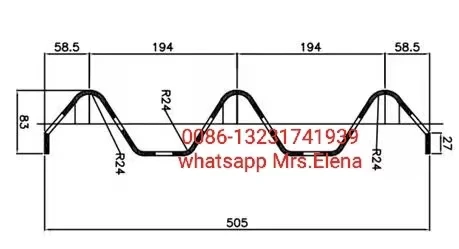

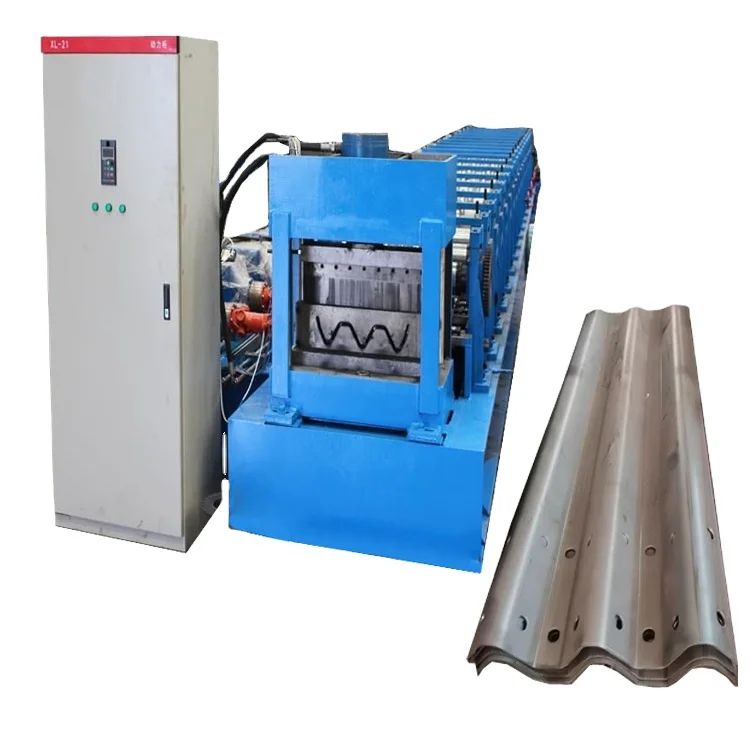

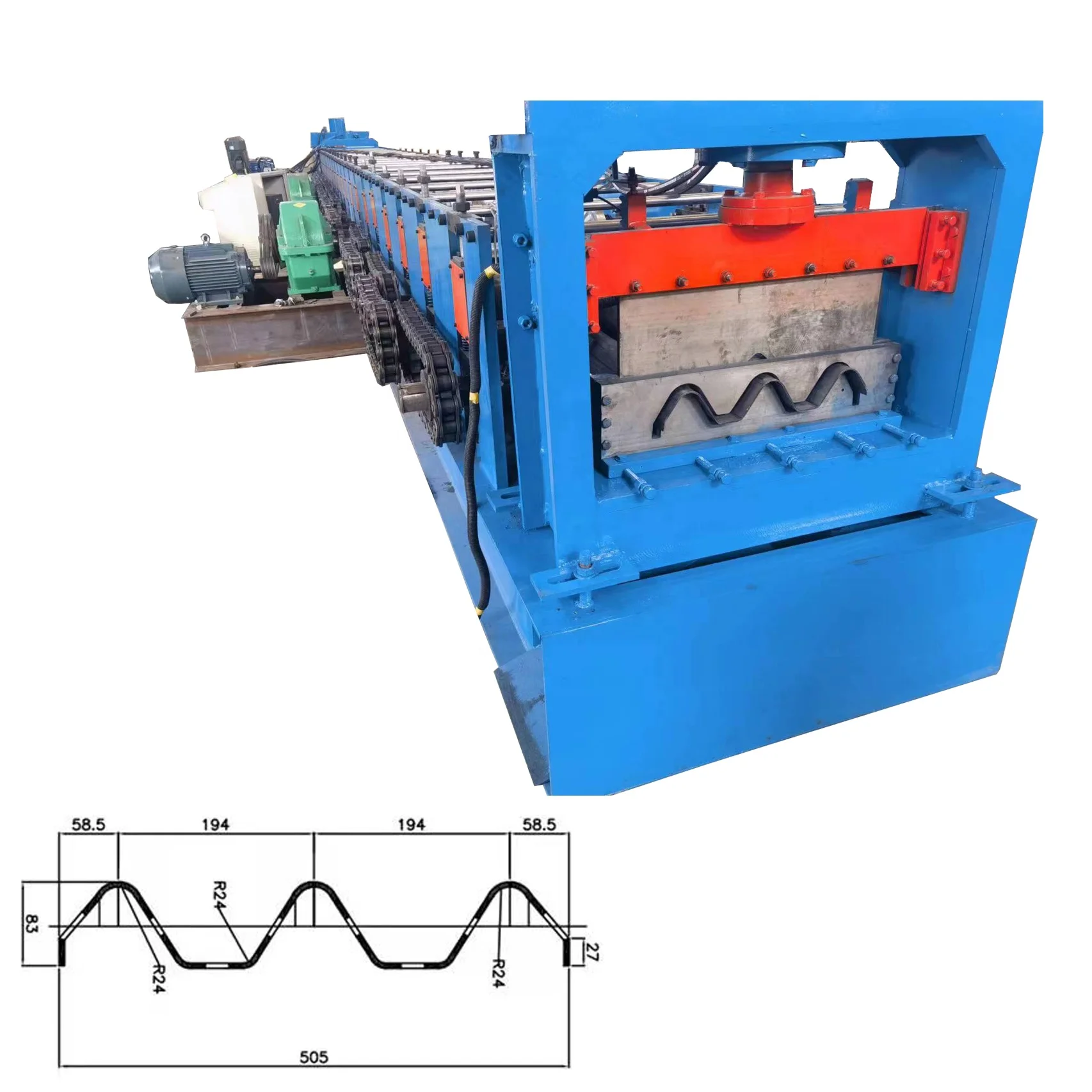

3 waves highway guardrail roll forming machine

High-speed guardrail equipment-automatic high-speed guardrail forming equipment

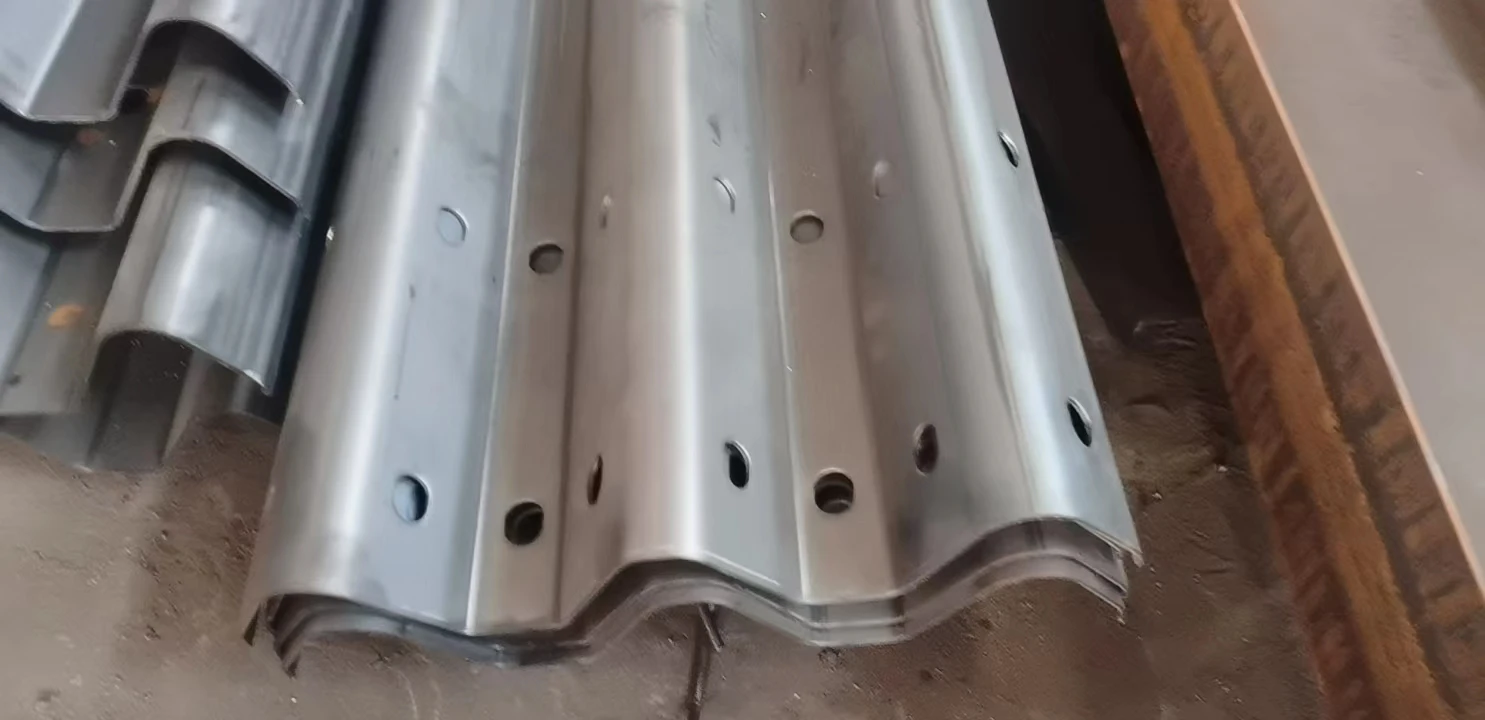

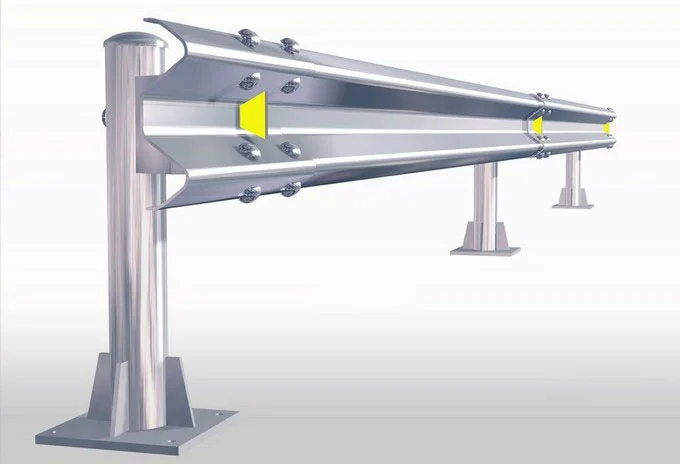

1. The high-speed corrugated guardrail is the main form of the semi-rigid guardrail. It is a continuous structure that is spliced with corrugated steel guardrails and supported by columns.

2. It uses the deformation of the soil foundation, columns, and beams to absorb the collision energy, and forces the out-of-control vehicle to change direction and return to the normal driving direction to prevent the vehicle from rushing out of the road, so as to protect the vehicle and passengers and reduce the loss caused by the accident.

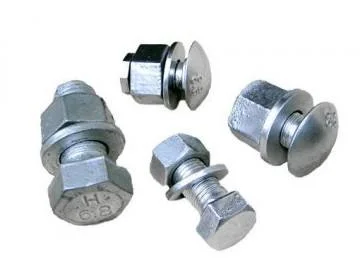

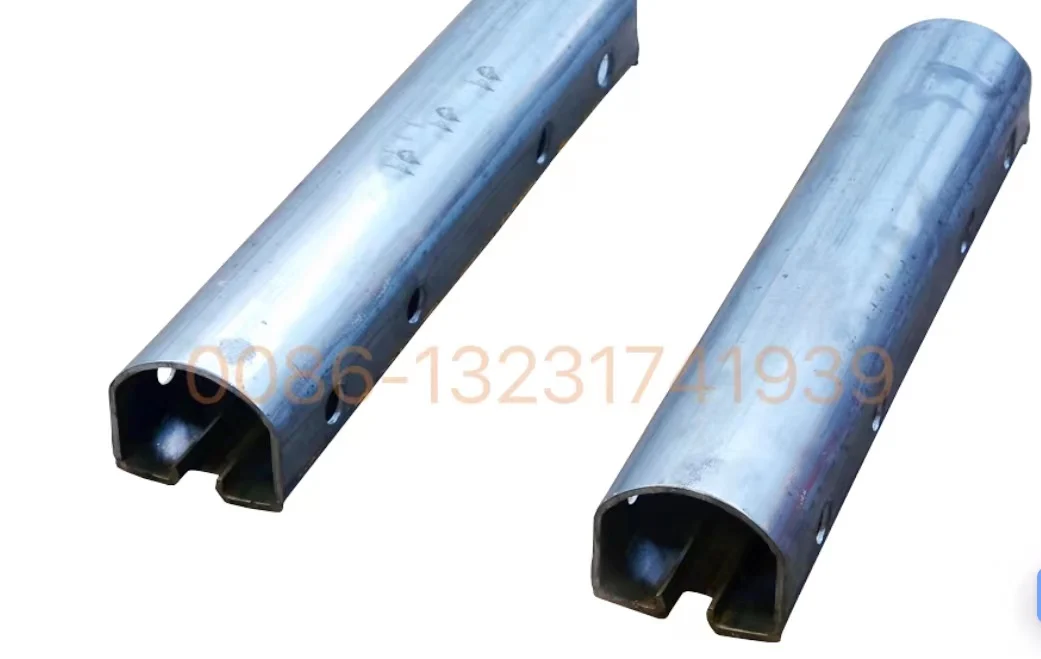

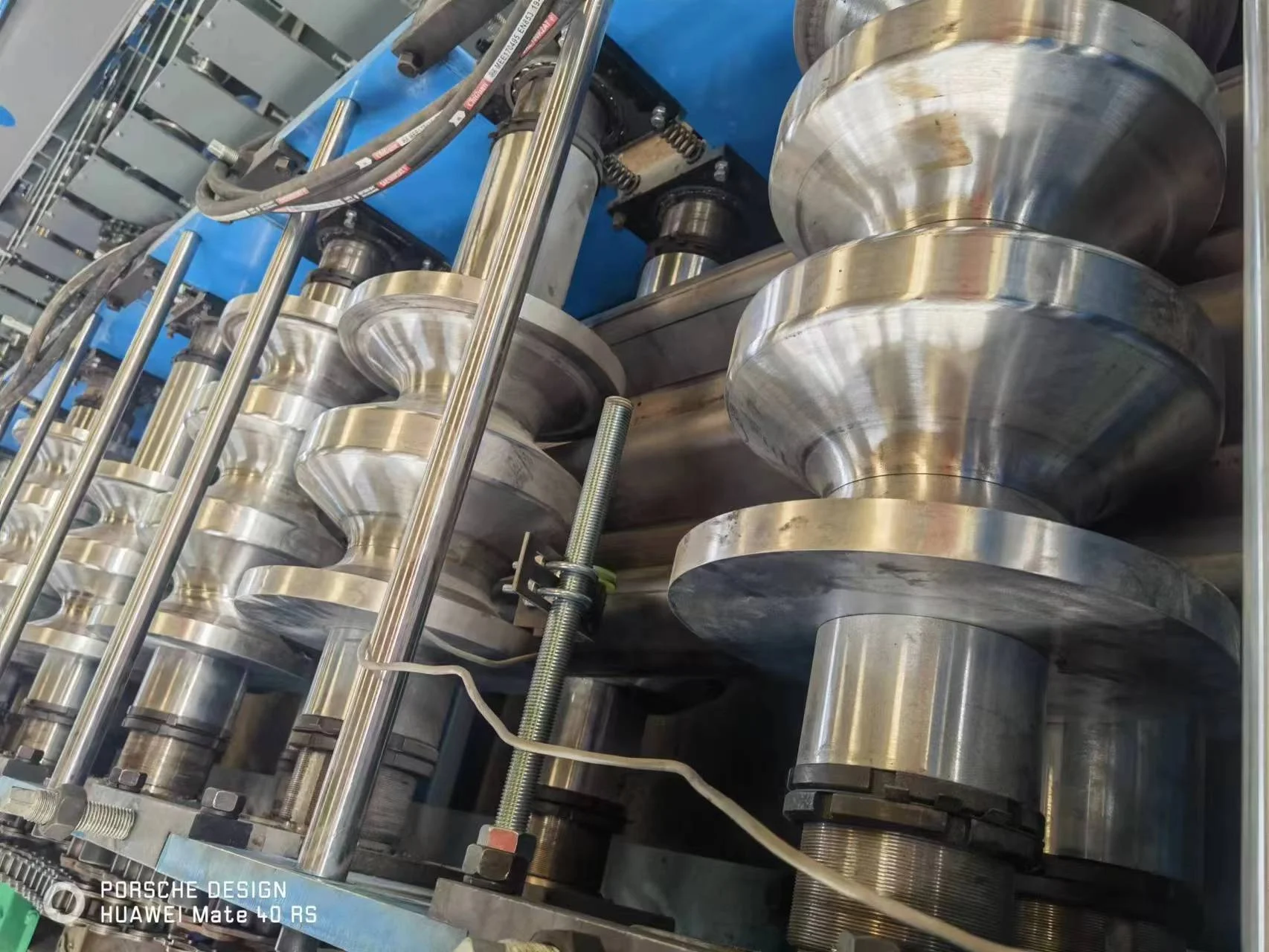

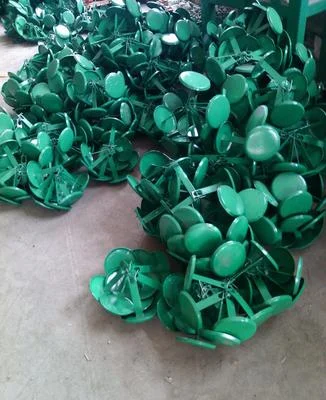

3. The corrugated beam guardrail is soft and soft, has a strong ability to absorb collision energy, has a good line of sight induction function, can be coordinated with the road alignment, and has a beautiful appearance. It can be used on small radius curves, and the damaged part is easy to replace. . High-speed guardrail equipment generally uses standard specifications and strictly follows the standard requirements. Highway guardrails and supporting facilities mainly include: Guardrails, columns, column caps, anti-blocking blocks/brackets, connecting bolts, splicing bolts, beam spacers, ends. Parameters of high-speed guardrail forming equipment: · Material thickness: 2.7～4.5mm · Forming passes: 20 forming passes · Molding speed: 8-18 m/min Drive mode: motor drive, gear chain drive, gearbox drive optional Motor power: optional according to the thickness of the plate, frequency conversion speed regulation · Cutter material: made of Cr12Mov heat treatment · Machine base specifications: optional H steel 450, integral square box base, 150*150 square tube base

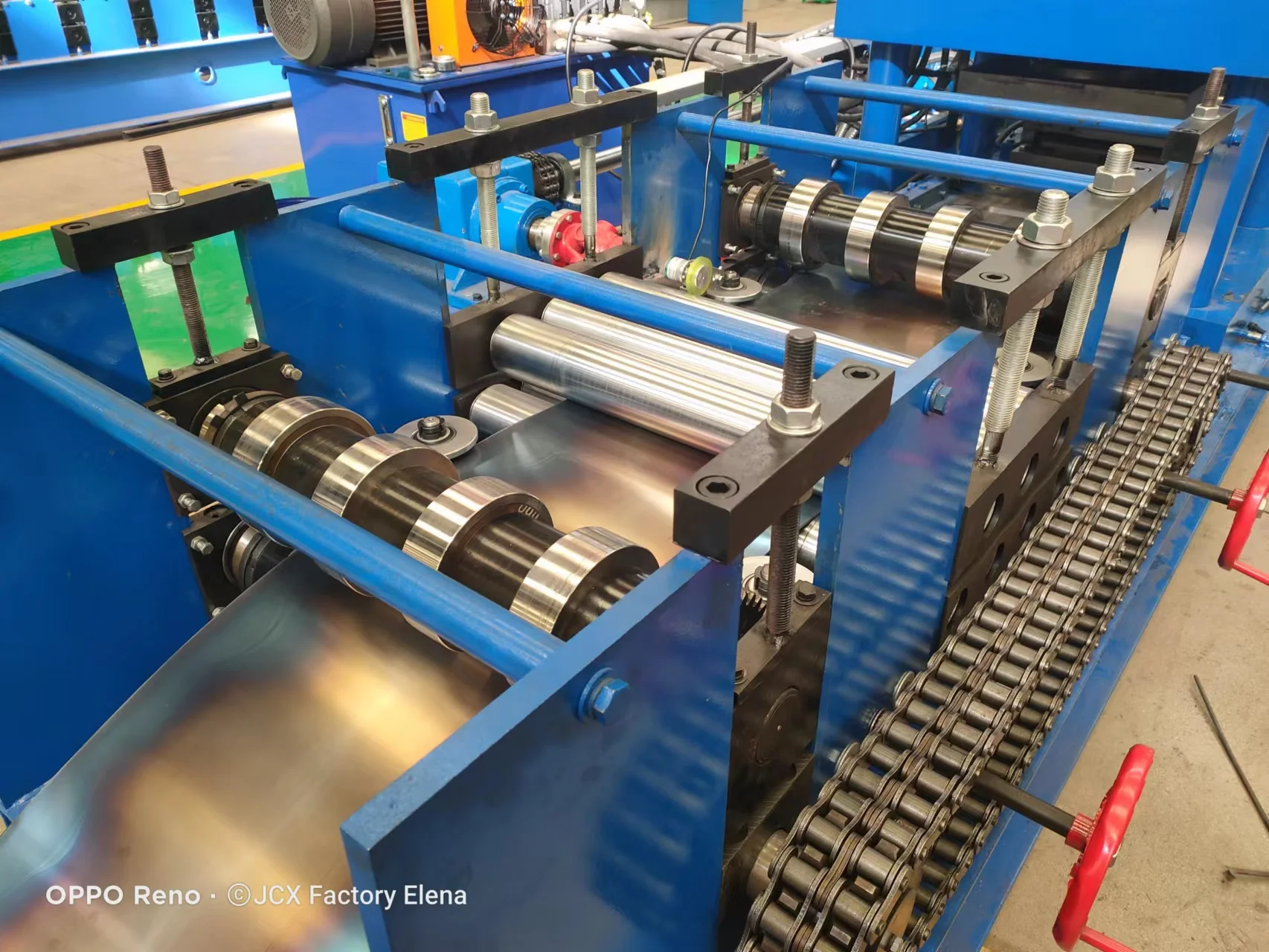

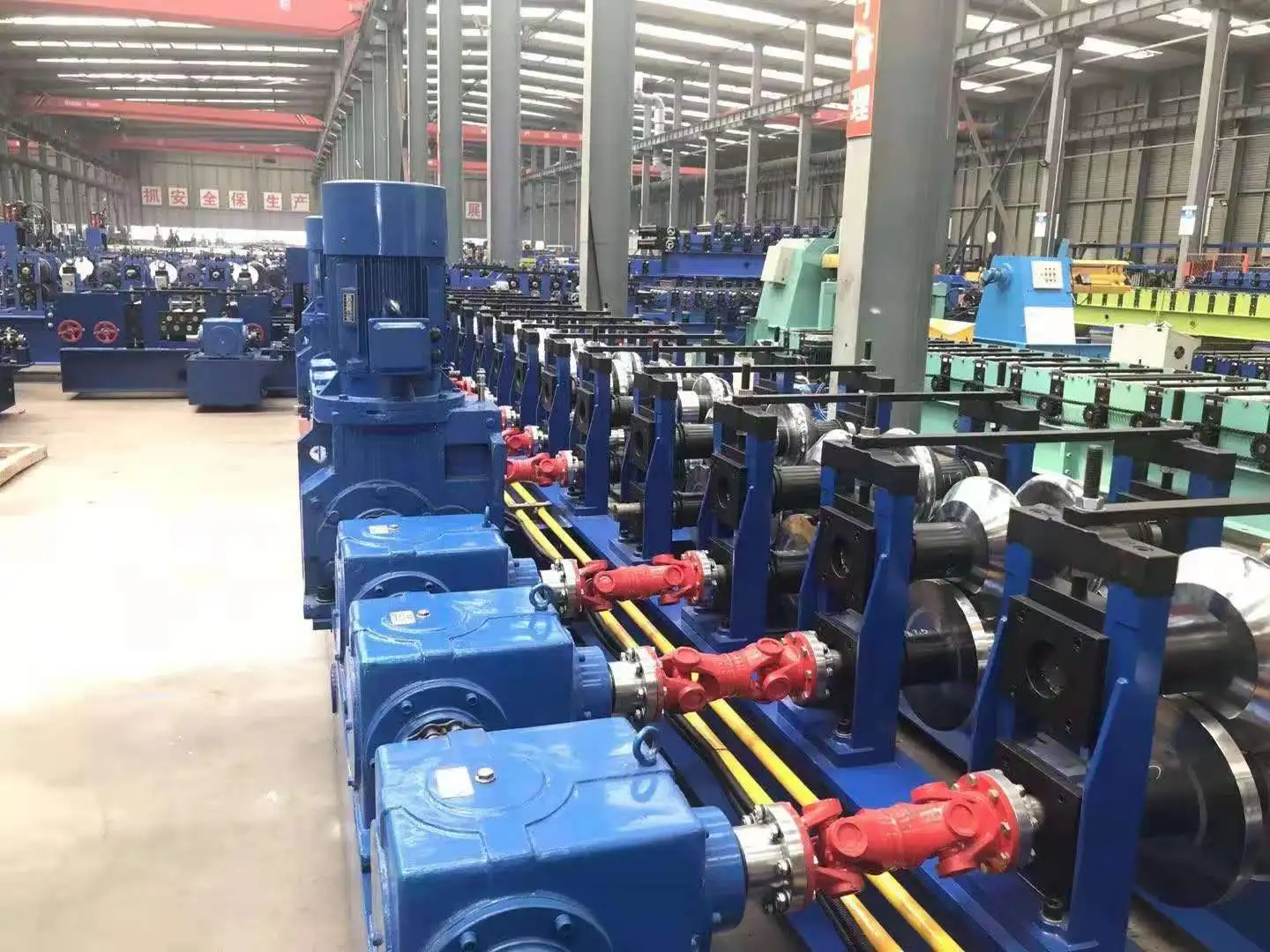

transmission and machine stands:

Automatic hydraulic cutting

Hydraulic decoiler

1. Host volume: length 2.4 meters, width 1.55 meters, height 1.75 meters

2. Host weight: about 1.3 ton

3. Hydraulic pumping station: 5 solenoid valve pumping stations (the pump valve is Beijing Huade brand), power 3kw 380V

4. C-shaped steel: no power, passive feeding, hydraulic tensioning

5. Frame body: the base is made of 80*160*5 square tube, and the box body is welded with 12mm thick steel plate

6. Main shaft for supporting material: thick-walled seamless steel pipe is machined, and the shaft diameter is 133*25mm

7. Feeding width: 0-650mm

8. Inner diameter of steel coil: 470-700mm, ±20mm

9. The rated load capacity is within 5 tons

10. Hydraulic cylinder: expansion cylinder bore diameter 110mm, 1 piece (plus rotation)

11. Hydraulic pressing arm (Jinda) advantage:

1) The load-bearing spindle is made of high-strength, fatigue-resistant rear wall seamless steel, which is processed by turning, with strong strength and heavy bearing.

2) The roll up adopts hydraulic control, which is convenient, fast and stable.

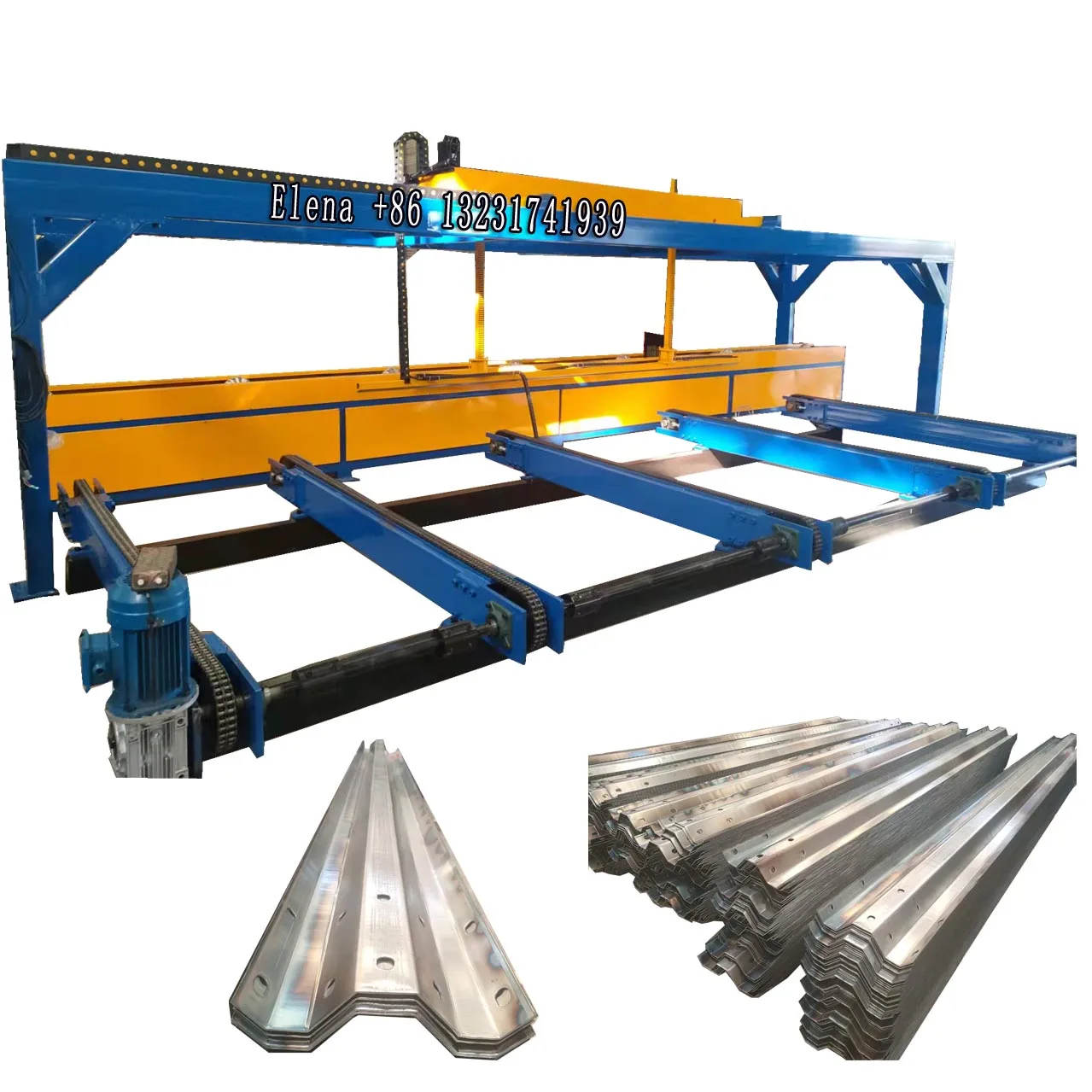

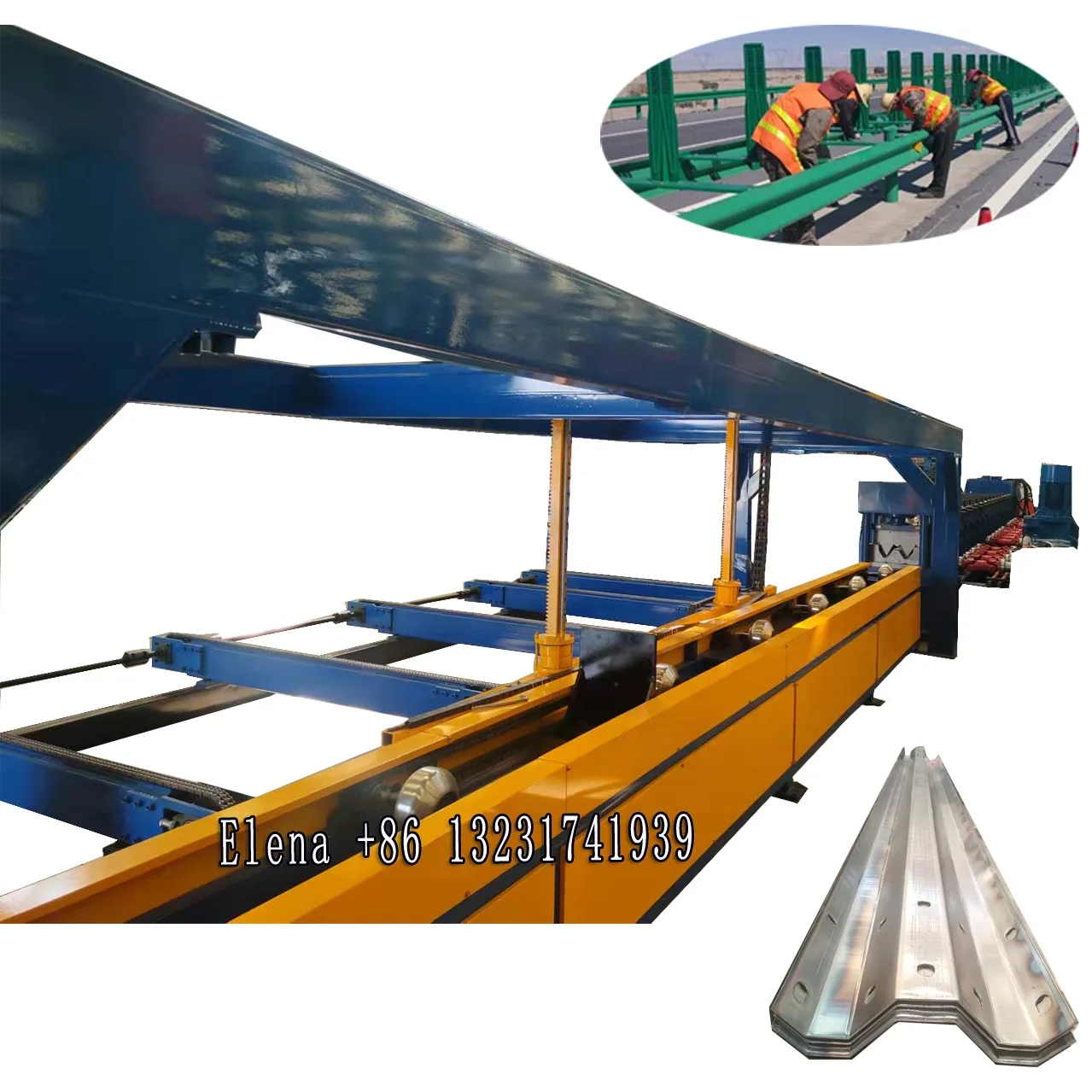

Automatic guardrail stacker

Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.

Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.

Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.

Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .

Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.

Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.

Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
