Standing seam machine automatic curving machine

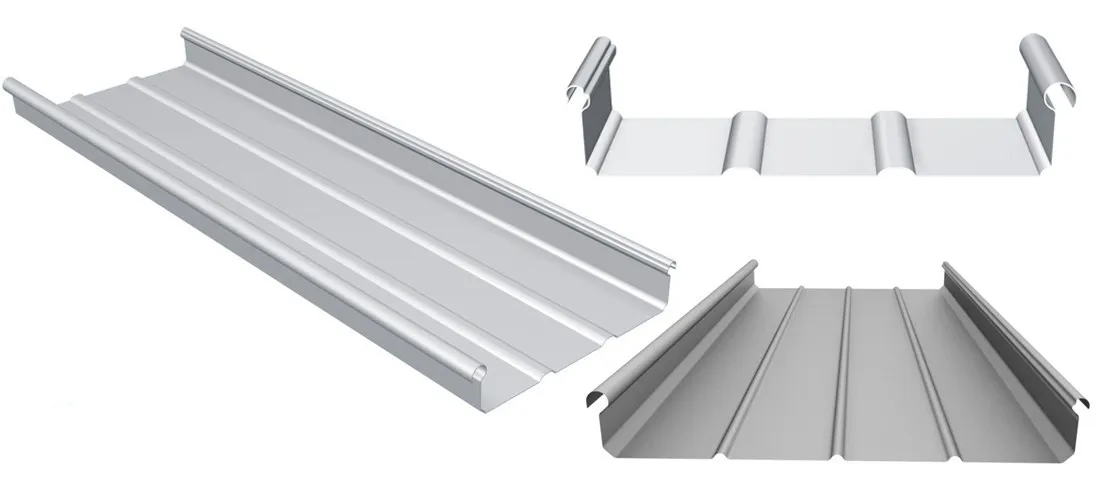

YX65 300～600 bemo sheets (straight plate & with large and small head) roll bender is a curving machine commonly used for bending of aluminum-magnesium-manganese bemo standing seam roofing sheets . ..

TEL : +86 13231741939

DETAILS

Product Overview

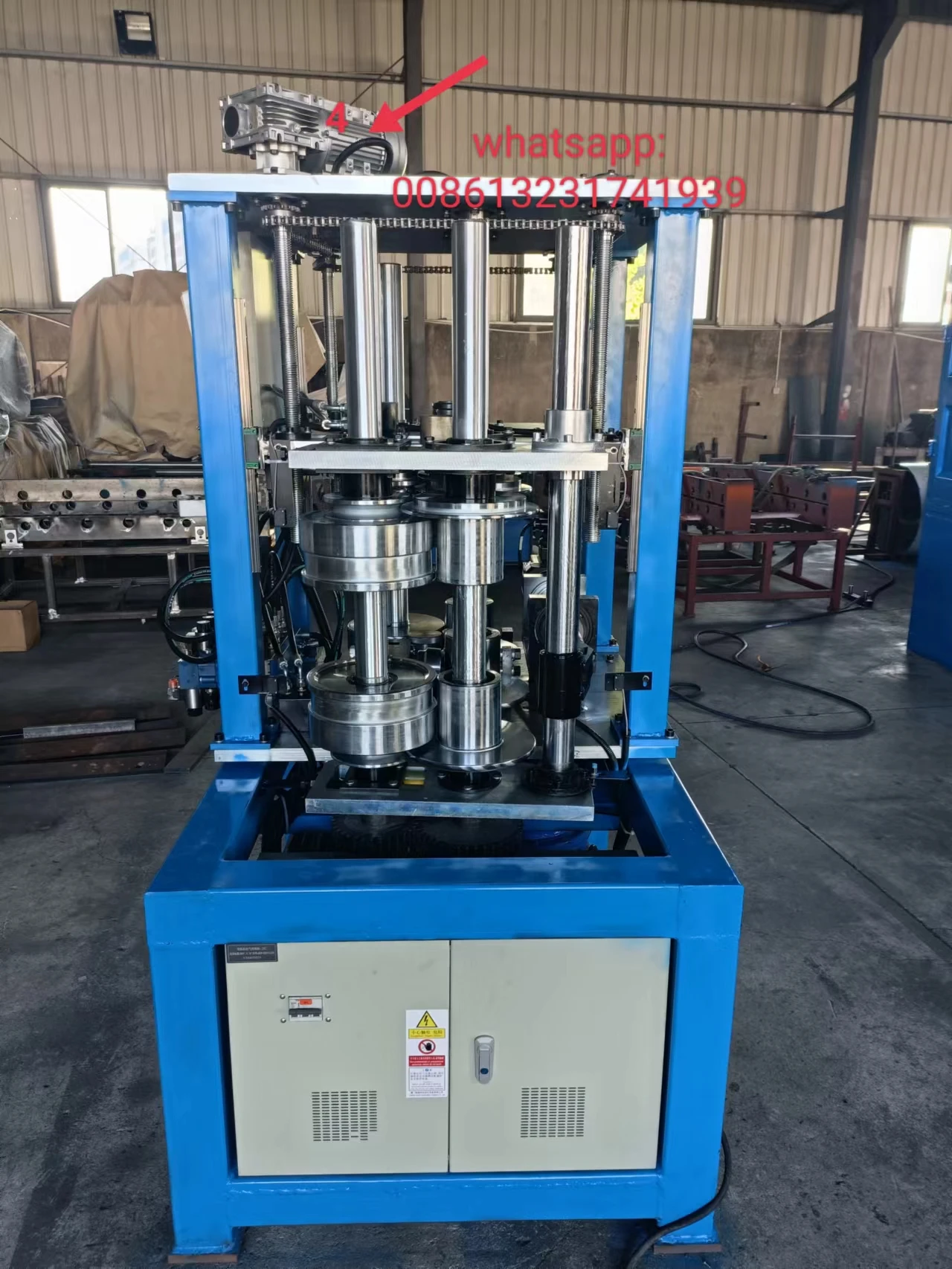

YX65-330/430/580 Standing Seam Roll Forming Machine Curving Machine

FEATURES AT A GLANCE

00:0000:34

PRODUCT SPECIFICATIONS

MACHINE COMPONENTS

NO. Description Quantity (set) 1 3 stations 1 2 motor 4 4 Transmission system 1 5 Hydraulic pump station 1 6 Control box 1 7 Spare parts and tools 1 8 electric seamer1

No	Item	Data	Note
1	raw material	PPGI/Aluminum thickness
2	raw material thickness	Steel sheet : 0.8-1.0mm Aluminum: 0.6-1.2mm

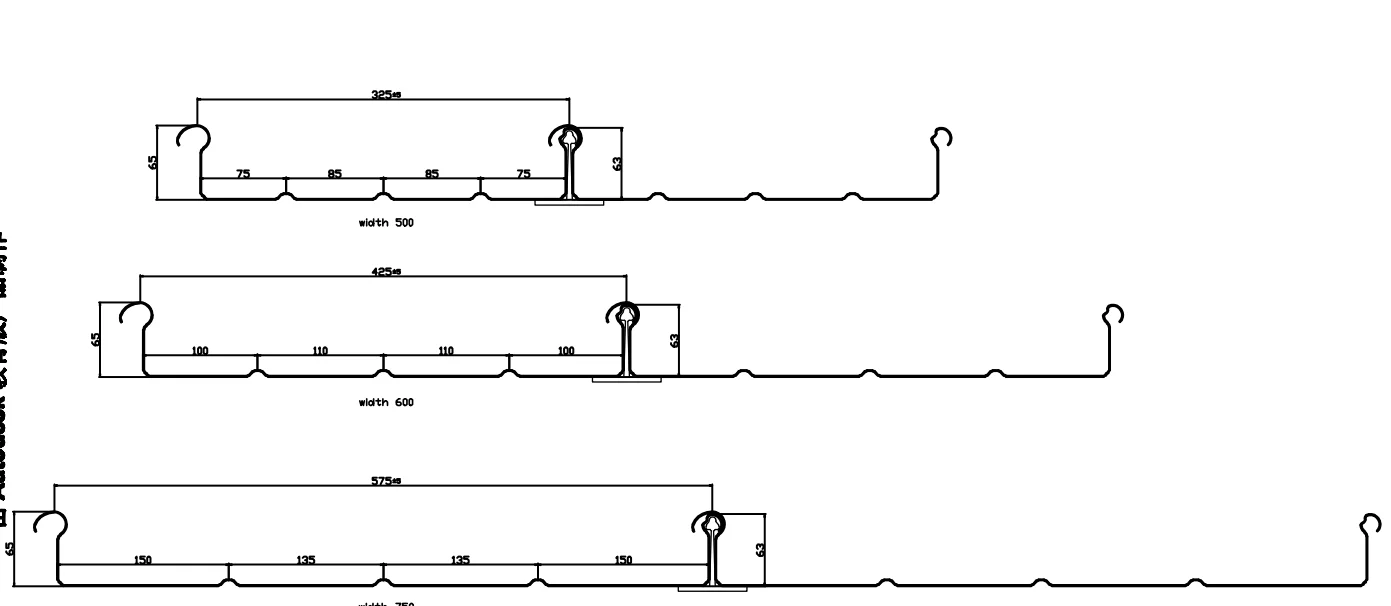

3	Maximum. And Minimum Curve Effective Width	250mm-600mm	can customzied the bottom width,too. If you need , welcome to connect Ms.Elena 0086-13231741939
4	sheeet height	65mm	can customized . Any requests , welcome to connect Ms.Elena 0086-13231741939
5	machine forming station	3
6	machine power	Transmission Motor :7.5kw; Hydraulic pump station motor power:2.2kw ; Mould Changeable Motor power:0.55kw; Curving Motor power: 2kw servo motor	12.25kw.h
7	machine speed	25m/min	we can do 20m/min higher speed machine.If you need , welcome to connect Ms.Elena 0086-13231741939
8	machine transmission way	1 inches chain
9	shaft diameter and material	65mm solid shafts	45 # steel finishing and the surface is plated with hard chrome and then brushed and polished
10	roller material	The middle hydraulic roller CR12, finished after heat treatment, the guide wheel is finished with 45# steel, and the surface is plated with hard chrome	standard type
11	base frame material	80*80 Square Tube	can customize other base frame type. . If you need , welcome to connect Ms.Elena 0086-13231741939
12	Blade material	CR12MOV，Turning，Quenching（hardness reaches international standard 58-62°），fine grinding and fine turning
13	machine stands thickness	28mm
14	Length counting method	OMRON (JAPAN ) brand encoder
15	Electric Control brands	XINJIE PLC/touch screen/inverter or DELTA PLC/touch screen/inverter	can do other brands as clients' requests
16	inimum Positive Arc Radius	Minimum steel plate 8000mm (0.8 thickness); 5000mm (1.0 thickness) aluminum plate 8000mm (0.6 thickness);5000mm (0.8 thickness) 3000mm (1.0 thickness) 2500mm (1.2 thickness)
17	Minimum Negative Arc Radius	5 meters
18	Voltage	380V,50HZ,3 Phases	voltage can be customzied as clients' request. Any requests , welcome to connect Ms.Elena 0086-13231741939
19	Positive And Negative Arc	20 continuous arcs with different radius on the same sheet
20	machine size	L1.5W1.5H2.2m

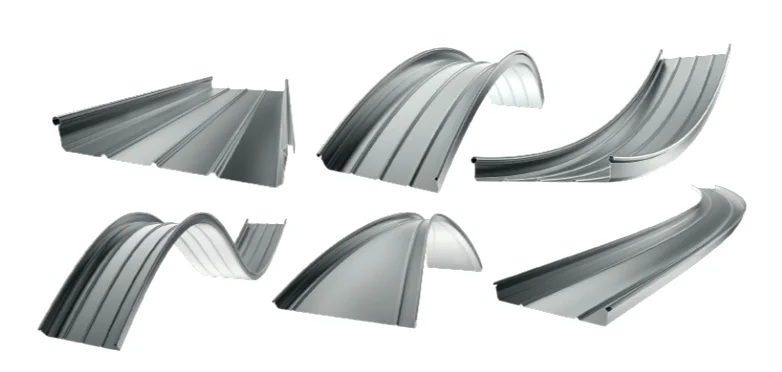

21	Fan-shaped arc	Using the method of separating the curved arc up and down; The fan-shaped arc can also be continuously arcs on the same sheet

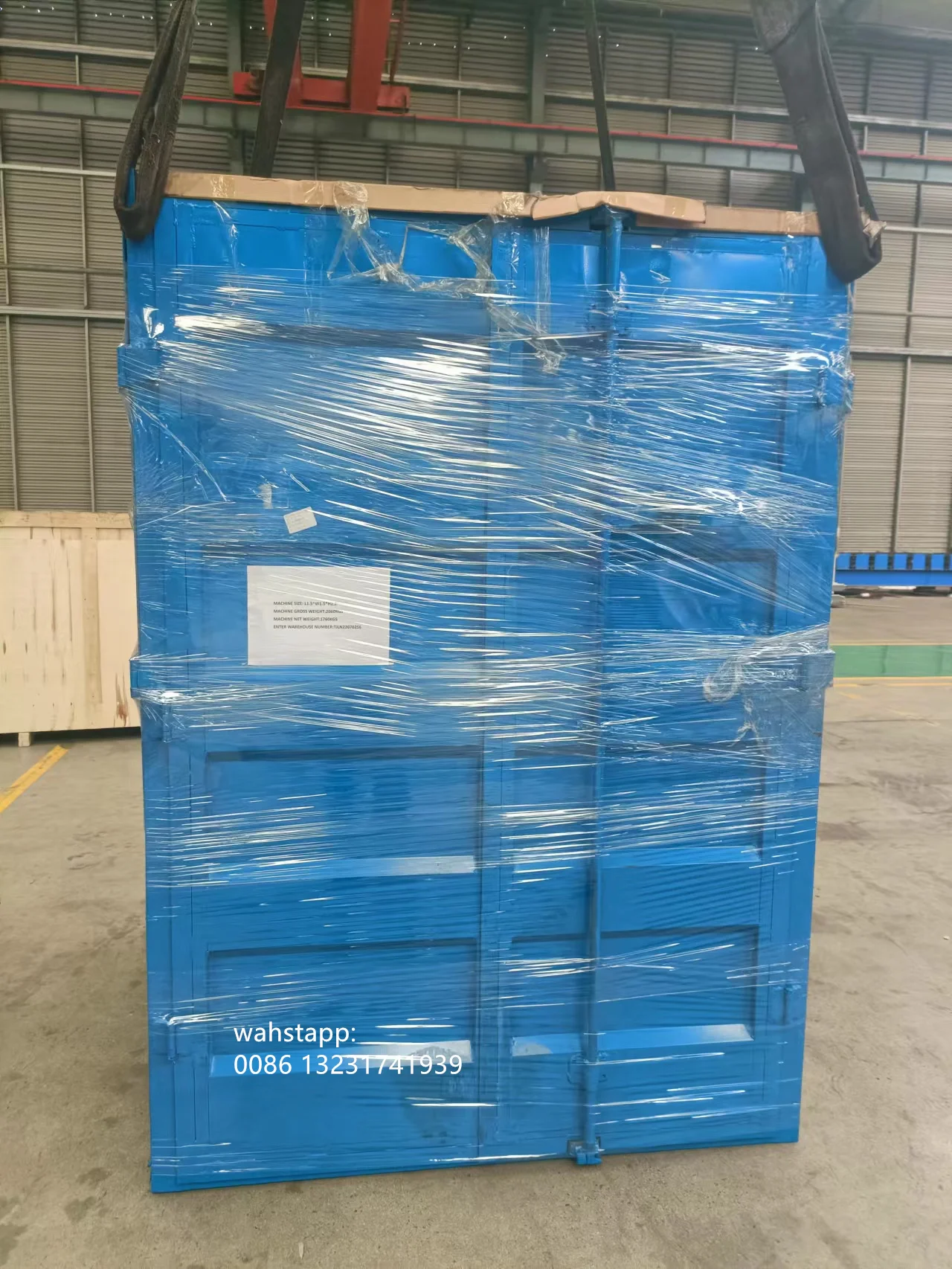

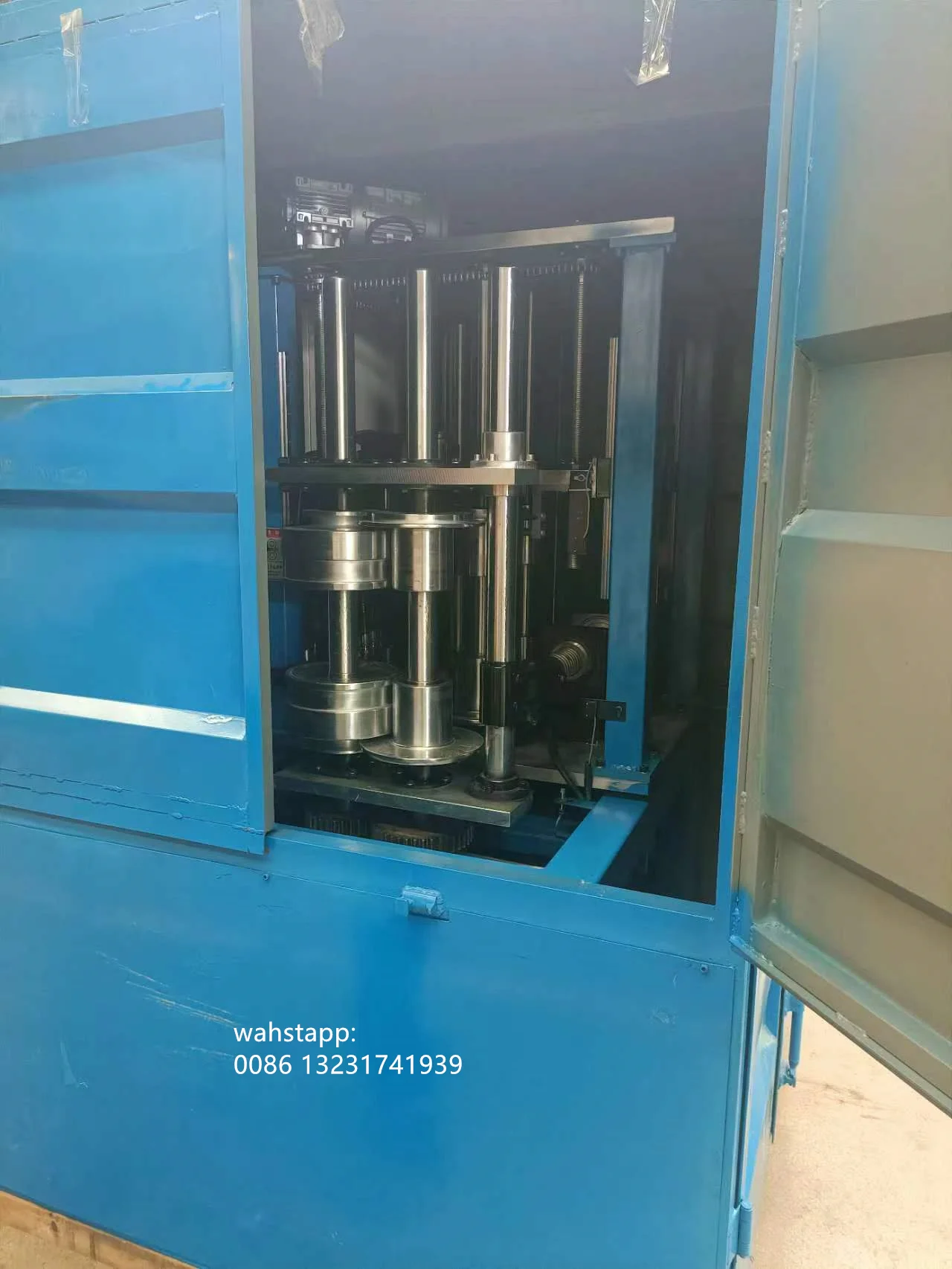

22	Package Method	With Small Iron Container ,more convenient to produce at any site
23	machine weight	2200KGS

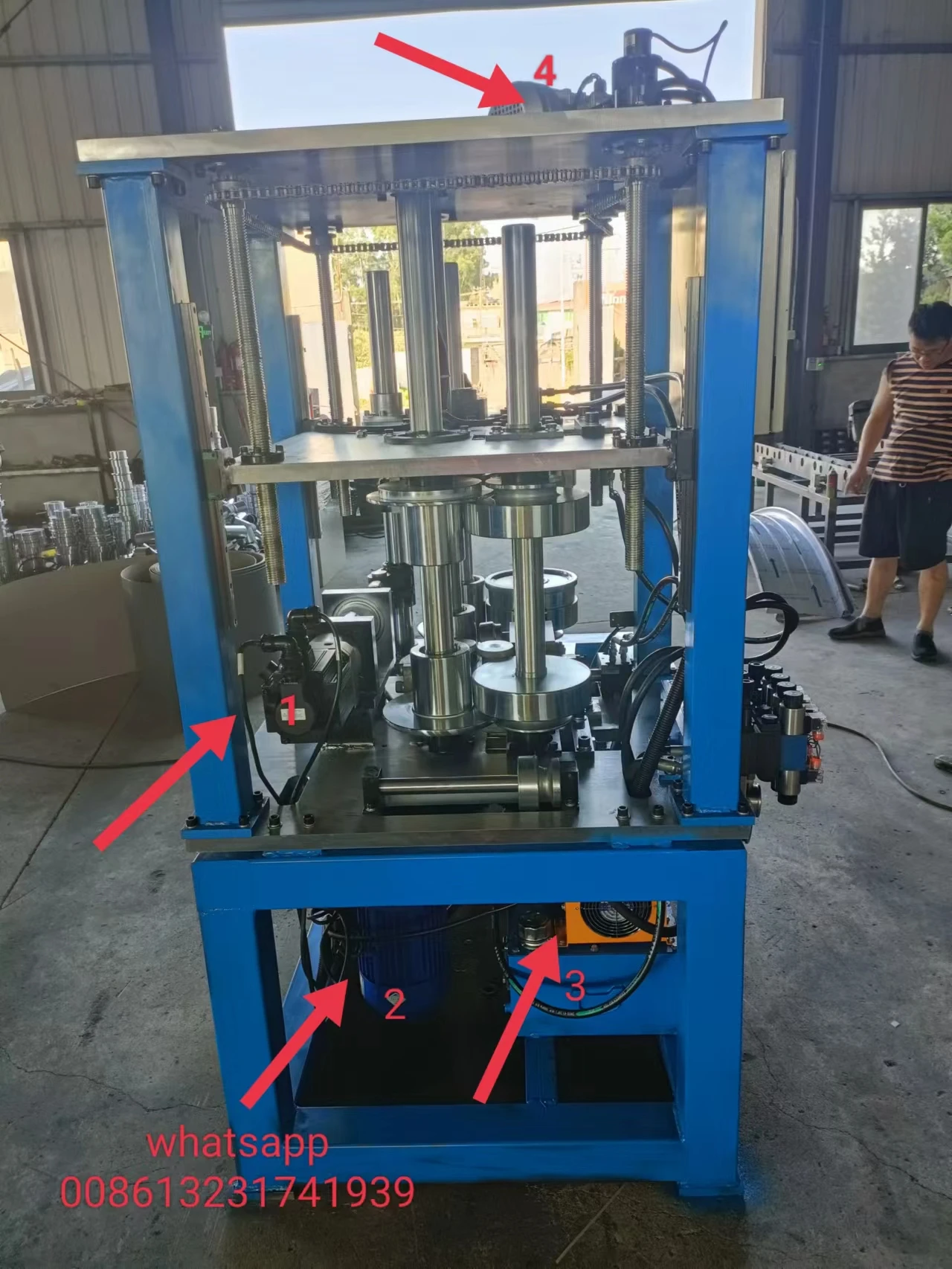

PRODUCT CONFIGURATION

motors：

1: machine curving rollers adjustable servo motor :2kw

2: machine main drive motor:7.5kw

3: pump station motor :2.2kw

4. machine bottom width changeable motor: 0.55kw

Forming rollers:

1 +3: bottom width rollers

2: rolled rollers

3: curving and bottom width rollers

motor No.4 :

machine bottom width changeable motor: 0.55kw

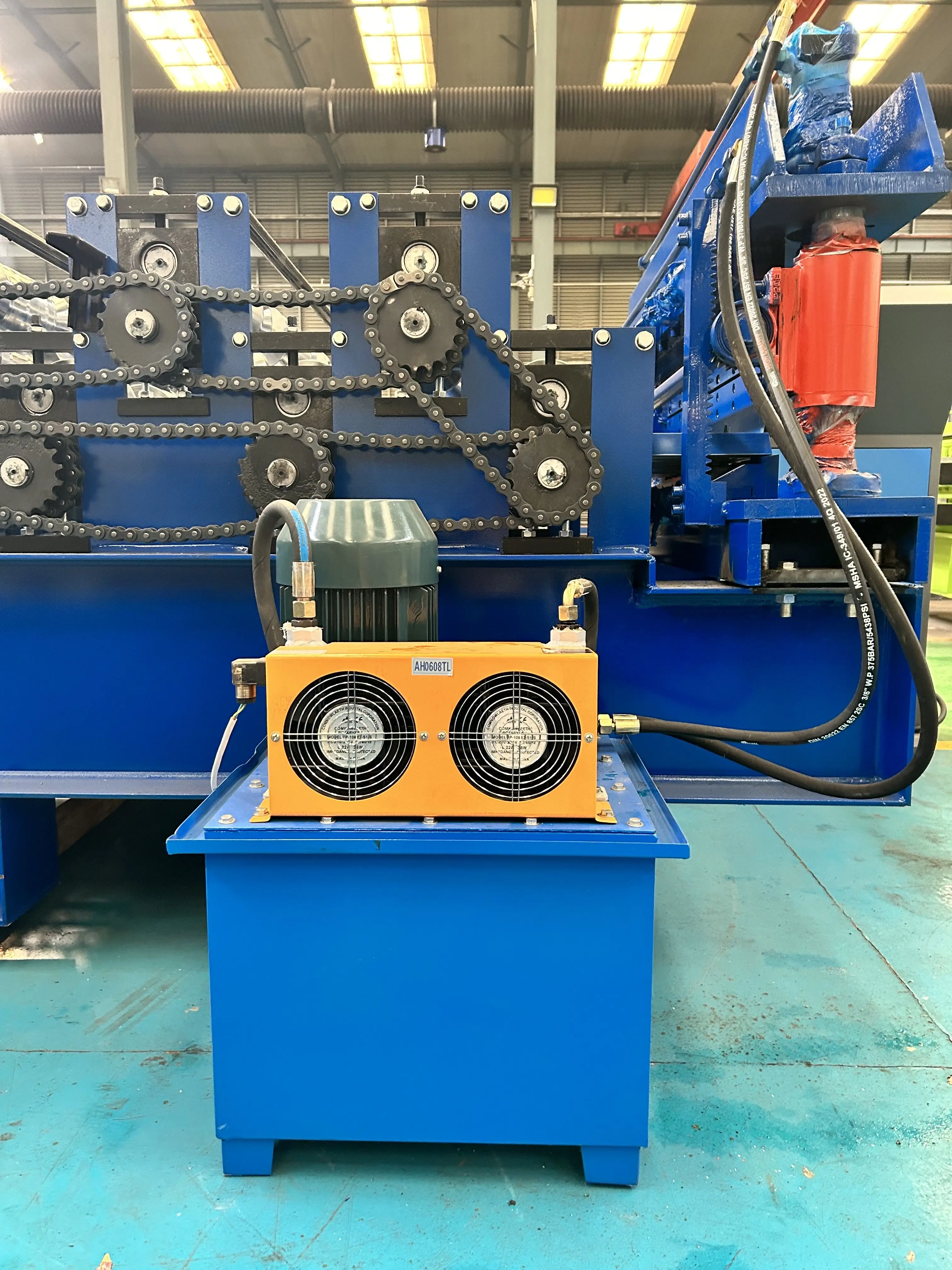

Hydraulic pump station and motor :

2.2kw hydraulic pump station with cooling fan which can redece the oil temperature when machine working

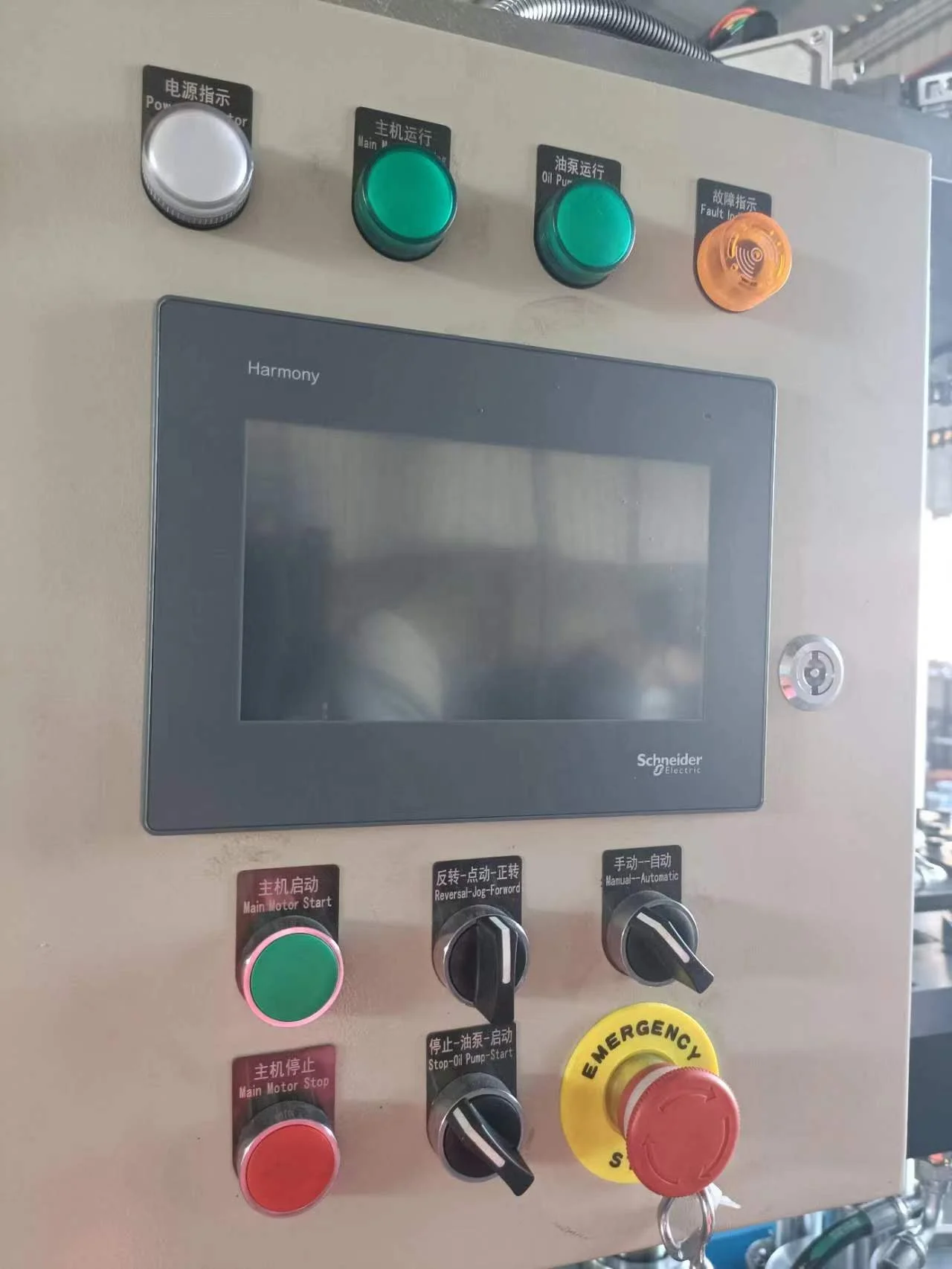

electric control cabinet
Schneider brand

SALES AND SERVICE NETWORK

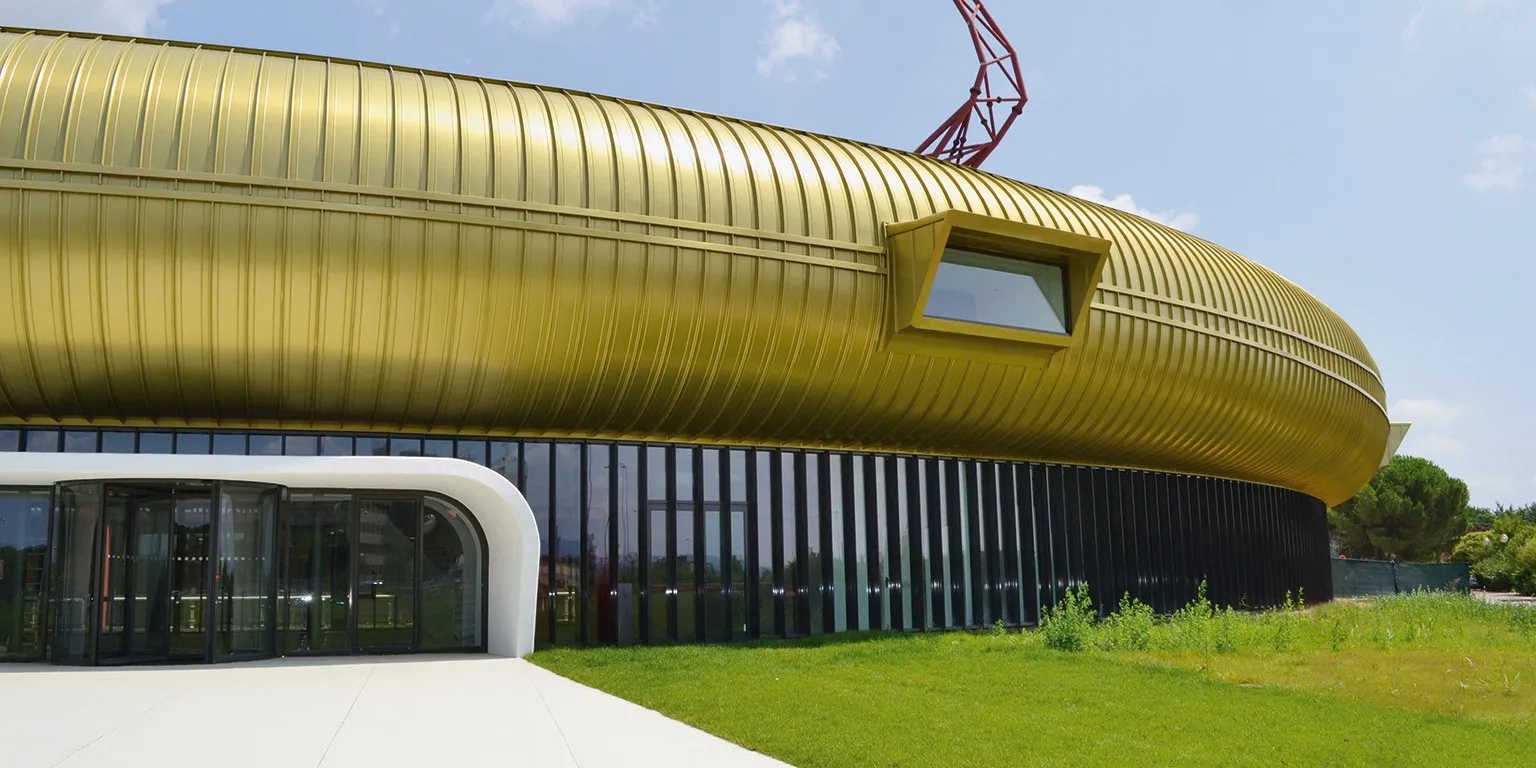

Successful Project

Projectin USA

Project in RUSSIA

Project in ALGERIA

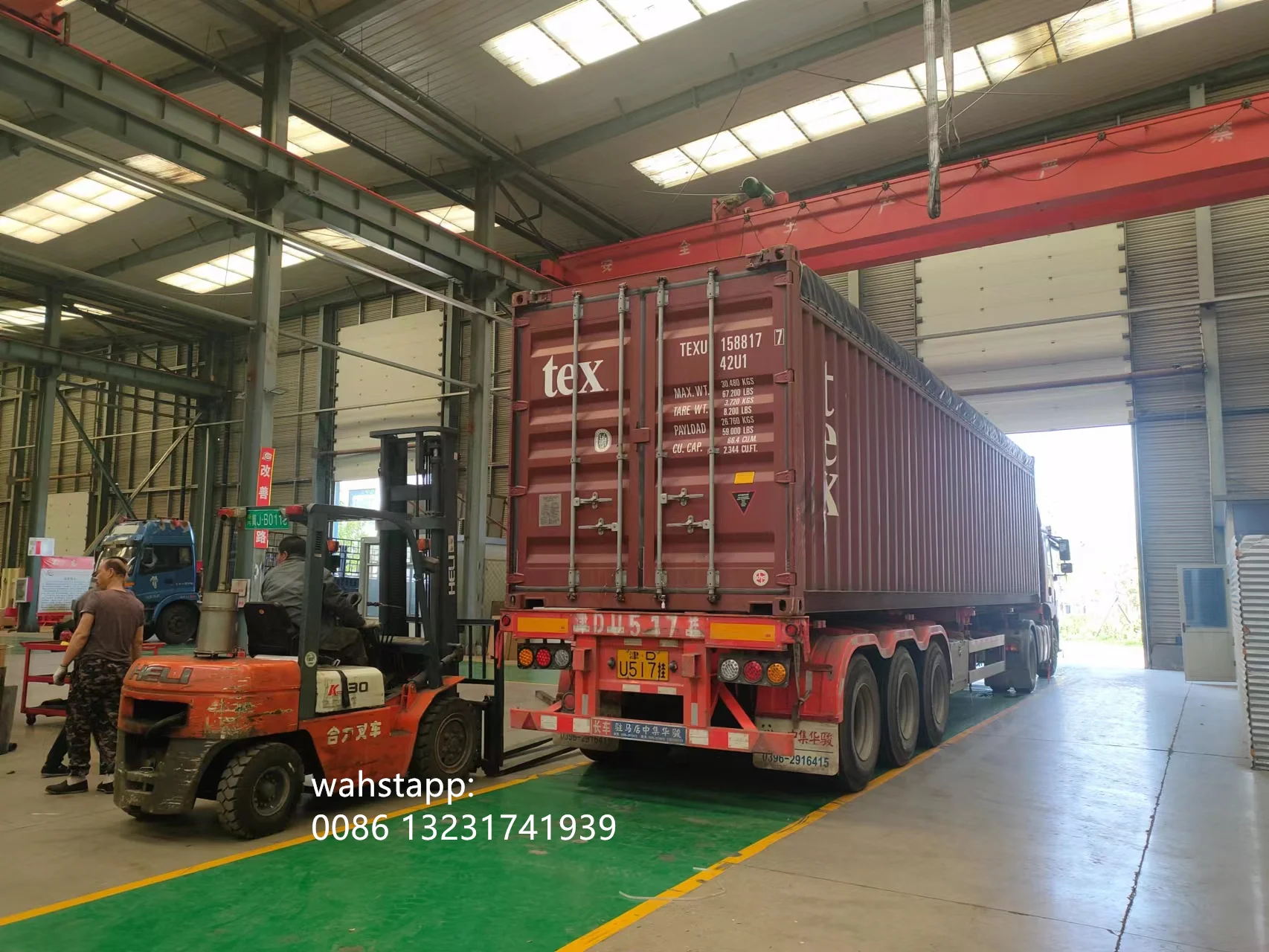

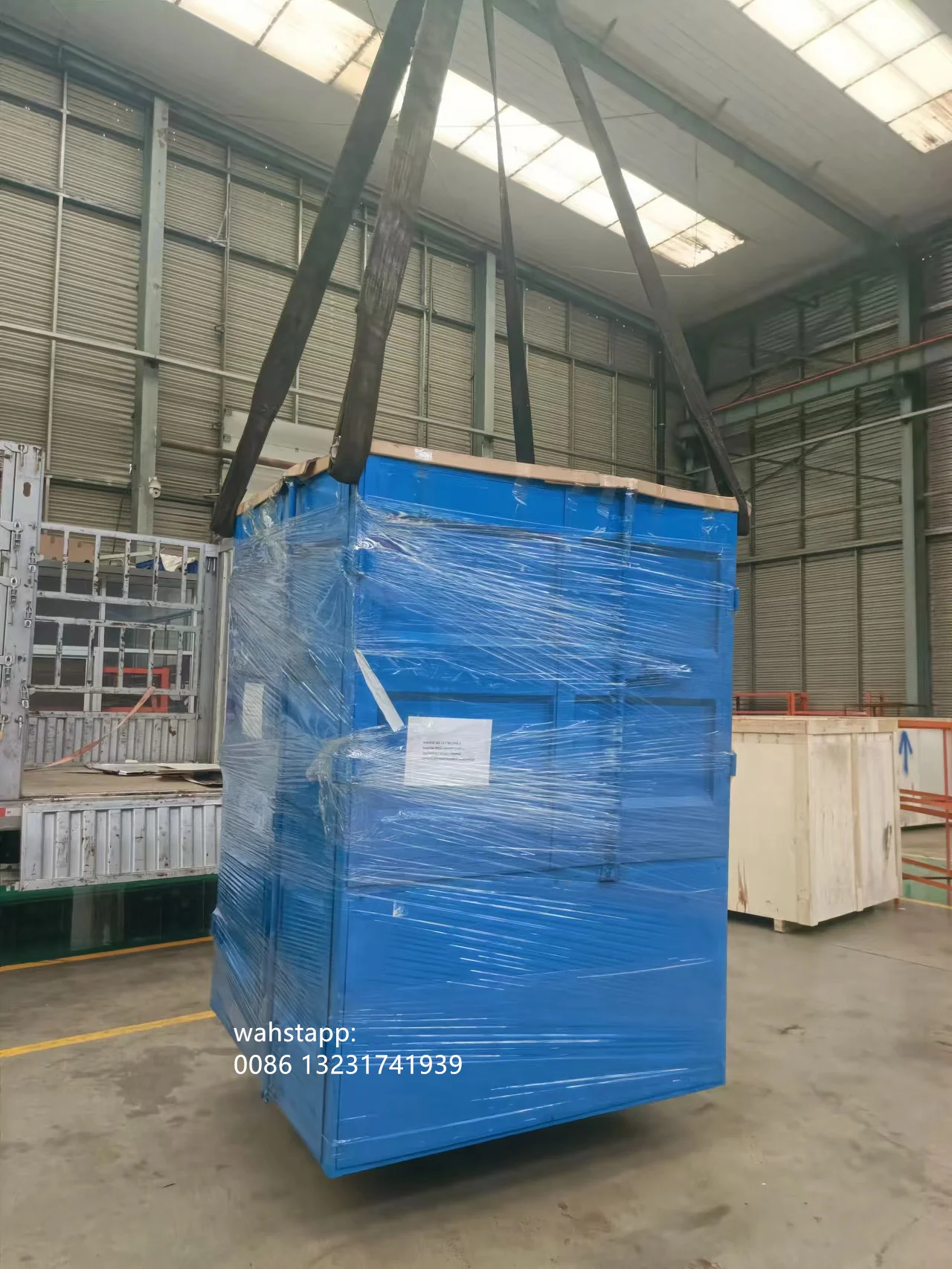

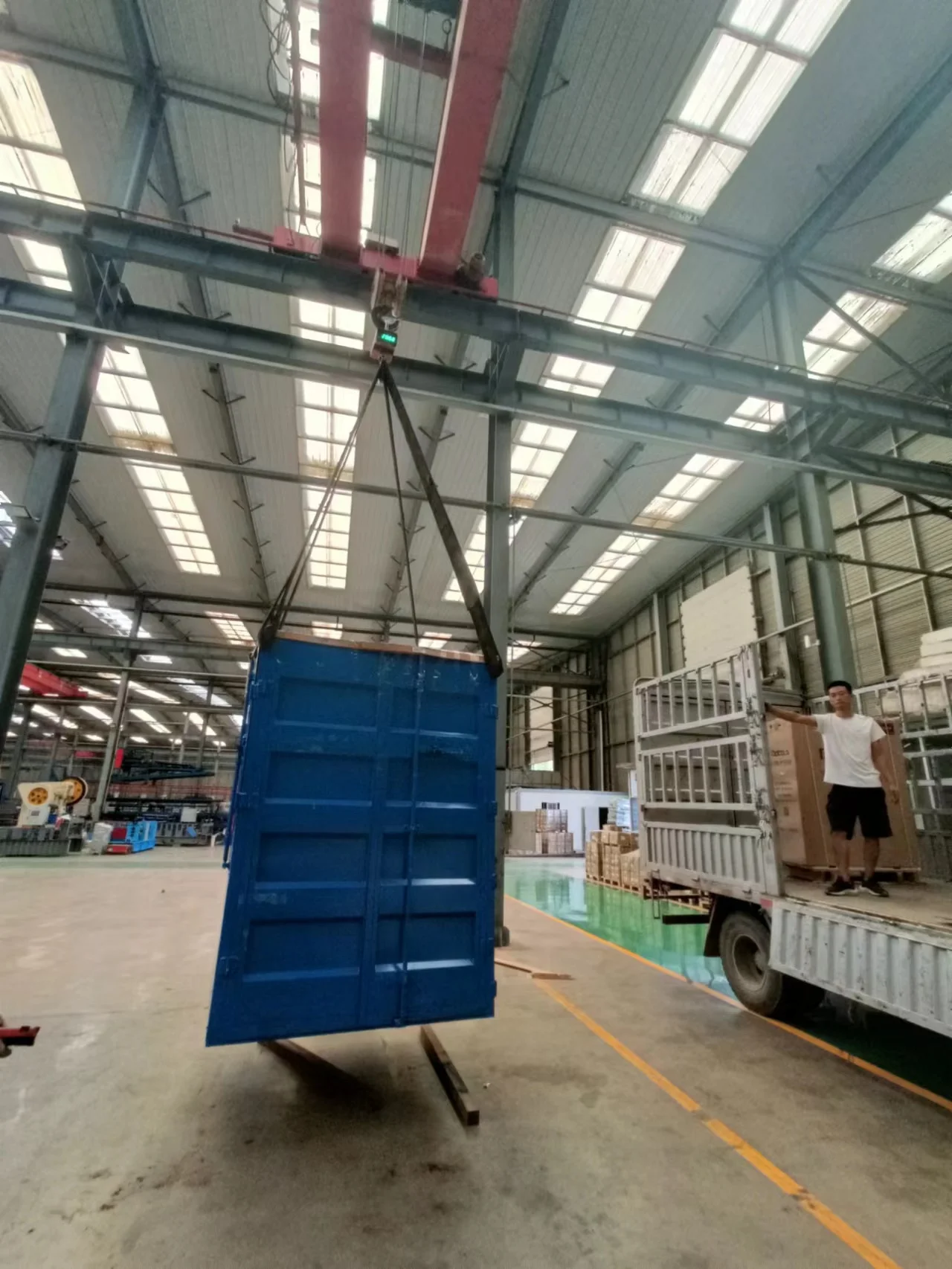

PACKING AND SHIPPING

EXHIBITION AND CLIENTS

SAMPLE ROOM

FAQ

1. Package

1). Container packing of the line suitable for overseas shipping

2). The subjects can be loaded by LCL shipping.

3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.

2. Delivery Time25-30 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.

3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.

4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.

Free technical supporting and maintenance consulting in lifetime.

5. Assembly (Optional)

1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.

2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
