1 DECOILER3
2 FEEDING PLATFORM 3
3 FORMING PART 3
4 CUTTING PART 3
5 ELECTRIC CONTROL CABINET1
6 MOTOR 1
7 HYDRAULIC PUMP STATION1
8 RUN OUT TABLE1

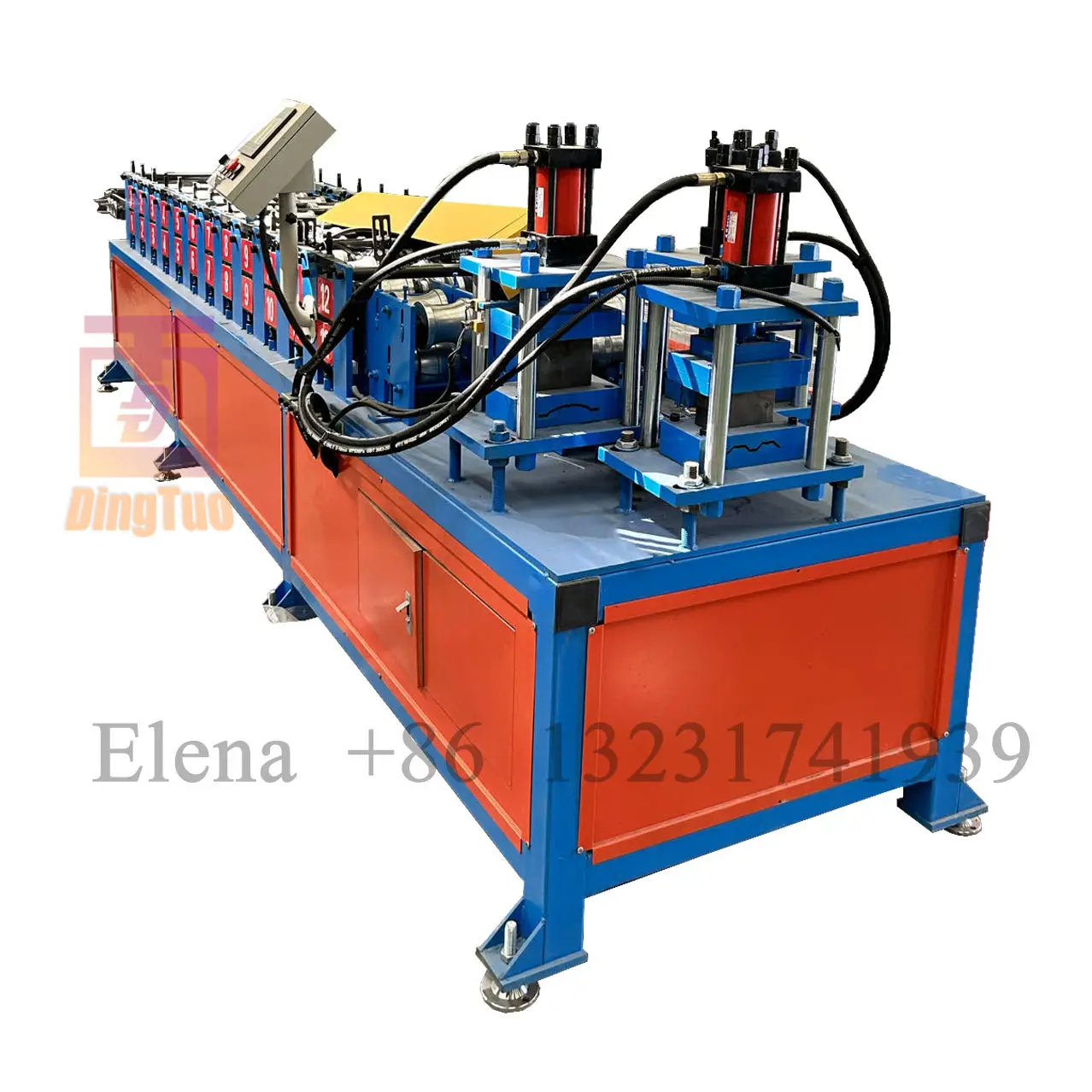

DINGTUO 3 in 1 metal fence making machine for privacy metal fences made in China
Client requestd us to make 2 in 1 metal fence roll forming machine which can do 2 different palisade fence panels in one machine. ..
TEL : +86 13231741939
DETAILS
Product Overview
Privacy Metal fence W M Z Shape Color Coated PPGI Garden Edging Border Fence Forming Machine
Client requestd us to make 2 in 1 metal fence roll forming machine which can do 2 different palisade fence panels in one machine.
The metal fence making machine adopts servo tracking none stop cutting type which makes the machinecan reach 30m/min .
The palisade fence roll forming machine adopts cast iron machines stands and 700mm height whole iron plates welded base frame with finished CNC processing which can make machine running stable and long service time.
The customer has received the machine and is using it. This machine has received unanimous praise from our customers. To buy high-end equipment, please contact Ms. Elena. Whatsapp 0086-13231741939
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
PRODUCT CONFIGURATION
Metal Fence Machine Machine Feeding Platform
1.Features: Ensure smooth & feed material.
2.Components: steel plate platform, two pitching rollers, position stopping block.
3. The coil is guided in the correct position and passed to the roll forming equipment.

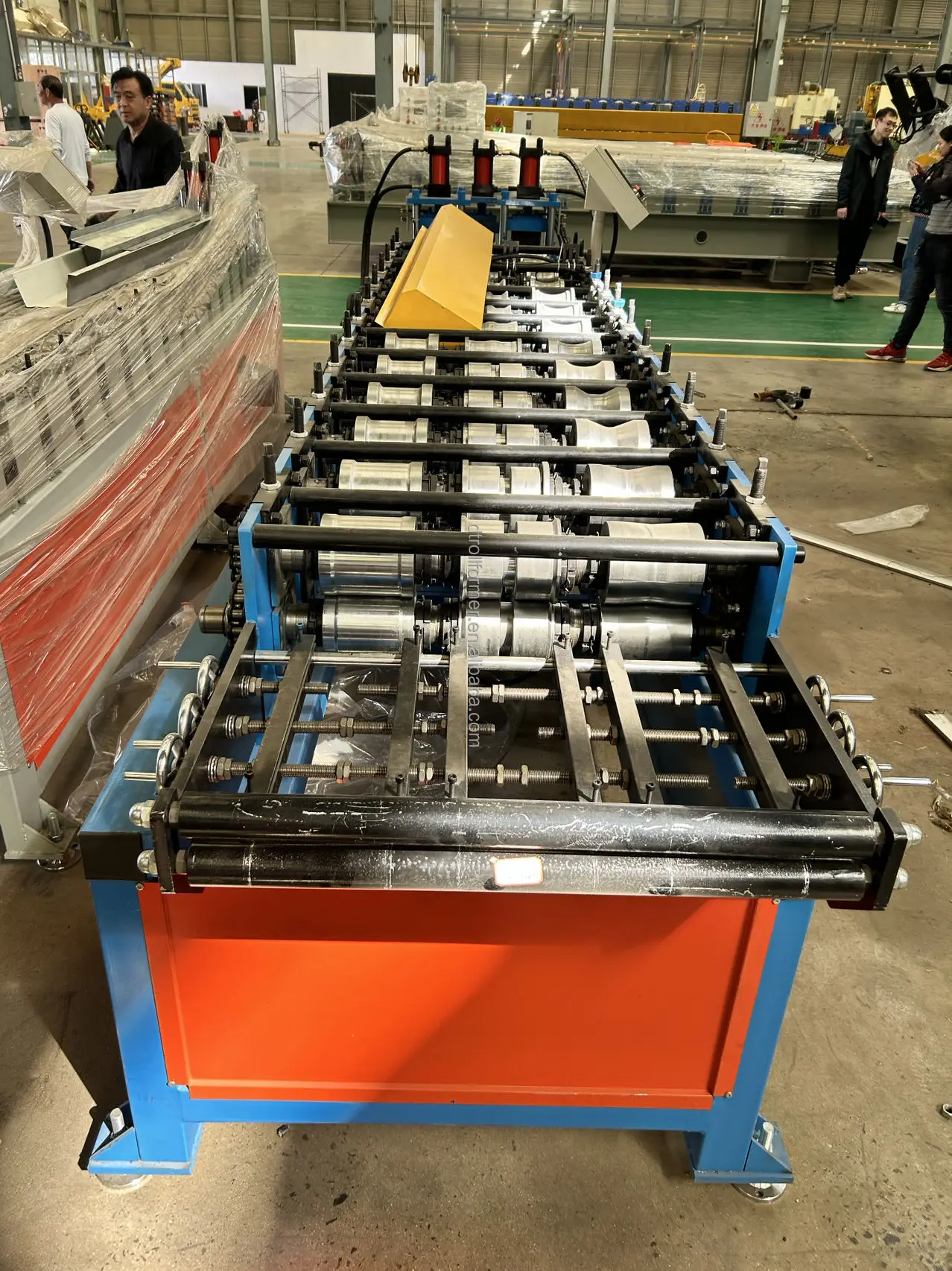

Metal Fence Machine Forming Part
12 +12+12 forming stations
45# steel bearing rollers and solid shafts
60 mm solid shaft diameter
16 mmmachine stands
80*80 square tube welded base frame

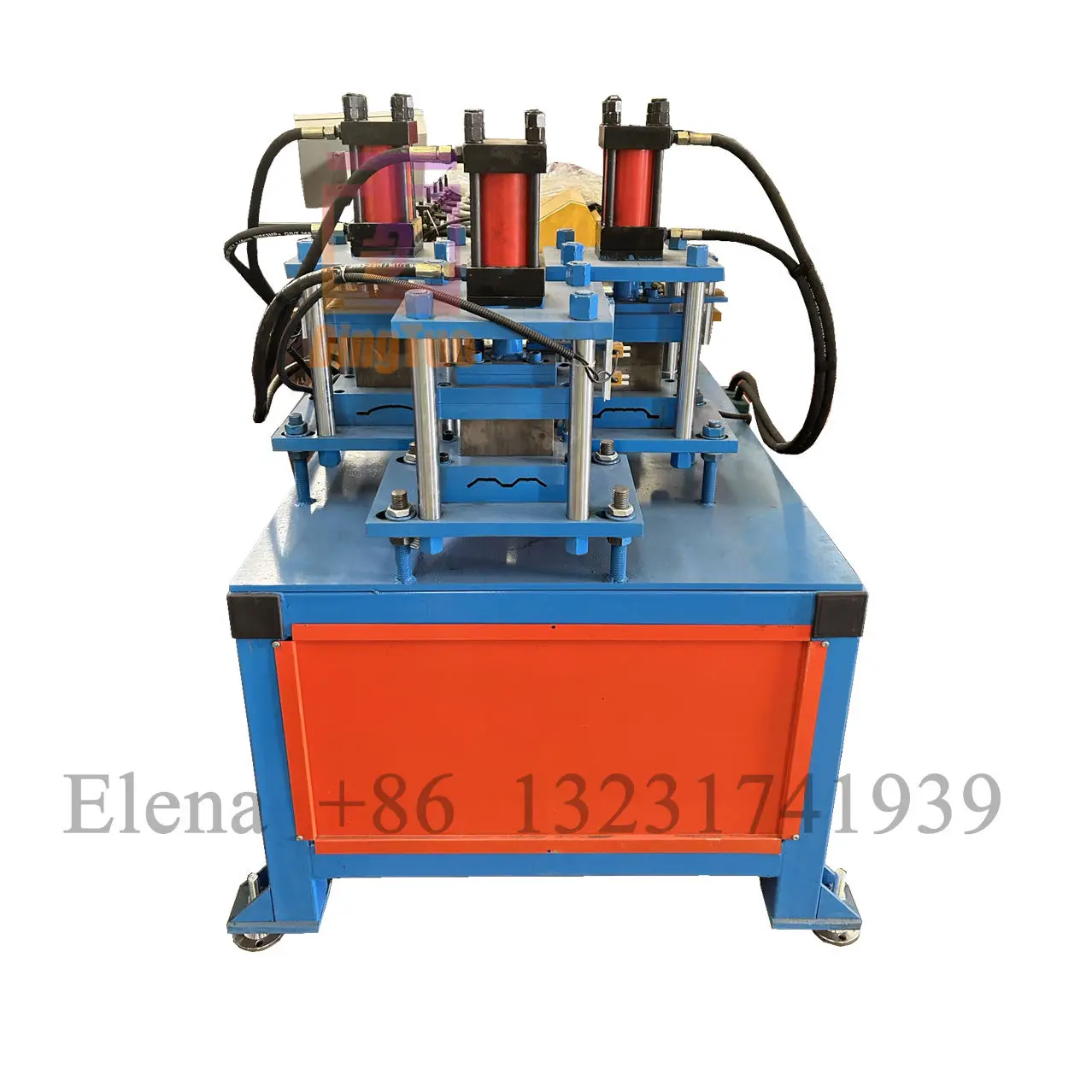

Metal fence Making Machine Hydraulic cutting type
Four pillar guide Hydraulic Post-cut Shear Type
cr12 material
processing technology: rough material milling machine processing - vacuum heat treatment HRC58-60 - flat grinding processing end face - wire cutting processing outline - engraving machine fine carving shape.Metal Fence Machine Machine hydraulic pump station
5.5 kw inside pump station which can save workshop space
Metal Fence Machine Machine electric control cabinet
DELTA Brand PLC/ Touch Screen/ inverter
Metal Fence Machine Machine decoiler
1.5 tons
Steel coil inner diameter, φ460㎜——540㎜ ㎜
Steel coil external diameter, maxφ1500 ㎜
Steel coil width 0--500 ㎜.
105 mm spindle
manual type
can customize do hydraulic decoiler or electric decoiler
Metal Fence Machine Machine run out table
4 m length
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin USA South Florida
Project in Miami
Project in Arab countries and regions
RECOMMENDED PRODUCTS
CE certificate
CE Certificate
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a high-end roll formning machine factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
