steel ladder handrail roll forming machine for granary grain bins silo granary usage
This is a galvanized metal granary ladder handrail cold-formed forming equipment...
TEL : +86 13231741939
DETAILS
Product Overview

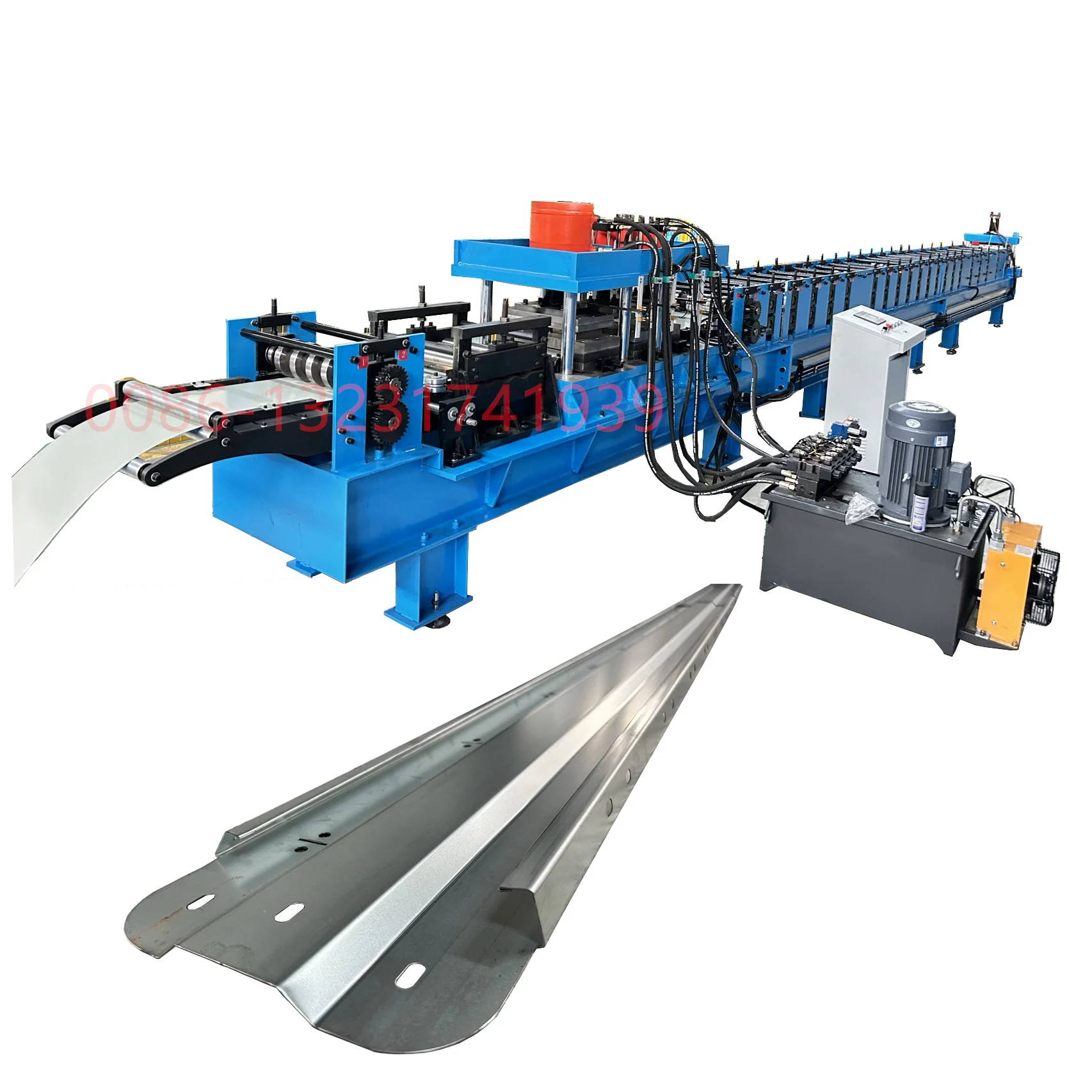

GALVANIZED METAL GRANARY LADDER HANDRAIL ROLL FORMING MACHINE

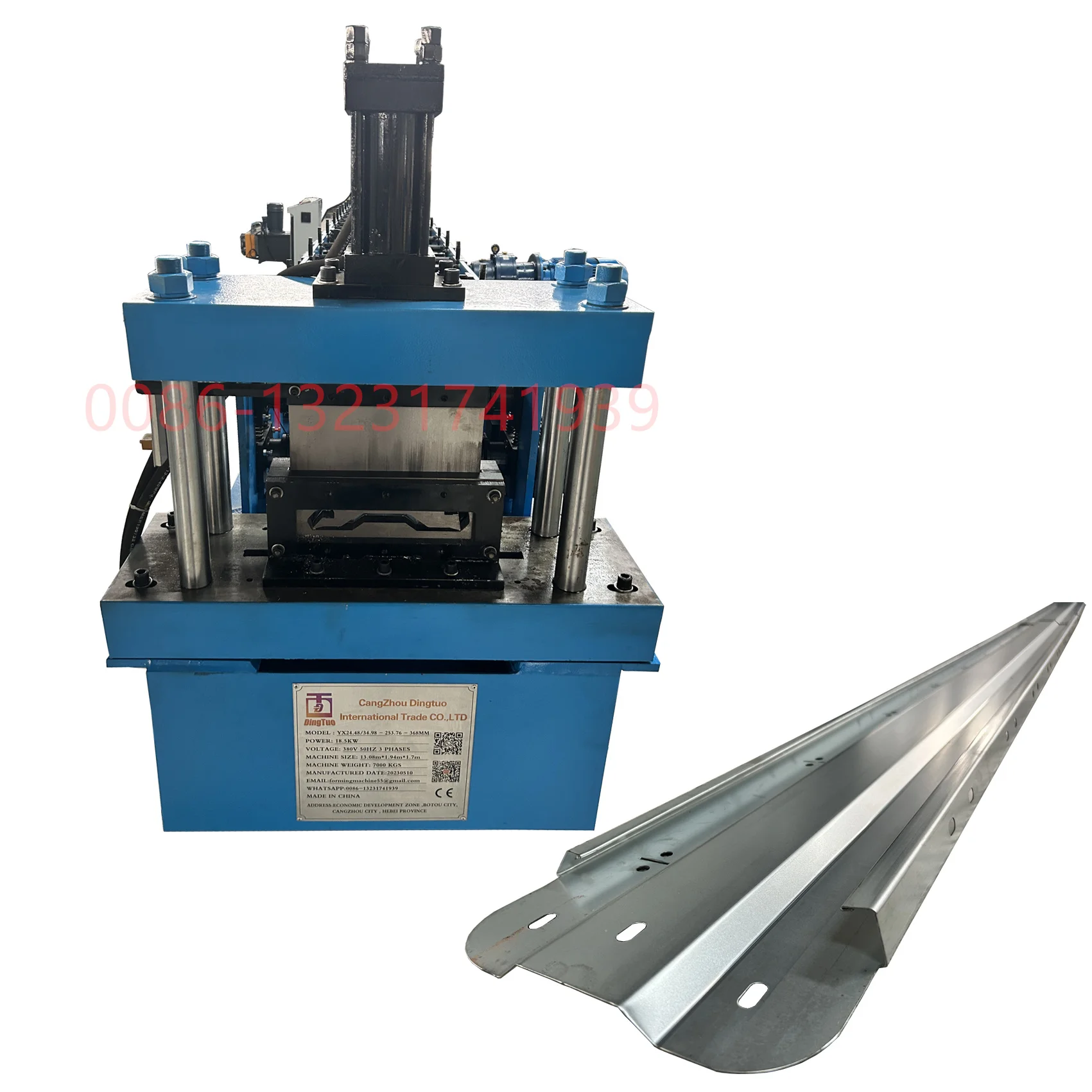

This is a galvanized metal granary ladder handrail cold-formed forming equipment. The equipment includes a set of box-type loading racks with a load capacity of 3 tons. The ladder handrail equipment includes a set of feeding platforms and a set of pinch rollers. , so that raw materials can enter the leveling part more conveniently. Up 3 down 4 leveling group. 4 sets of punching holes. The punching part is designed according to the requirements of the customer's drawings. Next is the forming part of the machine, with a total of 22 components. Cut with three knives and cut off several holes.
PRODUCT APPLICATIONS
galvanized granary ladder handrails
ladder handrails
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
1 3TONS DECOILER 1
PRODUCT CONFIGURATION

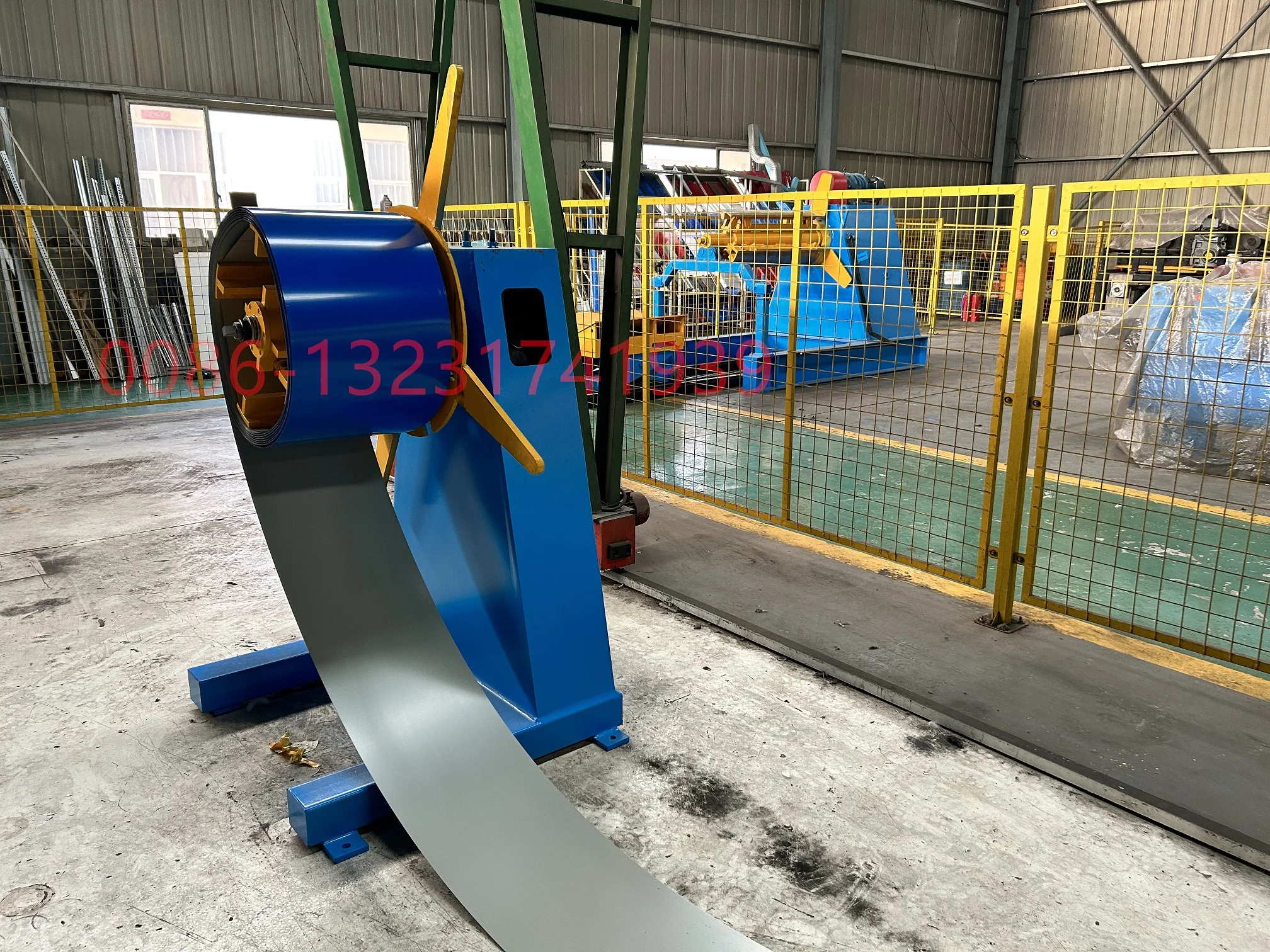

Decoiler
Features:Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement;
Power: powered;
Power of the open and closure of segments: manual way;
Power of rotation of segment: manual;
Number of segment: 4;
Range of segment expansion:480 ~ 520mm;
Height of center of the mandrel: 0.65m;
Approximate Size: 1.5 m * 1.1m *1.2 m;
Speed control: By mechanical brake;
Methods of operation: mechanical;
Bearing Weight: 3 Tons
Feeding platform
guide materials into the machine smoothly

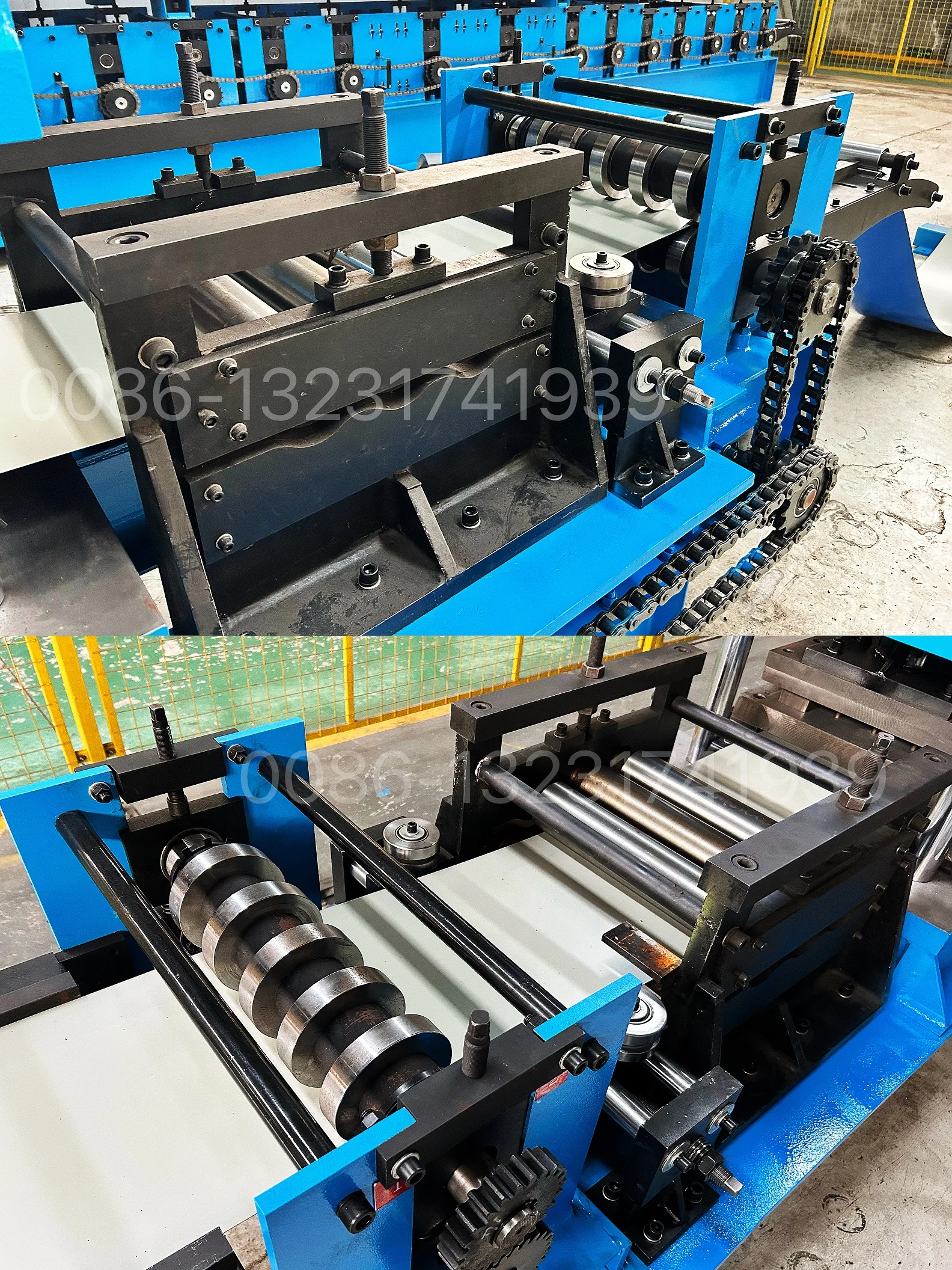

pinch rollers and leveling part
1. pinch rollers *2
2. guide rollers *2
3. leveling shafts*7
punching unit
4 groups punching dies
customized as clilent's needed
forming part

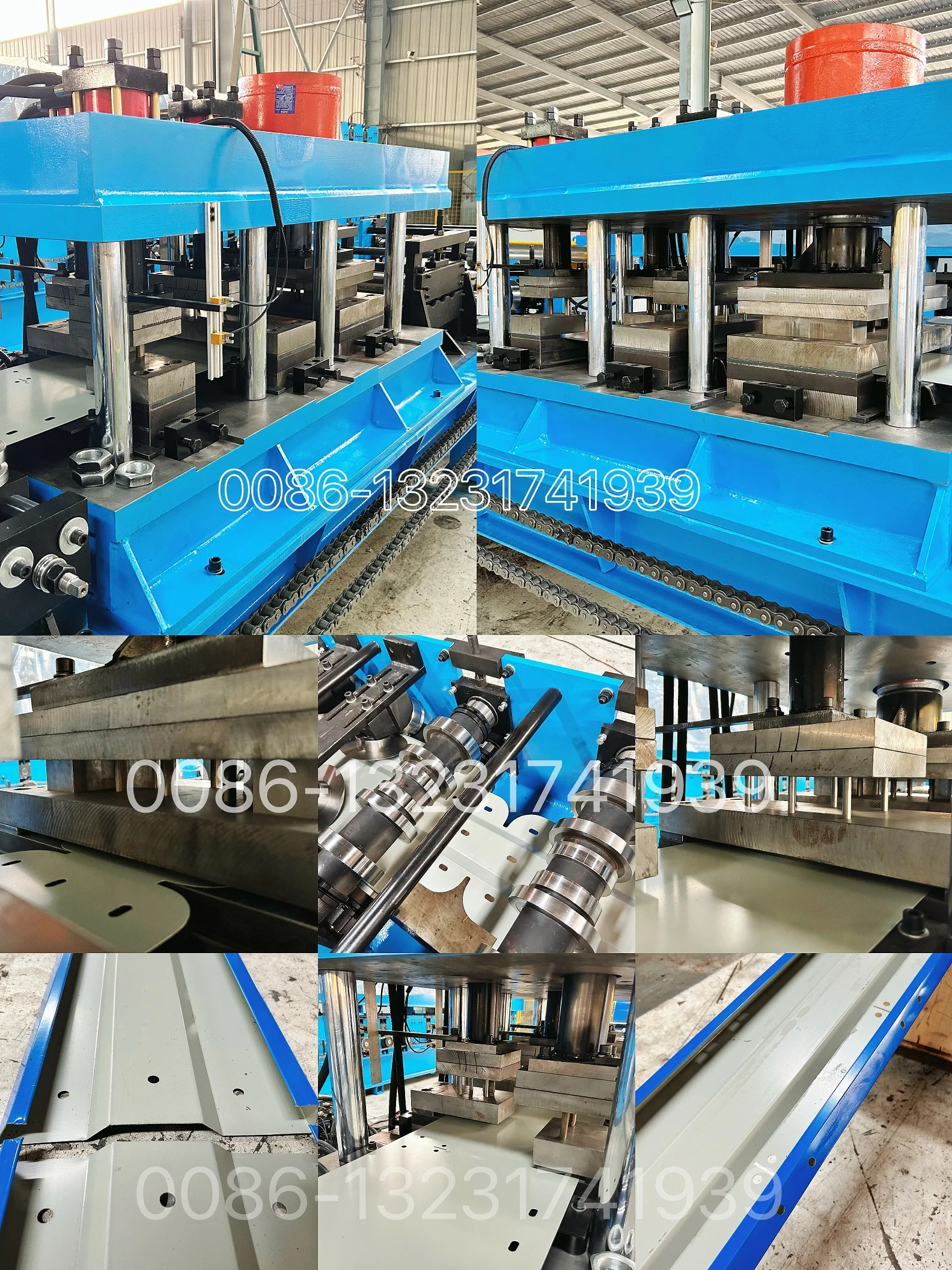

22 forming stations
Inside Type Motor And Hydraulic Pump Station
1. main motor power:11 kw
2. Hydraulic motor power: 7.5 kw

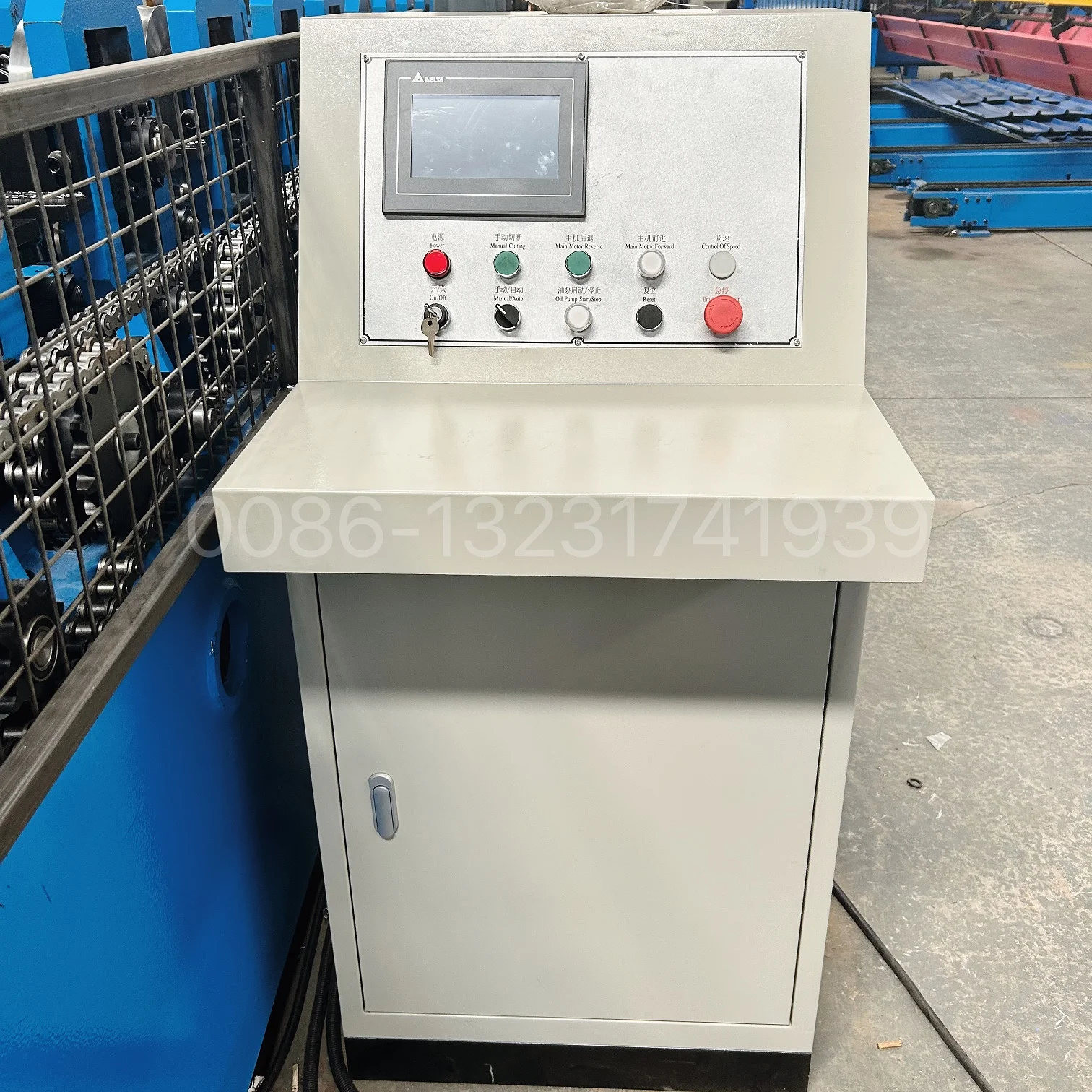

electric control cabinet
The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Lengthmeasurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:380V, 3 Phases 50Hz （ voltage can becustomized as your needed)
Automatic Hydraulic Cutter
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. 2.Power supply: 4kw hydraulic pump station 3.Frame: 350H beam welding 4.Stroke switch: non-contact photoelectric switch 5.Cut : cut the sheet after roll forming to required length 6.Length measuring: automatic length measuring 7. Blade material:Cr12 material with finishing

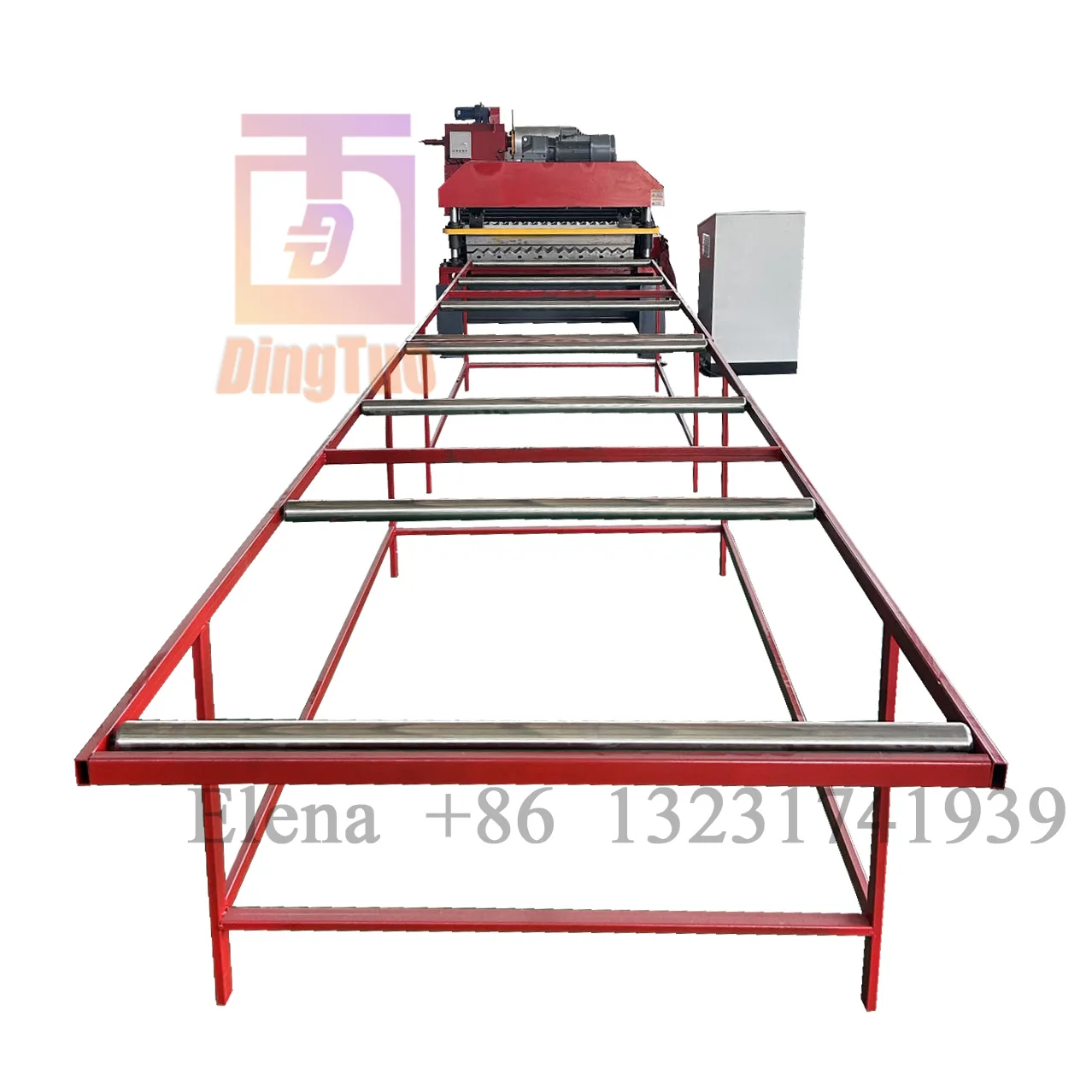

MACHINE RUN OUT TABLE
RECEIVE MATERIALS
Product packaging
SALES AND SERVICE NETWORK
FAQ

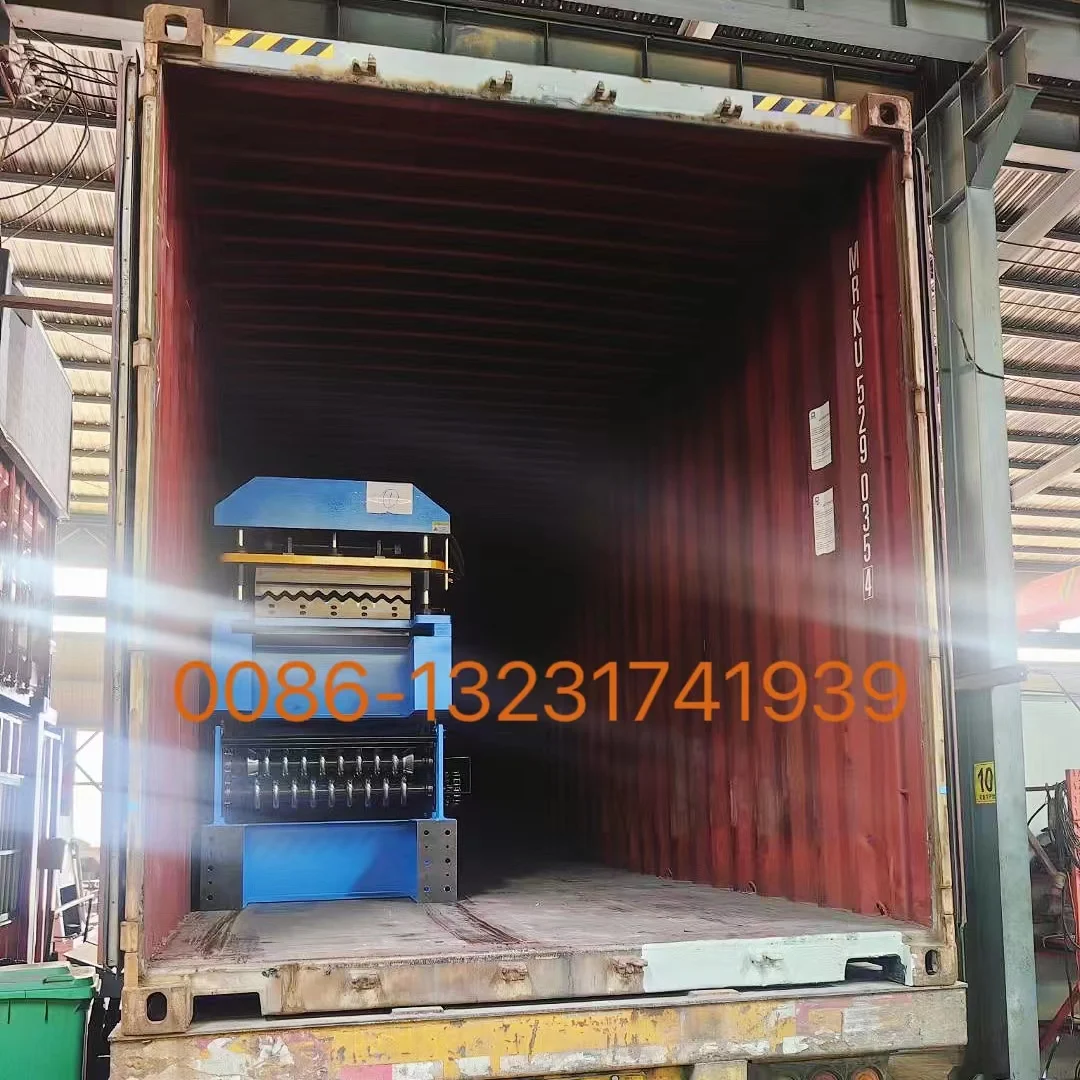

1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
