DING TUO YX 70 190 3 mm c section purlin cold roll forming machine for making container house beams in Algeria
It is used in the frames or beams ofcontainer houses...
TEL : +86 13231741939
DETAILS
Product Overview
S275 carbon Steel Container House Beam C purlin making roll forming machine
Name: C purlin roll forming machine
Uses: for the desert container houses beam, frames used
Cpurlin products specifications:
Thickness: 2.0-3.0mm can be customized
Raw material length: 340mm, different lengths can be customized
Length: different lengths can be customized

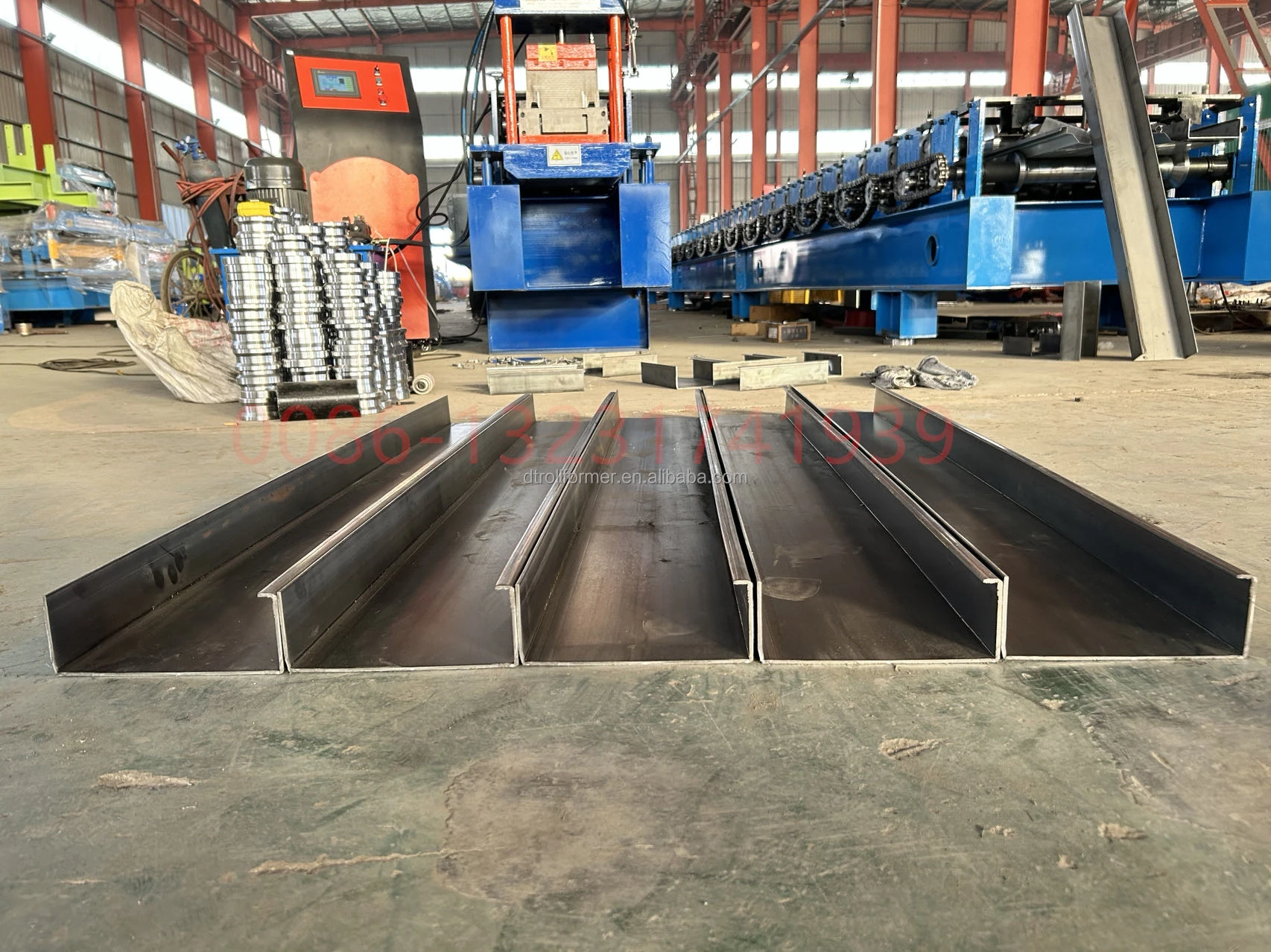

Product features of c purlins:
The material is made of high-quality s 275 strength carbon steel sheets
Range of use:
It is used in the frames or beams ofcontainer houses. And can also be used in car beam ( 1100Mpa high strength material)
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity (set)
1 5Thydraulic decoiler 1
2 Leveling part1
3 Guiding device 1
4 Forming system with ribs 1
5 Transmission system 1
6 Hydraulic guillotine 1
7 Support table 1
8 Hydraulic pump station 1
9 Control box 1
10 Spare parts and tools 1
PRODUCT CONFIGURATION
Feeding platform：
Based on the right feeding platform, different feeding widths can be adjusted by adjusting the screws and nuts .
Forming rollers:
14 stations
Gcr15 # steel finishing and the surface is plated with hard chrome and polished
80 mm solid shafts
45# steel processed
Electric control cabinet:
stand typeor cantilever type
Delta brans or XIEJIE brand
or customzied brands

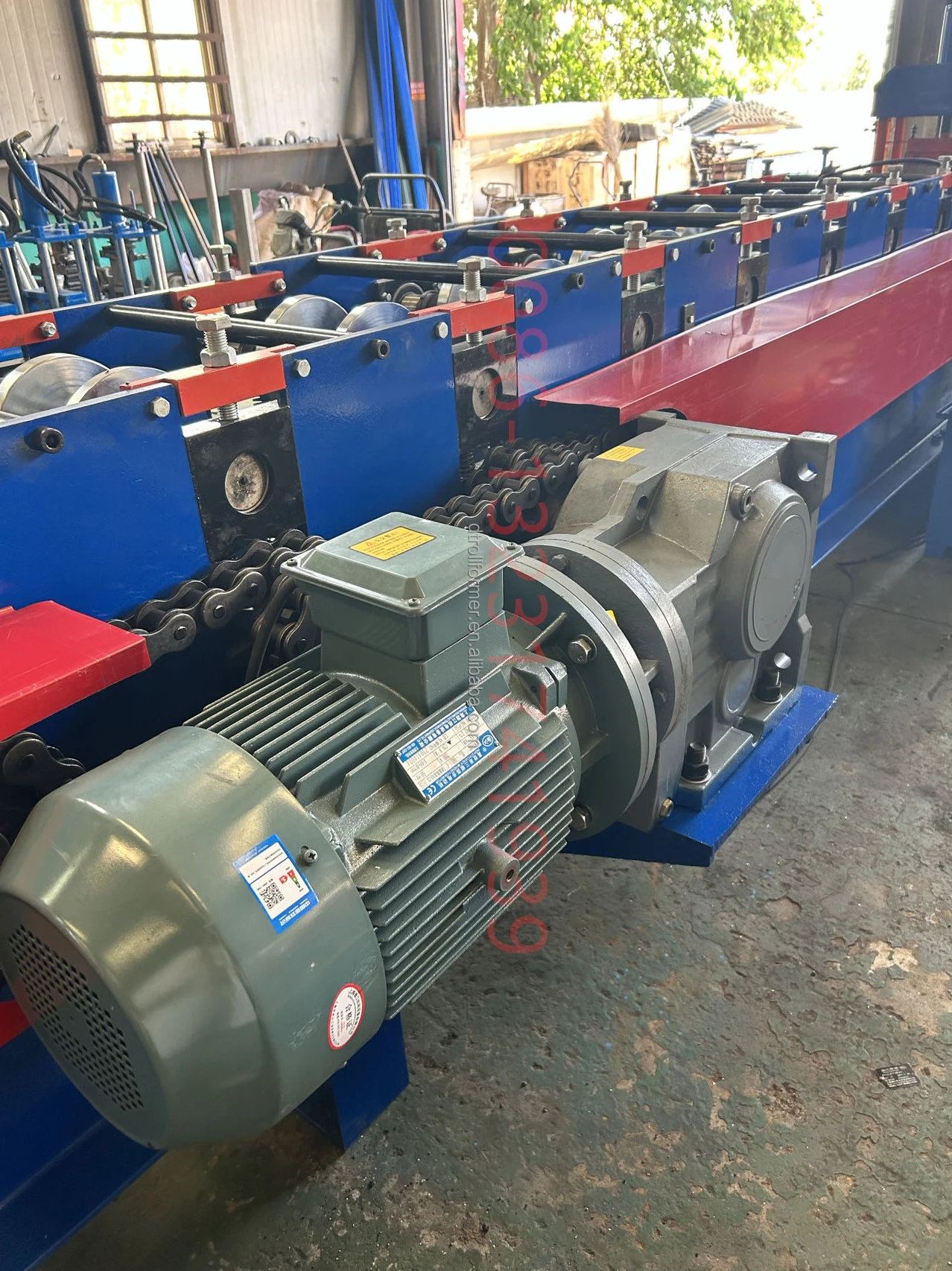

motor :
motor will be put inside the machine base frame which can save the clients' workshop space
15kw motors will provide enough power to the 3mm container house c purlin roll forming machine.

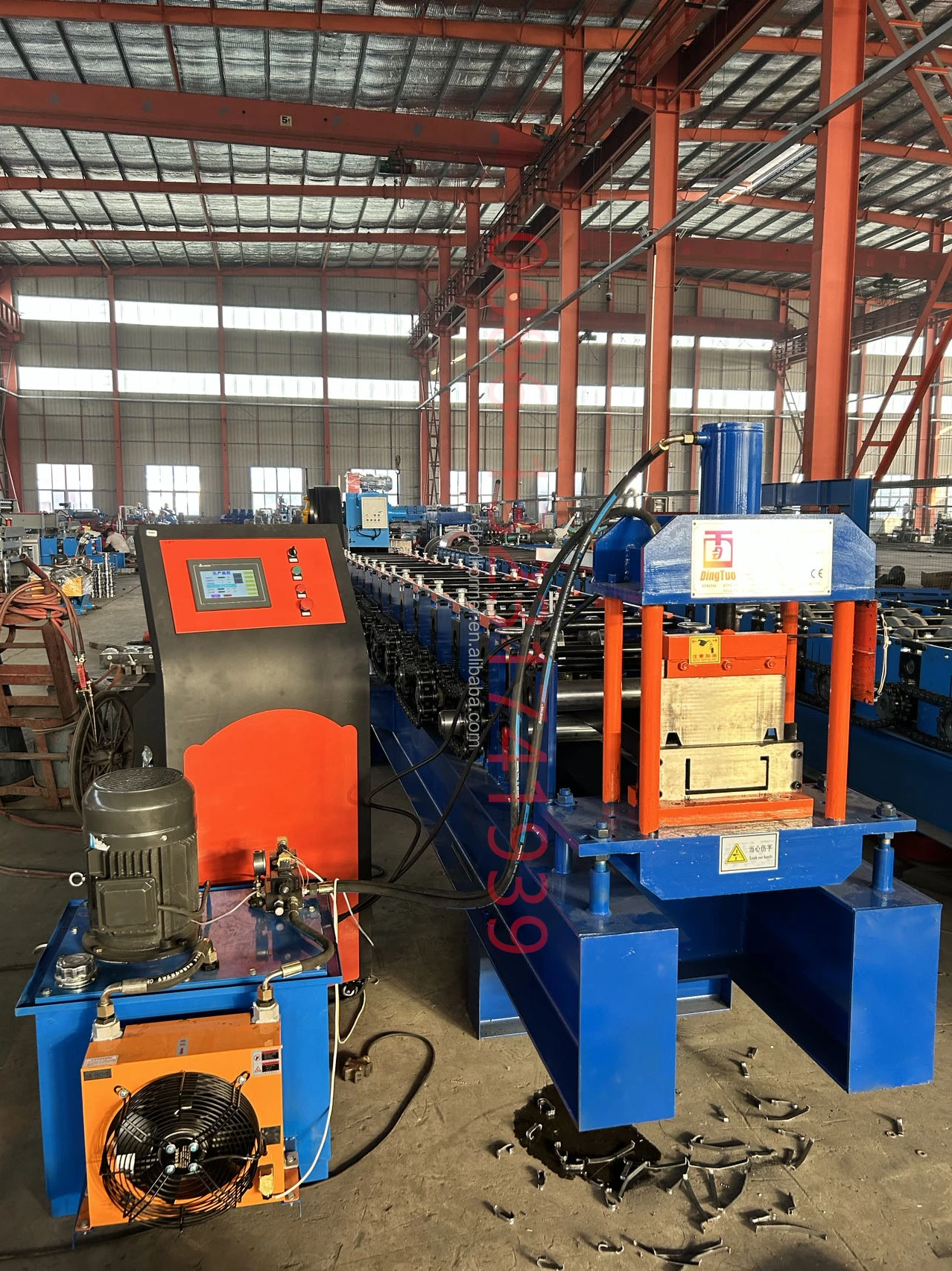

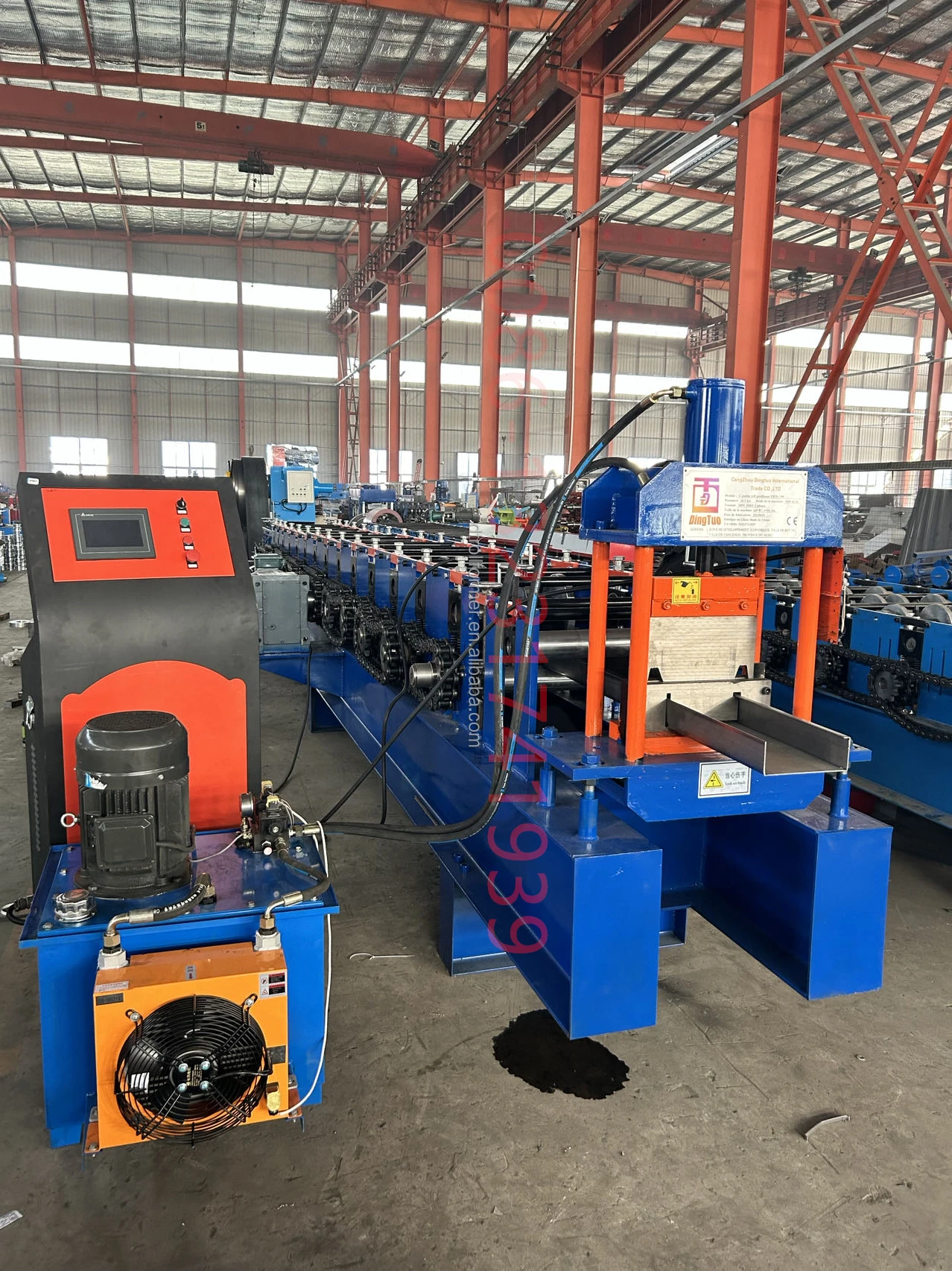

Automatic hydraulic cutting
strong enough knife holder to ensure the cutting stability and ensure the finihsed products effects

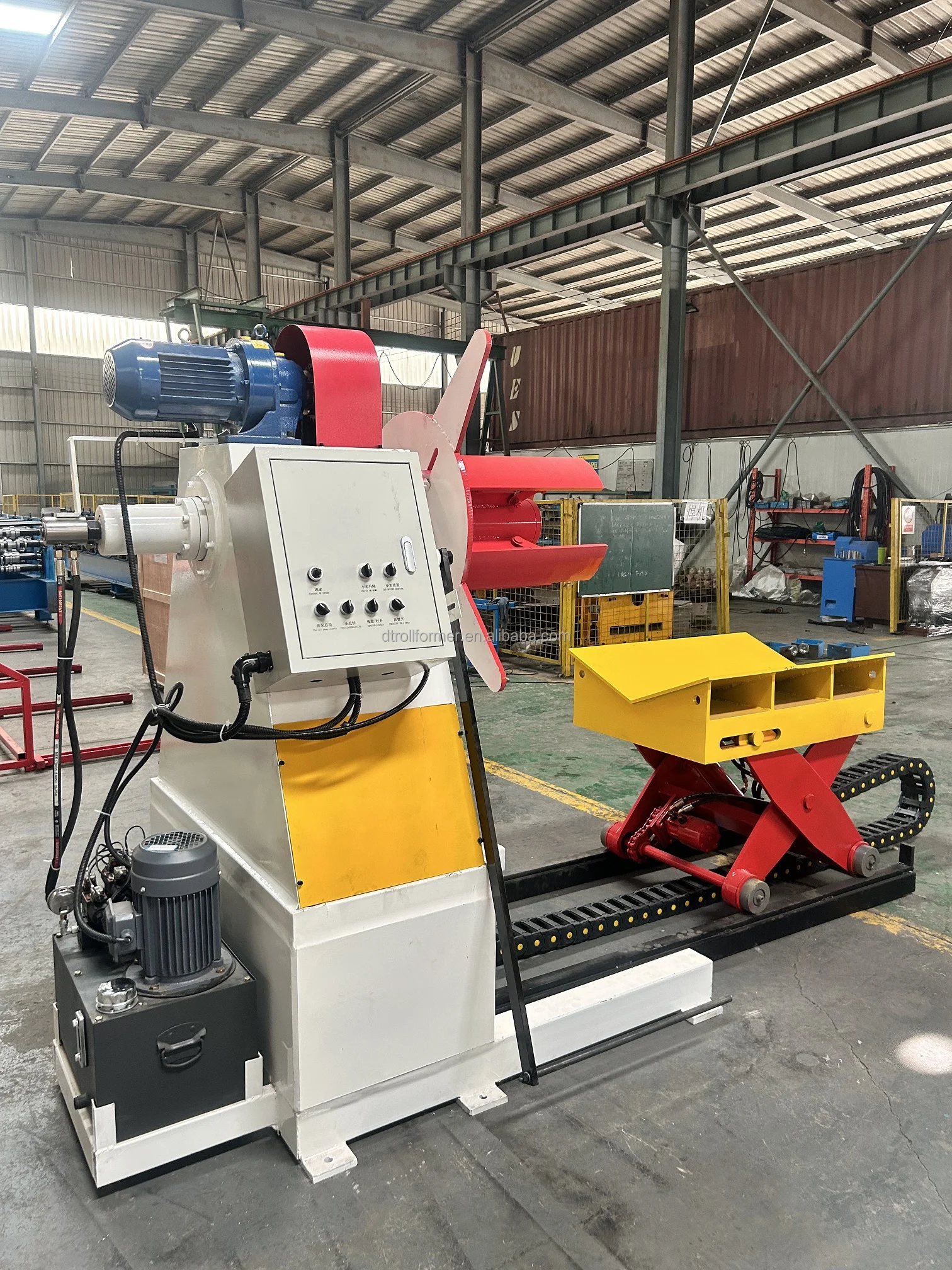

Hydraulic decoiler
1. Host volume: length 2.4 meters, width 1.55 meters, height 1.75 meters
2. Host weight: about 1.3 ton
3. Hydraulic pumping station: 5 solenoid valve pumping stations (the pump valve is Beijing Huade brand), power 3kw
380V
4. C-shaped steel: no power, passive feeding, hydraulic tensioning
5. Frame body: the base is made of 80*160*5 square tube, and the box body is welded with 12mm thick steel plate
6. Main shaft for supporting material: thick-walled seamless steel pipe is machined, and the shaft diameter is 133*25mm
7. Feeding width: 0-650mm
8. Inner diameter of steel coil: 470-700mm, ±20mm
9. The rated load capacity is within 5 tons
10. Hydraulic cylinder: expansion cylinder bore diameter 110mm, 1 piece (plus rotation)
11. Hydraulic pressing arm (Jinda)
advantage:
1. The load-bearing spindle is made of high-strength, fatigue-resistant rear wall seamless steel, which is processed by turning, with strong strength and heavy bearing.
2. The roll up adopts hydraulic control, which is convenient, fast and stable.
Run out table
Disassemble and ship, after receiving the goods, the customer needs to assemble them according to the pictures.
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin CANADA
Project in USA
Project in CHILE
RECOMMENDED PRODUCTS
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 20ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time25-30 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
