70 to 200 C sections full automatic galvanized steel C section purlin machine C purlin making machine
The raw materials of the CZ purlin cold bending forming machine are generally ordinary galvanized materials. ..
TEL : +86 13231741939
DETAILS
Product Overview

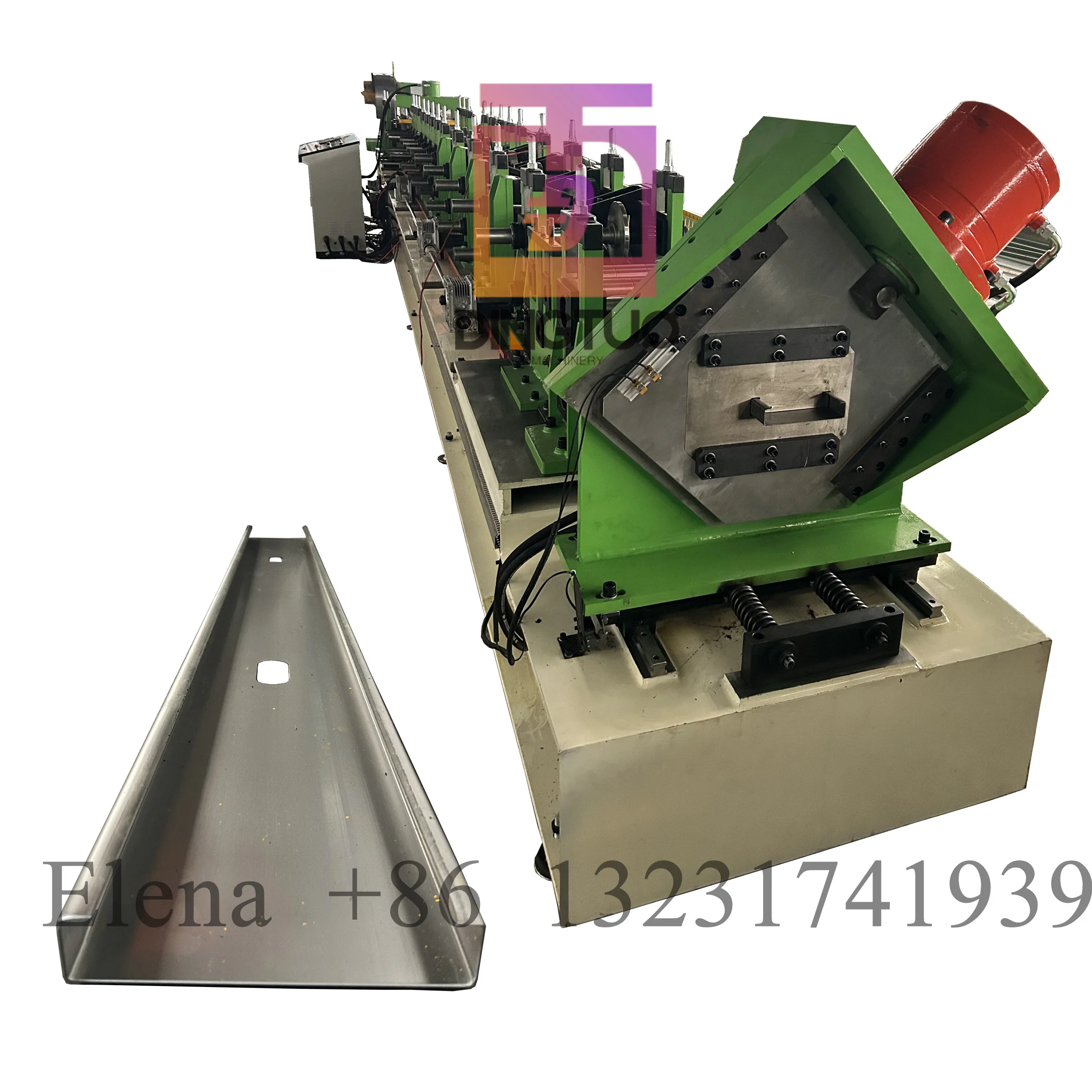

C Section Purlin Machine 70-200 Cpurlin roll forming machine
The raw materials of the CZ purlin cold bending forming machine are generally ordinary galvanized materials. High-strength steel galvanized materials can also be used (please tell our equipment supplier in advance about special raw material materials). Black belts can also be used (not recommended for long-term use. If the If you use black belt, please inform our equipment supplier in advance, and the machine configuration will be increased accordingly). The thickness is usually between 1.6 and 3.0mm (it can also be made with 4-6mm thickness, or other thicknesses according to customer needs. Please tell our equipment supplier in advance for special thicknesses), and the C-type cross-sectional height is between 80 and 300 mm. The Z-shaped cross-section height is between 120 and 300 mm (350-400mm height can also be customized). The raw material material, thickness, profile size, and punching size of the CZ steel machine can all be specially customized according to customer needs.
CZ80-300 CZ section steel equipment is used to produce "C-shaped, Z-shaped" cold-formed steel equipment in the steel structure industry. The finished product produced by the machine is "C/Z-shaped steel (purlin)", which is mostly used to support beams and wall beams in housing construction and factories. It is commonly used in motor vehicles, railway vehicles, building doors and windows, transport vehicles, frames, switch cabinets, highway guardrails and steel structural structures, containers, steel formwork and scaffolding, shipbuilding with solar racks, bridges, transmission rods, steel sheet piles, Cable trays, agricultural machinery, furniture, warehouses, guide rails, keel steel, vegetable houses, pipe supports, municipal construction and other fields.
CZ80-300 CZ section steel equipment is used to produce "C-shaped, Z-shaped" cold-formed steel equipment in the steel structure industry. The finished product produced by the machine is "C/Z-shaped steel (purlin)", which is mostly used to support beams and wall beams in housing construction and factories. It is commonly used in motor vehicles, railway vehicles, building doors and windows, transport vehicles, frames, switch cabinets, highway guardrails and steel structural structures, containers, steel formwork and scaffolding, shipbuilding with solar racks, bridges, transmission rods, steel sheet piles, Cable trays, agricultural machinery, furniture, warehouses, guide rails, keel steel, vegetable houses, pipe supports, municipal construction and other fields.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity (set)
1 5T hydraulic decoiler 1
2 Feeding platform part1
3 pitch roller and leveling part1
4 Online punching unit1
5 Forming system 1
6 Transmission system 1
7 Twist cutter 1
8 Run Out table 1
9 Hydraulic pump station 1
10 Electric Control box 1
11 Spare parts and tools 1
PRODUCT CONFIGURATION
Feeding platform & pitch shafts with electric clutch & leveling unit ：
higher quality feeding platform
pitch shafts
leveling ： upper 3 and lower 4
feed rollers + guide wheel
pinch rollers : 2-roll pinch feeding, automatic motor feeding, equipped with a manual clutch, when feeding is required, close the clutch, the motor starts, the pinch rollers are powered, and it is more convenient to feed. When the clutch is released, the pinch roller loses power and does not feed material actively. The part of the clutch, which clutch needs to be released after the material enters the machine.

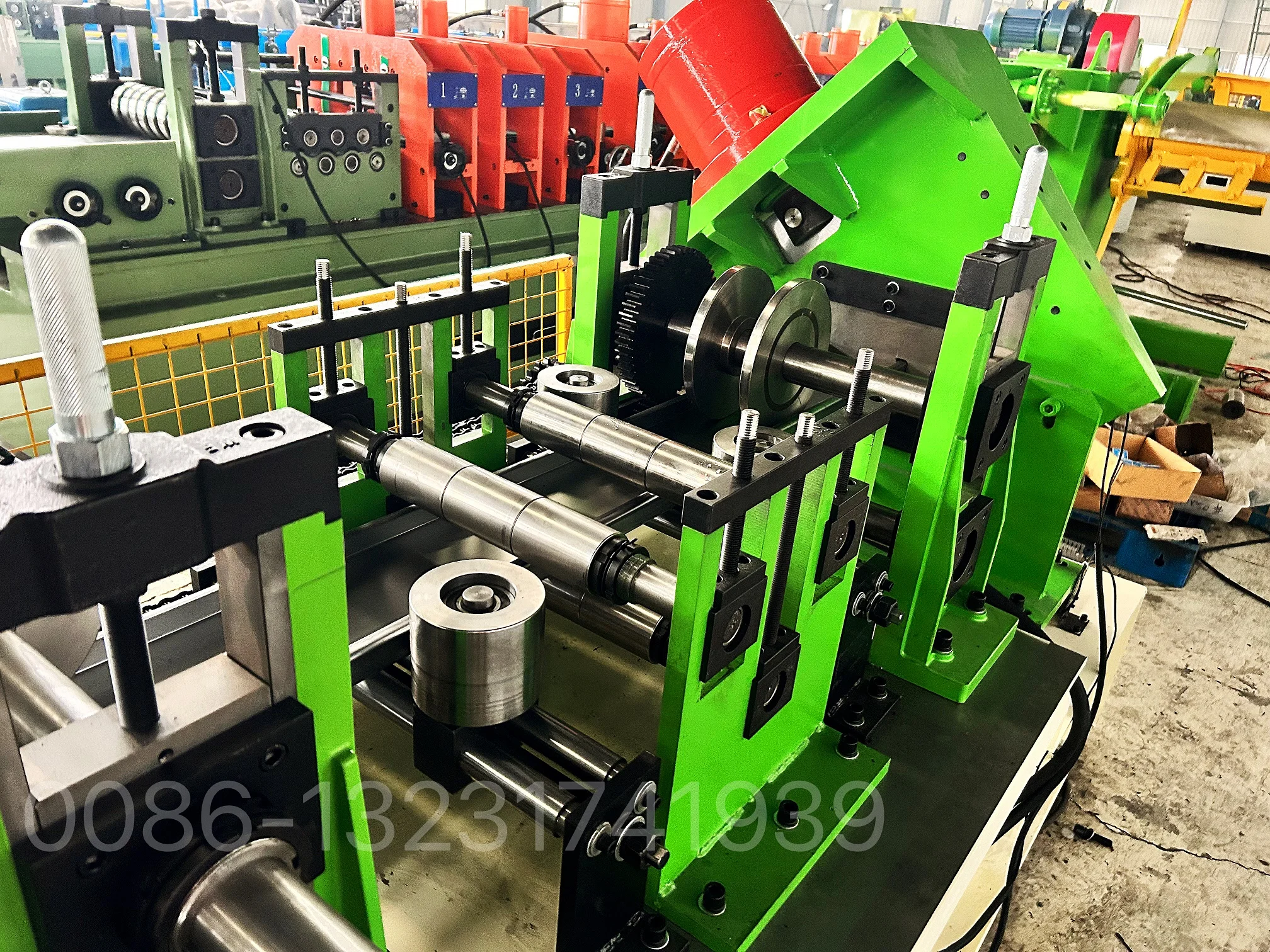

Forming rollers:
14 stations ;
rollers material : Cr12 mov steel finishing and the surface is plated with hard chrome and polished;
70 mm solid shafts
Electric control cabinet:
stand type
Delta brands or customized brands
ONLINE PUNCHING UNITS
Customized the punching units as client needed
Servo Motor Size Changeable Automatically
size changeable more accurate and stable
Cast Iron Machine Stands
110 type cast iron machine stands
Straightening
higher quality
motor :
36.1 kw K serious motor which can run the machine stable
Automatic hydraulic cutting
strong enough knife holder to ensure the cutting stability and ensure the finished products effects
Can do various sizes without change blades
HYDRAULIC PUMP STATION
When delivery the machine, we don't disassemble this part which is easy for client because you don't need to install them when receiving the machines
5T hydraulic decoiler
Range of segment expansion:470 ~ 525mm;
Base frame:80*160*3.75 mm square tube welded
Spindle material: 159mm seamless pipe
Box material: 10 mm thick iron plates welded
Approximate Size: L2 m * 1.4m *H2 m;
Approximate Weight : 1300 KGS
Speed control: automatic
Methods of operation: hydraulic automatic
Bearing Weight: 5 Tons
Pneumatic material run out table
2*3 m length
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin CANADA
Project in USA
Project in UAE
RECOMMENDED PRODUCTS
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 20ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time30-45 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
