Galvanized steel c purlin machine purlin machine roll forming 3 mm 650 Mpa 15 sets of punching units Twist off shear, no burrs

The raw materials of the CZ purlin cold bending forming machine are generally ordinary galvanized materials...

TEL : +86 13231741939

DETAILS

Product Overview

15 Sets Of Punching Cast Iron Type 80-200 Cpurlin roll forming machine

The raw materials of the CZ purlin cold bending forming machine are generally ordinary galvanized materials. High-strength steel galvanized materials can also be used (please tell our equipment supplier in advance about special raw material materials). Black belts can also be used (not recommended for long-term use. If the If you use black belt, please inform our equipment supplier in advance, and the machine configuration will be increased accordingly). The thickness is usually between 1.6 and 3.0mm (it can also be made with 4-6mm thickness, or other thicknesses according to customer needs. Please tell our equipment supplier in advance for special thicknesses), and the C-type cross-sectional height is between 80 and 300 mm. The Z-shaped cross-section height is between 120 and 300 mm (350-400mm height can also be customized). The raw material material, thickness, profile size, and punching size of the CZ steel machine can all be specially customized according to customer needs.

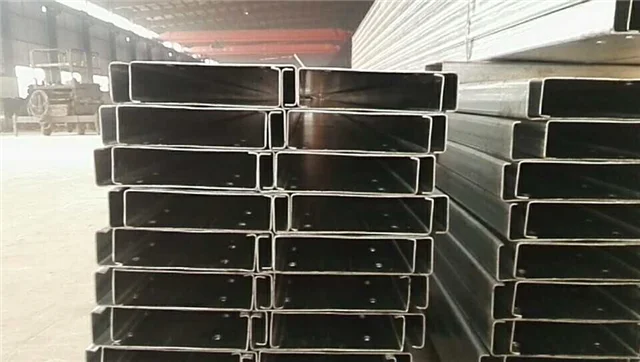

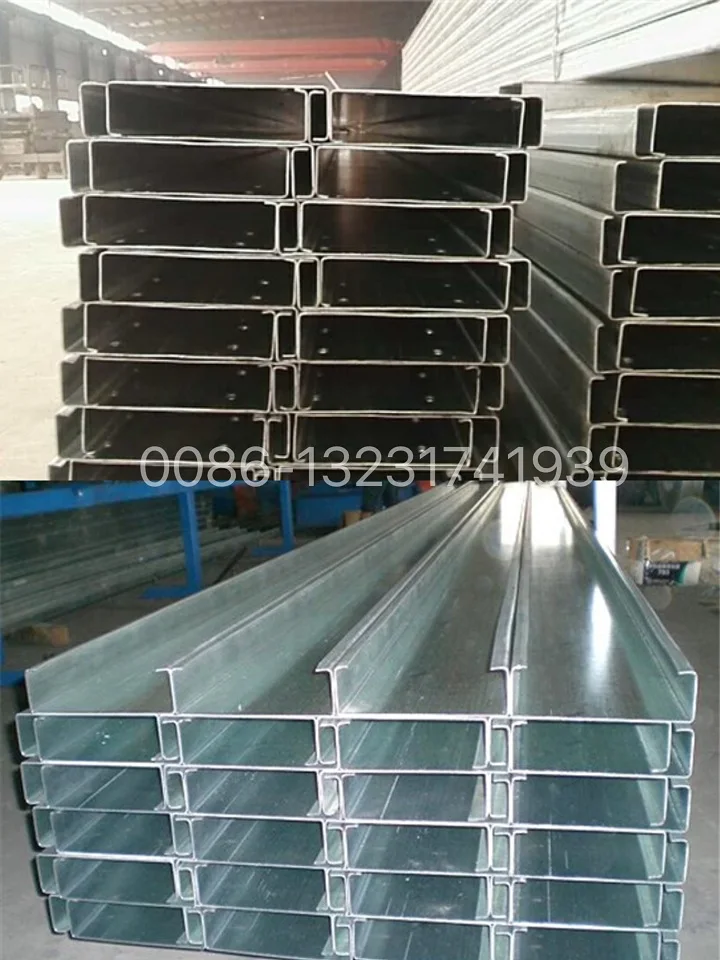

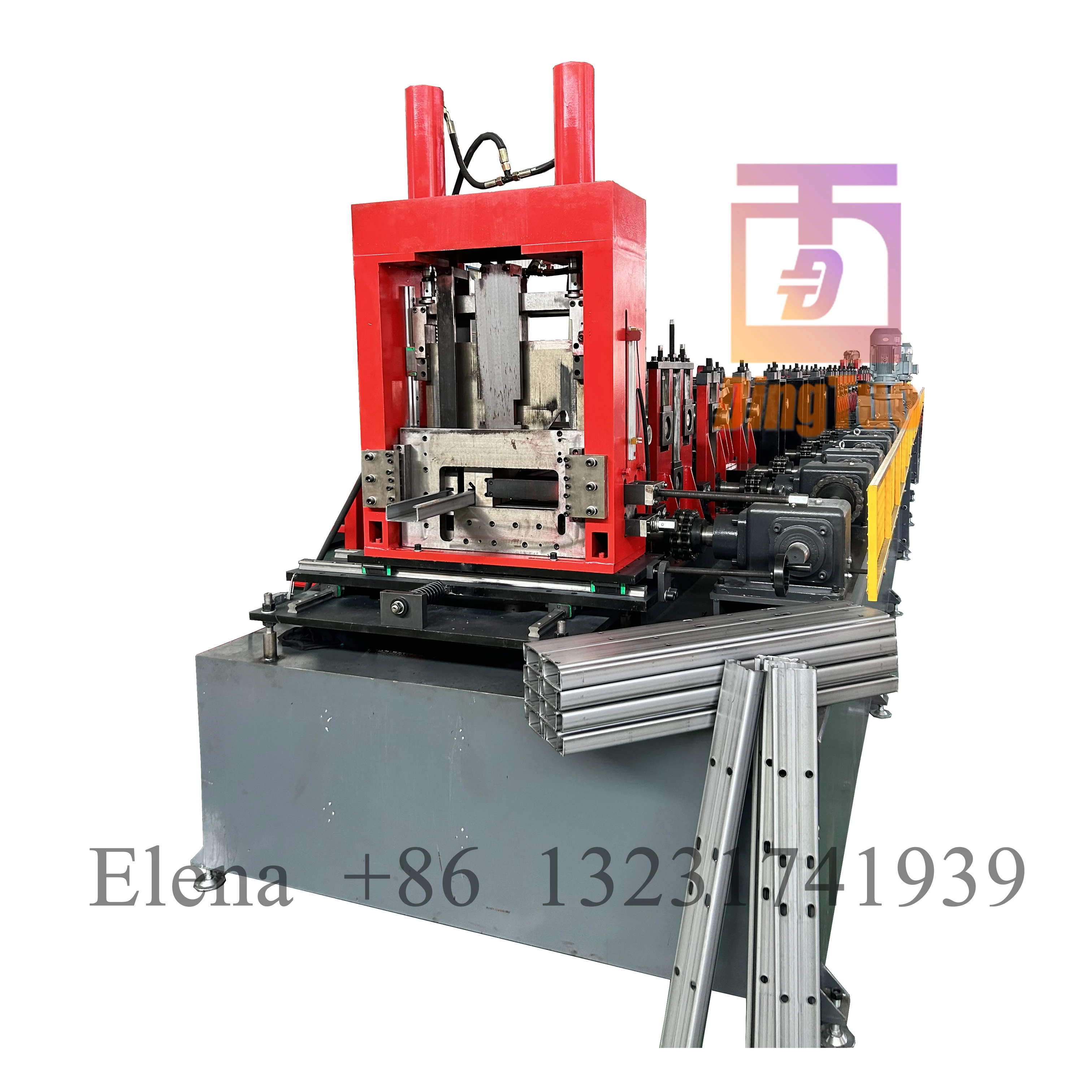

 CZ80-300 CZ section steel equipment is used to produce "C-shaped, Z-shaped" cold-formed steel equipment in the steel structure industry. The finished product produced by the machine is "C/Z-shaped steel (purlin)", which is mostly used to support beams and wall beams in housing construction and factories. It is commonly used in motor vehicles, railway vehicles, building doors and windows, transport vehicles, frames, switch cabinets, highway guardrails and steel structural structures, containers, steel formwork and scaffolding, shipbuilding with solar racks, bridges, transmission rods, steel sheet piles, Cable trays, agricultural machinery, furniture, warehouses, guide rails, keel steel, vegetable houses, pipe supports, municipal construction and other fields.

FEATURES AT A GLANCE

00:0001:39

PRODUCT SPECIFICATIONS

MACHINE COMPONENTS

NO.	Description	 Quantity (set)
  5T hydraulic decoiler 1
2   Feeding platform part1
  pitch roller and leveling part1
  15 sets of punching unit 1
  4 Forming system 1
  Transmission system 1
7   Twist cutter 1
  Run Out table 1
  Hydraulic pump station 1
  Electric Control box 1
  Spare parts and tools 1


No	Item	Parameter	Note
1	raw material	galvanized steel / black strips / carbon steel
2	raw material thickness	2-3 mm

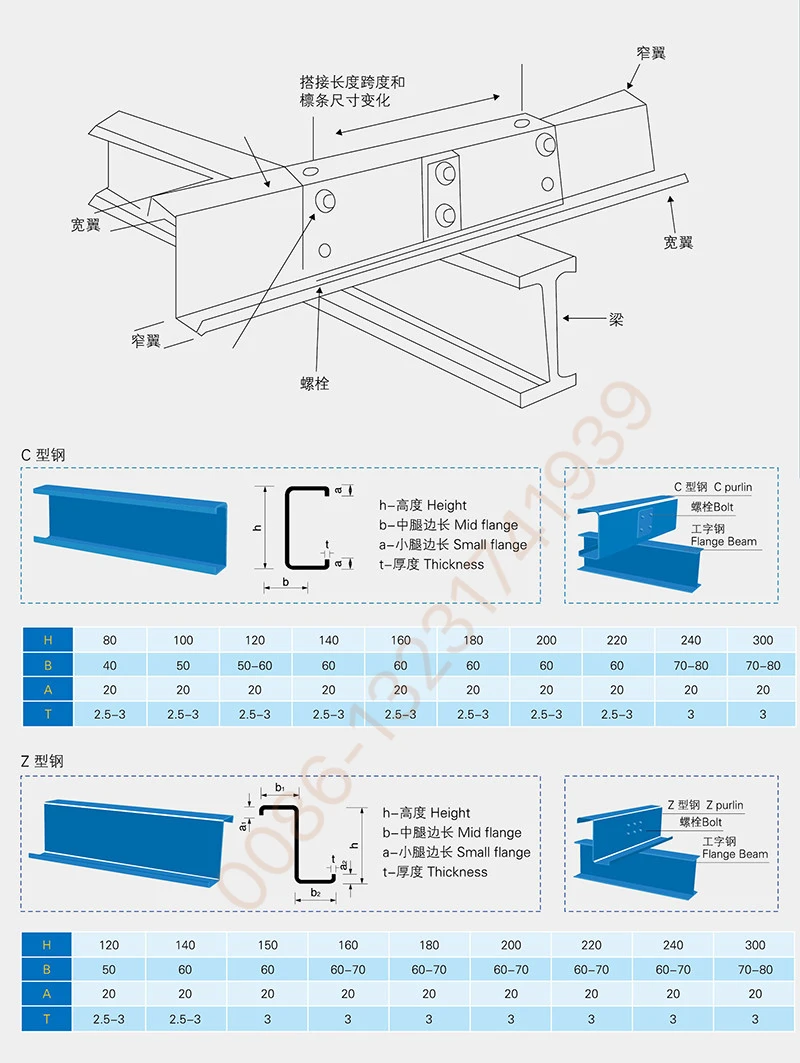

3	H	C : 80-200 mm	can customized . If you need , welcome to connect Ms.Elena 0086-13231741939
4	B	C : 40 mm - 85 mm	can customized . If you need , welcome to connect Ms.Elena 0086-13231741939
5	A	15 mm - 30 mm	can customized . If you need , welcome to connect Ms.Elena 0086-13231741939
6	Decoiler	5T hydraulic decoiler
7	Pitch Shafts	Material carrying function	Material carrying function
8	Leveling Part	Upper 3 and lower 4
9	Forming Shafts	85 mm	According to sheet sizes and thickness to choose the shaft diameter. Any requests , welcome to connect Ms.Elena 0086-13231741939
10	machine forming station	14	customzied as clients' sheet's sizes
11	machine stands	140 type cast iron machine stands equipped	higher cost machine stands , strong type , stable type
12	size changeable type	3 sets of size changeable servo motors , which can be changed by control panel automatically.	servo motor size changeable which can do stable and accurate size changeable
13	machine base frame	whole iron plates welding steel,the thickness of the table top is 30 mm, the thickness of the side plate is 10 mm	the whole is sanded and derusted after welding, and the table top is processed by CNC gantry milling
14	machine power	42 KW(main motor power)+ 15 kw ( hydraulic pump station cutting motors) + 2.2 kw *3 ( size changeable servo motor )	63.6 kw.h K serious reducer which can make machine run stable
15	machine speed	8-10 m / min	with 15 sets of punching unit .Any needs , welcome to connect Ms.Elena 0086-13231741939
16	machine transmission way	230 type gear boxes
17	roller material	Cr12 mov steel finishing and the surface is plated with hard chrome and polished
18	Blade material	SKD 11 material with turning+quenching (hardness 58-62degrees)+grinding+fine turning treatment
19	Length counting method	OMRON (JAPAN ) brand encoder
20	Electric Control brands	DELTA PLC/touch screen/inverter	can do other brands as clients' requests
21	Run out table	2set	2*3 m length . Can do automatic stacker as your needed
22	Voltage	380V,50HZ,3 Phases or customized	voltage can be customzied as clients' request. Any requests , welcome to connect Ms.Elena 0086-13231741939
23	machine size	L 21m * W 2 m * H 2 m
24	machine weight	25000 KGS

PRODUCT CONFIGURATION

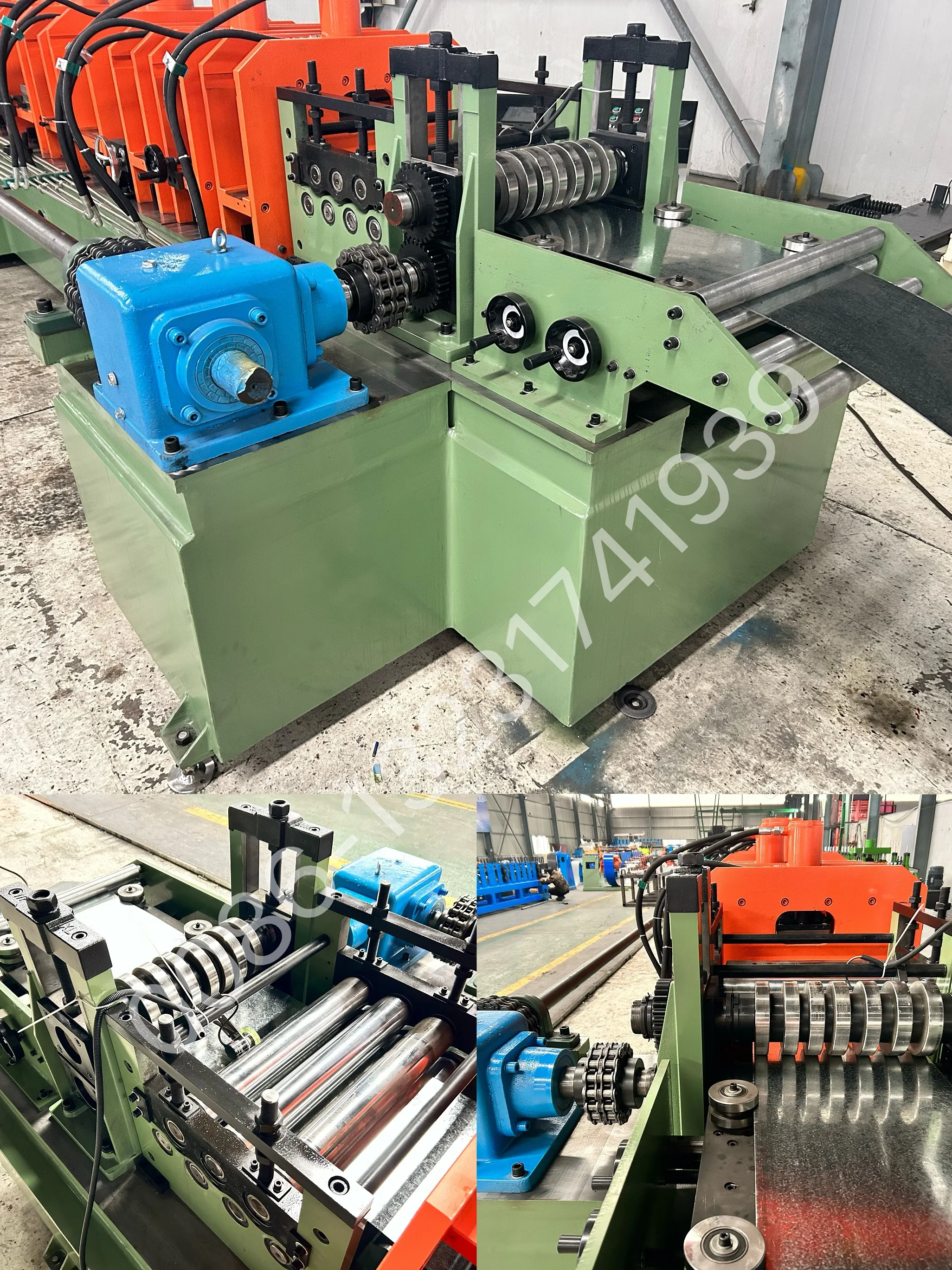

Feeding platform & pitch shafts& leveling unit ：higher quality feeding platform
pitch shafts
leveling ： upper 3 and lower 4

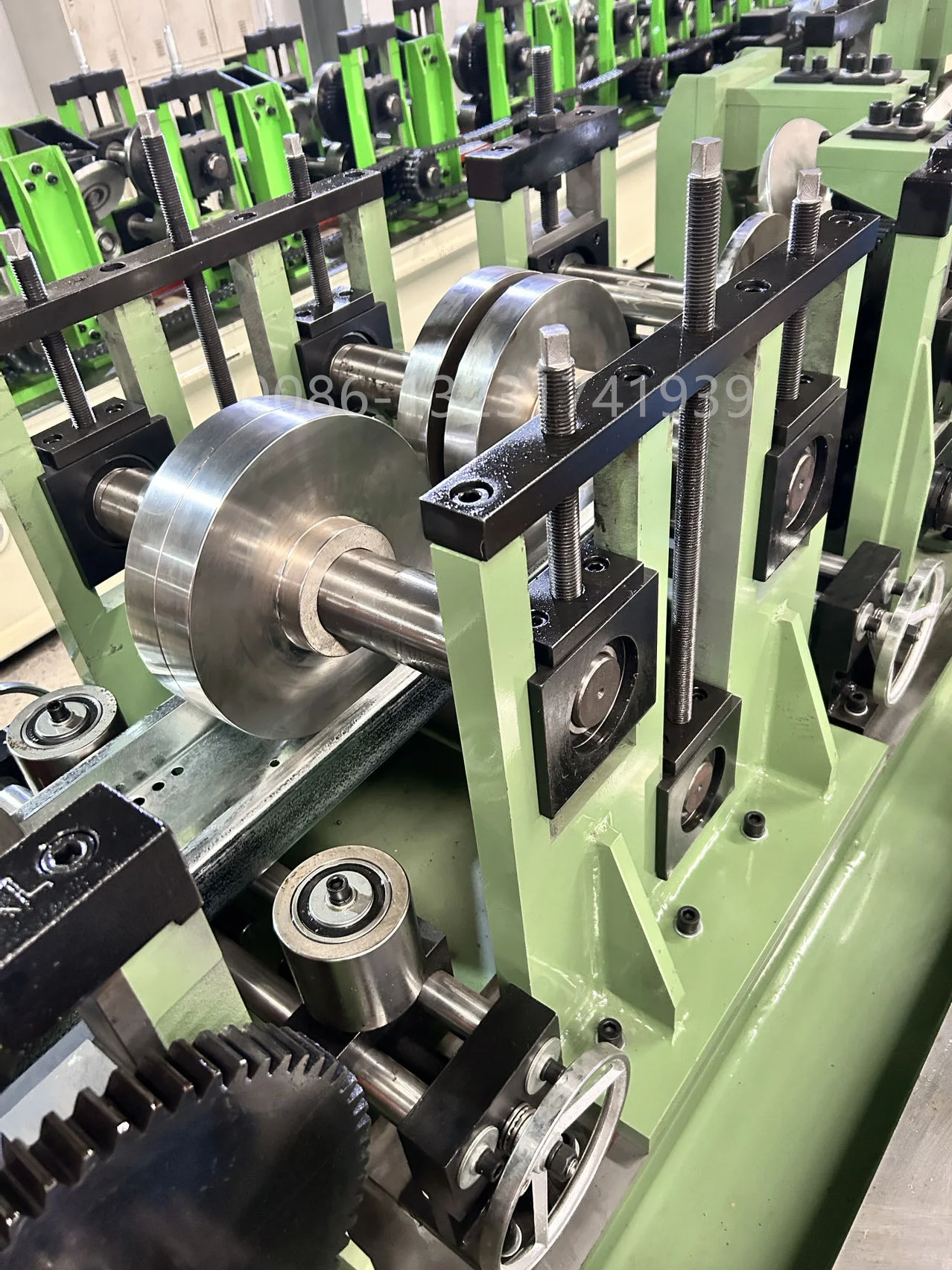

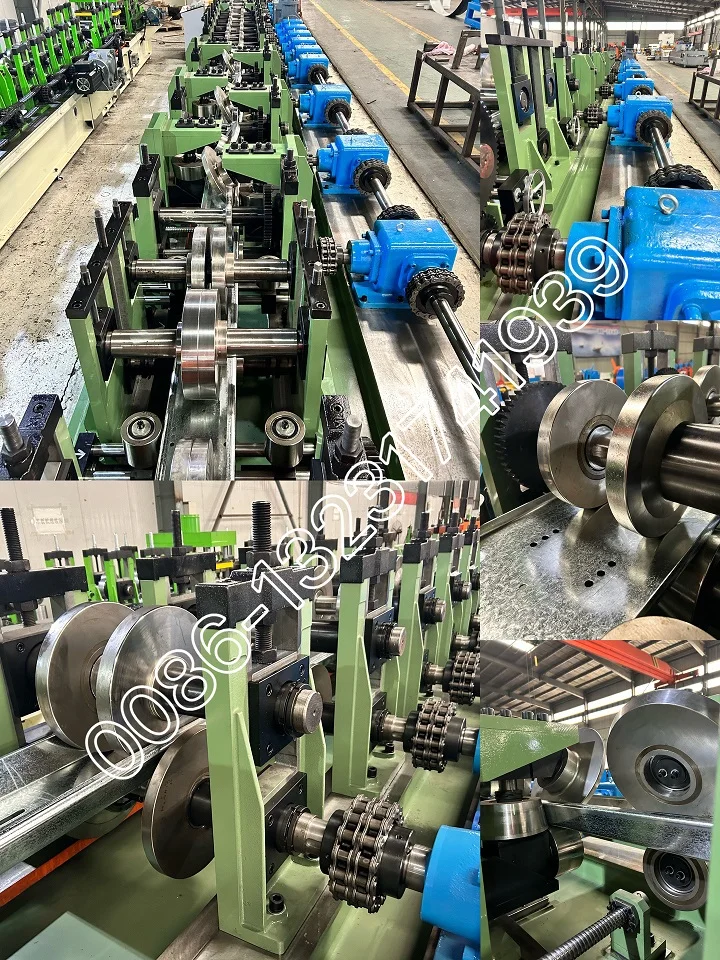

Forming rollers:14 stations ;
rollers material : Cr12 mov steel finishing and the surface is plated with hard chrome and polished;
85 mm solid shafts

Electric control cabinet:stand type
Delta brands or customized brands

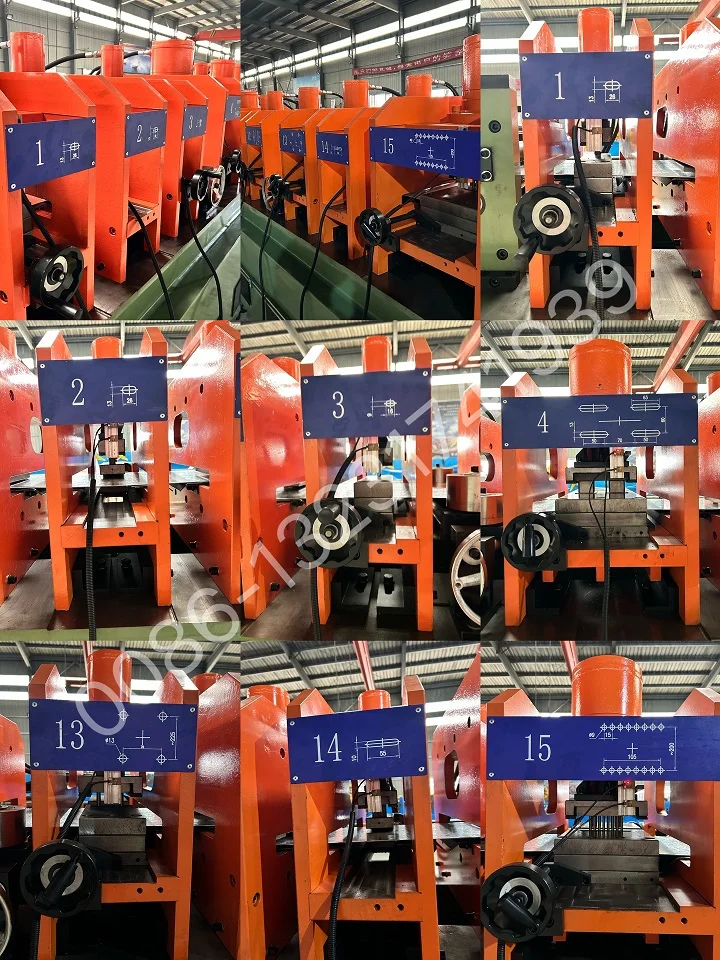

15 SETS PUNCHING UNITS

Customized the punching units as client needed

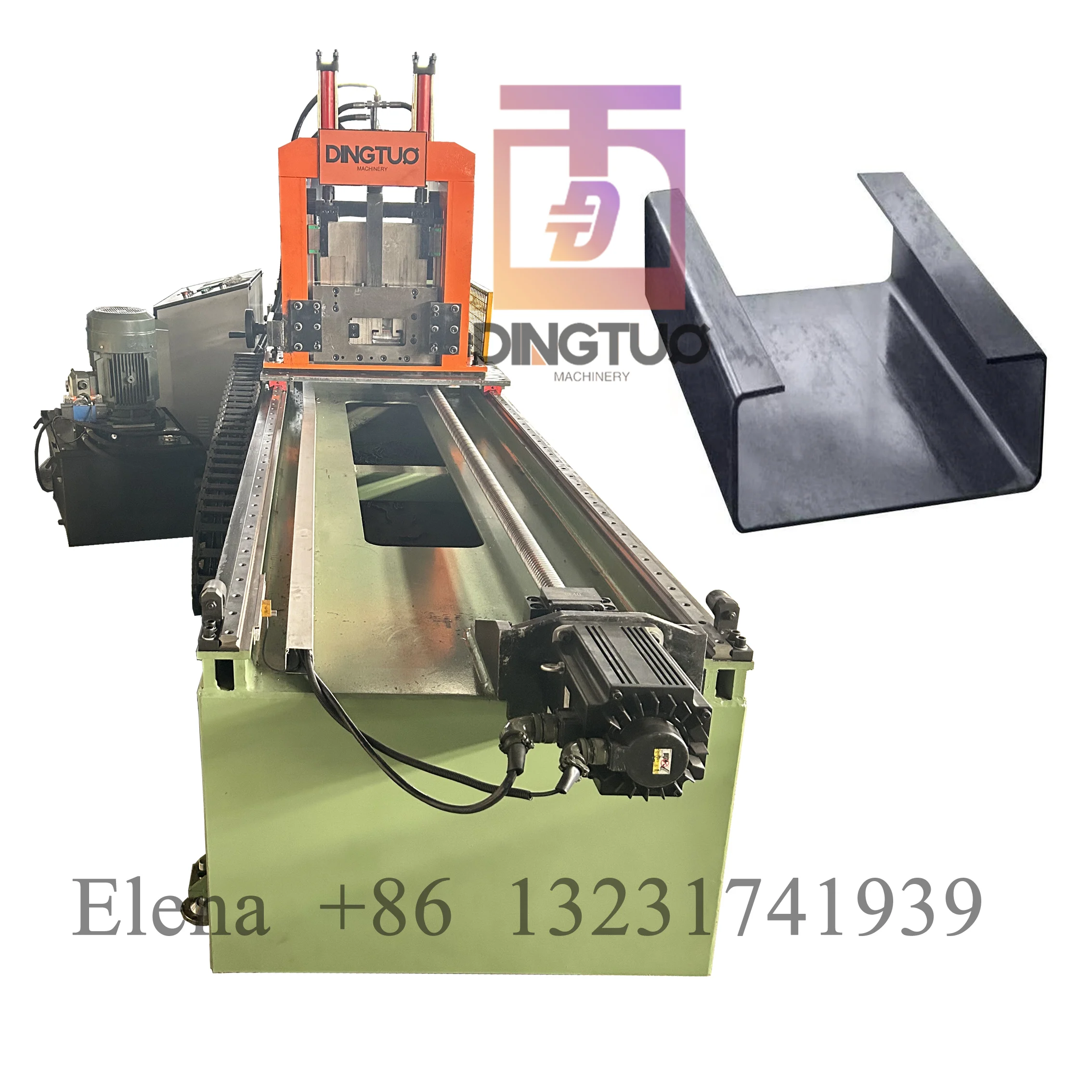

Servo Motor Size Changeable Automatically

size changeable more accurate and stable

Cast Iron Machine Stands gear boxes transmission

140 type cast iron machine stands180 type gear boxes

Straightening

higher quality

motor :

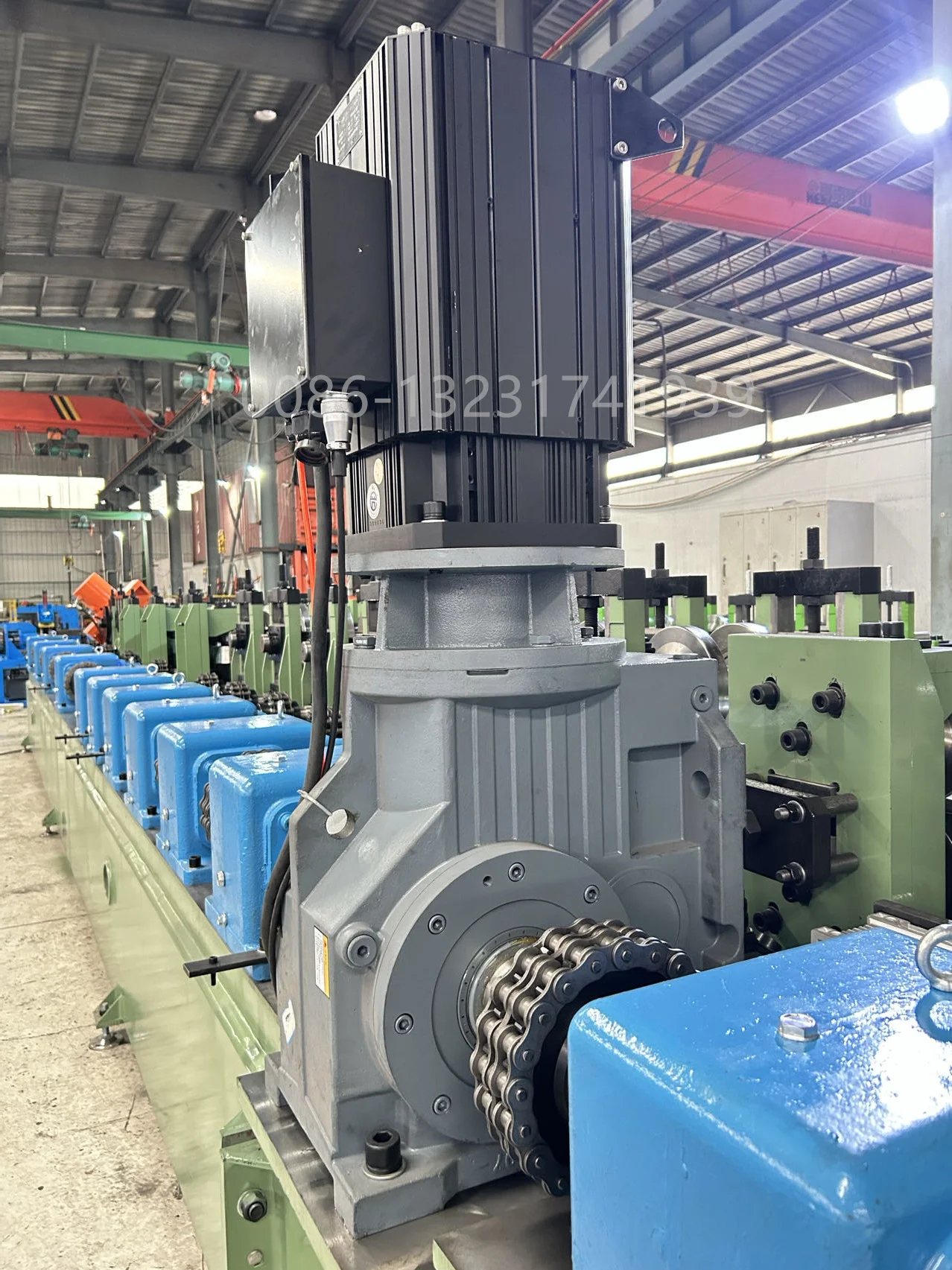

42kw K serious motor which can run the machine stable

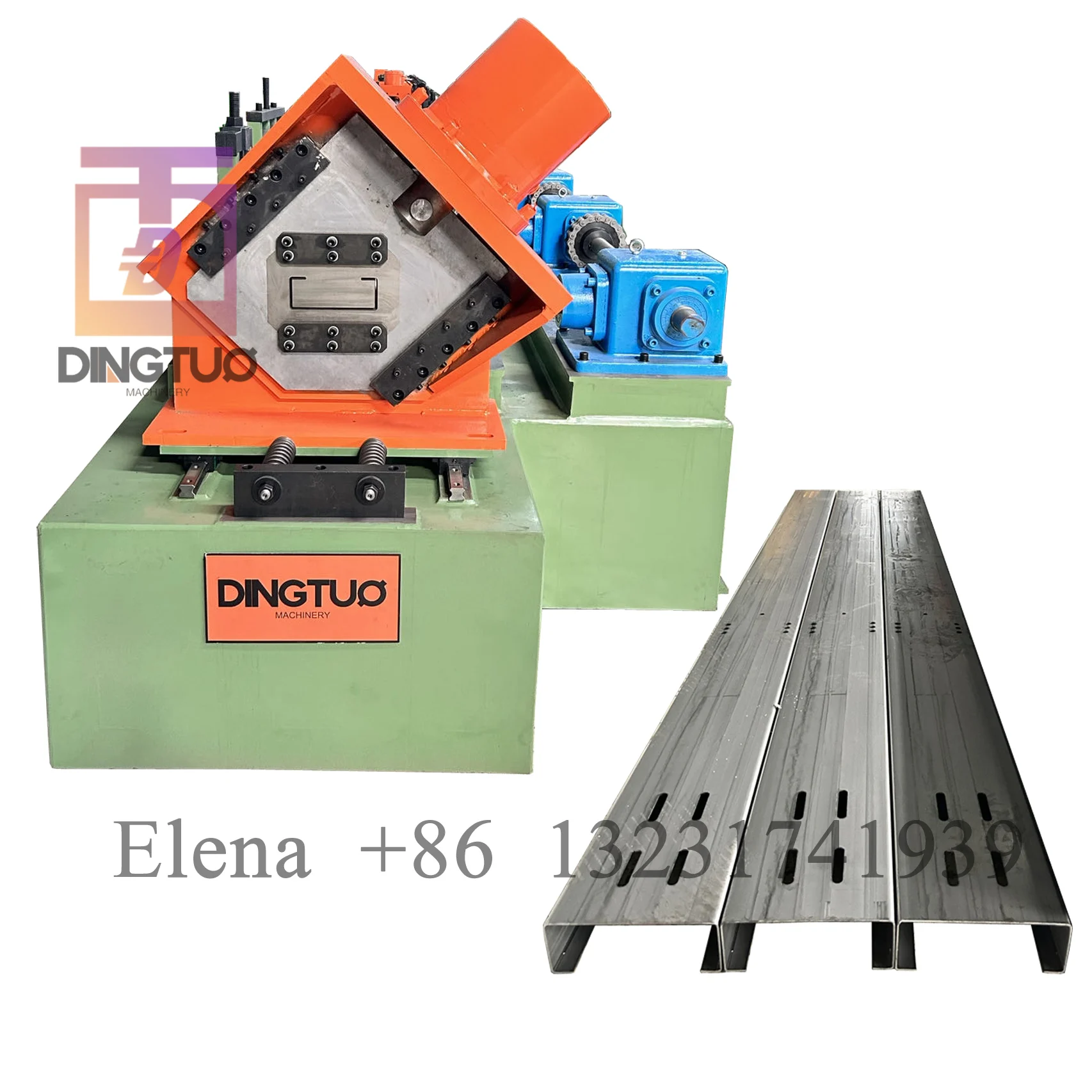

Automatic hydraulic cutting

strong enough knife holder to ensure the cutting stability and ensure the finished products effectsCan do various sizes without change blades

HYDRAULIC PUMP STATION

When delivery the machine, we don't disassemble this part which is easy for client because you don't need to install them when receiving the machines

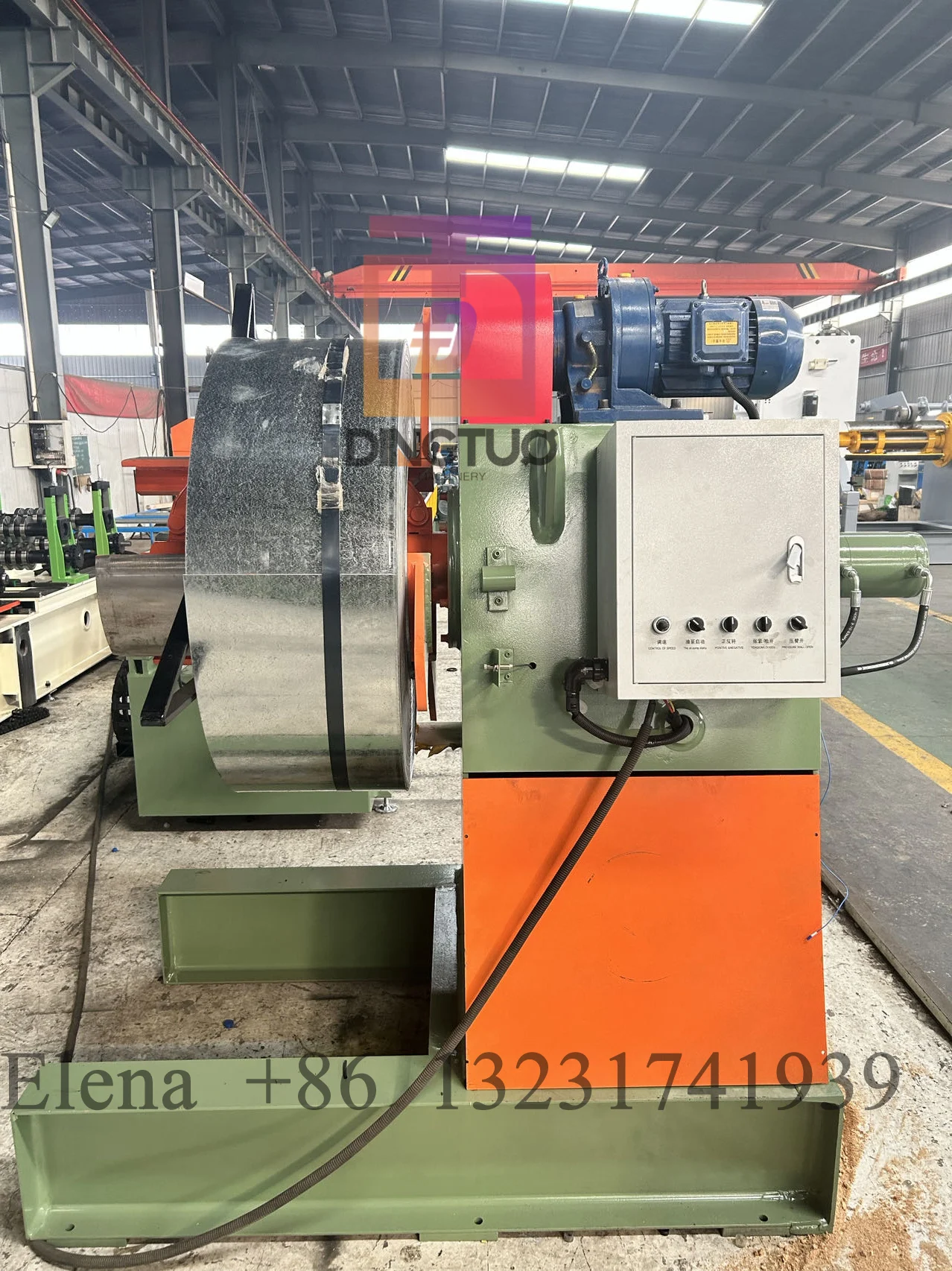

5T hydraulic decoiler

Range of segment expansion:470 ~ 525mm;
Base frame:80*160*3.75 mm square tube welded
Spindle material: 159mm seamless pipe
Box material: 10 mm thick iron plates welded
Approximate Size: L2 m * 1.4m *H2 m;
Approximate Weight : 1300 KGS
Speed control: automatic
Methods of operation: hydraulic automatic
Bearing Weight: 5 Tons

Pneumatic material run out table

2*3 m length

Product packaging

SALES AND SERVICE NETWORK

Successful Project

Projectin CANADA

Project in USA

Project in UAE

RECOMMENDED PRODUCTS

EXHIBITION AND CLIENTS

SAMPLE ROOM

FAQ

1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 20ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time30-45 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.

4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
 Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
