metal shutter side u guide roll forming machine for sale
Rolling shutter door guide rail production line equipment is used to produce door guide rails related to the door and window industry, and the finished products produced are rolling shutter door guide rails...
TEL : +86 13231741939
DETAILS
Product Overview

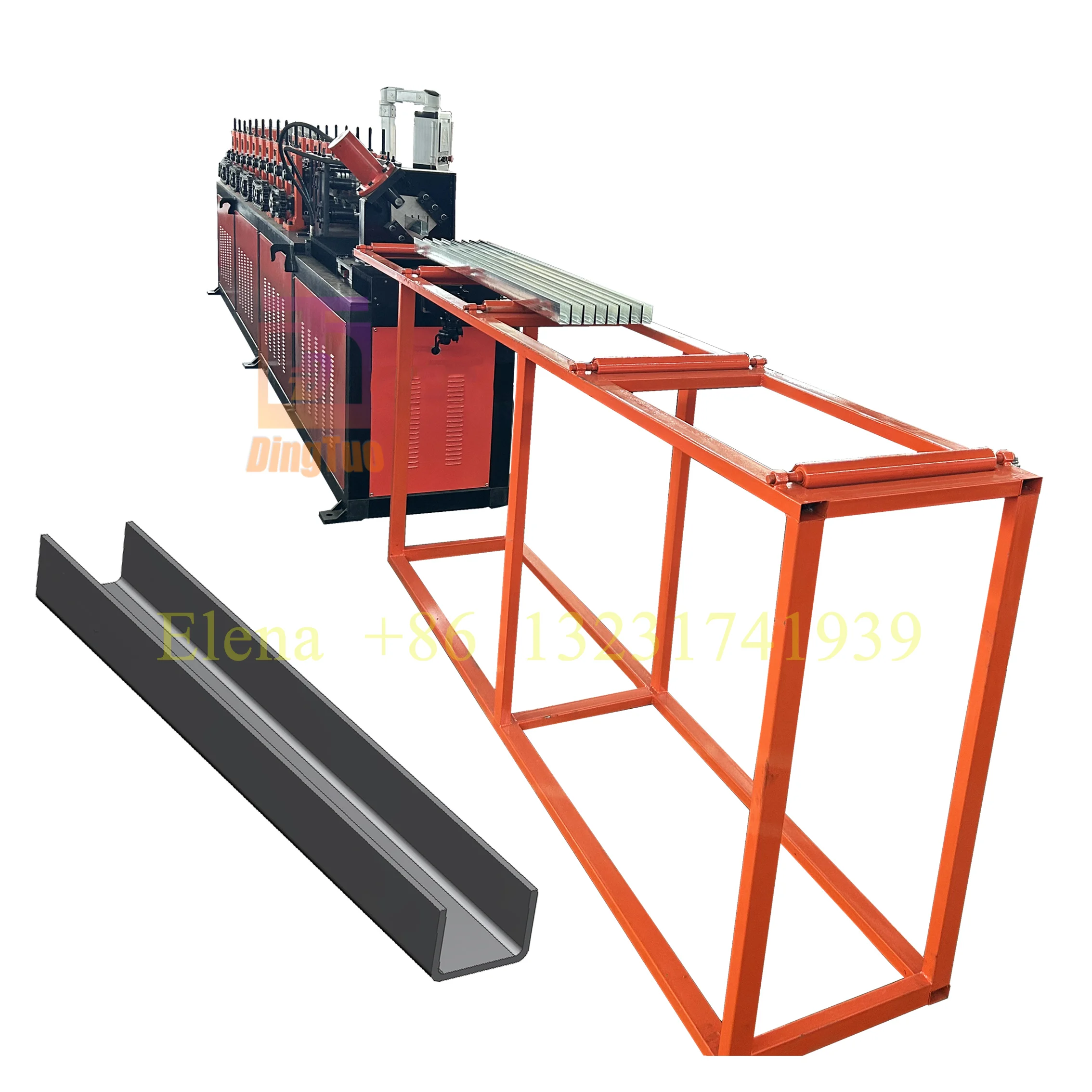

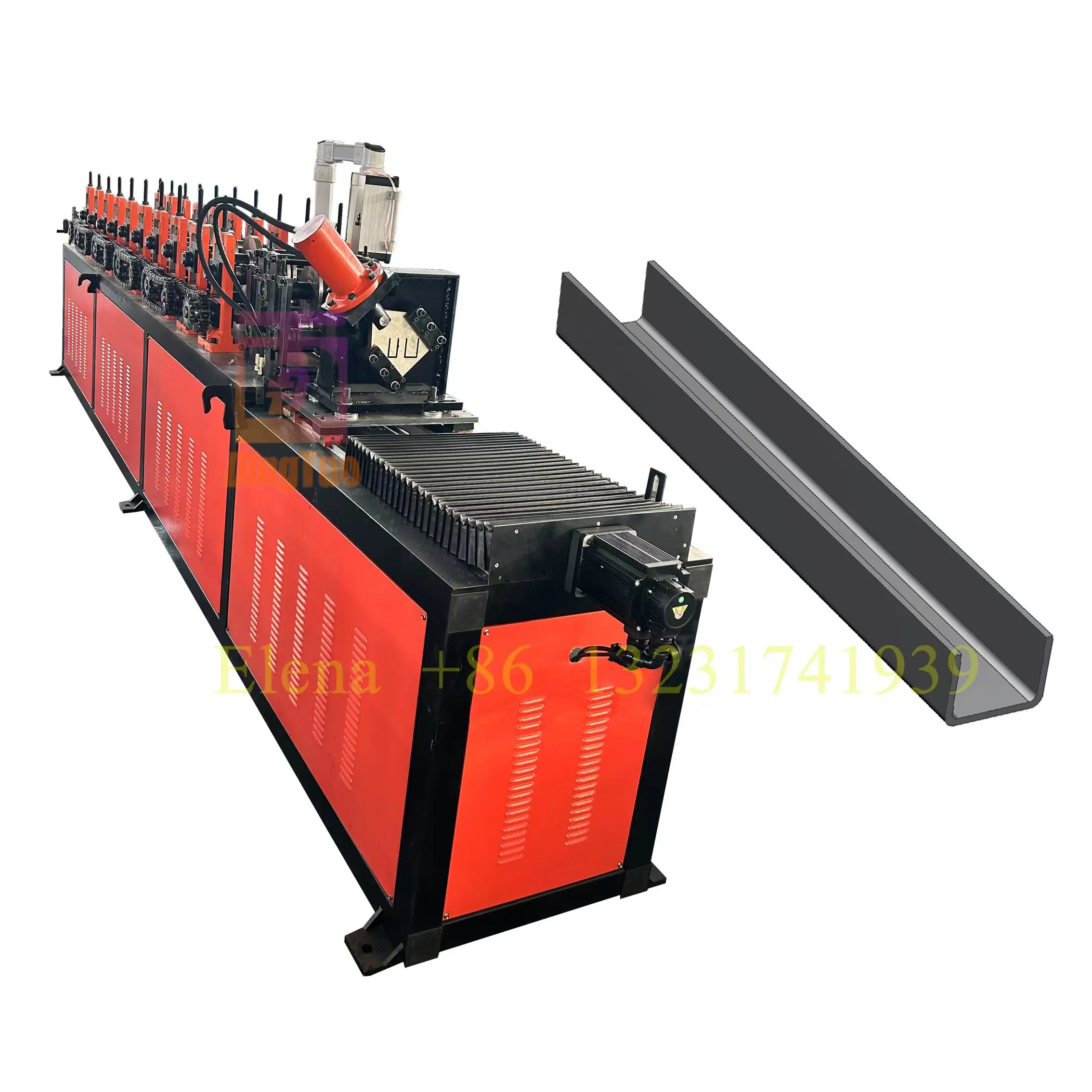

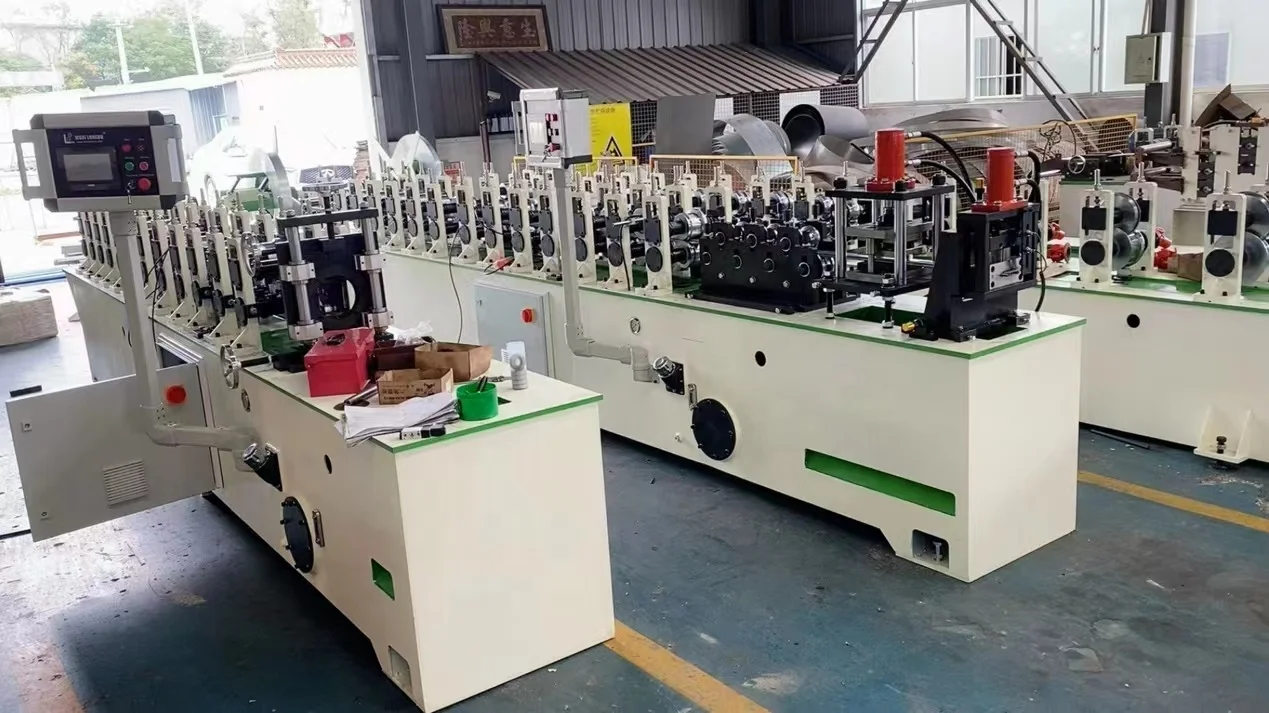

Roller shutter doorguide rail machine/roll up door guide railroll forming machineintroduction

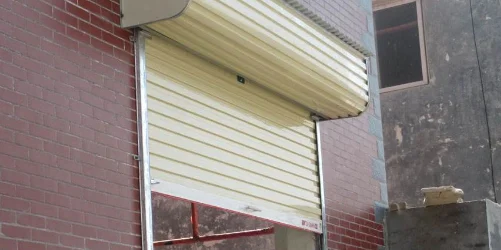

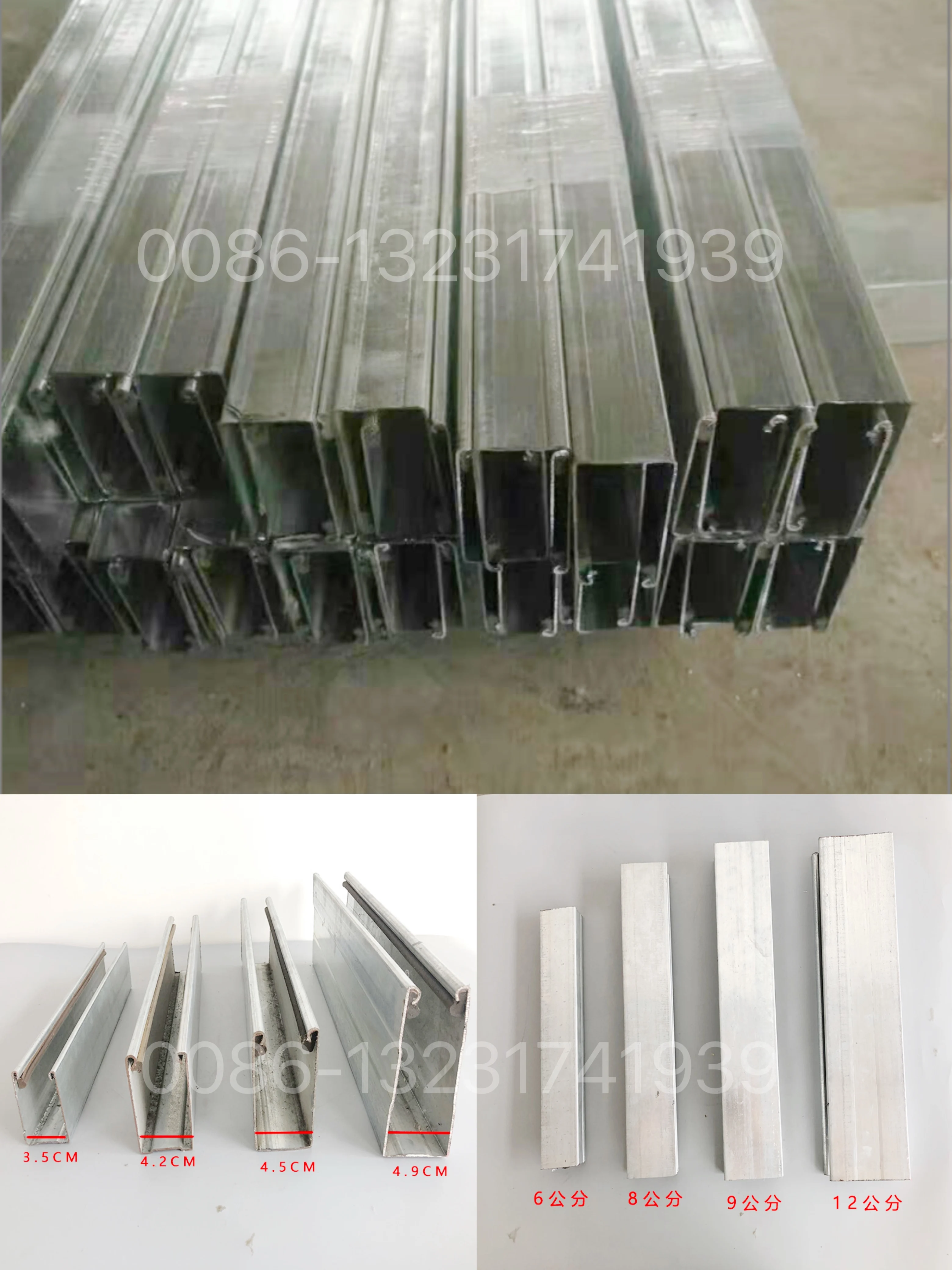

Rolling shutter door guide rail production line equipment is used to produce door guide rails related to the door and window industry, and the finished products produced are rolling shutter door guide rails. Often used in commercial supermarkets, shops, private residential garages, warehouses, factory buildings, etc. as one of the components of the rolling door (rolling door guide rail).
The role of the guide rail
The guide rail is a component used to limit the movement trajectory of the roller blind and guide the direction of movement. The length tolerance of the guide rail should be less than or equal to 2mm, the straightness should be less than or equal to 1.5/1000 and the straightness of the full length should be less than or equal to 3/full length, and the perpendicularity between the guide rail and the horizontal plane should be less than or equal to 5mm. The distance between the guide rail and the wall fixture should be less than or equal to 500 mm. In this way, the firmness of the
installation of the rolling shutter door and the smooth running of the rolling shutter in the guide rail can be guaranteed.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
PRODUCT CONFIGURATION
OUR ROLLING SHUTTER DOOR ROLL FORMING MACHINE ADVANTAGES : SEE BELOW MACHINE CONFIGURATIONS
roller shutter door machine 3 tons decoiler
1.Features:
Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.
2.Power:unpowered
3. Power of the open and closure of segments: manual way
4.Power of rotation of segment: manual
5.Number of segment: 4
6.Range of segment expansion:480 ~ 520mm
7.Height of center of the mandrel:0.65m
8.Approximate Size:1.1 m * 1.1m *1.5 m
9.Speed control:By mechanical brake
10.Methods of operation: Manual.
11. weight:200KGS
roller shutter door guide rail machine feeding platform
1.Features: Ensure smooth & feed material.
2.Components: steel plate platform, two pitching rollers, position stopping block.
3. The coil is guided in the correct position and passed to the roll forming equipment.

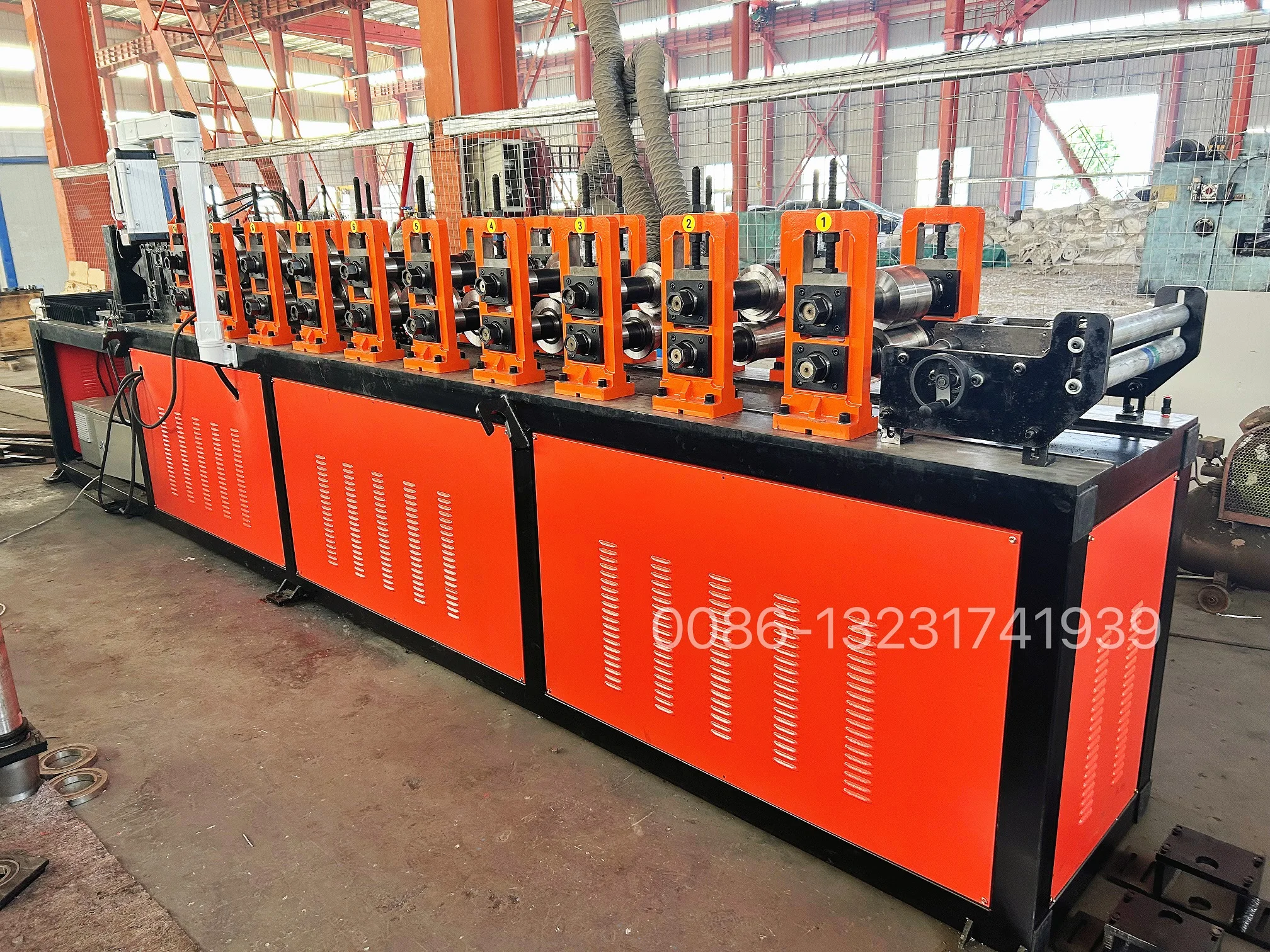

roller shutter door guide rail machine forming part

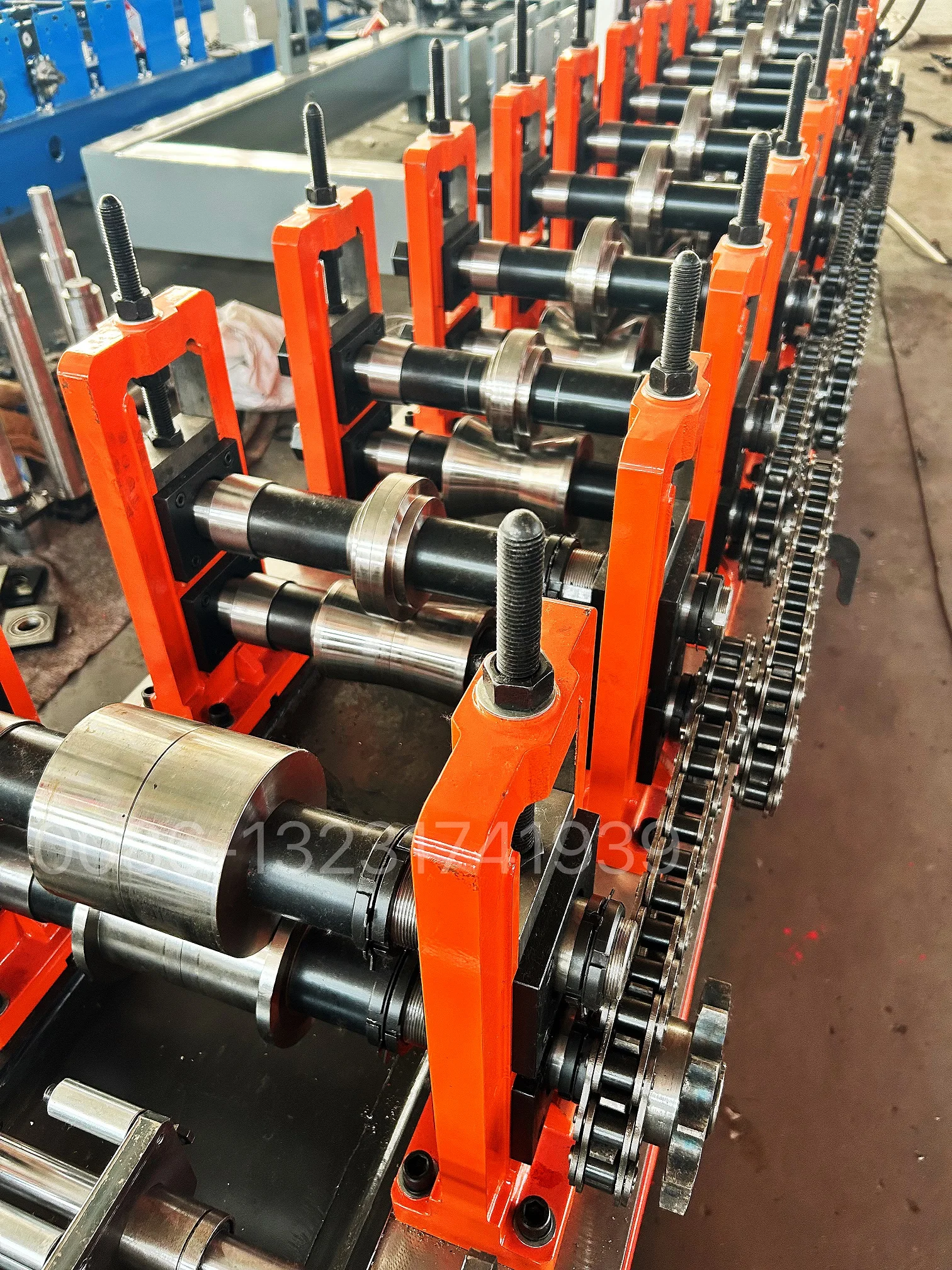

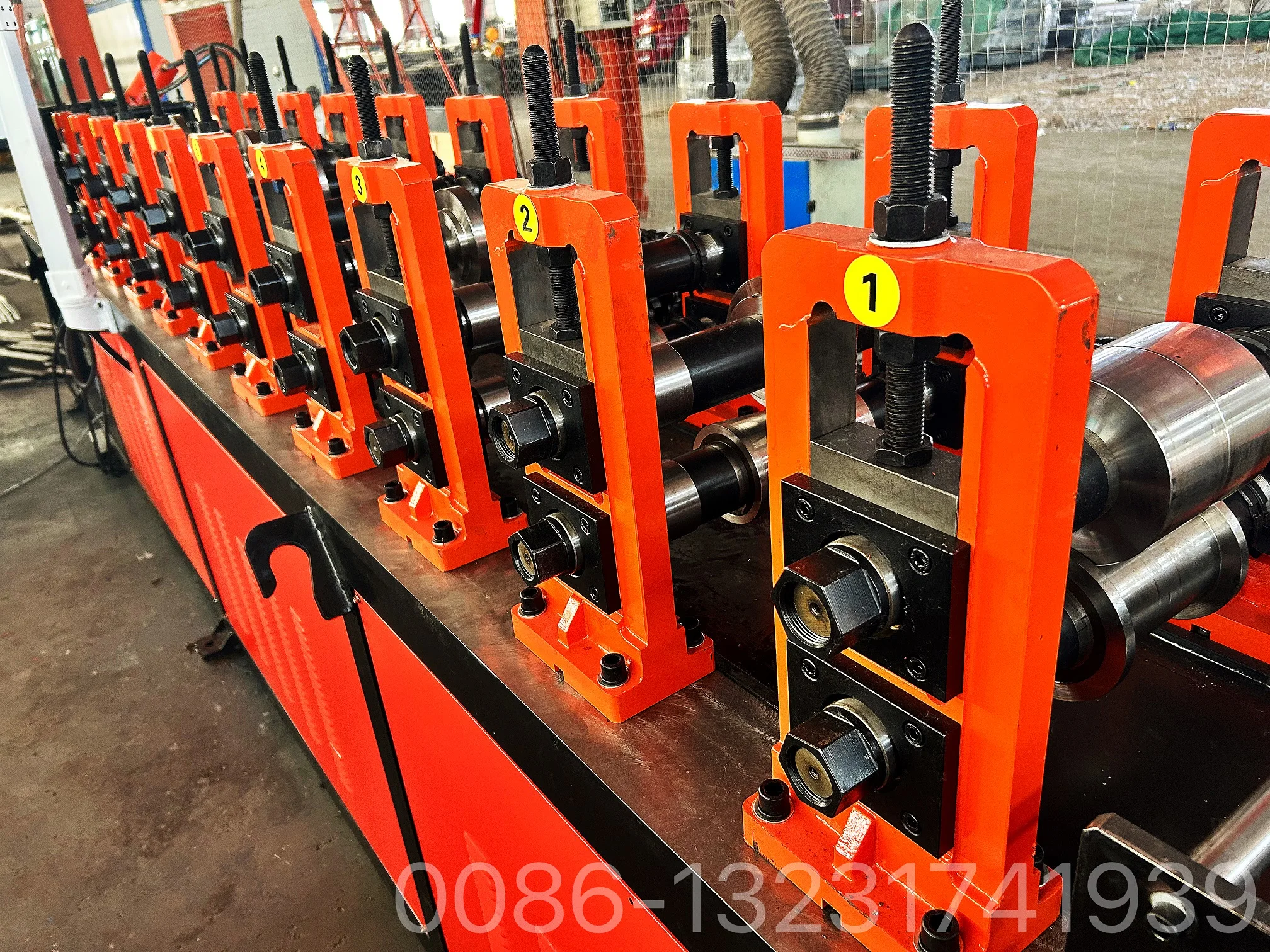

1.Rollers: design by senior engineers with Auto-cad software, manufactured with Gcr15 steel by CNC machine tools and coated with hard chrome
2.Shaft:50 mm solid shafts
3. Base frame: whole iron plates welded which can ensure the whole machine supporting strength.
4. Machine stands : 16mm thick machine stands
5.Machine Transmission:Gears transmission
6. Cutter : Cr12 with turning+quenching(hardness 58-62degrees)+grinding+fine turning treatment
7. Pump Station: 4 kw
8. Machine main power:5.5 kw
9. motor: K serious motor which has more stability than ordinary motor
roller shutter door machine Machine Side Panels
1. Base frame: whole iron plates welded which can ensure the whole machine supporting strength.
2. Machine stands : 30mm thick
machine stands
machine stands
roller shutter door guide rail machine Transmission
gears transmission
roller shutter door guide rail machine Hydraulic Pump Station with cooling fan and servo motor
1. Hydraulic cutting motor power:4kw
2. Servo none-stop motor power:1.5kw

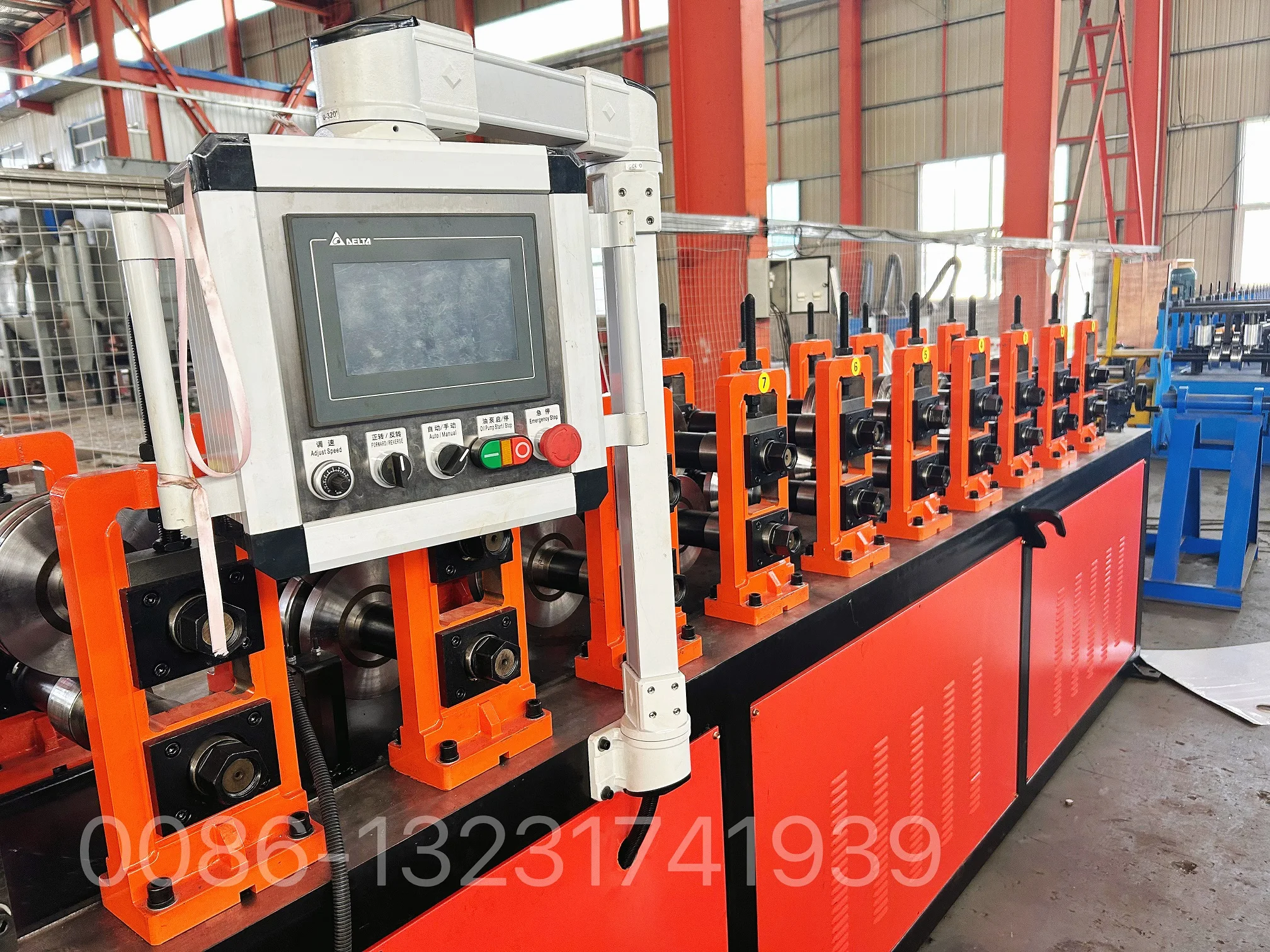

roller shutter door guide rail machine Cantilever type electric control cabinet
The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Lengthmeasurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:220V, 3 Phases 50Hz （ voltage can becustomized as your needed)
roller shutter door machine K serious reducer with gear type
This K serious reducer with gear type has higher cost than ordinary reducer .
ThisK serious reducer with gear type has more stability and lower noise than ordinary reducers.

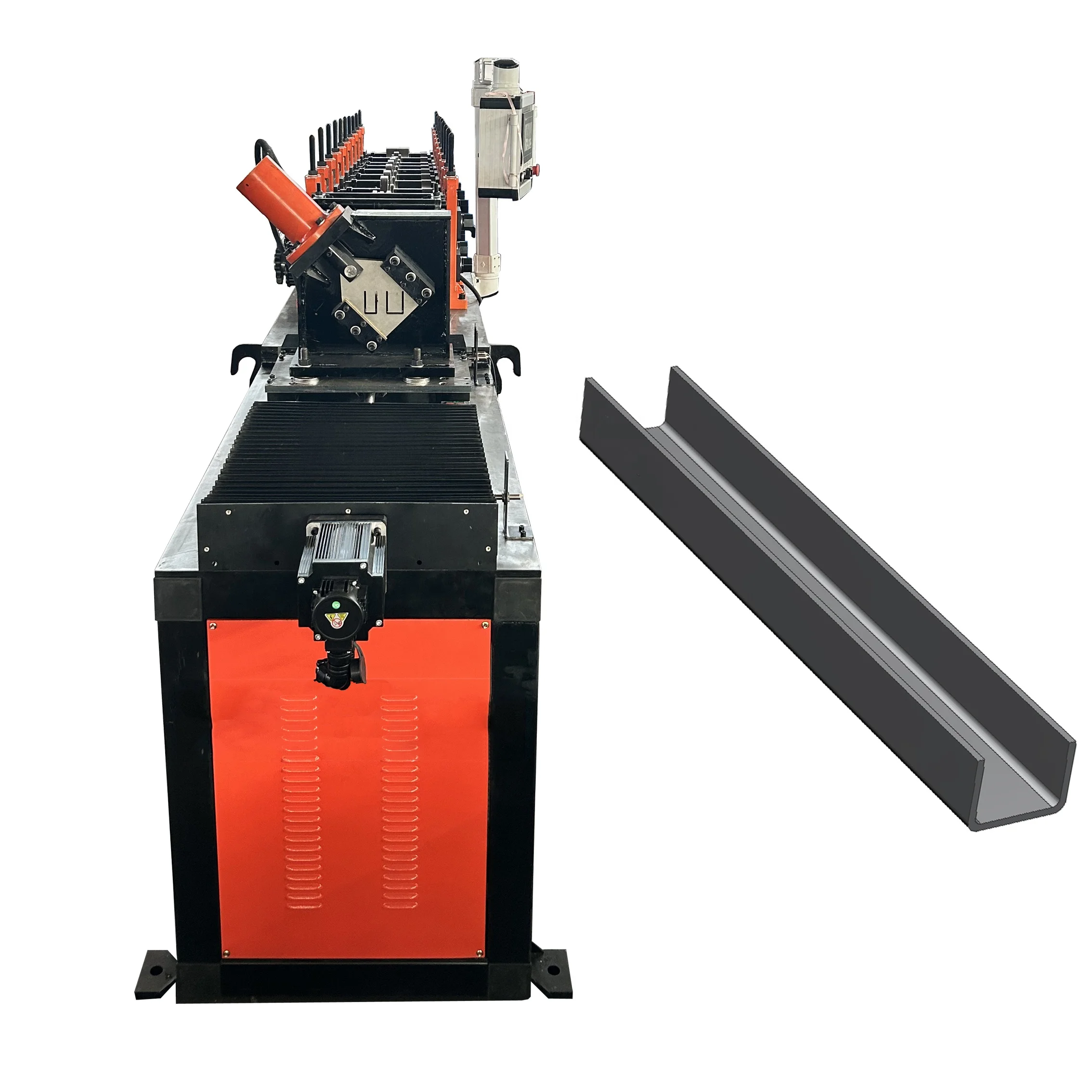

roller shutter door guide rail machine Automatic Hydraulic Cutter
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. 2.Power supply: 4kw hydraulic pump station 3.Frame: whole iron plates welded 4.Stroke switch: non-contact photoelectric switch 5.Cut : cut the sheet after roll forming to required length 6.Length measuring: automatic length measuring 7. Blade material:Gcr15 material with finishing
8. none- stop flying cut which can increase the machine speed which can reach 25m/min using servo tracking motor
roller shutter door guide rail machine MACHINE RUN OUT TABLE
RECEIVE MATERIALS
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin Argentina
Project in USA
Project in China
RECOMMENDED PRODUCTS
CE certificate
CE Certificate
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 20ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
