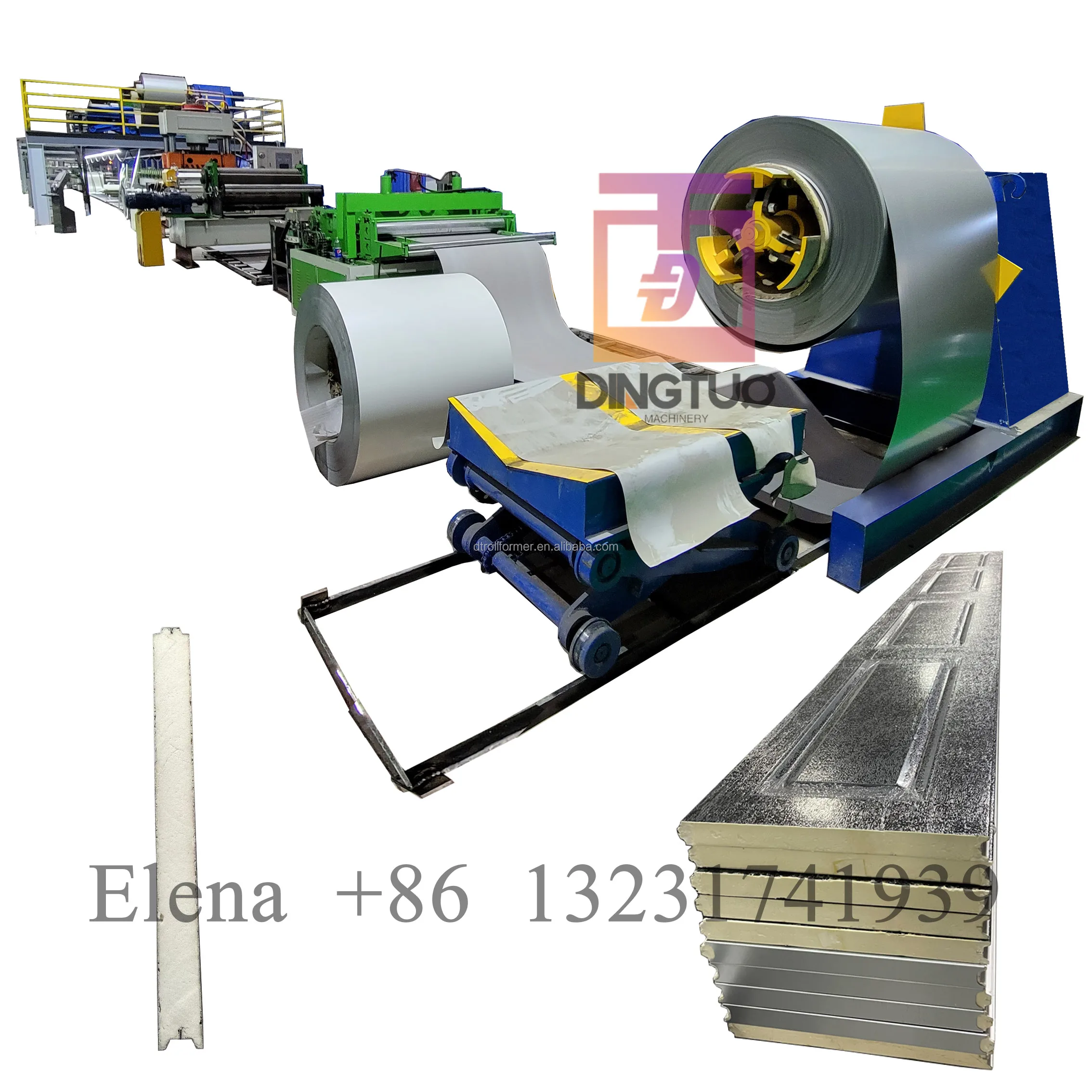

FULL AUTOMATIC SECTIONAL GARAGE DOOR PANEL PRODUCTION LINE

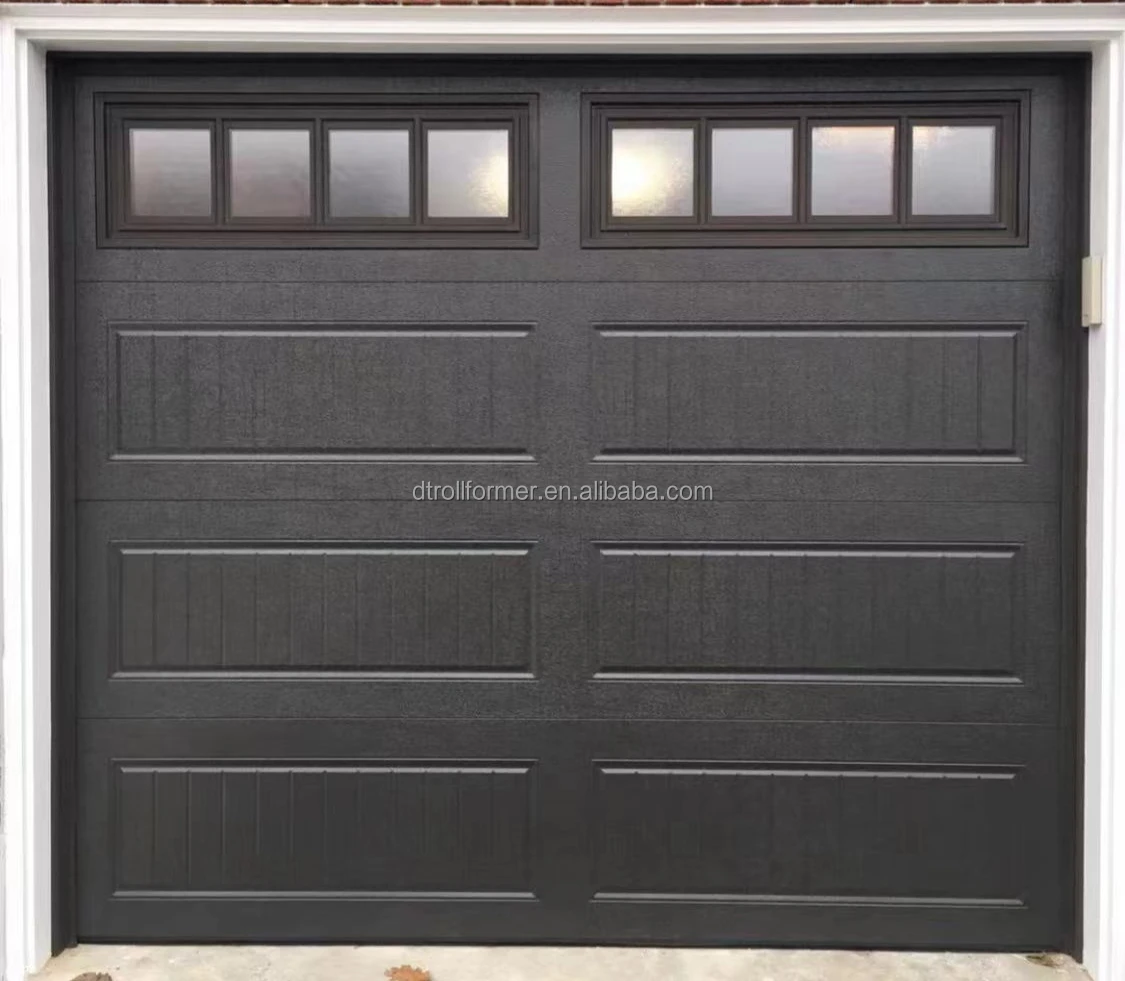

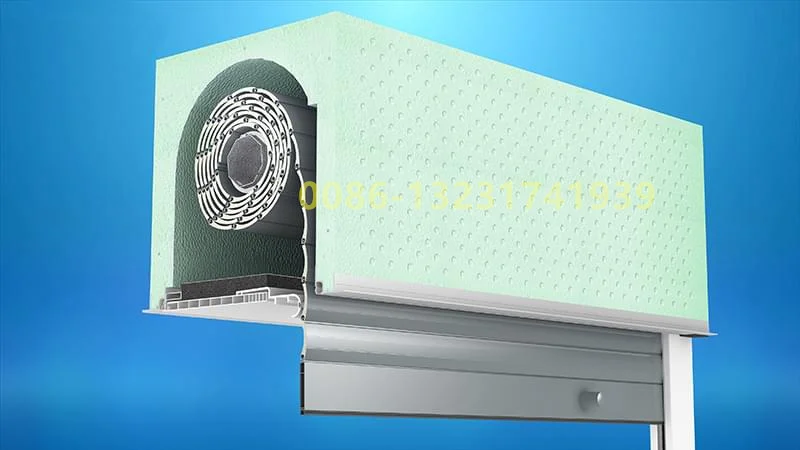

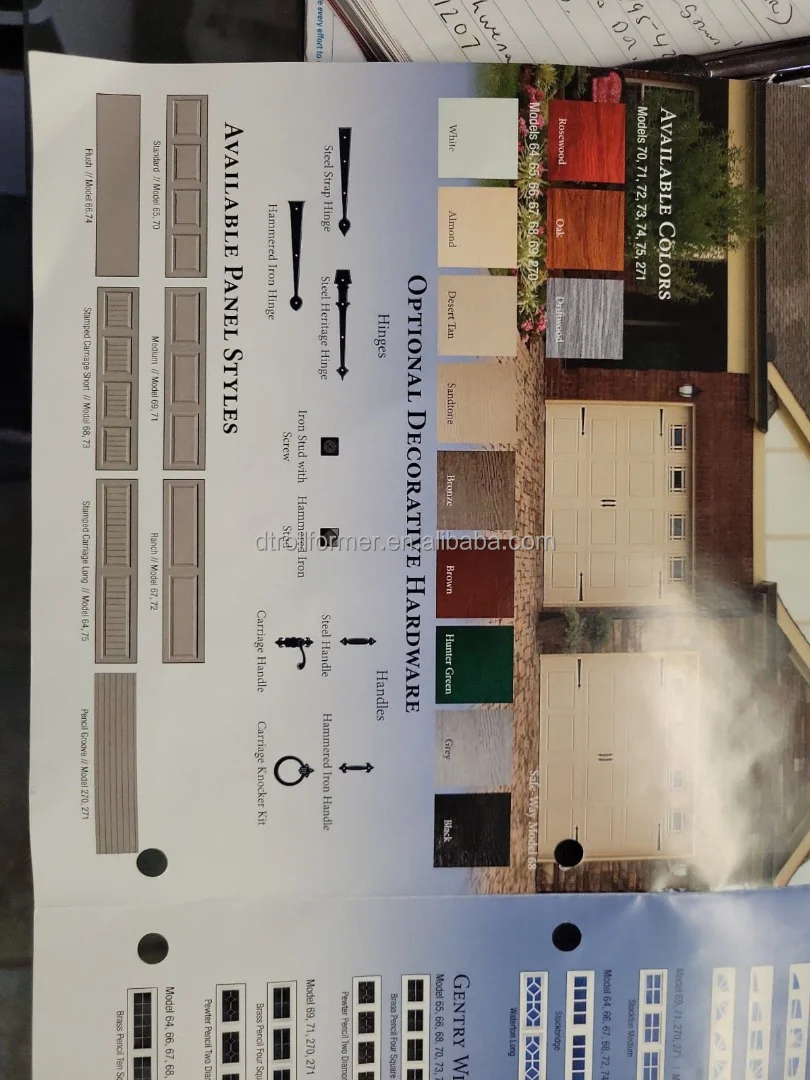

PU Foamed Garage Door Production Line is successfully tested running in our workshop. PU Foamed garage door prodcution line is designed to produce industrial garage doors. This PU foamed garage door production line is a continuous PU sandwich panel line that produces double-skinned sectional door panels with polyurethane insulated core. This garage door production line mainly consists of uncoiler, leveler, upper and lower roll formers, PU foam injection machine, hydraulic press, fly saw cutting system. Nowdays, garage door is widely applied in private garages and public parking lots. The most advantage of this garage door are as below: 1. fast rolling 2. widen shutter slats, much safety 3. less space required, and is suitable for lower floor area.
The garage door panel production line can do semi-automatic garage door production line and can do fully automatic garage door production line . Which type do you need and welcome to connect Mrs.Elena

FEATURES AT A GLANCE

00:0000:44

PRODUCT SPECIFICATIONS

MACHINE COMPONENTS

NO.	 Description	Quantity
1   DECOILER 22   Cut to length and embossed stripes and lamination machine 2
3   Embossing machine 2
4   Servo feeder and leveling machine 1
5   pressing machine1
6   roll forming machine2 7 Preheating system1
8   Sweeping and foaming unit1
9   Double-layer roller crawler laminator system 1
10   Hydraulic Cutting part 1

No	Item	Data	Note
1	raw material	PPGI / aluminum
2	raw material thickness	0.5-1.2 mm
3	garage door panel sizes	457mm/533mm	can customized the effective width,too. If you need , welcome to connect Ms.Elena 0086-13231741939
4	roll forming machine power	5.5KW(main motor power)+5.5KW (hydraulic pump station cutting motor power)	11kw.h can customize other configuration . any request, welcome to connect Ms.Elena 0086-13231741939
5	machine stands thickness	25 mm	can customize other configuration . any request, welcome to connect Ms.Elena 0086-13231741939
6	machine transmission way	gears	can customize other configuration . any request, welcome to connect Ms.Elena 0086-13231741939
7	base frame material	8mm thick steel plate iron box with steel plate welded about the surface plates which uses 12mm thick iron plates and will be made by CNC machine and surface will have good finish and looks bright and beautiful	any request, welcome to connect Ms.Elena 0086-13231741939
8	Length counting method	OMRON (JAPAN ) brand encoder
9	Electric Control brands	DELTA Brand	This brand we used many years which quality has more suitable for our machine and can make machine running stable and not will be impacted by other electric devices.
10	Voltage	220V/380V/415V / 480V/ ,50HZ/60HZ, 3 Phases or customized	voltage can be customzied as clients' request. Any requests , welcome to connect Ms.Elena 0086-13231741939
11	roller/cutting Die Material	Material : Gcr15 processing technology: rough material milling machine processing - vacuum heat treatment HRC58-60 - flat grinding processing end face - wire cutting processing outline - engraving machine fine carving shape.	can customize other configuration . any request, welcome to connect Ms.Elena 0086-13231741939
12	Feeding width	customized as your drawing sizes	can customized . If you need , welcome to connect Ms.Elena 0086-13231741939
13	Forming Speed	8-12 m/min	if you need more higher speed sunch as 15-20m/min or more higher speed and can customize other machine configuration.Any request, welcome to connect Ms.Elena 0086-13231741939
14	Production line space size	L100m * W 3m * H 3m
15	machine weight	120 tons
16	Forming station	18+18 stations
17	shafts' diameter	60 mm solid shafts
18	decoiler	with two 5 tons hydraulic decoiler	High-quality box-type hydraulic decoiler
19	run out table	1 piece	High-quality

PRODUCT CONFIGURATION

OUR ROLLING SHUTTER DOOR ROLL FORMING MACHINE ADVANTAGES : SEE BELOW MACHINE CONFIGURATIONS

garage door panel machine 5 tons hydraulic decoiler*2

coil inner diameter: 480 ~ 520mm2. coil outer diameter: 1200 mm
running way:automatic hydraulic tension or relax, automatic forward or back
weight: 350KGS

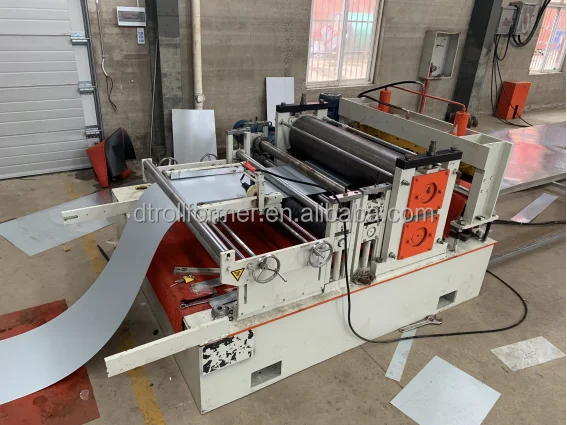

CUT TO LENGTH AND EMBOSSEDMACHINE *2

a. Function and structure: The sheet is rolled through a set of rollers to form the required pattern.
b. The roller is forged with GCr15. After the entire computer processing and quenching, the hardness can reach HRC56-62°.
c. Host frame: 400H steel welding, CNC processing.
d. The archway is made of A3 material and is gear driven.
e. Motor power: 5.5KW

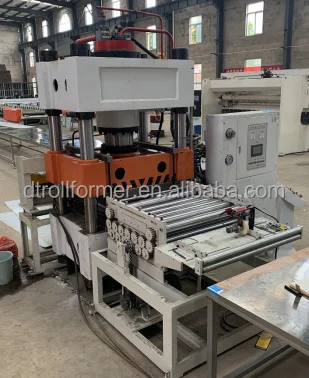

HYDRAULIC OIL PRESSING MACHINE

can customized garage door pressing die

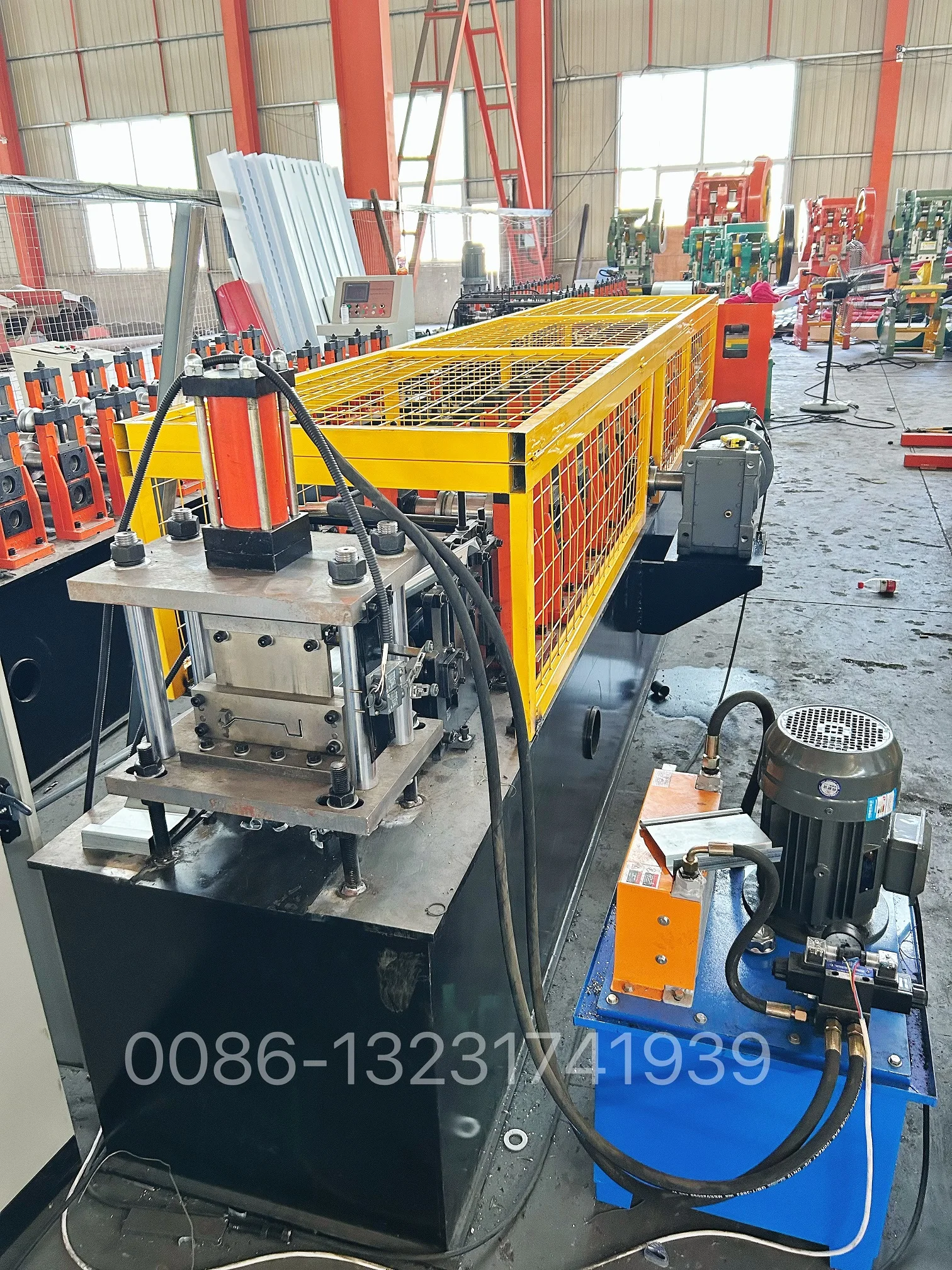

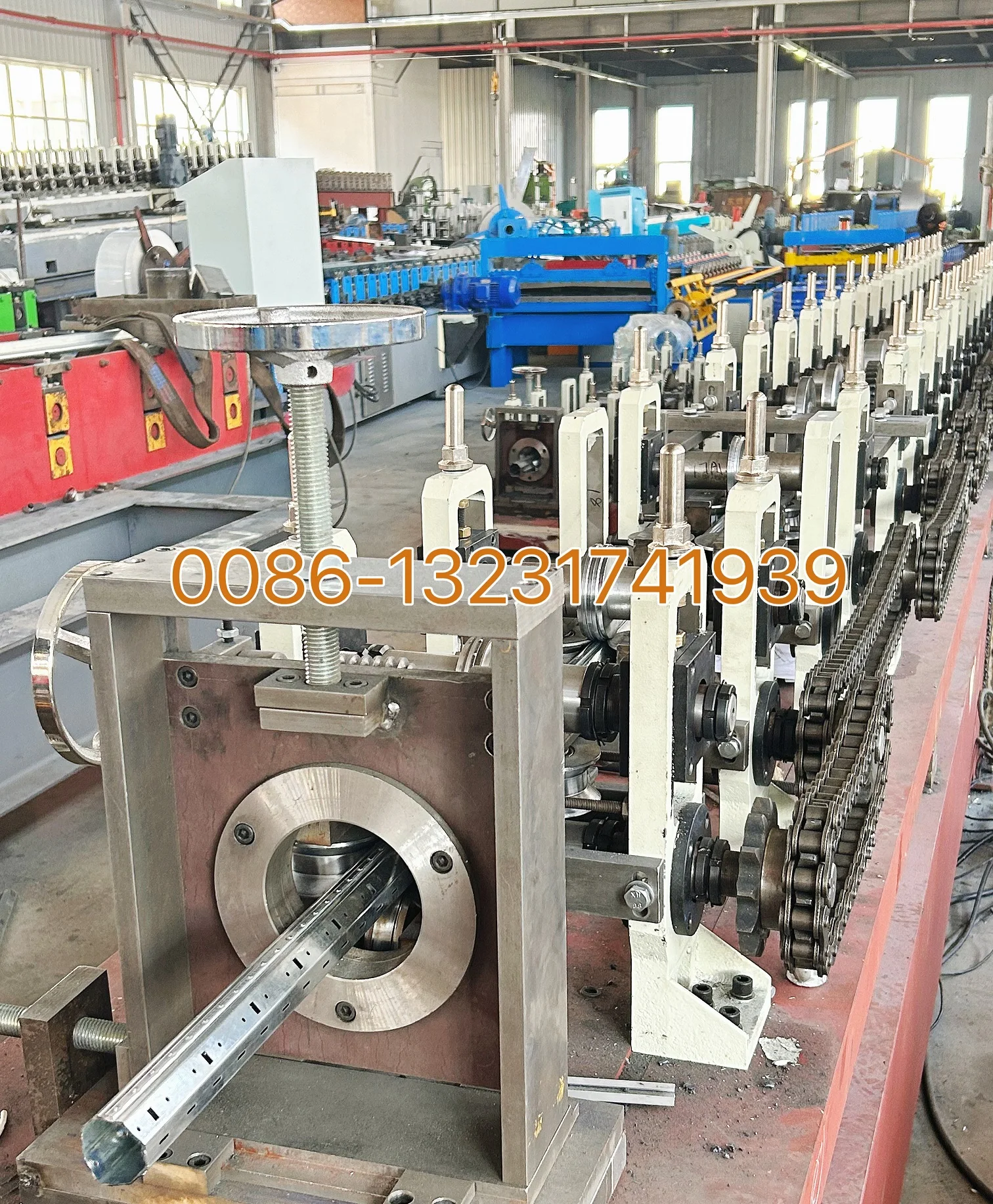

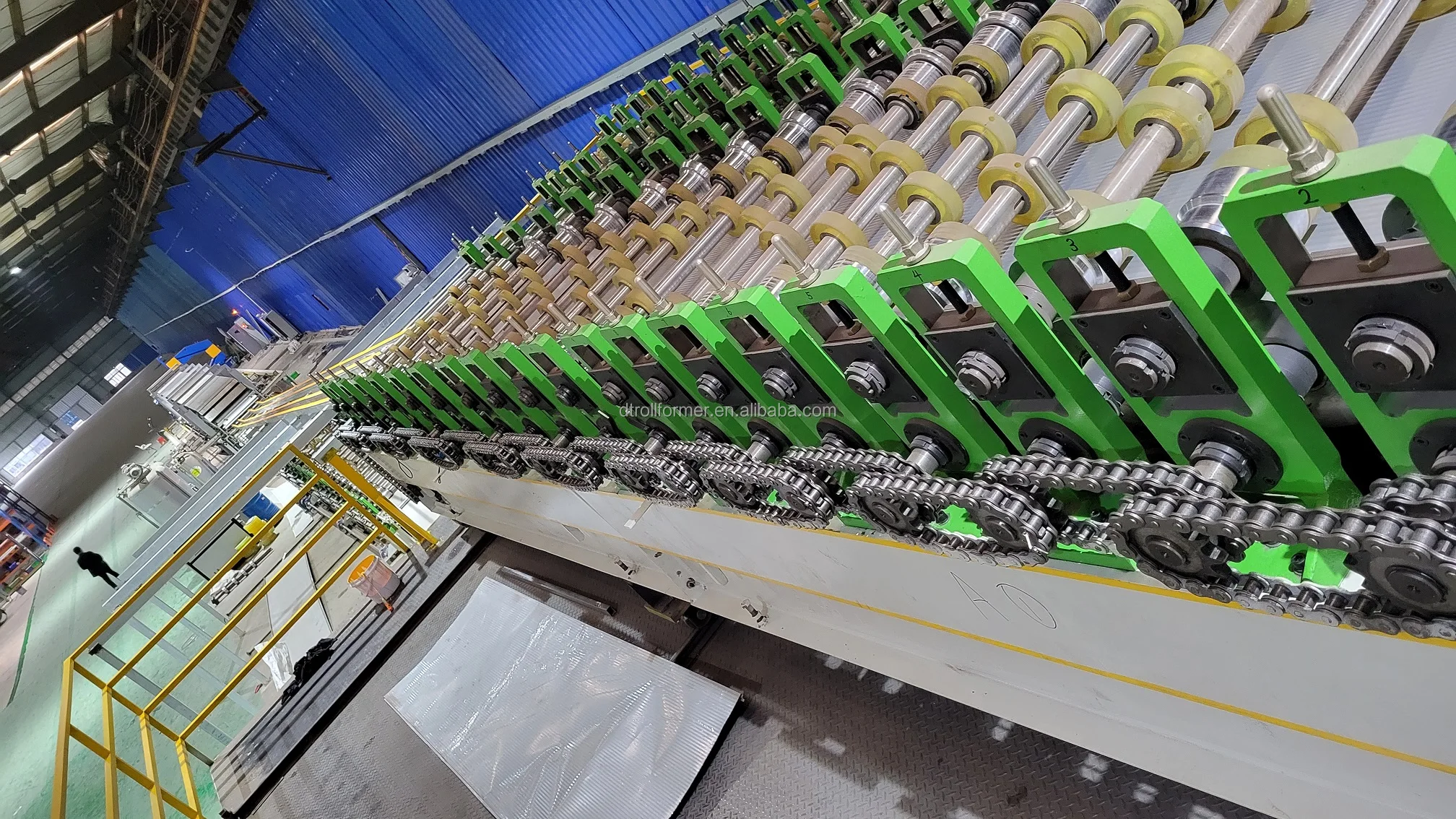

garage door panel roll forming machine forming part

1. Hydraulic cutting motor power:5.5kw2. main motor power:5.5kw

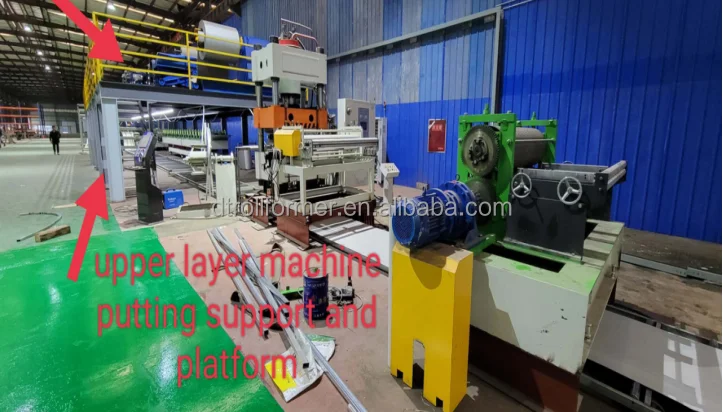

SECOND FLOOR PLATFORM AND BRIDGE CROSSING MACHINE

put upper layer roll forming machine and transport the sheets

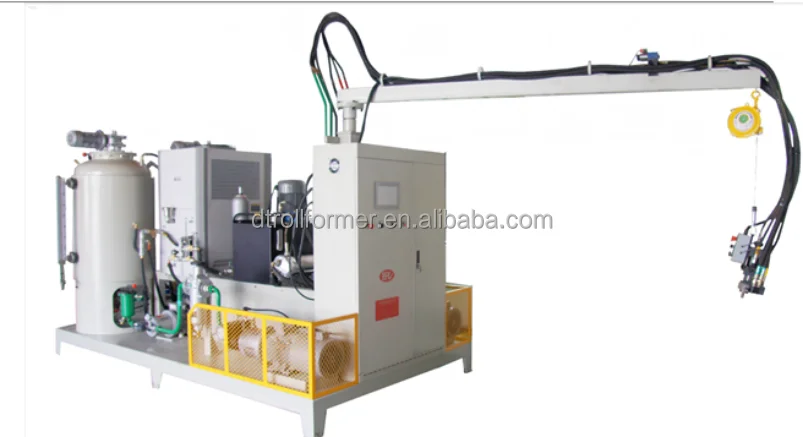

Foaming equipment

(1) Suitable foam types: soft foam, semi-hard foam, hard foam, self-skinning (2) Suitable viscosity: (normal temperature 22 degrees Celsius) Polyether polyol: -2000MPa.s Polyisocyanate: -1000MPa.s (3) Material to weight ratio: 1:1-------1:3 adjustable (4) After mixing A and B, the injection amount is 50--200g/sec (5) Injection time: continuous or scheduled discharging: 0.2-99.99 (accurate to 0.01s)

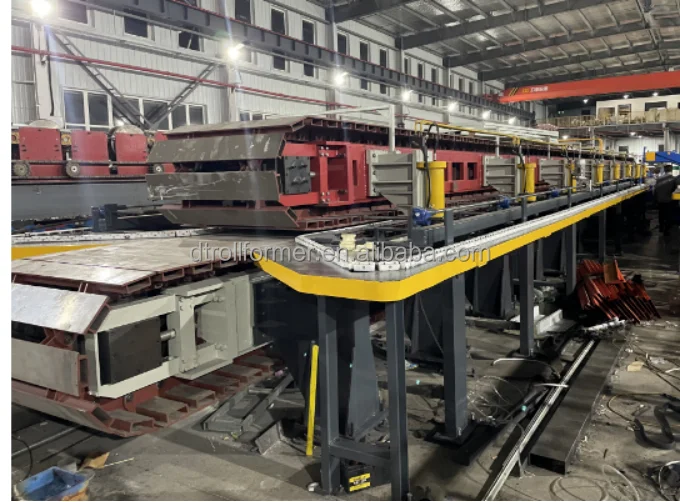

DOUBLE LAYER ROLLER CRAWLER LAMINATOR SYSTEM

The polyurethane mixture applied to the lower layer is transported to the laminator for curing simultaneously with the upper layer.
The dual track laminator is designed to control the pressure rising during the foam reaction. The unit consists of upper and lower slat chain belts. The side sealing chains on both sides are closed foam and also contain the pressure of the side sealing foam. The return wheel prevents the pitching effect of the slats as the chain bolt moves into the teeth of the sprocket. This measure prevents any distortion and scratching of the panel surface.
In addition, high-precision manufacturing methods such as gap tolerances, vertical offsets between slats, and parallelism between upper and lower straps are required to achieve the panel surface appearance requirements.
The double crawler machine is driven by two motors, one at the top and one at the bottom. The motor of the lower track acts as the pilot drive of the laminator and is electronically synchronized with the motor of the upper track to achieve completely uniform and parallel movement of the two slat chain belts.
The surface of the chain plate has been specially treated to achieve excellent scratch resistance and hardness, as well as corrosion resistance. The chain plate has superior heat transfer and heat distribution to better control the temperature of the foaming amount.

The main technical parameters:
Double track: length: 24 meters
Slat width: maximum 1.25 meters
Number of chain plates: 490
Lifting gearbox quantity: 16 sets
Lift shaft diameter:￠80mm
Lifting motor: 3KW*2 sets
Chain plate lifting stroke: maximum 250 mm
Winding belt lifting time: about 2 minutes

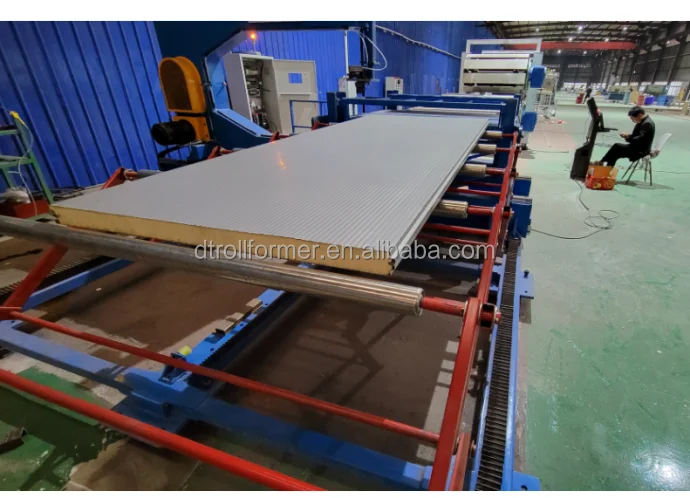

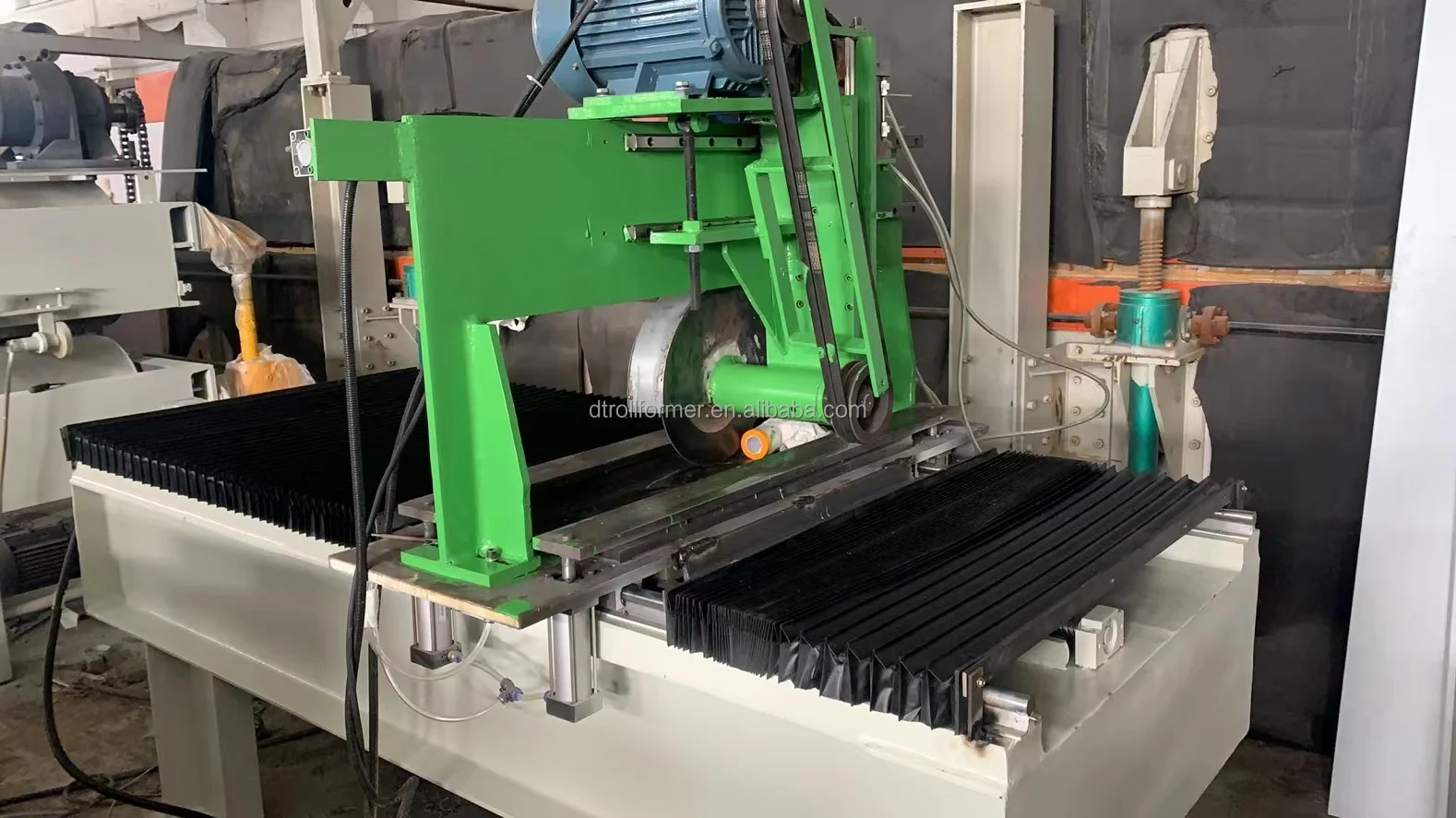

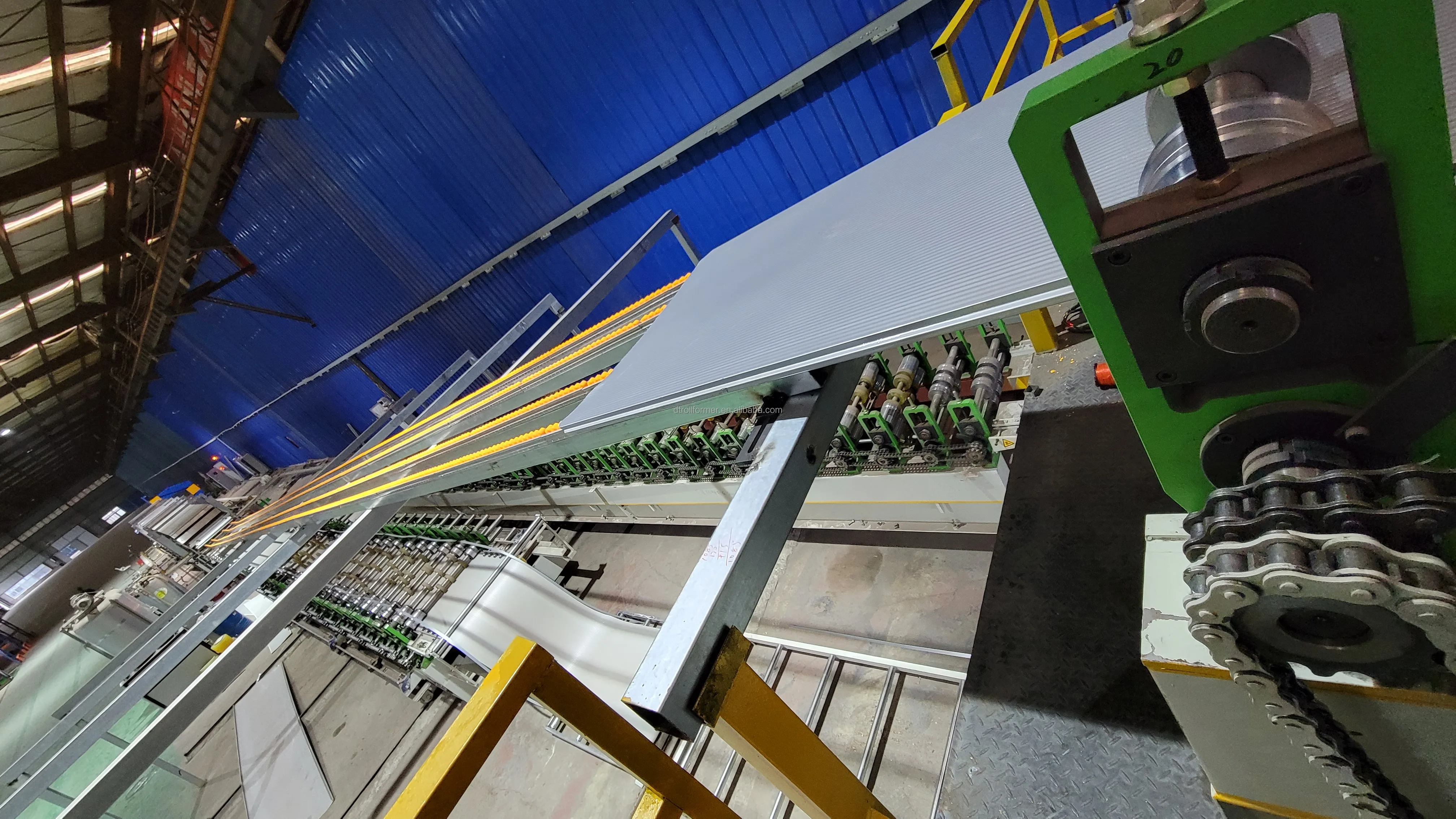

CUTTING PART AND RUN OUT TABLE

saw cut , none stop cut

Product packaging

SALES AND SERVICE NETWORK

Successful Project

Projectin Argentina

Project in USA

Project in China
