Product Overview
metal door frame roll forming machine

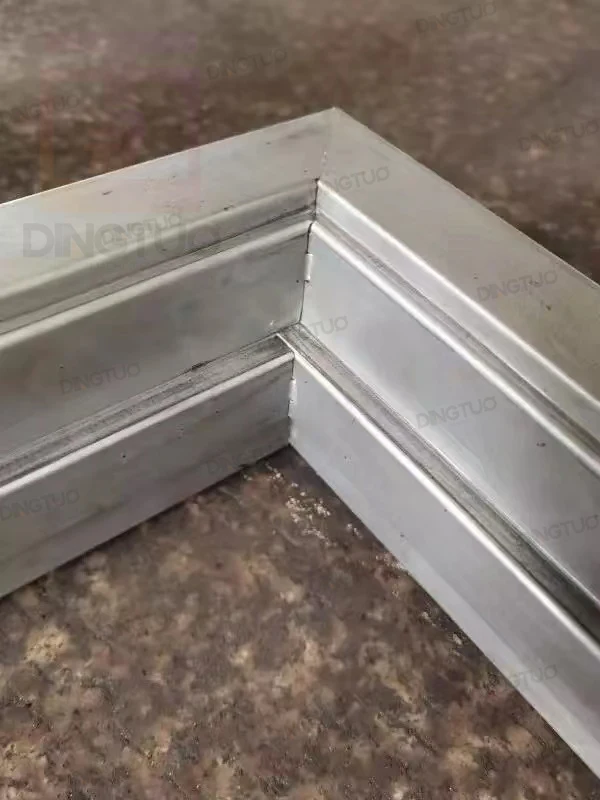

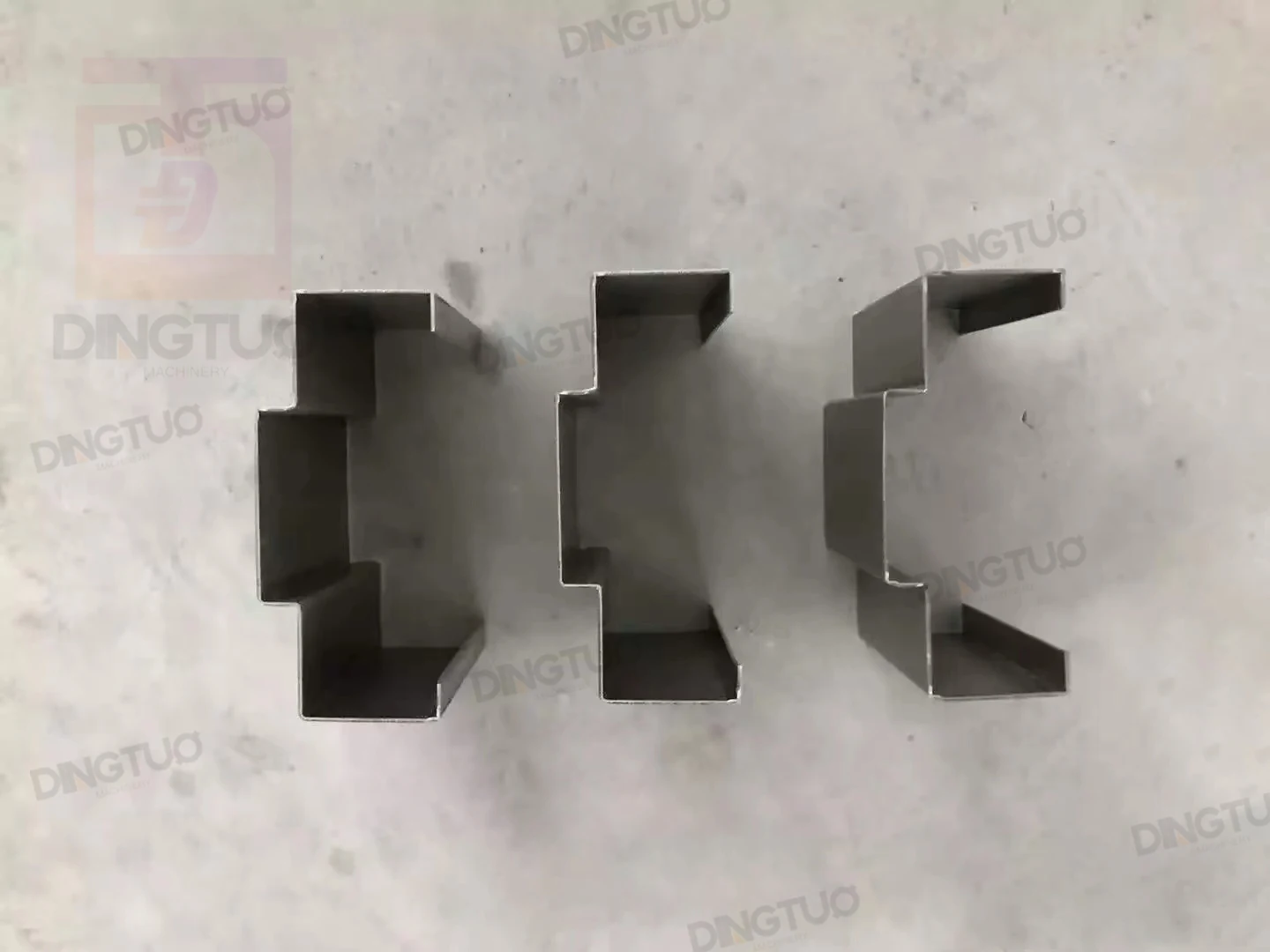

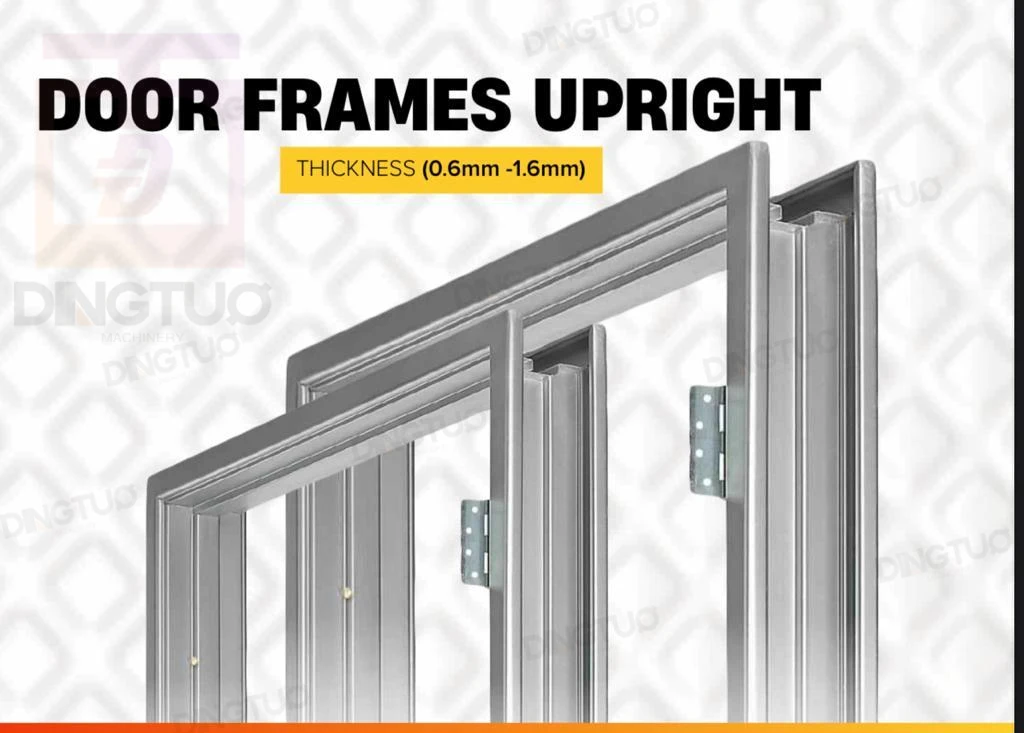

A metal door frame roll forming machine is a specialized high-efficiency automated device used for manufacturing metal door frames. It operates by continuously feeding metal coils into the machine, which are then gradually shaped into door frames with specific cross-sectional profiles through a series of rolling and forming processes. Here are its main features and advantages:
1. High Efficiency: This equipment enables continuous production, significantly increasing production efficiency and meeting the
demands for large-scale manufacturing.
2. Precision Forming: Through multiple sets of rollers that progressively shape the material, the machine ensures the dimensions
and shapes of the products are precise and meet design specifications.
3. Automated Control: Equipped with advanced automation control systems, it allows for parameter setting, fault detection, and
automatic adjustment, greatly reducing manual operation and enhancing production stability.
4. Versatility: The machine can be configured with different roller setups and forming dies to produce a variety of metal door
frame specifications and shapes, catering to different design requirements.
5. Durability: Made from high-quality materials and precision manufacturing processes, the machine ensures durability and a long
service life.
6. Energy Efficiency: The optimized production process minimizes material waste and energy consumption, aligning with modern
industrial energy-saving and environmental protection standards.The metal door frame roll forming machine is widely used in construction, decoration, and industrial manufacturing fields,
providing a reliable solution for the efficient production of metal door frames.
demands for large-scale manufacturing.
2. Precision Forming: Through multiple sets of rollers that progressively shape the material, the machine ensures the dimensions
and shapes of the products are precise and meet design specifications.
3. Automated Control: Equipped with advanced automation control systems, it allows for parameter setting, fault detection, and
automatic adjustment, greatly reducing manual operation and enhancing production stability.
4. Versatility: The machine can be configured with different roller setups and forming dies to produce a variety of metal door
frame specifications and shapes, catering to different design requirements.
5. Durability: Made from high-quality materials and precision manufacturing processes, the machine ensures durability and a long
service life.
6. Energy Efficiency: The optimized production process minimizes material waste and energy consumption, aligning with modern
industrial energy-saving and environmental protection standards.The metal door frame roll forming machine is widely used in construction, decoration, and industrial manufacturing fields,
providing a reliable solution for the efficient production of metal door frames.
FEATURES AT A GLANCE

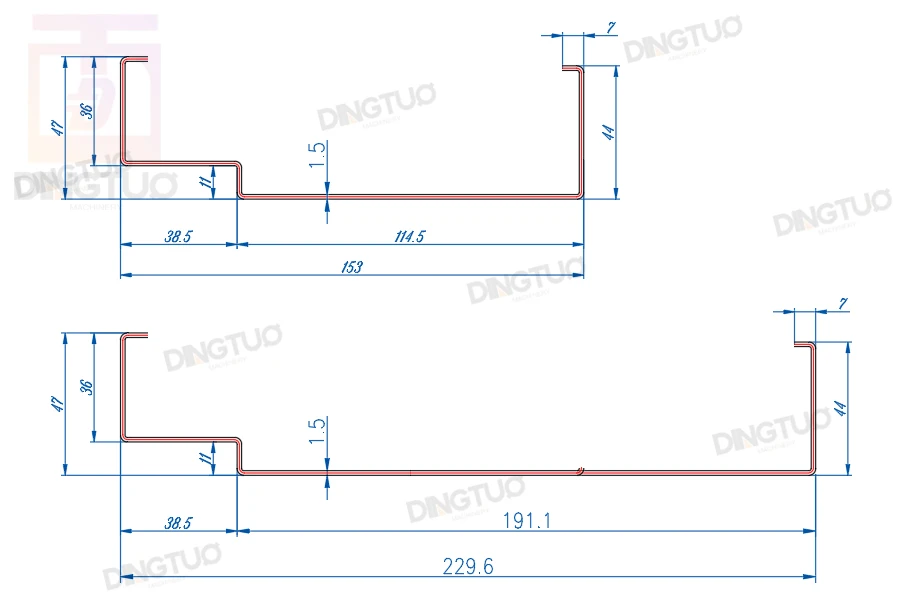

PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
PRODUCT CONFIGURATION
OUR ROLLING SHUTTER DOOR ROLL FORMING MACHINE ADVANTAGES : SEE BELOW MACHINE CONFIGURATIONS
roller shutter door machine 3 tons decoiler
1.Features:
Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.
2.Power:unpowered
3. Power of the open and closure of segments: manual way
4.Power of rotation of segment: manual
5.Number of segment: 4
6.Range of segment expansion:480 ~ 520mm
7.Height of center of the mandrel:0.65m
8.Approximate Size:1.1 m * 1.1m *1.5 m
9.Speed control:By mechanical brake
10.Methods of operation: Manual.
11. weight:200KGS
roller shutter door machine feeding platform
1.Features: Ensure smooth & feed material.
2.Components: steel plate platform, two pitching rollers, position stopping block.
3. The coil is guided in the correct position and passed to the roll forming equipment.

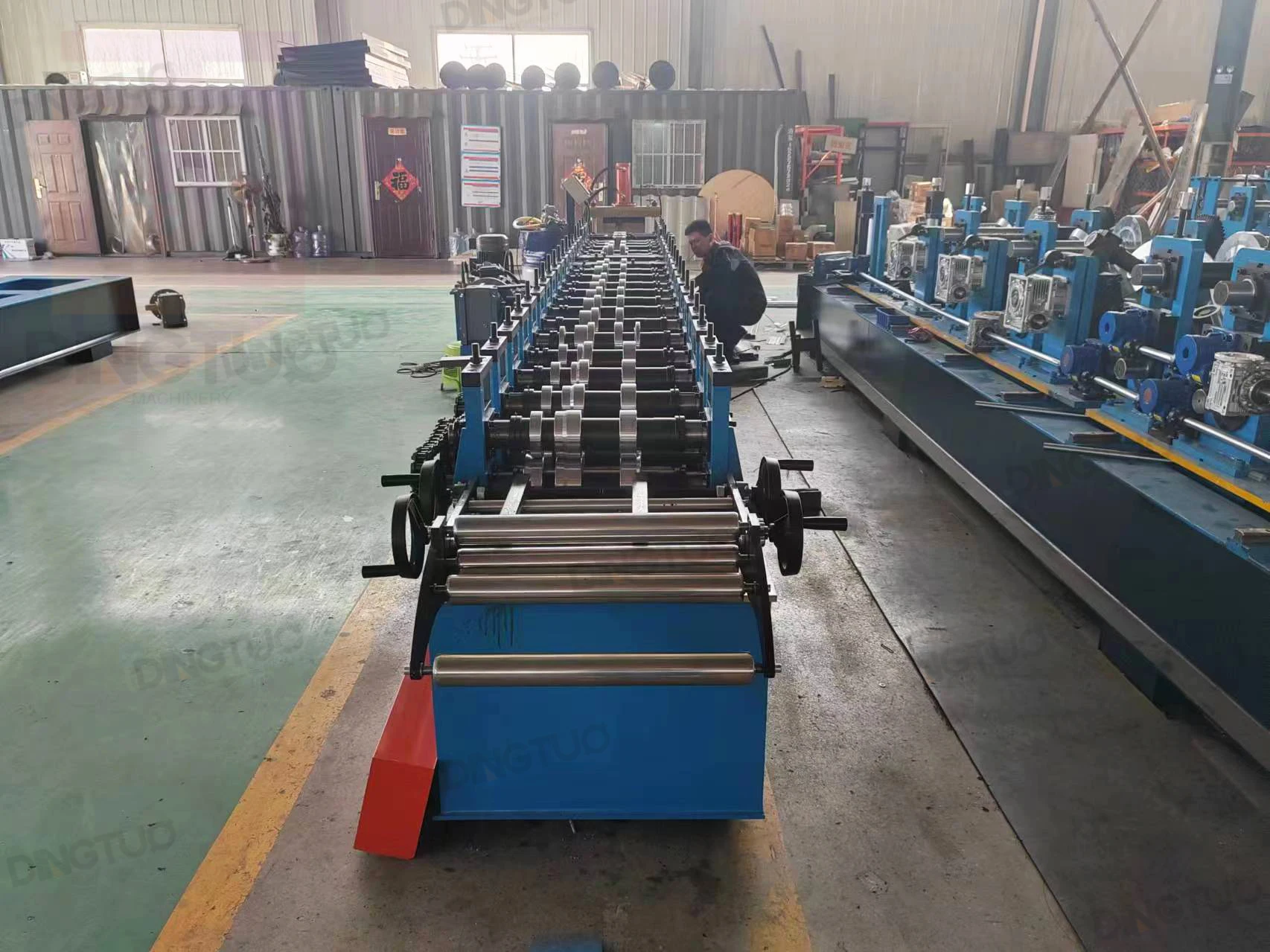

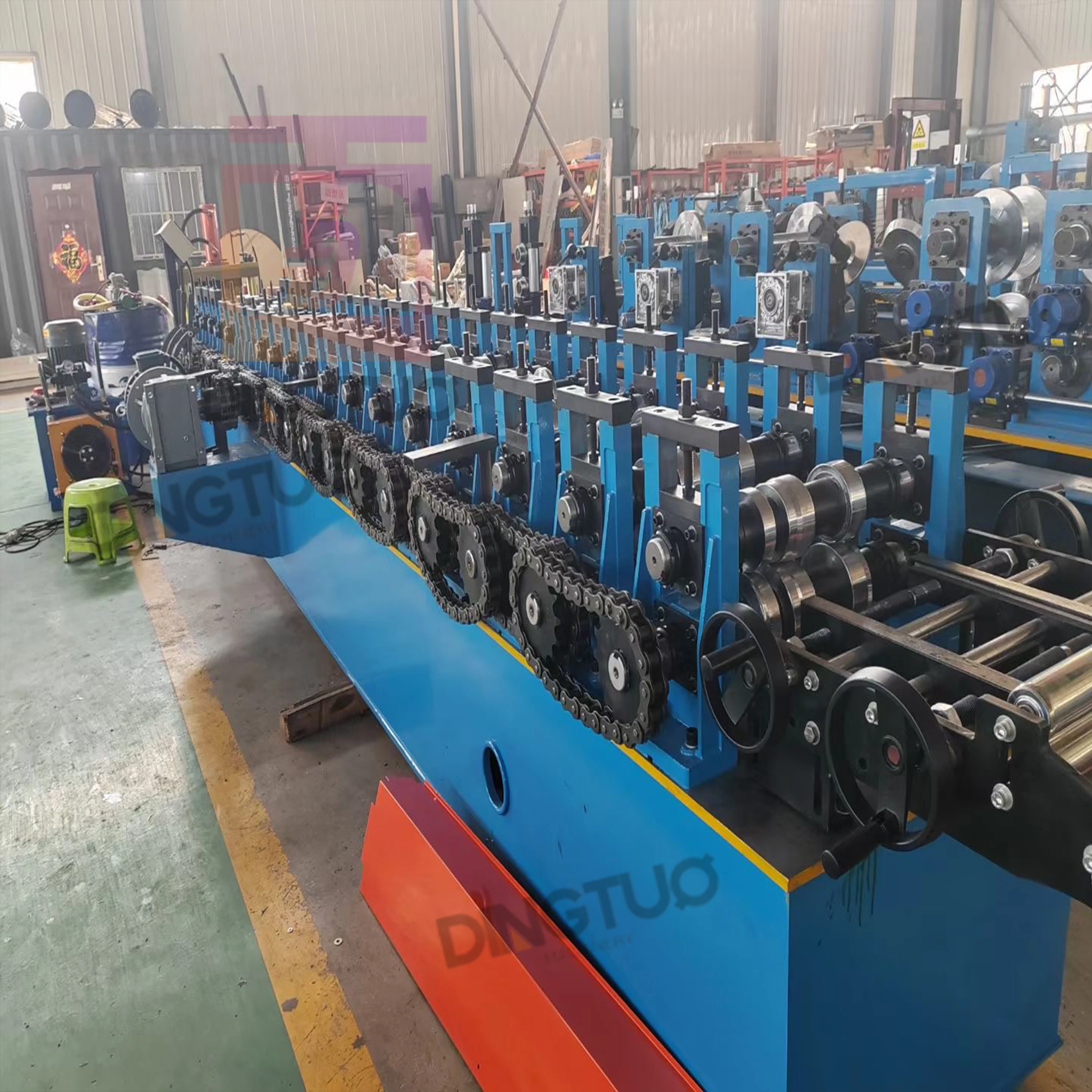

roller shutter door machine forming part
1.Rollers: design by senior engineers with Auto-cad software, manufactured with Gcr15 steel by CNC machine tools and coated with hard chrome
2.Shaft:70 mm solid shafts
3. Base frame: whole iron plates welded which can ensure the whole machine supporting strength.
4.Machine Transmission:Gears transmission
5. Cutter : Cr12 with turning+quenching(hardness 58-62degrees)+grinding+fine turning treatment
6. Pump Station: 11 kw
7. Machine main power:7.5 kw
8. motor: K serious motor which has more stability than ordinary motor
roller shutter door machine Machine Side Panels
1. Base frame: whole iron plates welded which can ensure the whole machine supporting strength.
2. Machine stands : cast iron
roller shutter door machine Transmission
chain transmission
roller shutter door machine Hydraulic Pump Station with cooling fan and servo motor
1. Hydraulic cutting motor power:11kw
2. Servo none-stop motor power:7.5kw
roller shutter door machine Cantilever type electric control cabinet
The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Lengthmeasurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:220V, 3 Phases 50Hz （ voltage can becustomized as your needed)

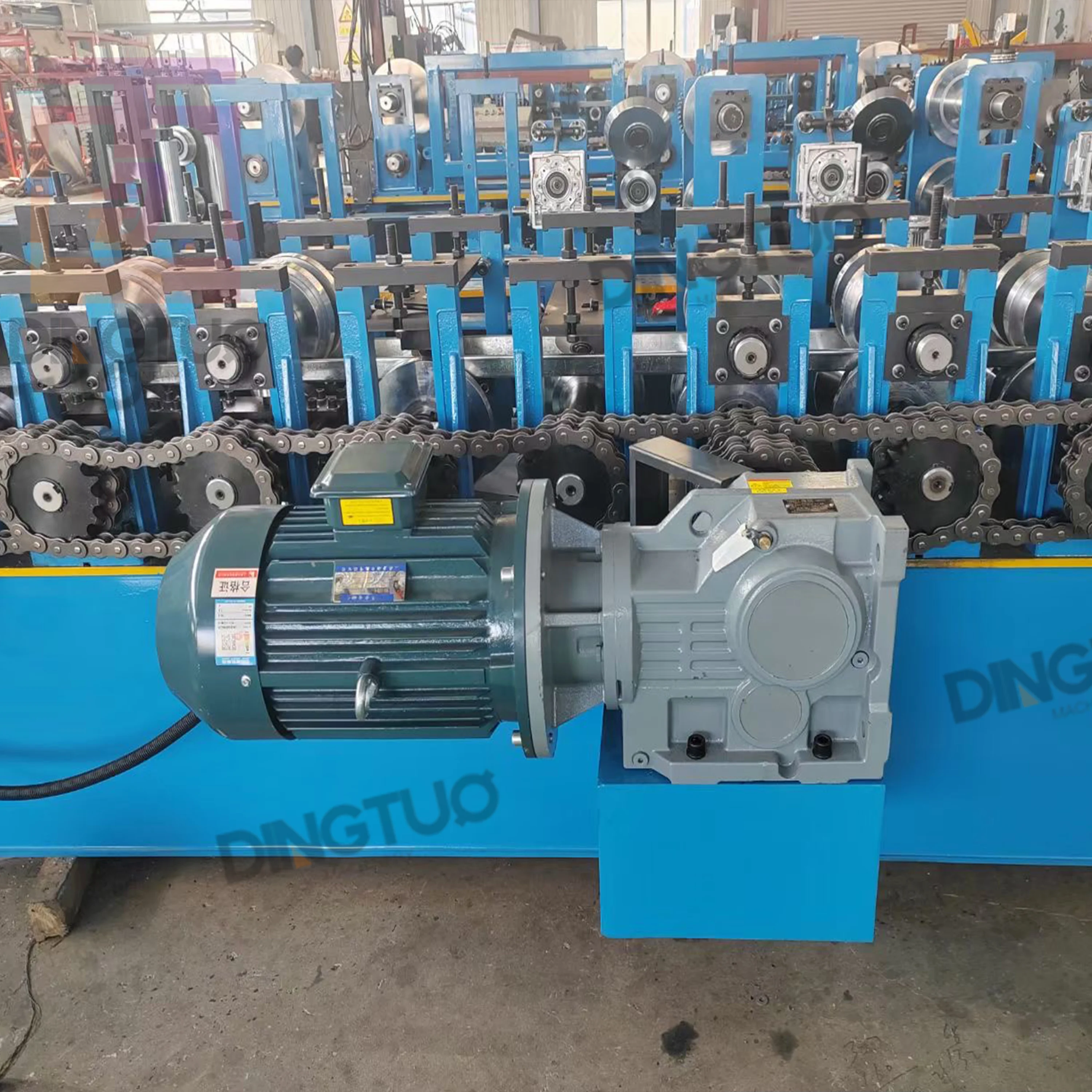

roller shutter door machine K serious reducer with gear type
This K serious reducer with gear type has higher cost than ordinary reducer .
ThisK serious reducer with gear type has more stability and lower noise than ordinary reducers.
roller shutter door machine Automatic Hydraulic Cutter
Product packaging
