2/3 waves highway guardrail bending machine

Highway Guardrail Bending Machine is used to make the straight highway guardrail curving..

TEL : +86 13231741939

DETAILS

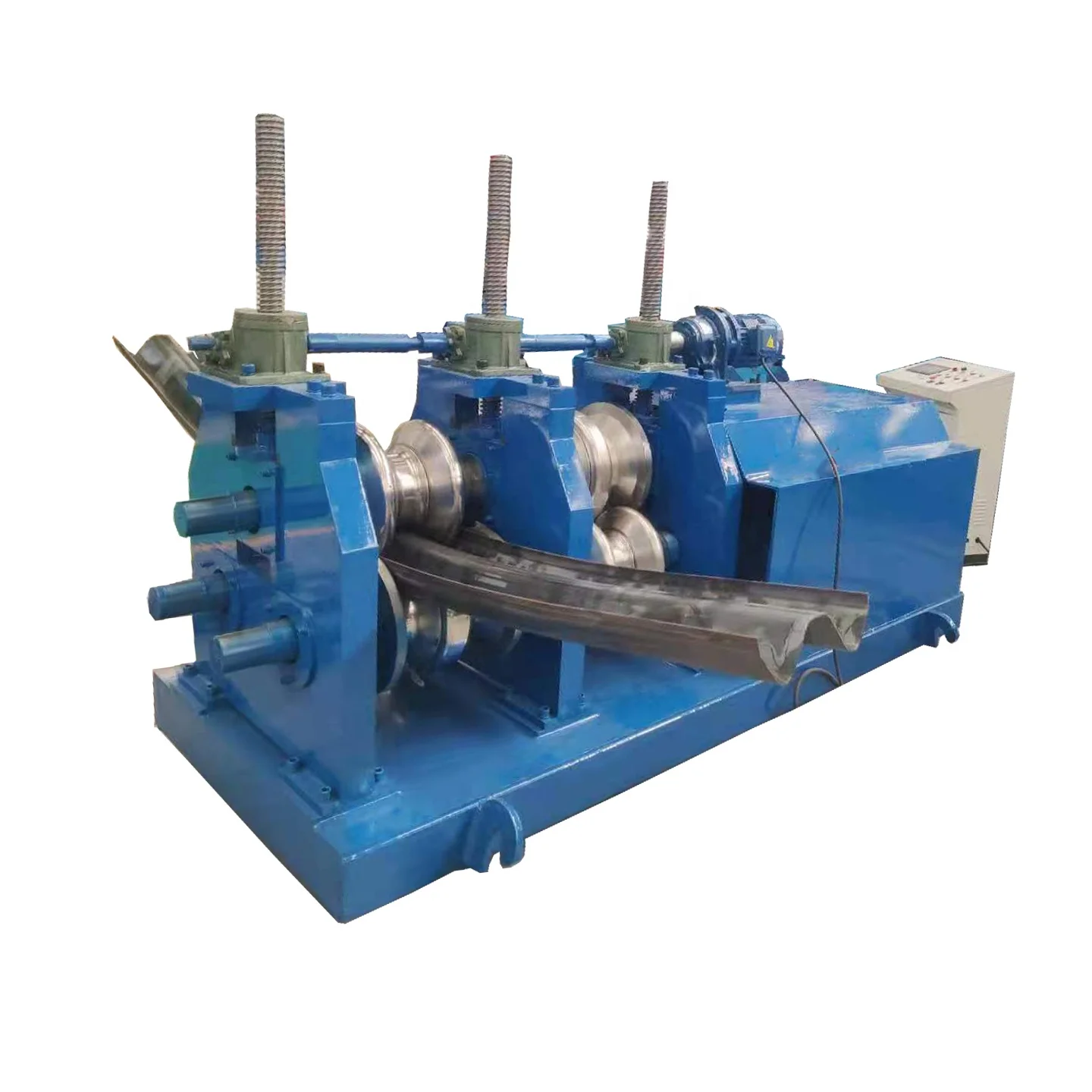

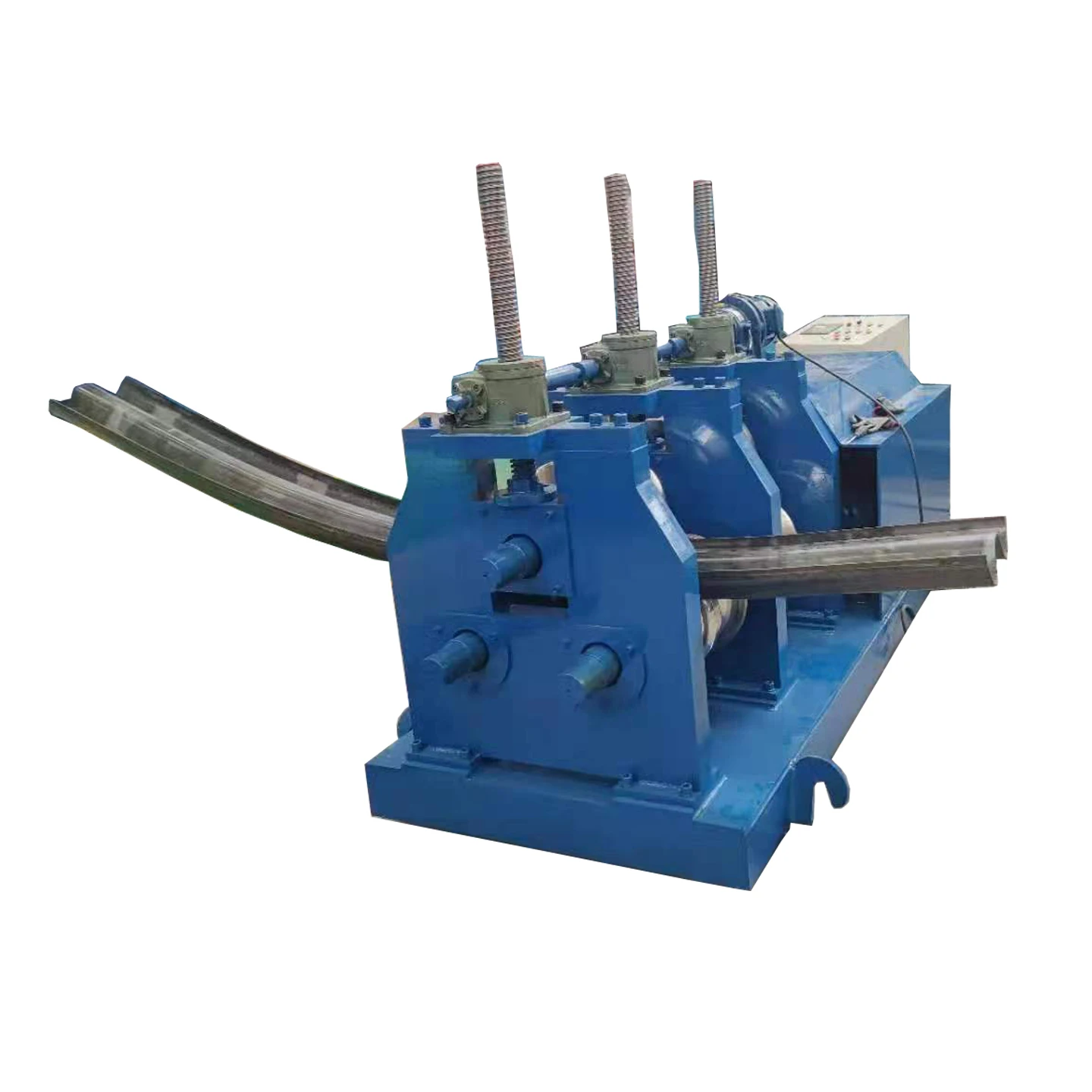

highway guardrail curving machine

Highway Guardrail Bending Machine ( also called road safety barrier bending machine, highway guard rail curving machine, crash barrier bending machine), so that when the road runing around, the guardrail can put accordingly.

FEATURES AT A GLANCE

00:0300:44

PRODUCT SPECIFICATIONS

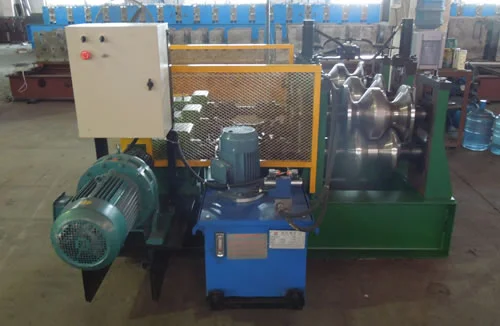

MACHINE COMPONENTS

NO. Description Quantity (set)

1 Bend rollers 1

2 Transmission system 1

3 Hydraulic pump station 1

4 Control box 1

5 Spare parts and tools 1

No	Item	Data	Note
1	raw material	Q235 steel
2	raw material thickness	2-3mm
3	sheet effective width	310mm/311mm	can customzied the effective width,too. If you need , welcome to connect Ms.Elena 0086-13231741939
4	sheeet height	84mm	customzied the machine sheet sizes as your drawing . Any requests , welcome to connect Ms.Elena 0086-13231741939
5	machine forming station	3	customzied as clients' sheet's sizes
6	machine power	11KW(main motor power)+22kw ( hydraulic pump station cutting motors)	33kw.h
7	machine speed	2-4m/min
8	machine transmission way	gearboxes transmission
9	shaft diameter and material	100mm solid shafts	45 # steel finishing and the surface is plated with hard chrome and then brushed and polished
10	roller material	Cr40 bearing # steel finishing and the surface is plated with hard chrome and polished
11	base frame material	400H steels welded	can do whole iron plates welded which more higher cost . If you need , welcome to connect Ms.Elena 0086-13231741939
12	machine stands thickness	cast iron type
13	Length counting method	OMRON (JAPAN ) brand encoder
14	Electric Control brands	XINJIE PLC/touch screen/inverter or DELTA PLC/touch screen/inverter	can do other brands as clients' requests
15	Voltage	380V,50HZ,3 Phases or customized	voltage can be customzied as clients' request. Any requests , welcome to connect Ms.Elena 0086-13231741939
16	machine size	L3mW1.5mH1m
17	machine weight	3000KGS

PRODUCT CONFIGURATION

Product packaging

SALES AND SERVICE NETWORK

Successful Project

Projectin Argentina

Project in USA

Project in Mongolia

RECOMMENDED PRODUCTS

EXHIBITION AND CLIENTS

SAMPLE ROOM

FAQ

1. Package

1). Container packing of the line suitable for overseas shipping

2). The subjects can be loaded by one 20ft FCL shipping.

3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.

2. Delivery Time

25-30 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.

3. Payment

30% paid by T/T as deposit, 70% paid by T/T before loading.

4. Quality Warranty

15 months from time of loading by seller quality guarantee, life guarantee repair.

Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.

Free technical supporting and maintenance consulting in lifetime.

5. Assembly (Optional)

1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.

2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
