Walk Board Foot Pedal Plate Foot Scaffold Roll Forming Machine Galvanized Steel Walking Plank
The ladder pedal forming machine is a non-standard customized product...
TEL : +86 13231741939
DETAILS
Product Overview
Scaffolding PlankRoll Forming Machine
1. The ladder pedal forming machine is a non-standard customized product. Dingtuo cold rolled ladder pedal forming machines include several types such as marine pedals, construction pedals, and anti-slip pedals. Products include: a variety of C-type punching and flanging hole pedal forming machines, Korean marine closed welding pedal automatic forming production lines. The C-type/Korean marine/European construction pedal forming production line is a customized equipment that can integrate many processes required for production according to the different needs of customers, such as automatic material changers, cutting and stamping systems, as well as complex welding, riveting, bending, handling and packaging systems. These will bring huge added value to improve production capacity.

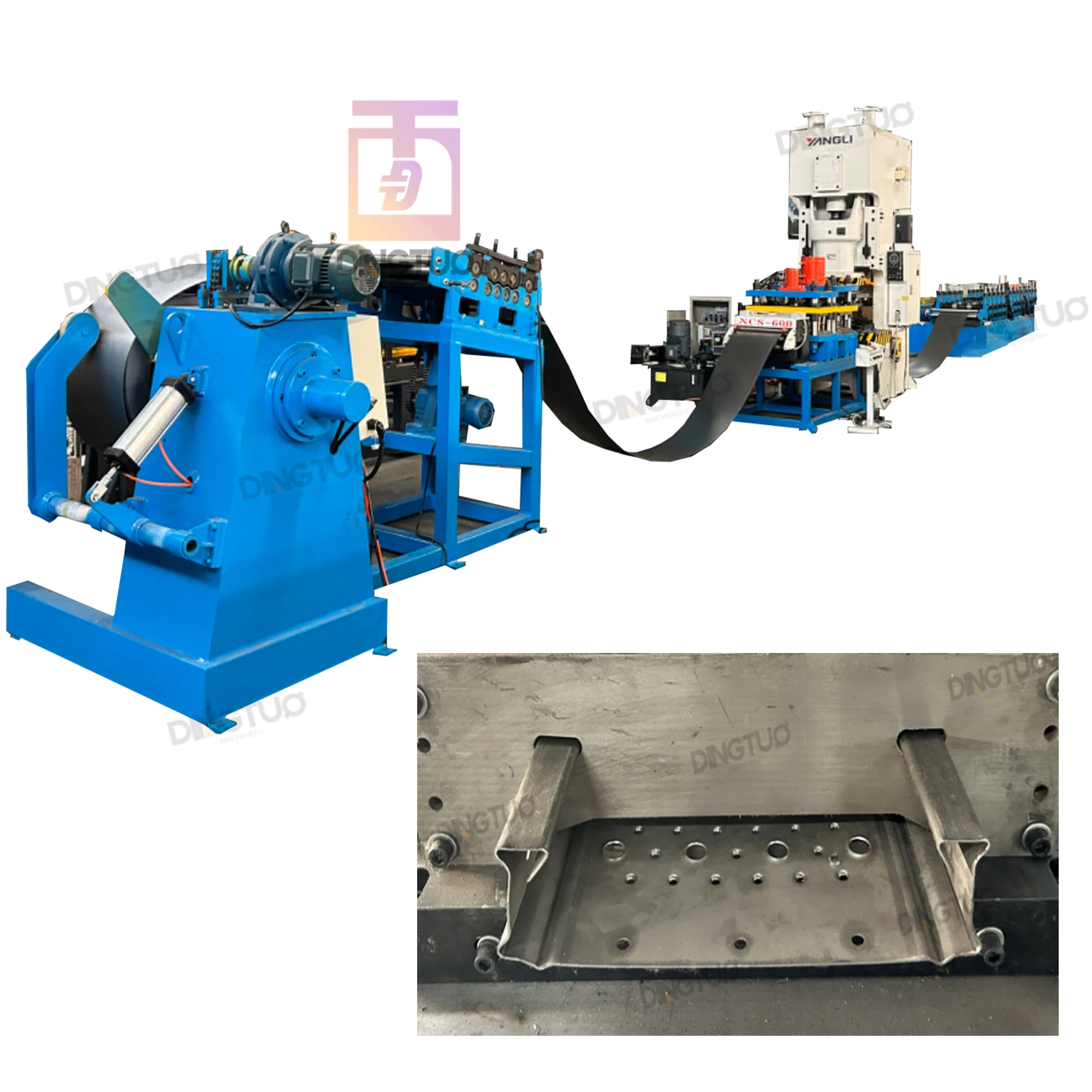

2. The ladder pedal forming machine consists of automatic decoiler, leveling unit, continuous punching unit, forming unit, fixed-length cutting devices, material collection, electrical control cabinets and other components.
3. Brief parameters of pedal forming machine:
Purpose: construction, marine
Warranty period: 12 months
Operating system: touch screen
Weight: 30 tons
Space occupied: 31×2.8×1.9m (length×width×height)
Material specification: Q235
Production speed: 0-12m/min
Cutting method: hydraulic cutting
Voltage parameters: 380V/415V, 50 Hz, 3 phases (customized)
Electrical control: PLC
Drive motor: variable frequency motor drive
Steel strip thickness: 1.3--2.1mm
Steel strip width: 249--451mm,
Roller material: GCR15 quenching HRC57°-63°
Hydraulic oil model: 46# hydraulic oil
Gear oil model: 18# gear oil
Total motor power: 34 kW
Hydraulic system power: 6KW
Maximum load-bearing steel strip: 5T
Cutting size tolerance: ≤ ±0.4mm (length ≤ 3020mm)
Cutting die material: CR12MoV
Air source: 0.4m/Min; pressure 0.6MPa
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS

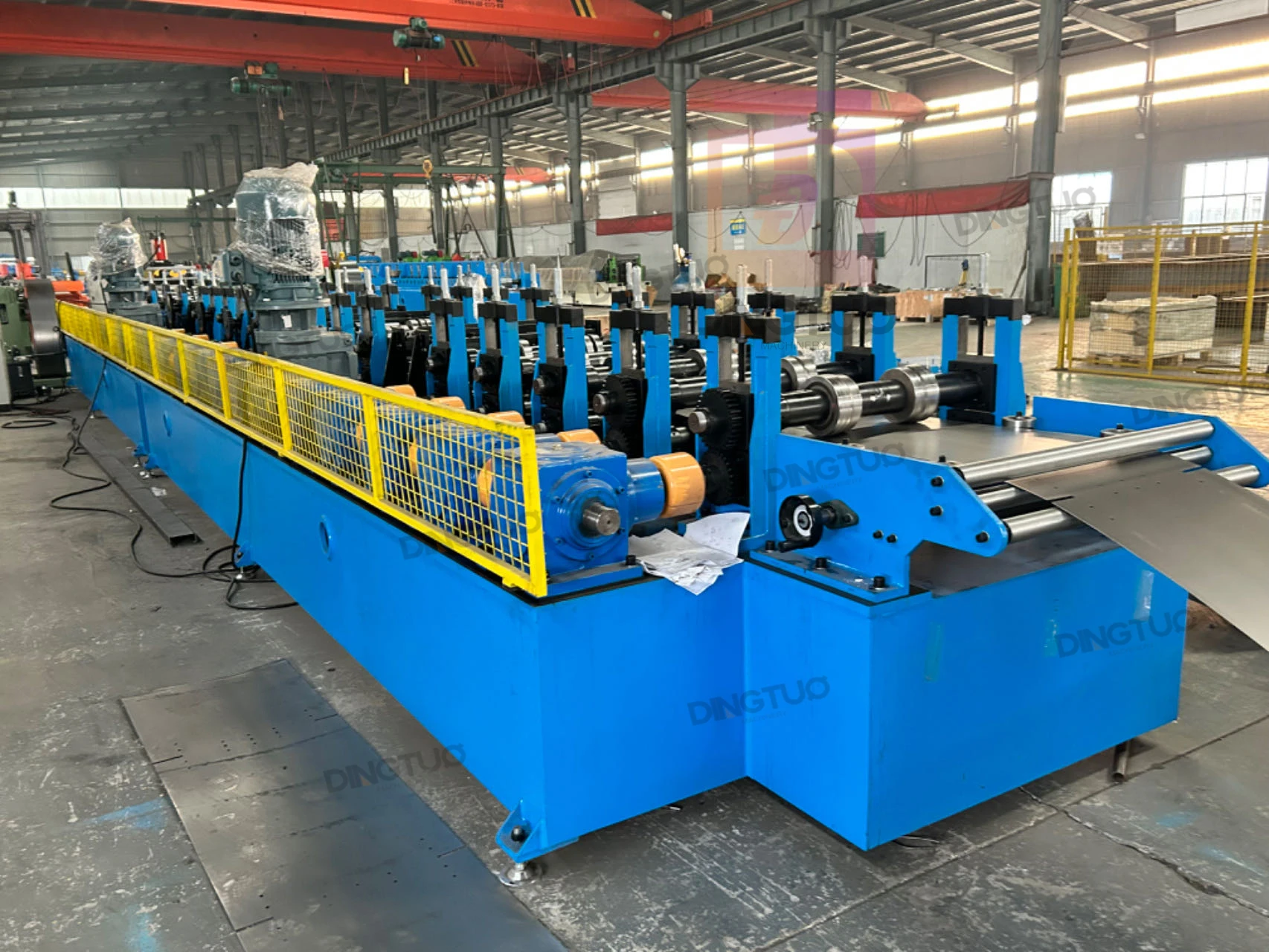

MACHINE COMPONENTS
NO. Description Quantity (set)
1 Integrated Hydraulic Decoiler And Leveling Unit 1

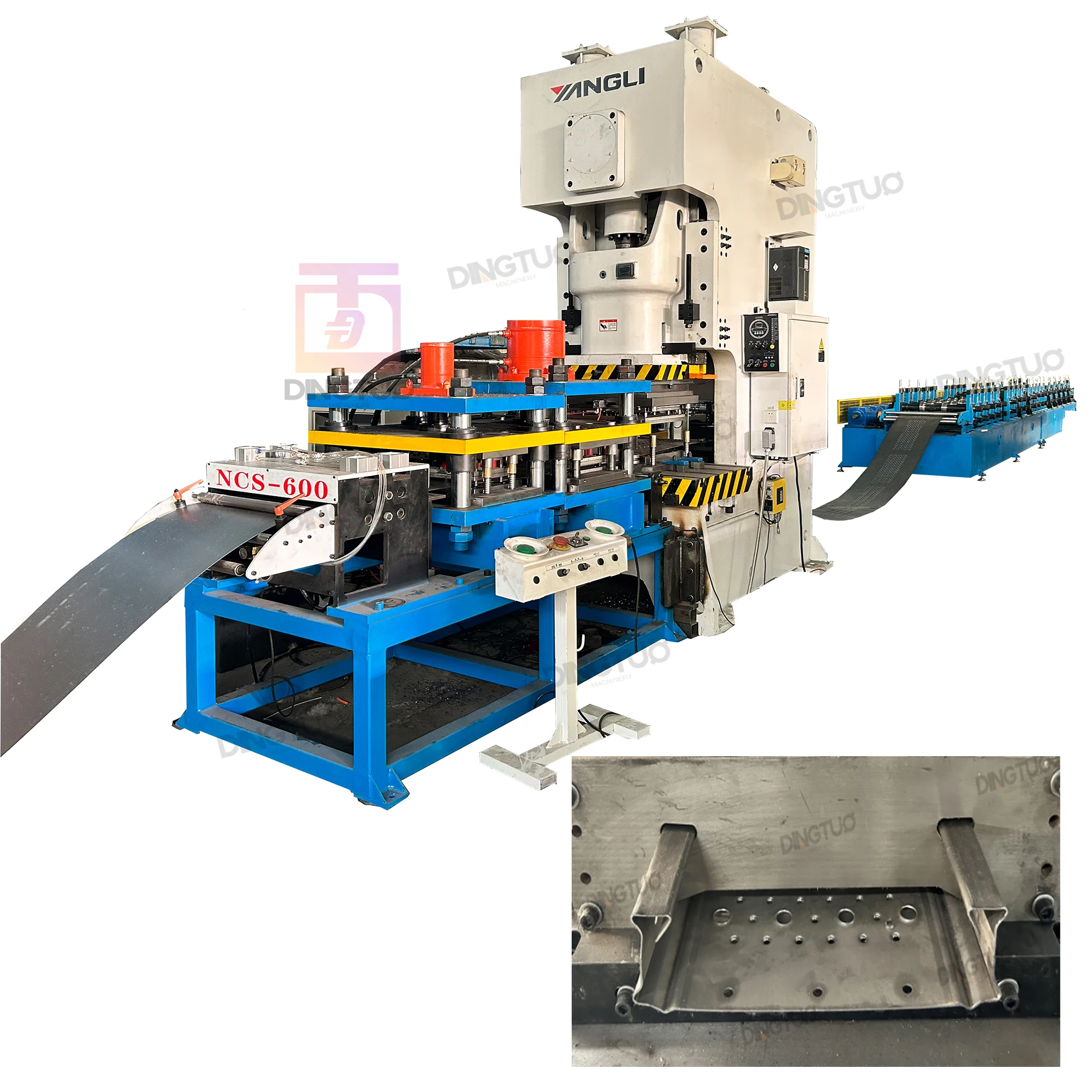

2 Servo Feeder + Online Punching Unit 1
3 YANGLI Punch Machine1
4 Feeding platform part 1
5 Forming system 1
6 GearBoxes Transmission system 1
7 Cutting Unit1 8 Run Out table 1
9 Hydraulic pump station 1
10 Control box 1
11 Spare parts and tools 1
PRODUCT CONFIGURATION
Feeding platform & pitch shafts with electric clutch & leveling unit ：
higher quality feeding platform
pitch shafts with electric clutch : no need lift or press pitch rollers after feeding material manually
Servo Feeder and punch:
NCS 600
YANGLI punch
Punching Holes:
sizes customized
Feeding Platform
high quality
Cast Iron Machine Stands
160 type
stable type
gear boxes transmission
higher quality
motor :
22 kw K serious reducer which can run the machine stable
Automatic hydraulic cutting
strong enough knife holder to ensure the cutting stability and ensure the finished products effects
Can do various sizes without changing blades
Roller
forming roller: Gcr15 material
run out table
6.1 m length
Pneumatic type run out table
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin CANADA
Project in USA
Project in UAE
RECOMMENDED PRODUCTS
EXHIBITION AND CLIENTS
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 20ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time25-30 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
