1DECOILER 1
2 FEEDING PLATFORM 1
3FORMING PART 1
4CUTTING PART1
5ELECTRIC CONTROL CABINET 1
6HYDRAULIC PUMP STATION1
Automated PPGI 89 type Round Downpipe roll forming machine
The downpipe machine adopts PLC automatic control mode, which can automatically cut to length, bend at fixed arc, and shrink manually according to the input length, quantity, arc size and other parameters...
TEL : +86 13231741939
DETAILS
AUTOMATIC ROUND DOWN PIPESROLL FORMING MACHINE
1. The downpipe machine adopts PLC automatic control mode, which can automatically cut to length, bend at fixed arc, and shrink manually according to the input length, quantity, arc size and other parameters.
The production line is composed of loading rack, feeding guide device, roll forming device, cutting device, bending device, necking device, finished product bracket, electric control system, hydraulic system and so on.
The whole set of equipment adopts Delta inverter, PLC and touch screen, and Omron encoder counts, which can be controlled manually and automatically.
2. Product application:
Colored aluminum downspout, as the name implies, refers to a downspout made of pressed and bent color-coated rolls. The application of steel downpipes makes the steel building more integrated. There are a variety of elbows to match the downpipes, and more complex walls are also suitable.
1. Compared with ordinary PVC pipes, there will be no aging or cracks due to thermal expansion and contraction, so it is stronger and more durable.
2. Used in conjunction with steel buildings, simple and elegant, with good visual effects. The metal texture of the metal drainage system brings a strong expressive force to the building. The choice of different colors gives the designer a broad space for imagination. The matching with the color of the building itself shows the natural atmosphere of the building.
3. Colored aluminum will not be oxidized, because an oxide film that is invisible to the naked eye will form on the surface of the metal aluminum. The polyester coating on the surface of the color aluminum can ensure that it maintains its gorgeous natural color under harsh and changeable weather conditions such as severe cold and high temperature, acid rain and salt corrosion.
4. Due to the low specific gravity of the aluminum-magnesium alloy and the metal hook, the force of the downpipe is stable and reliable, and the installation is easy to learn and convenient. Various matching accessories meet various installation requirements.
5. It can be recycled and reused, which meets the requirements of national green buildings.
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
PRODUCT CONFIGURATION
feeding platform
There had feeding guide to feed the material into machine
hydraulic pre-cutter
when you want to cut the material , it is easy to realize the function when add the hydraulic pre-cutter device
forming part
70 mm solid shafts and 45 # Steel rollers plated with hard chromium and then polished
Hydraulic cutting type
faster speed
cr12 materialAutomatic Oblique shear
processing technology: rough material milling machine processing - vacuum heat treatment HRC58-60 - flat grinding processing end face - wire cutting processing outline - engraving machine fine carving shape.
hydraulic pump station
7.5kw
electric control cabinet
DELTA Brand PLC/ Touch Screen/ inverter

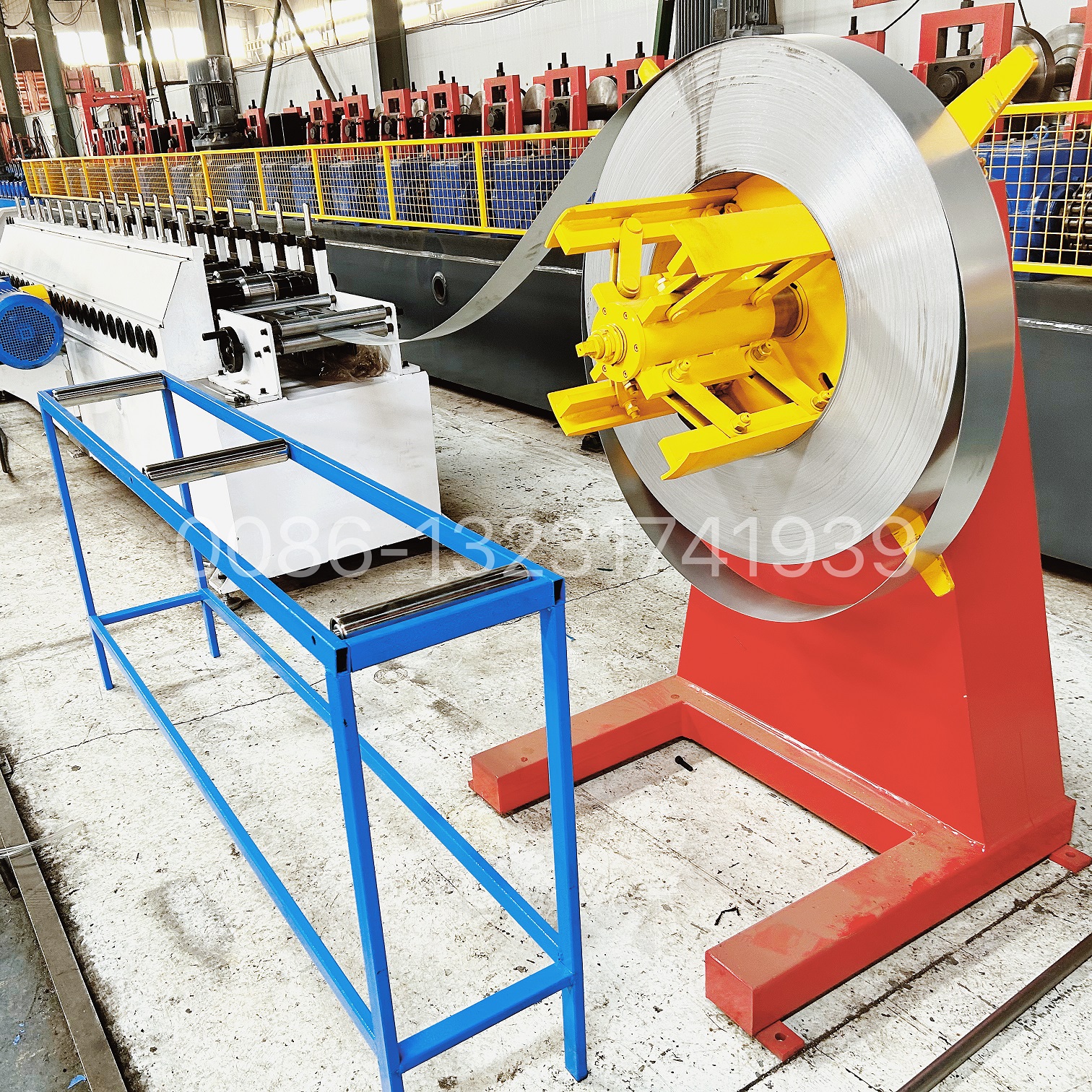

decoiler
3 tons
manual type
can customize do hydraulic decoiler or electric decoiler
run out table
2 m length
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin Argentina
Project in USA
Project in Zimbabwe
RECOMMENDED PRODUCTS
CE certificate
CE Certificate
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.
2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.
3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.Free technical supporting and maintenance consulting in lifetime.
5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.
2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
