1 5TONS DECOILER 1
2 FEEDING PLATFORM 1
3 FORMING PART 1
4 ELECTRIC CUTTING PART 1
5 ELECTRIC CONTROL CABINET 1
6 HYDRAULIC PUMP STATION 1
7 RUN OUT TABLE 1
8 ACCESSORIES 1
Tr5 tr6 double layer roofing sheet machine metal roofing machine 1 ibr roof panel roll forming machine
About the roofing sheets made by our machine, one of our most popular and affordable panels, Tuff Rib is a jack-of-all-trades for metal roofing, siding, and modern accents. ..
TEL : +86 13231741939
DETAILS
Product Overview

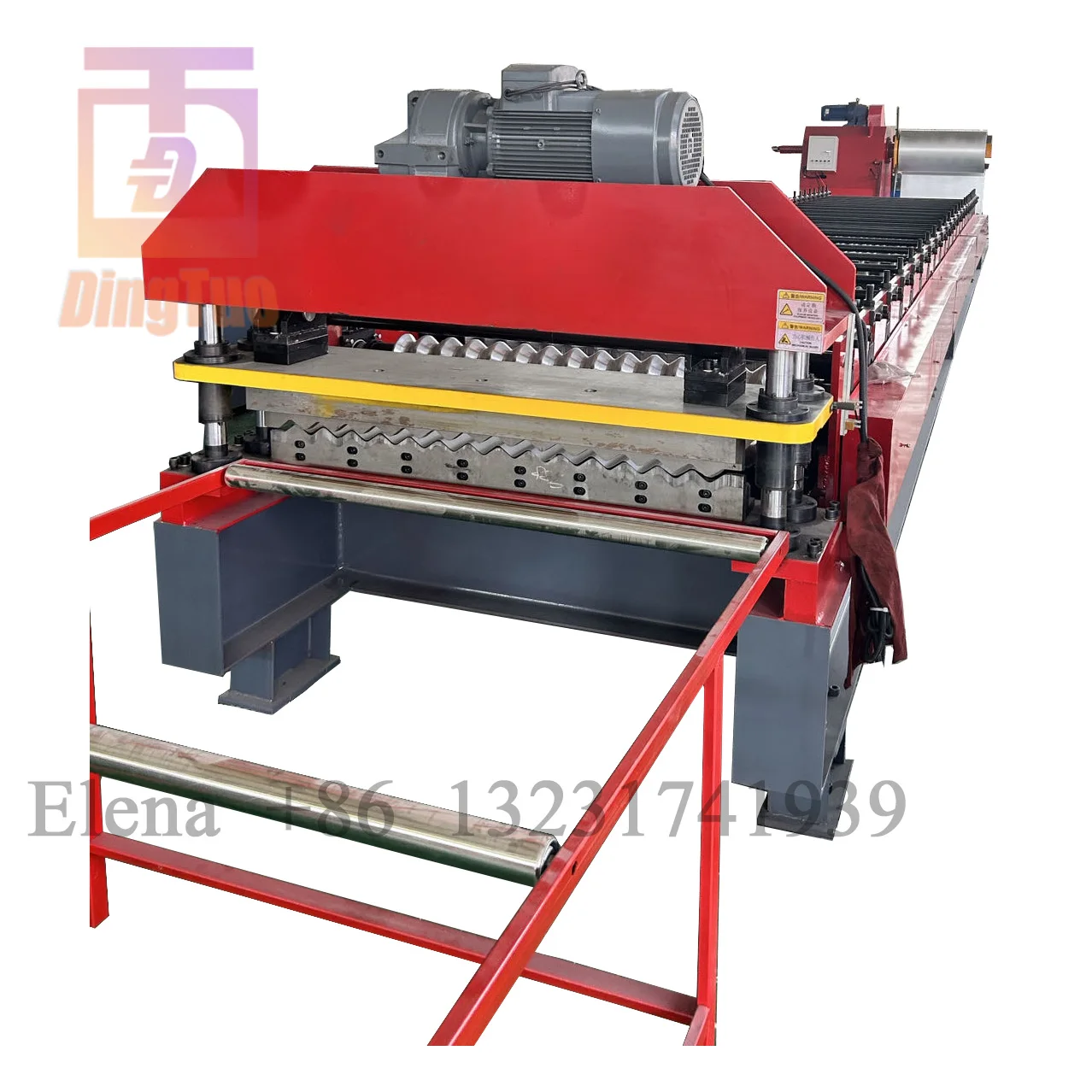

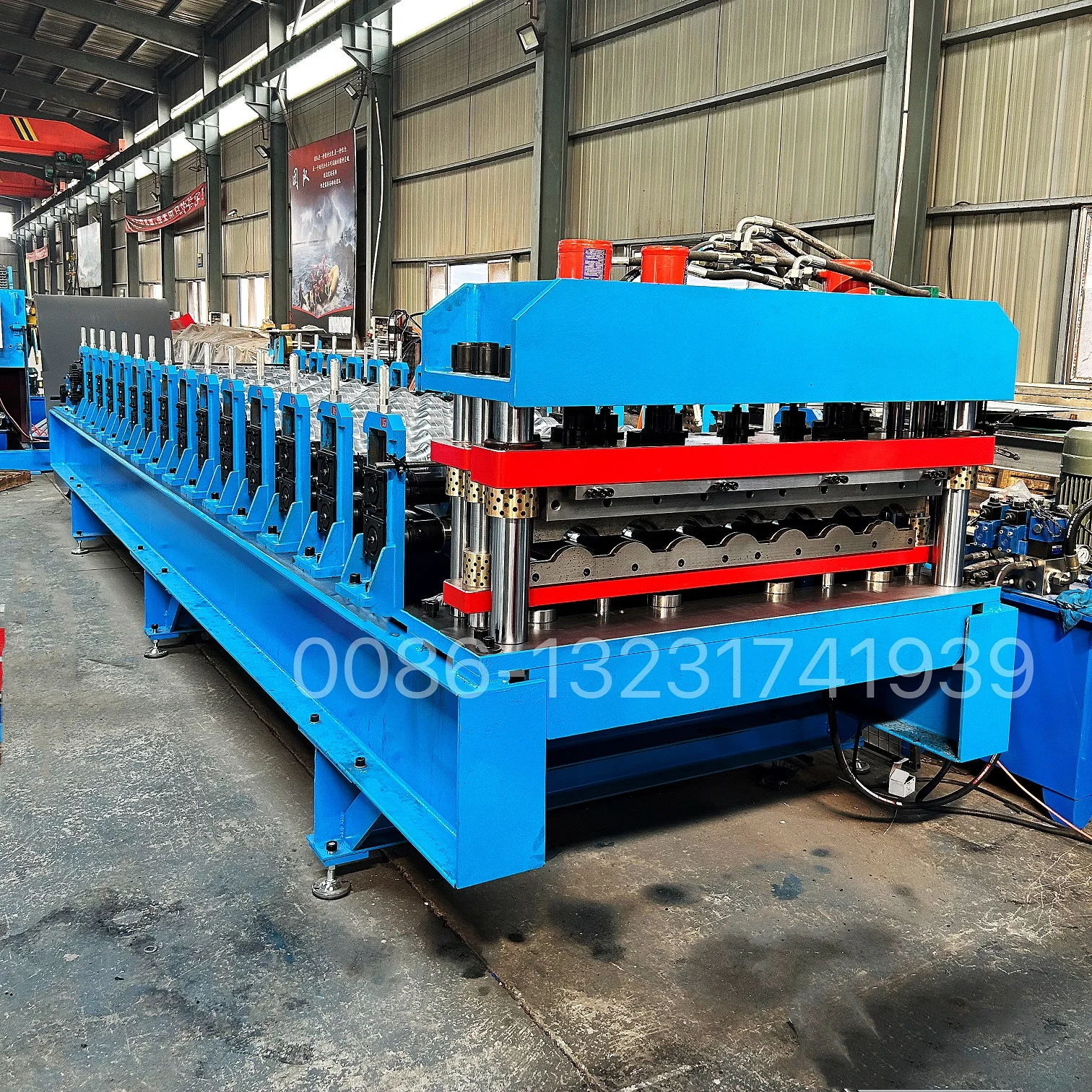

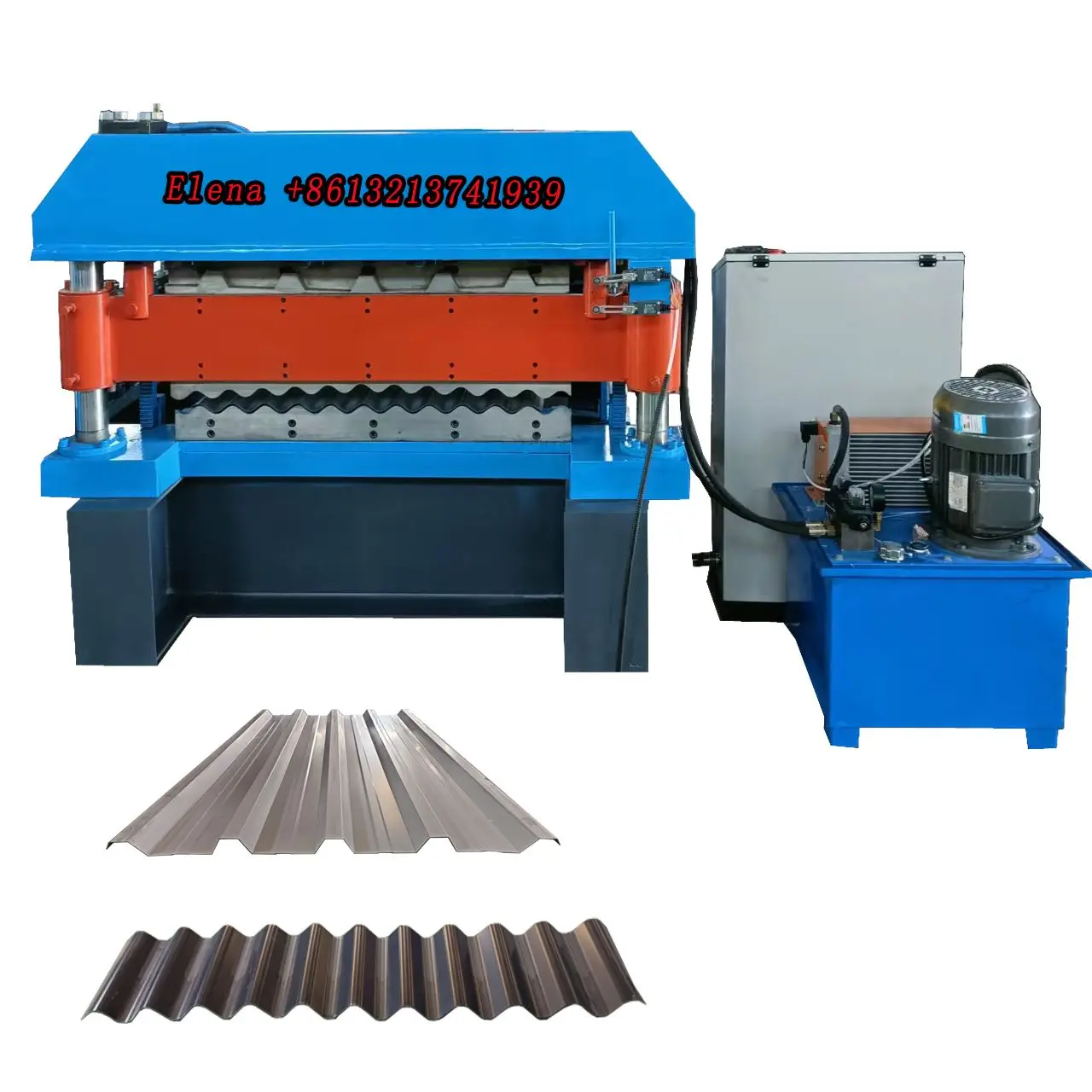

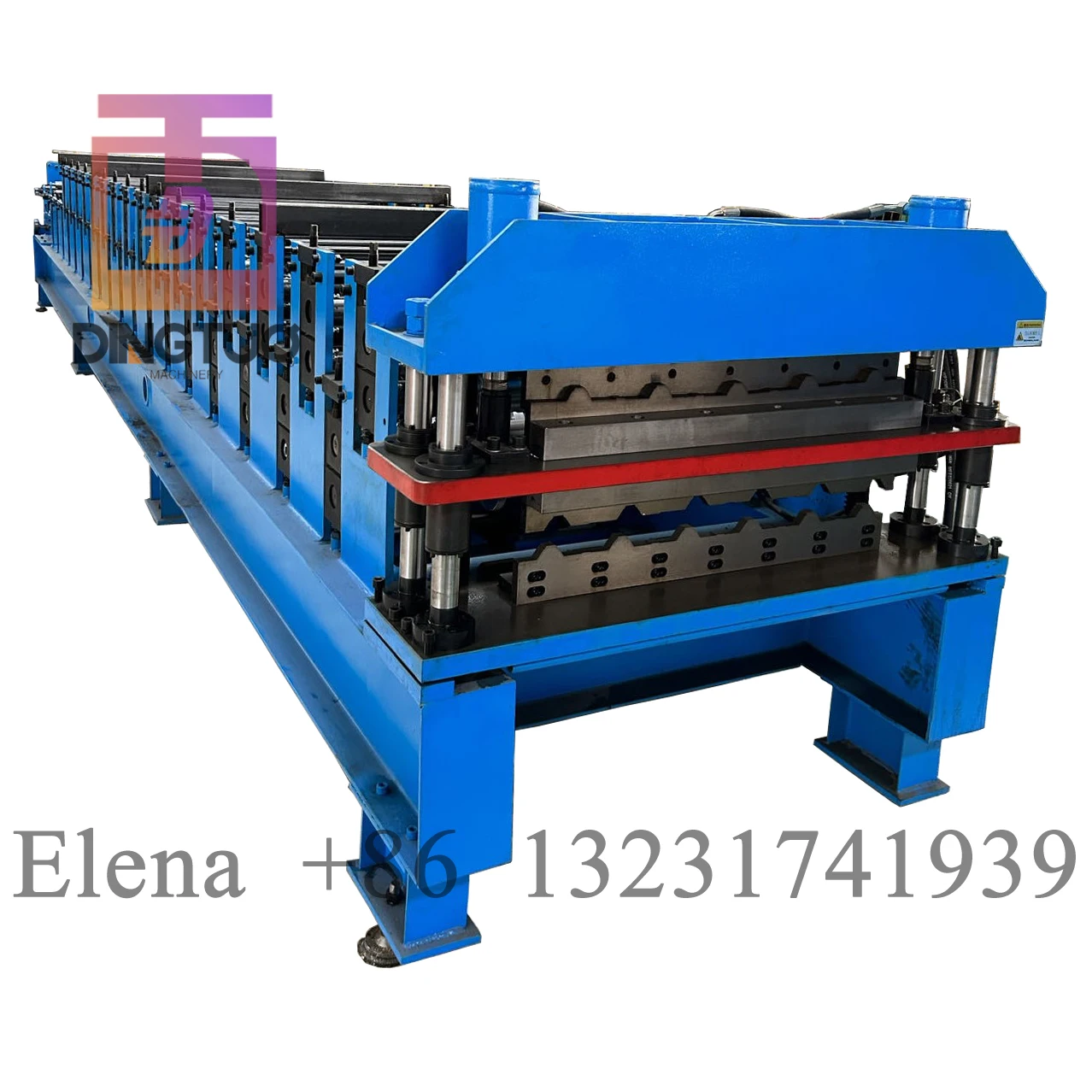

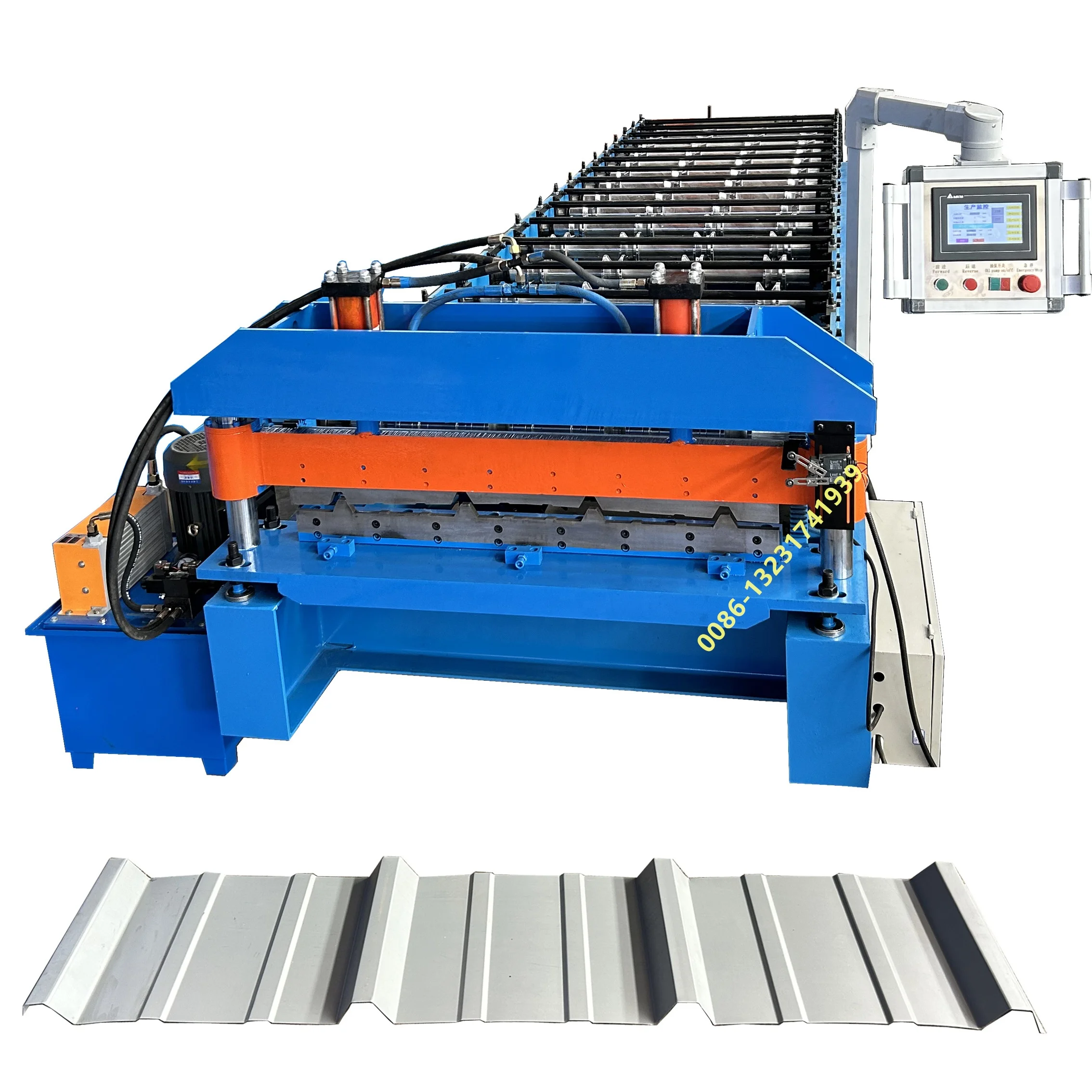

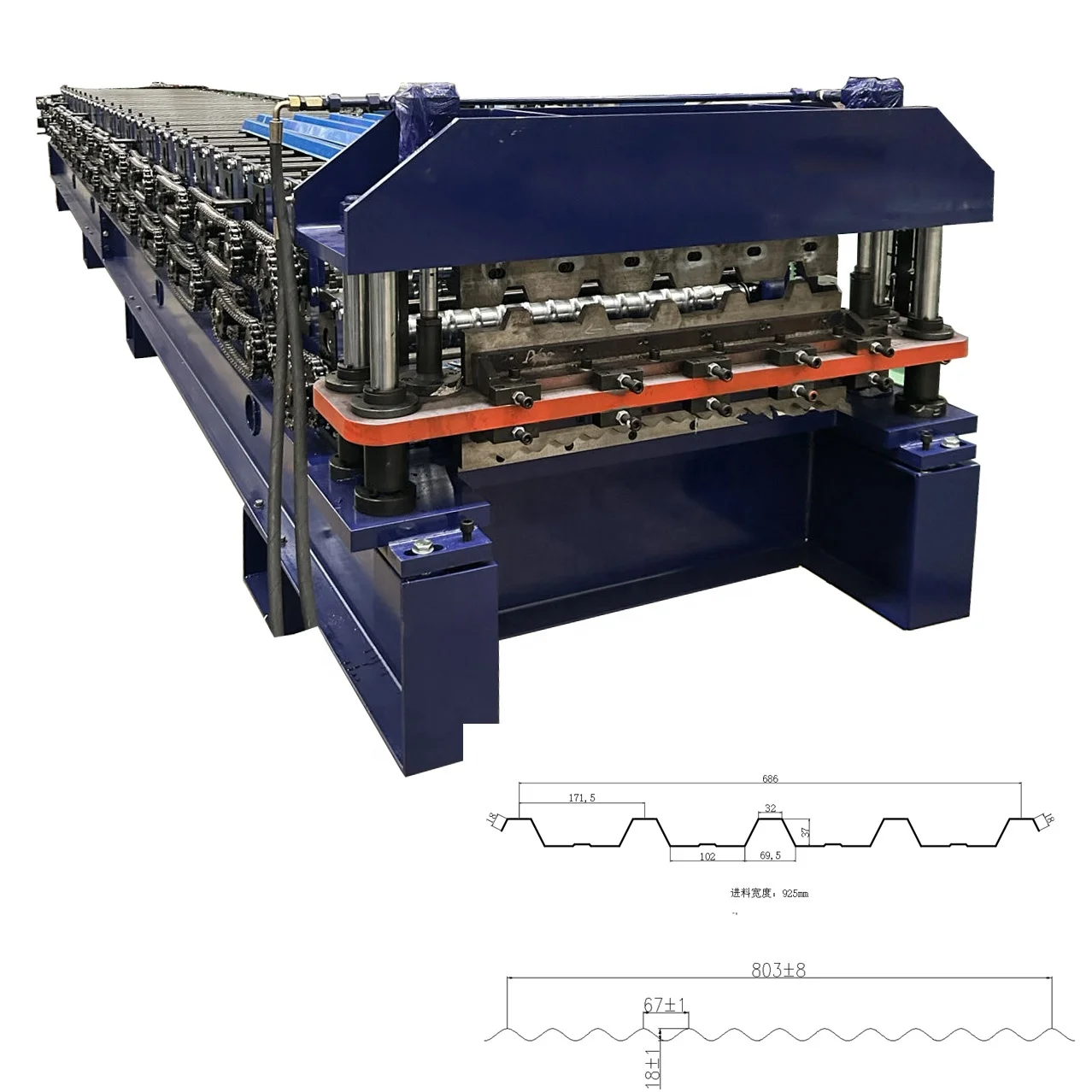

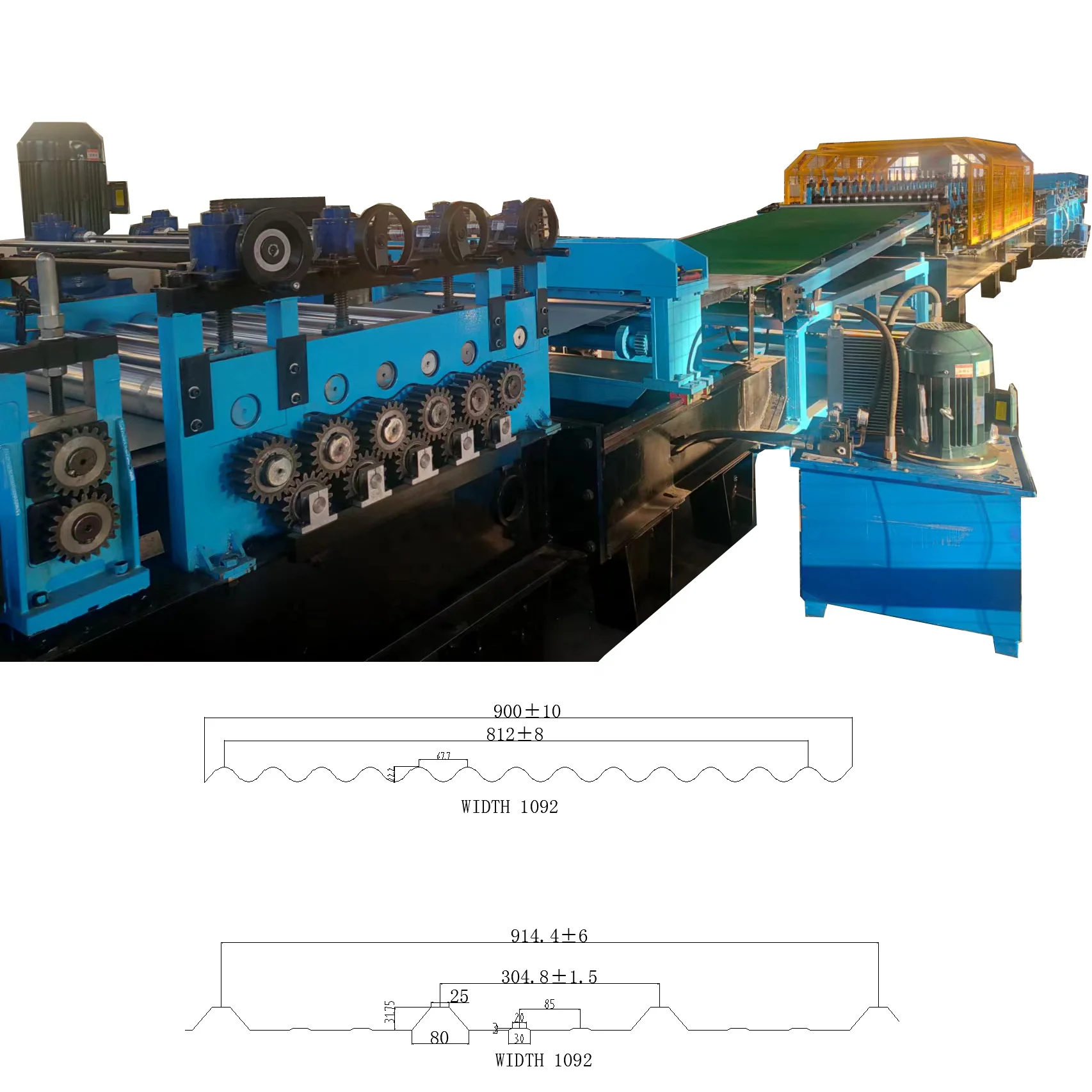

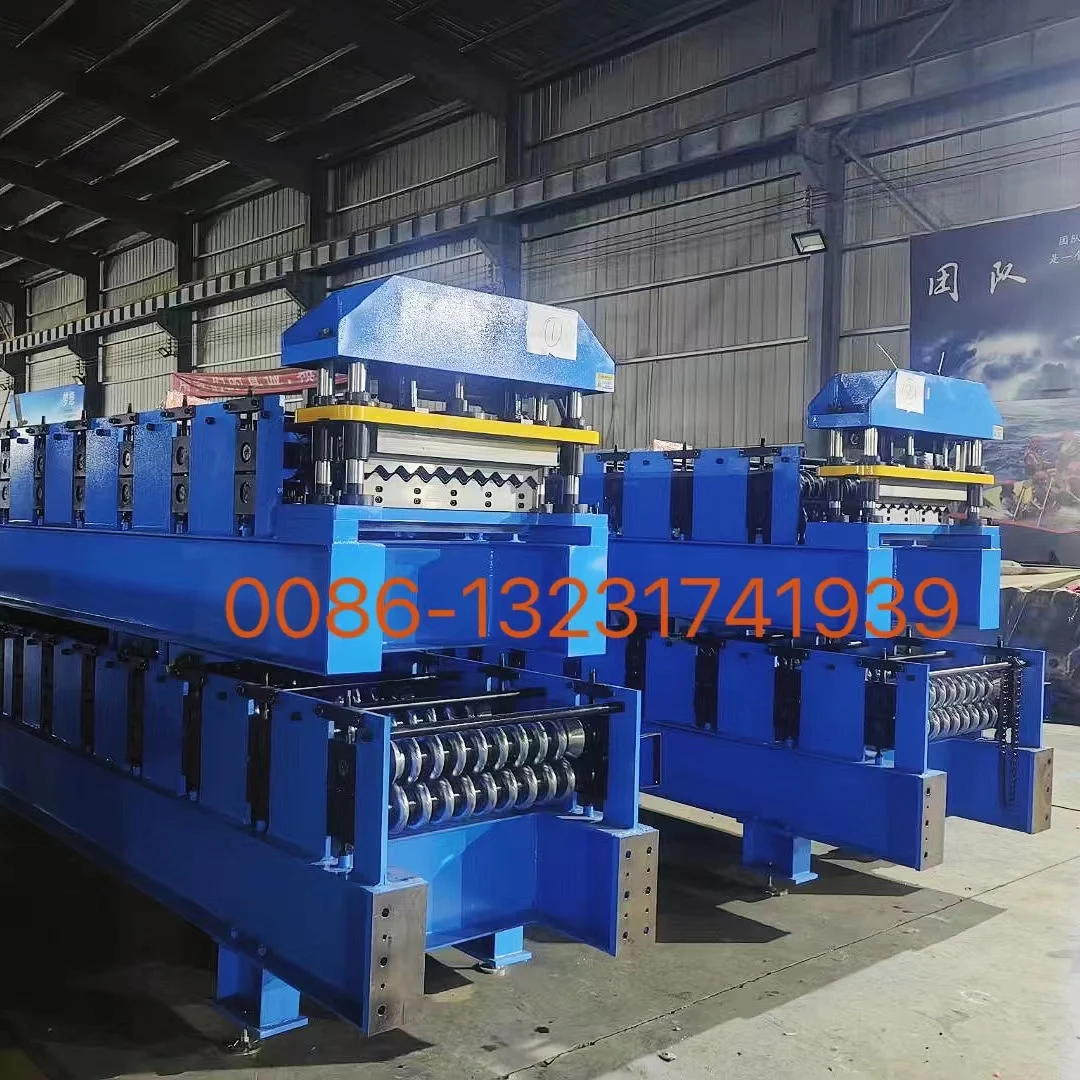

CUSTOMIZED DOUBLE LAYER ROOFING SHEET ROLL FORMING MACHINE
We are the various roll forming machine manufacturer.

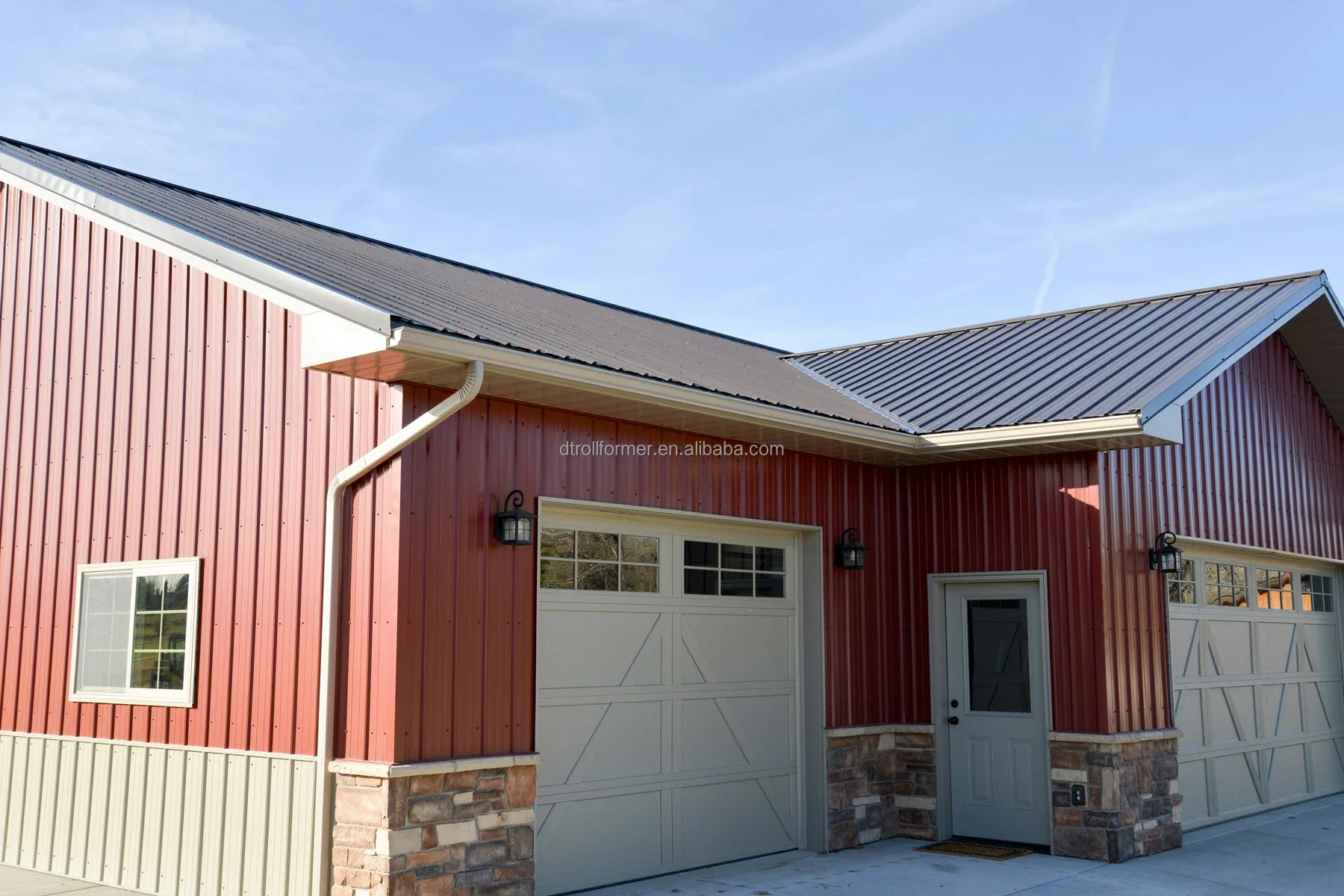

About the roofing sheets made by our machine, one of our most popular and affordable panels, Tuff Rib is a jack-of-all-trades for metal roofing, siding, and modern accents. Originally designed for traditional and agricultural buildings, this Ribbed Steel Roof Panel is built to last and stands up to wind, hail, snow, and rain. Finish it off with a sleek-looking trim and this Rib Steel Roof Panel shines as a residential roofing system. Install the panel horizontally as a wainscot and you’ve got a modern-industrial accent that makes your project stand out. You can count on Tuff Rib to work hard on the ranch, take care of business on commercial builds, or protect your family from the elements. Our Ribbed Steel Roof Panel roll forming machine has you covered.
Our machine supports customized . Welcome to show me your sheets' profile sizes and we talk about more details. Whatsapp 0086-13231741939 Mrs.Elena
PRODUCT APPLICATIONS

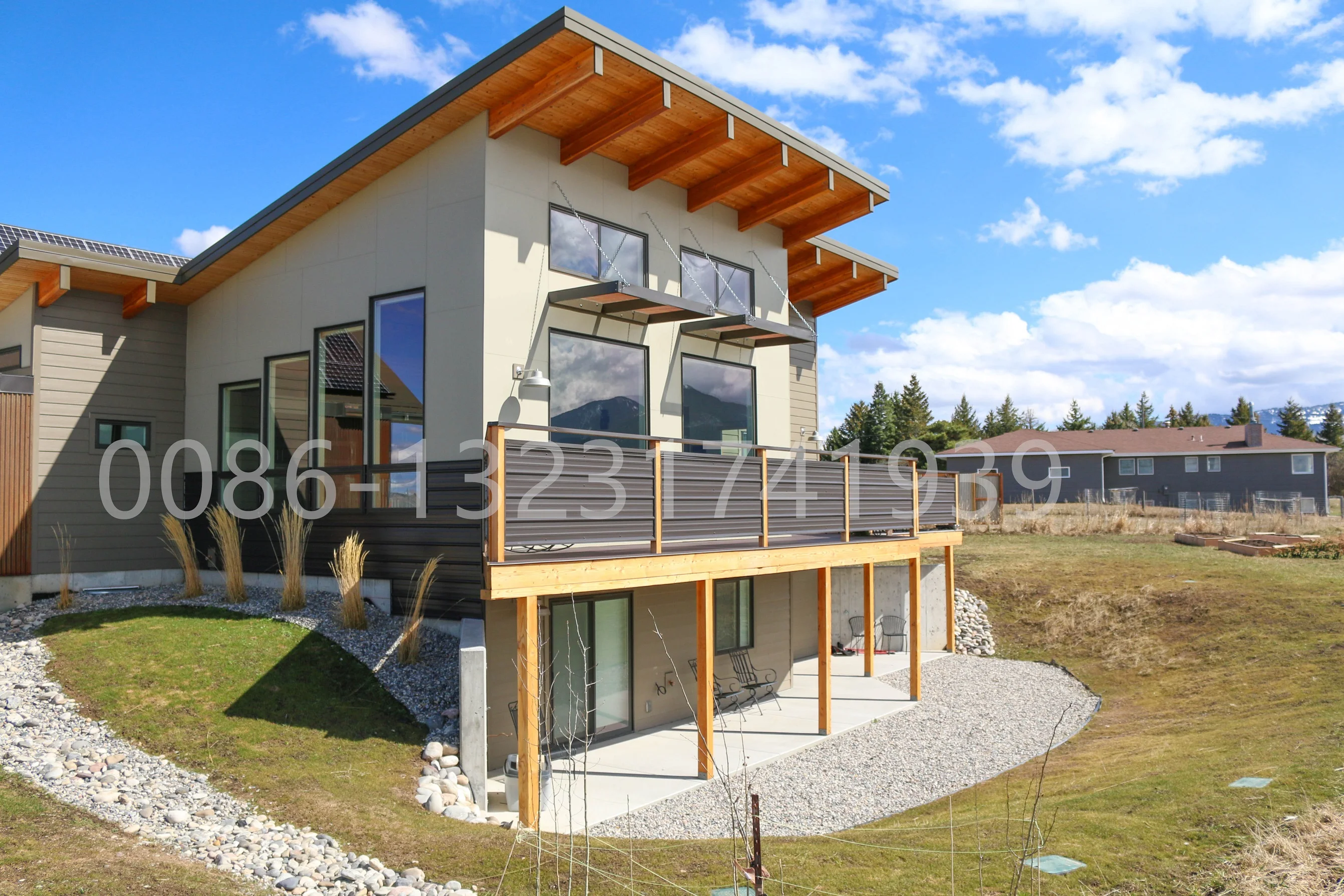

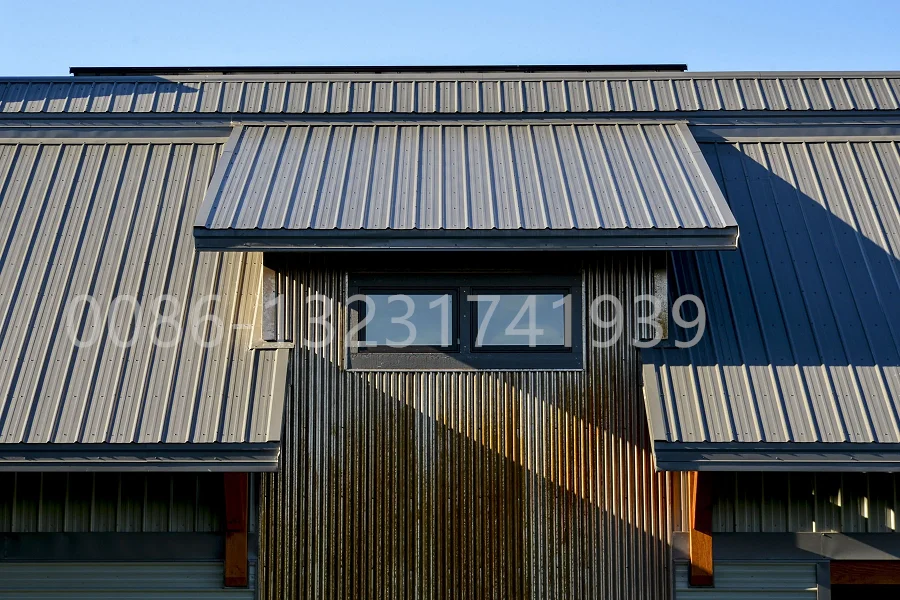

Metal Roofing, Siding, Interior and Accent
Suitable for regions prone to hail.
Suitable for regions prone to high snow volume.
Suitable for regions prone to high winds.
Suitable for regions prone to extreme temperatures.
Suitable for Solar Panel mounting.
Available in Cool Roof certified colors.
Suitable for Rainwater Harvesting.
Can be installed over an open purlin system or a solid substrate.
If used for a roofing application, use bead mastic on the overlap.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
PRODUCT CONFIGURATION
Decoiler
Features:Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement;
Power: powered;
Power of the open and closure of segments: manual way;
Power of rotation of segment: manual;
Number of segment: 4;
Range of segment expansion:480 ~ 520mm;
Height of center of the mandrel: 0.65m;
Approximate Size: 1.5 m * 1.1m *1.2 m;
Speed control: By mechanical brake;
Methods of operation: mechanical;
Bearing Weight: 5 Tons

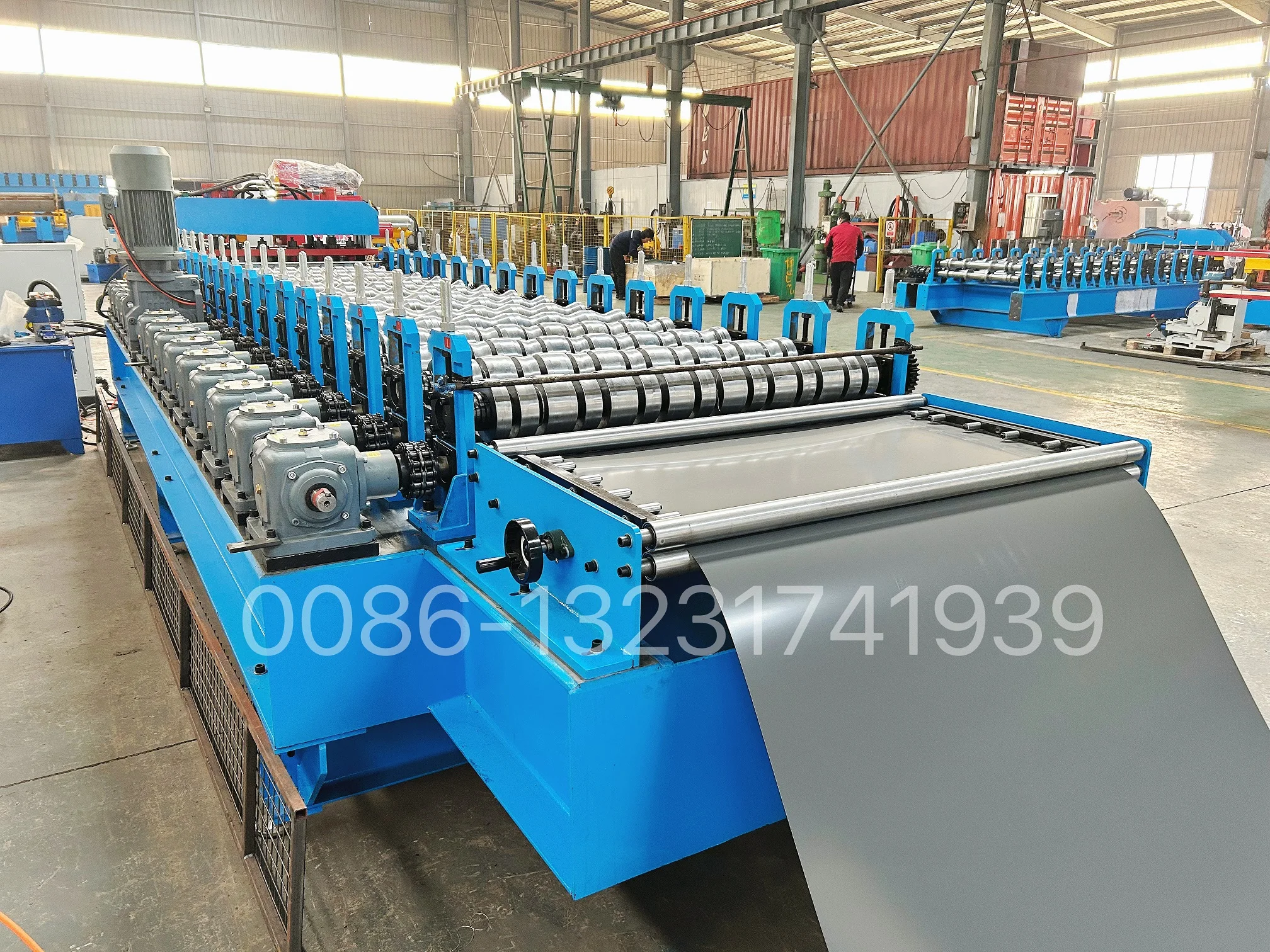

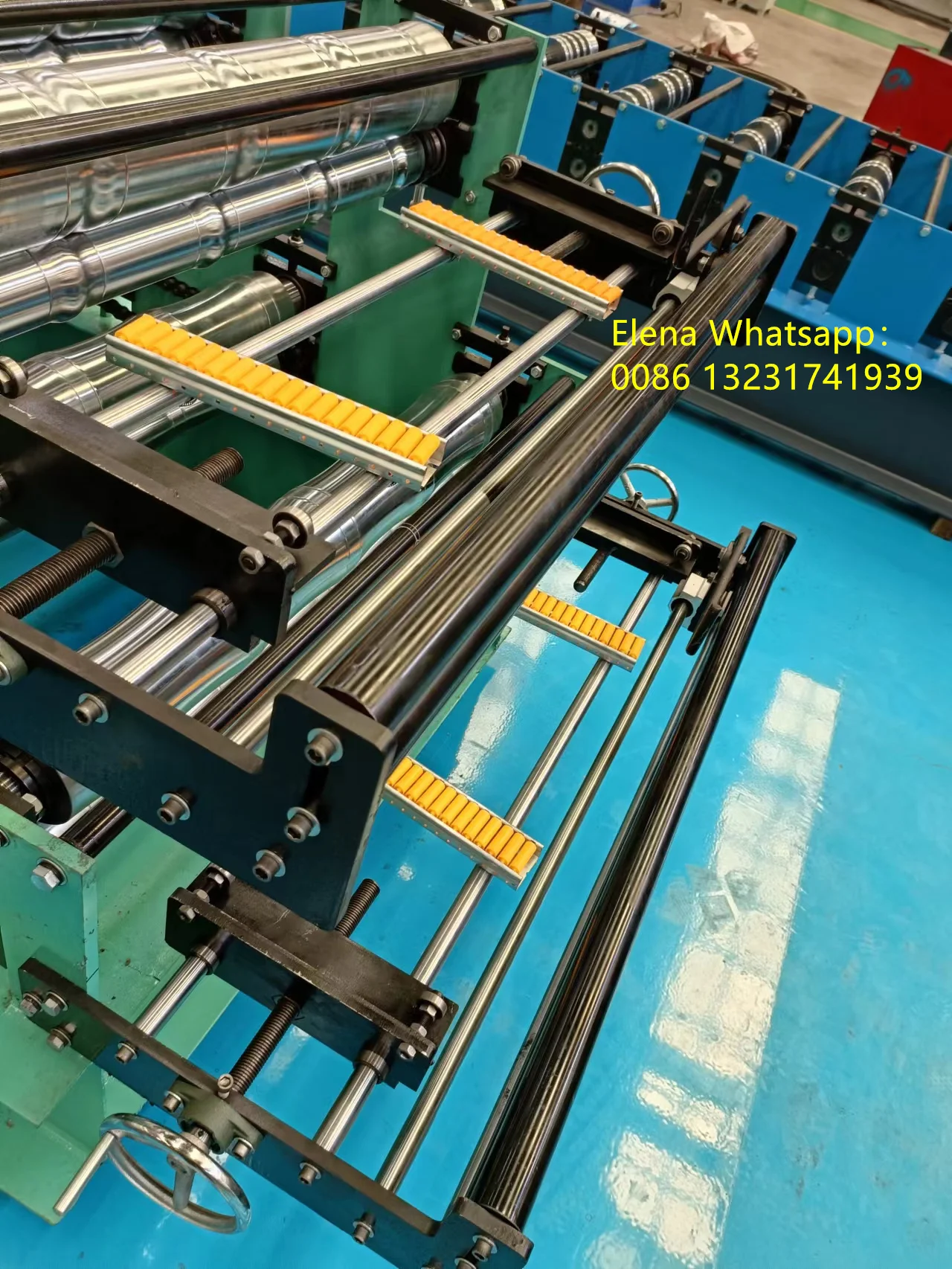

Feeding platform
guide materials into the machine smoothly

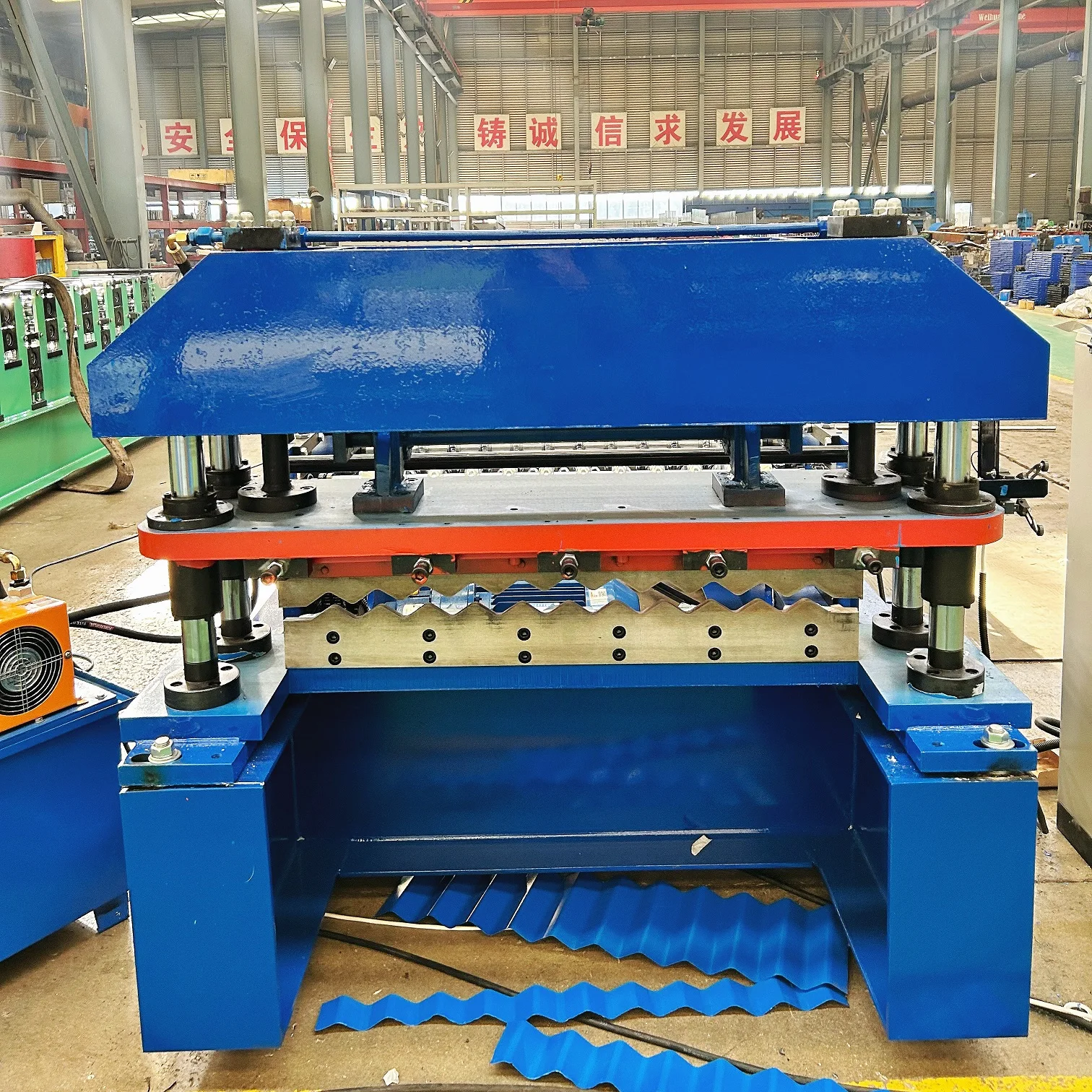

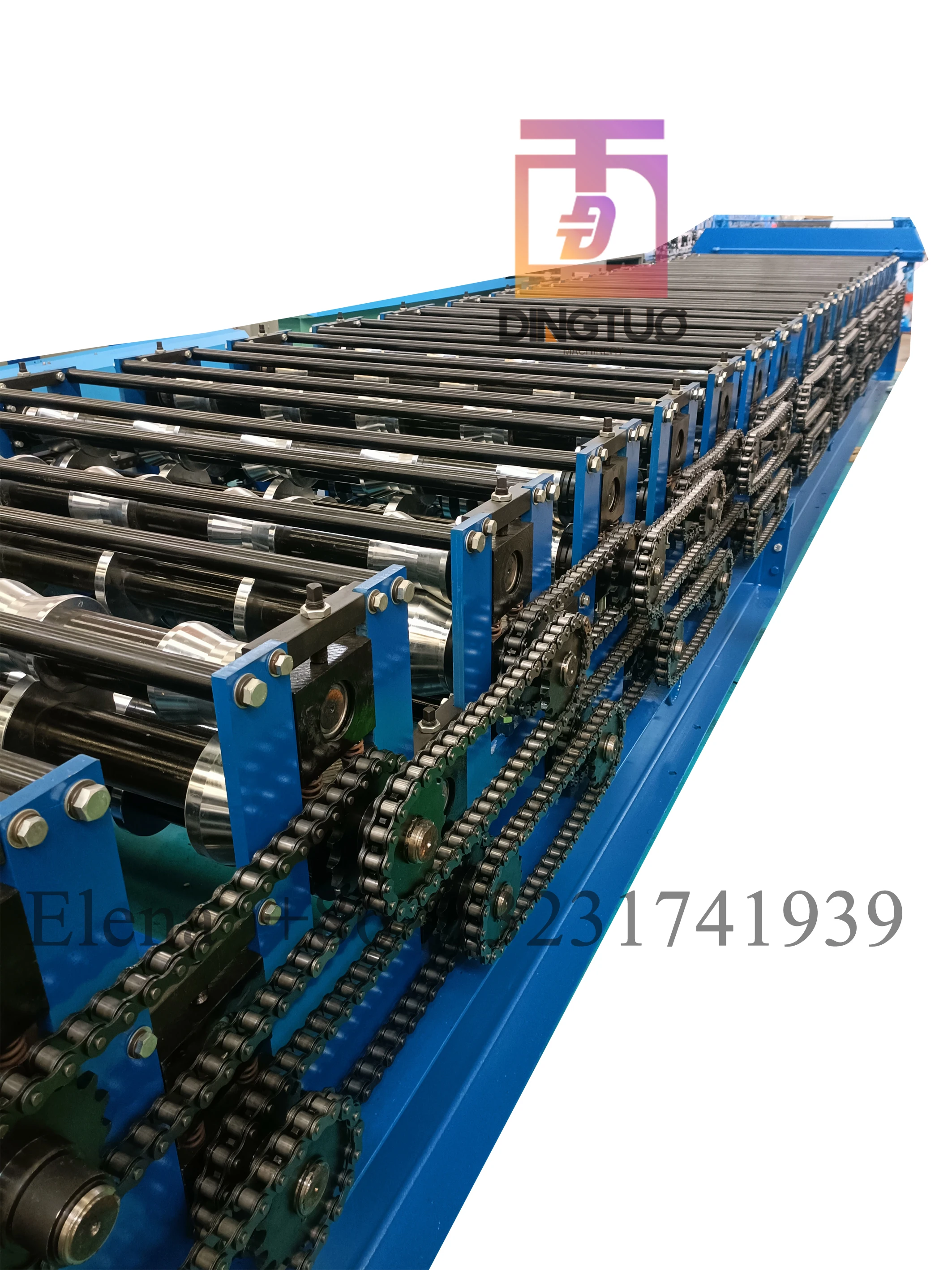

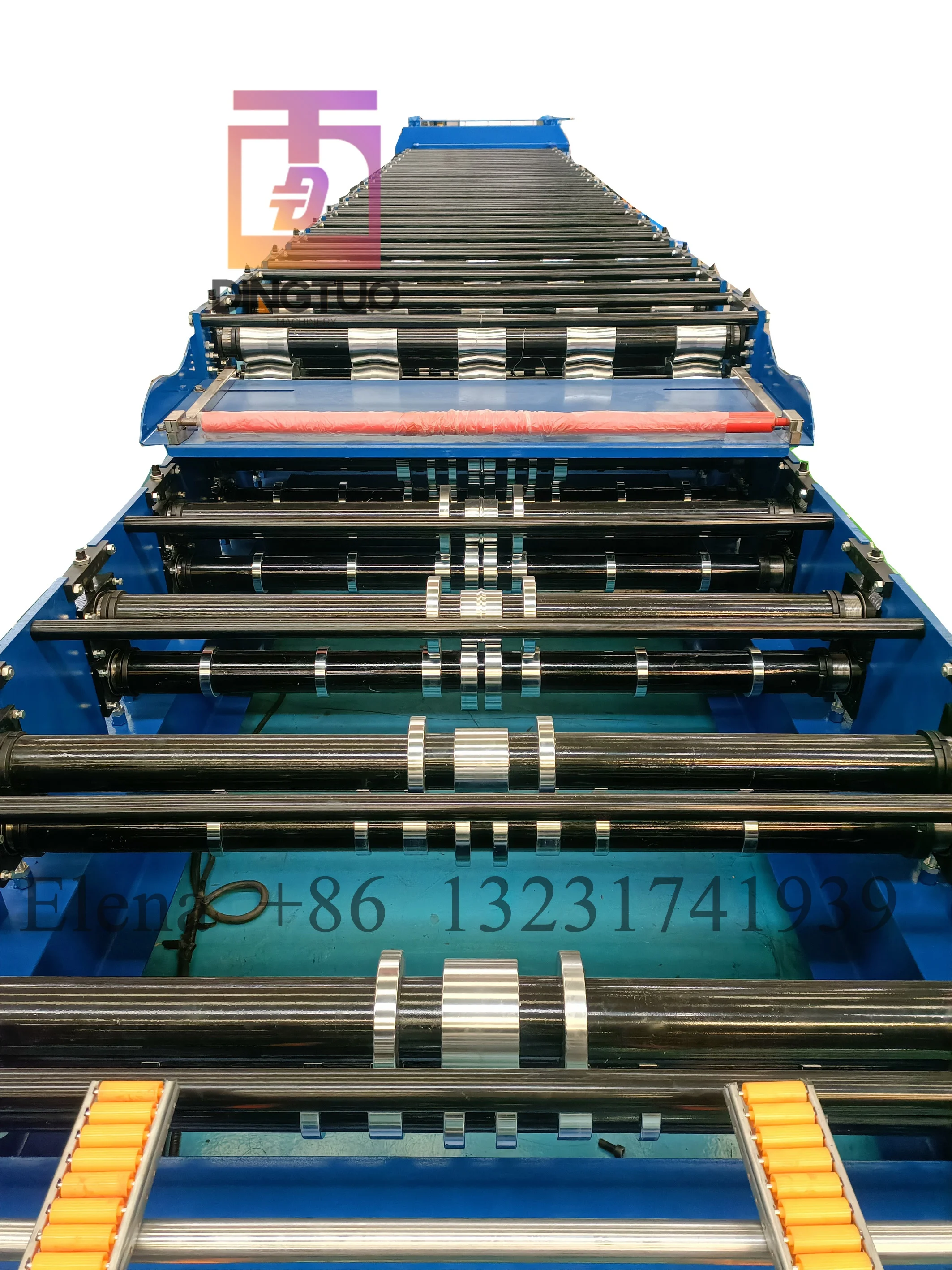

forming part
1.Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome
2.Shaft: 45# high grade steel by CNC machine tools
3. spacers with nickle plated
Machine Side Panels
16mm thick / 350 H beam weldedbase frame
cutting mold
4 -pillar guide to ensure the cutting process stable
Inside Type Motor And Hydraulic Pump Station
1. main motor power:5.5 kw
2. Hydraulic motor power:4kw
electric control cabinet
The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Lengthmeasurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:380V, 3 Phases 50Hz （ voltage can becustomized as your needed)

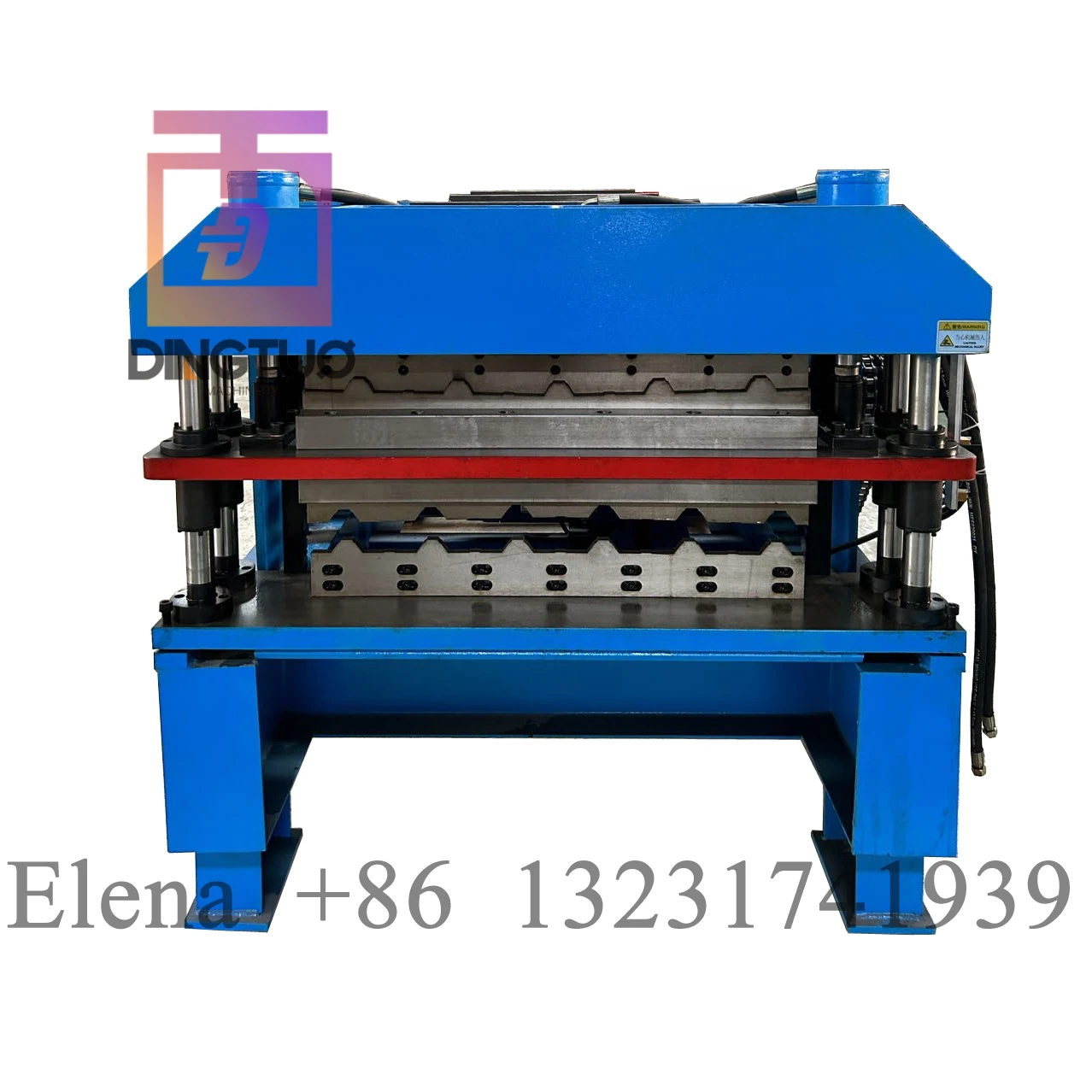

Automatic Hydraulic Cutter
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. 2.Power supply: 4kw hydraulic pump station 3.Frame: 350H beam welding 4.Stroke switch: non-contact photoelectric switch 5.Cut : cut the sheet after roll forming to required length 6.Length measuring: automatic length measuring 7. Blade material:Cr12 material with finishing

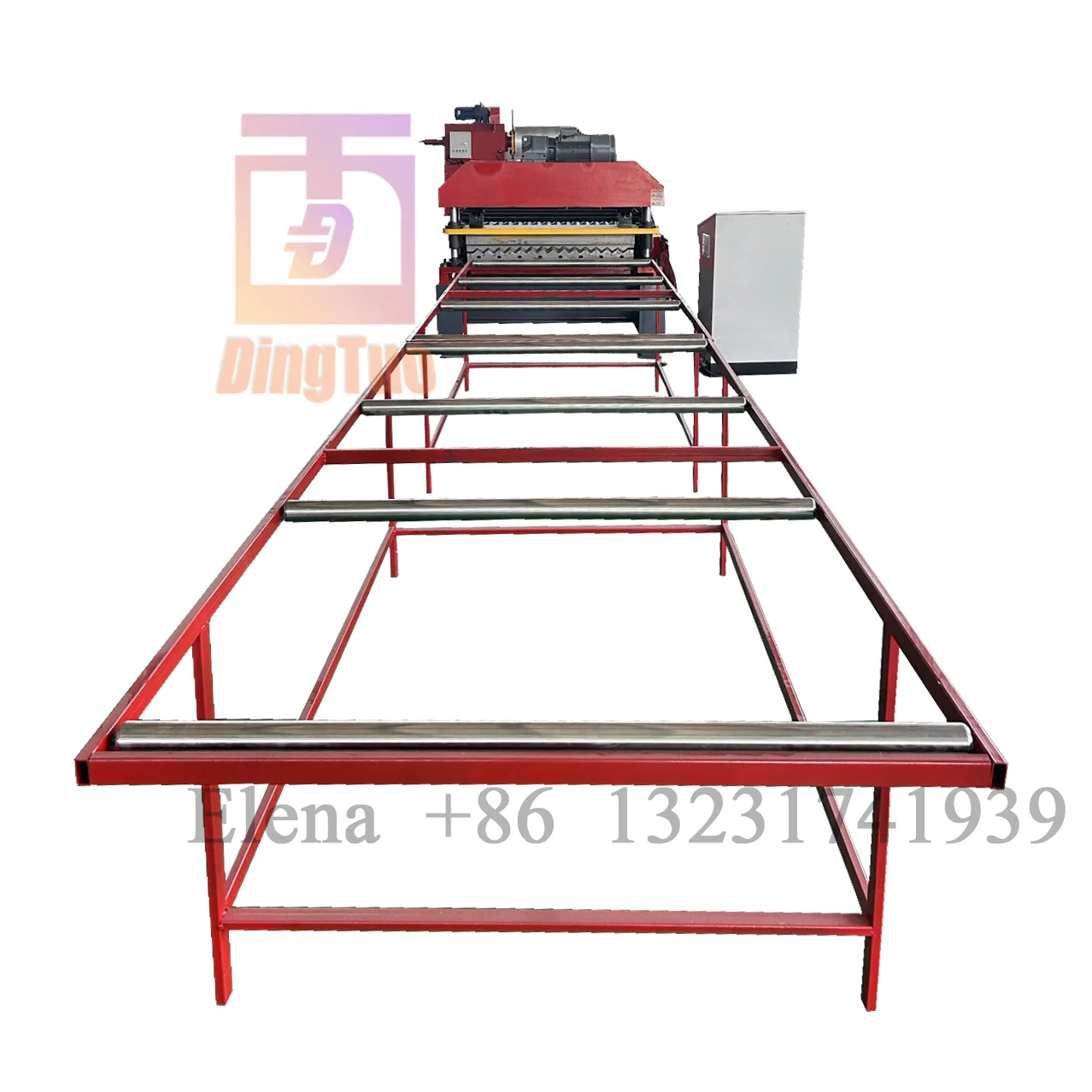

MACHINE RUN OUT TABLE
RECEIVE MATERIALS
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin Argentina
Project in USA
Project in Chile
RECOMMENDED PRODUCTS
CE certificate
CE Certificate
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ

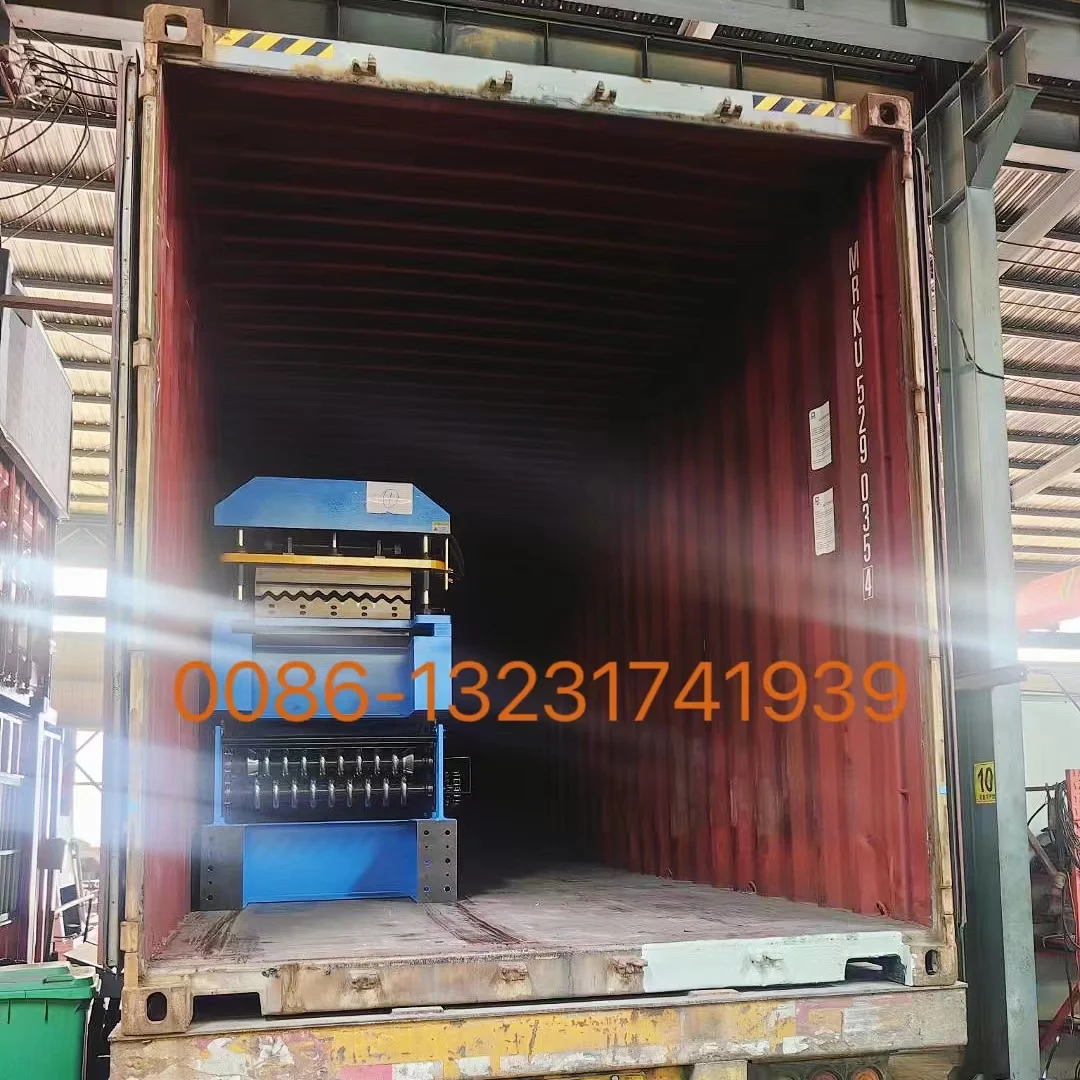

1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
