1 HYDRAULIC DECOILER 1
2 FEEDING PLATFORM 1
3 FORMING PART 1
4 ELECTRIC CUTTING PART 1
5 ELECTRIC CONTROL CABINET 1
6 HYDRAULIC PUMP STATION 1
7 RUN OUT TABLE 1
8 ACCESSORIES 1
metrcopo glazed tile roofing sheet roll forming machine
The metrcopo glazed tile roll forming machine is composed of a production line: an uncoller, a main arch-shaped forming machine, a set of hydraulic punching and grinding systems, a set of hydraulic cutting systems, an ele..
TEL : +86 13231741939
DETAILS
Product Overview

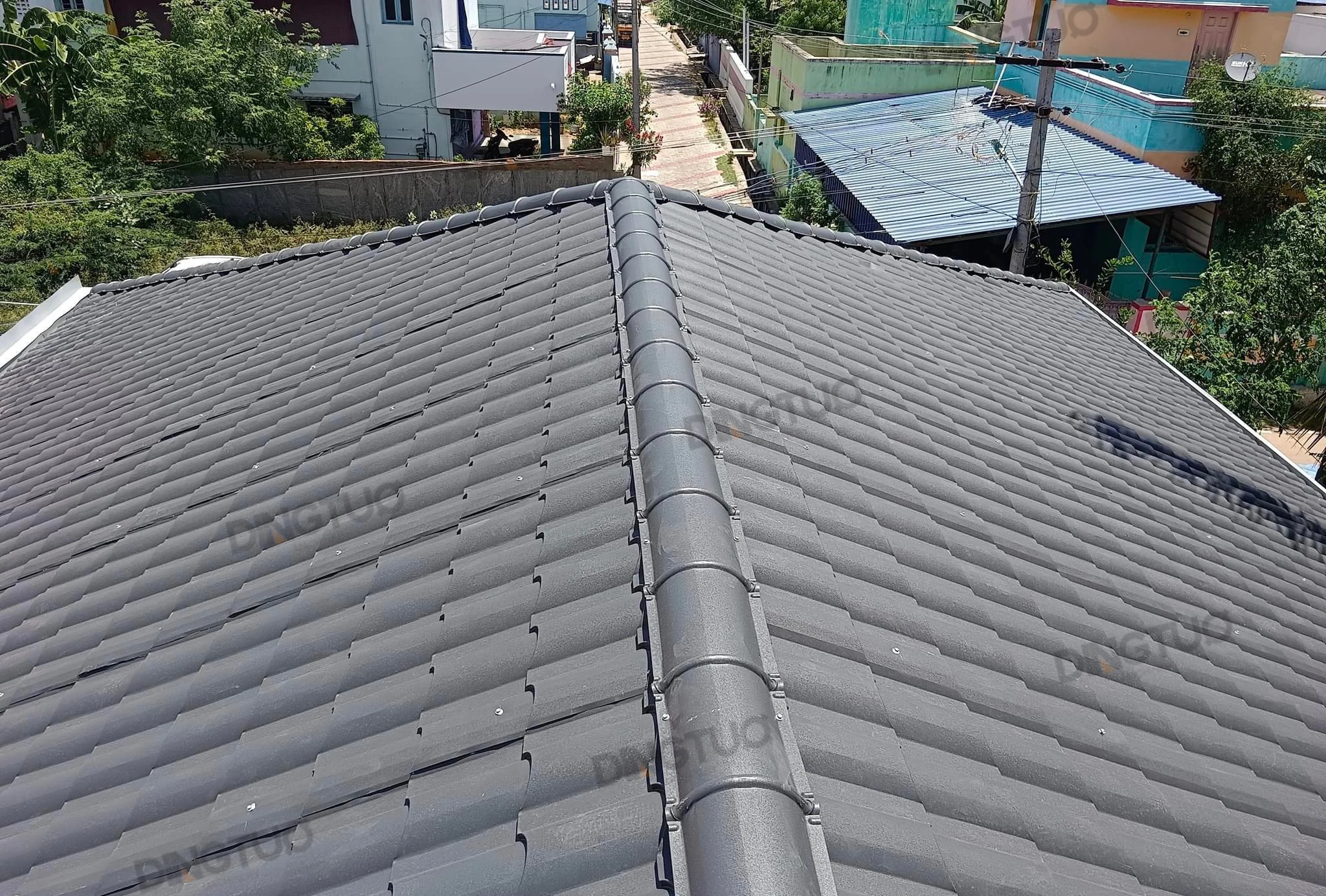

metrcopo semicircular glazed tile roofing roll forming machine
The metrcopo glazed tile roll forming machine is composed of a production line: an uncoller, a main arch-shaped forming machine, a set of hydraulic punching and grinding systems, a set of hydraulic cutting systems, an electronic control system, an oil pump, a roller-moving material receiving rack
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
PRODUCT CONFIGURATION
Decoiler
1Feeding width 0-1000mm
2 Inner diameter of steel coil 470-530mm, ±20mm
3 Bearing weight within 5 tons
4 Palm 3
5 Working Type Hydraulic tension coils ,active feeding
6 Hydraulic pump station motor power 3kw,380V, HUADE Brand
7 Base Frame material 300H beam welded
8 Box material 16mm steel plated welded
9 Supporting spindle made of thick-walled seamless steel pipe, diameter is 194*45mm
10 Hydraulic cylinder The coiling cylinder has a steel diameter of 125mm, one with rotating
11 Machine size 2.5m*1.6m*1.75m
12 Machine Weight 2.4 tons
COIL CAR PARAMETERS
1 Car Lifting Double oil cylinder, cylinder diameter 90mm, travel 240mmm
2 Car Moves Forward Model 450, hydraulic motor
3 Car Feeding Panel length: 1.25m, panel width: 1.1 m
4 Car Track L2.5m*W1.05m
5 Car Travel Height travel: 400mm, length stroke: 2.5 m
Car Weight 0.9 tons
Feeding platform
guide materials into the machine smoothly

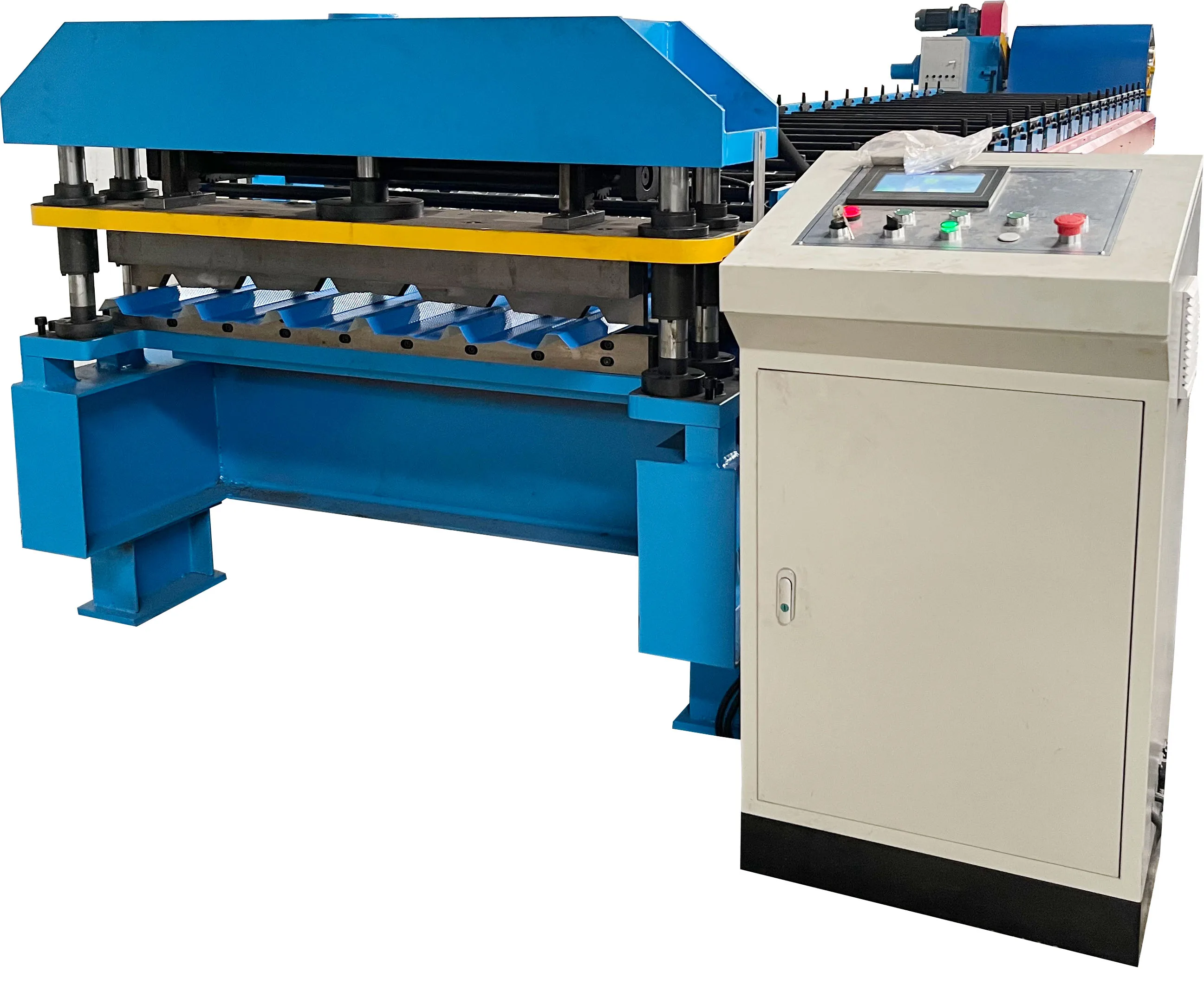

forming part

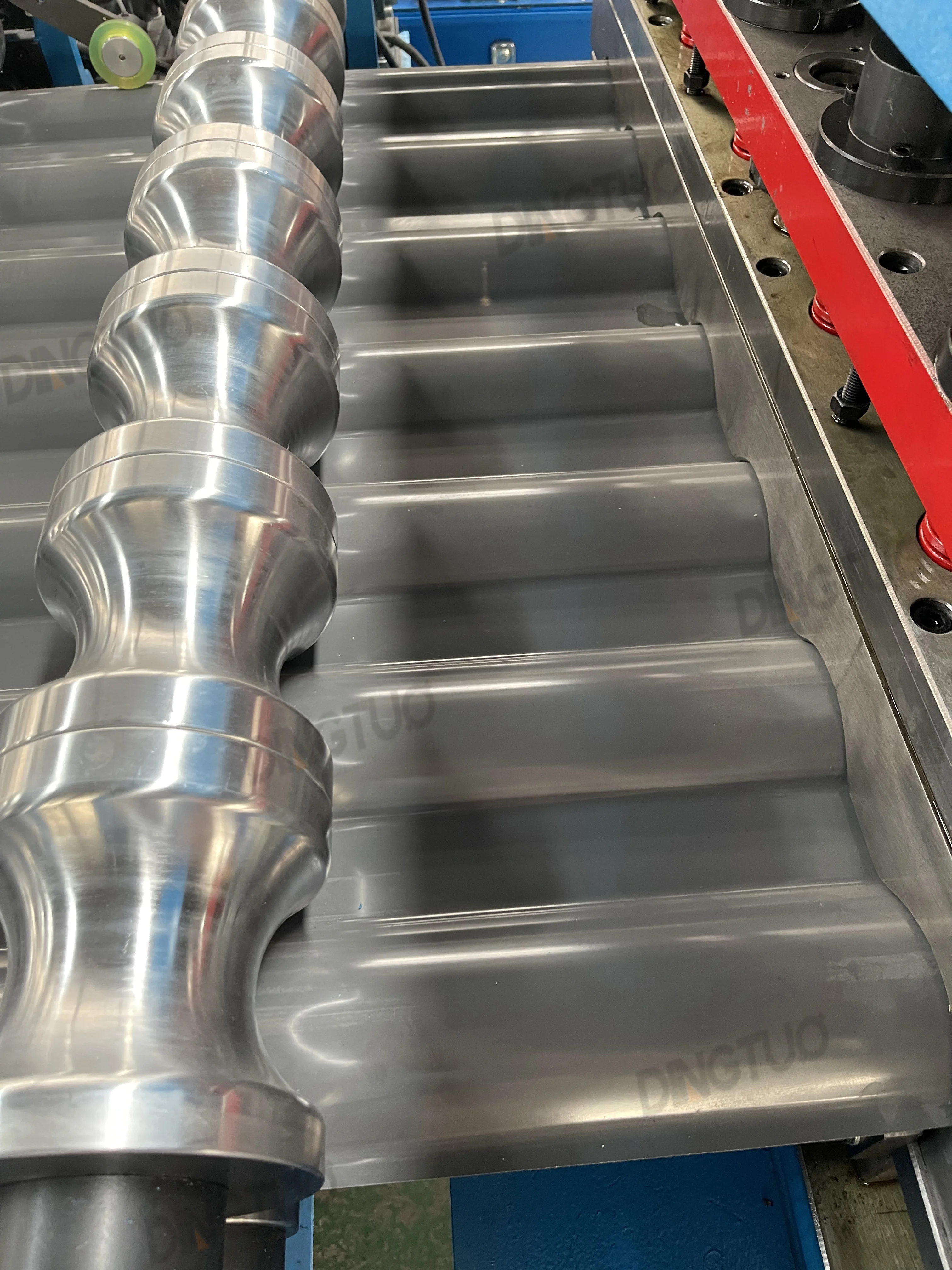

1.Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome
2.Shaft: 45# high grade steel by CNC machine tools
3. spacers with nickle plated
Machine Side Panels
350 H beam weldedbase frame
cast iron machine stands
Machine Transmission
gearboxes Transmission

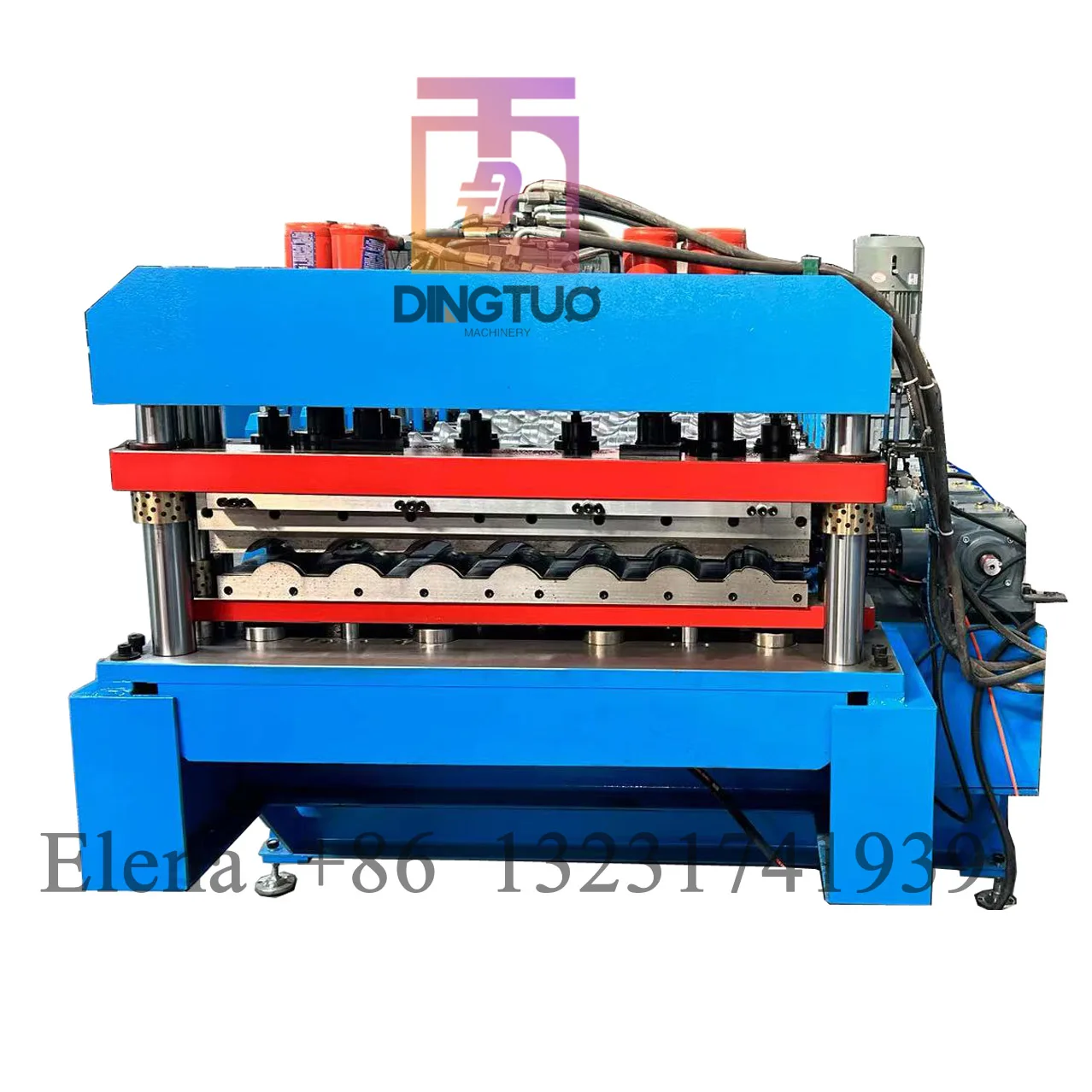

Automatic Hydraulic Cutter
Cutting and pressing integrated part：
Speed：5-8m/min
MACHINE RUN OUT TABLE
RECEIVE MATERIALS
Product packaging
SALES AND SERVICE NETWORK

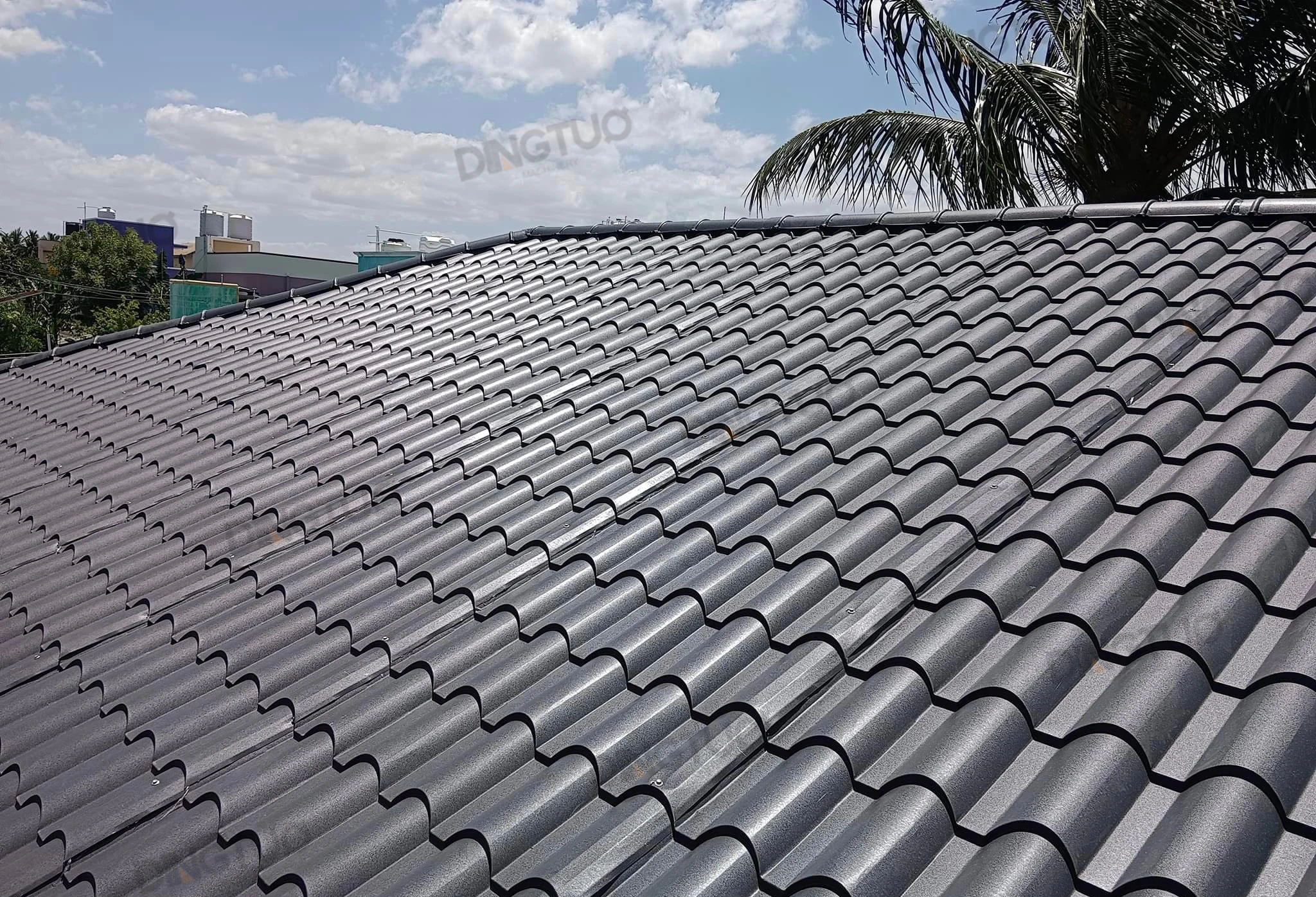

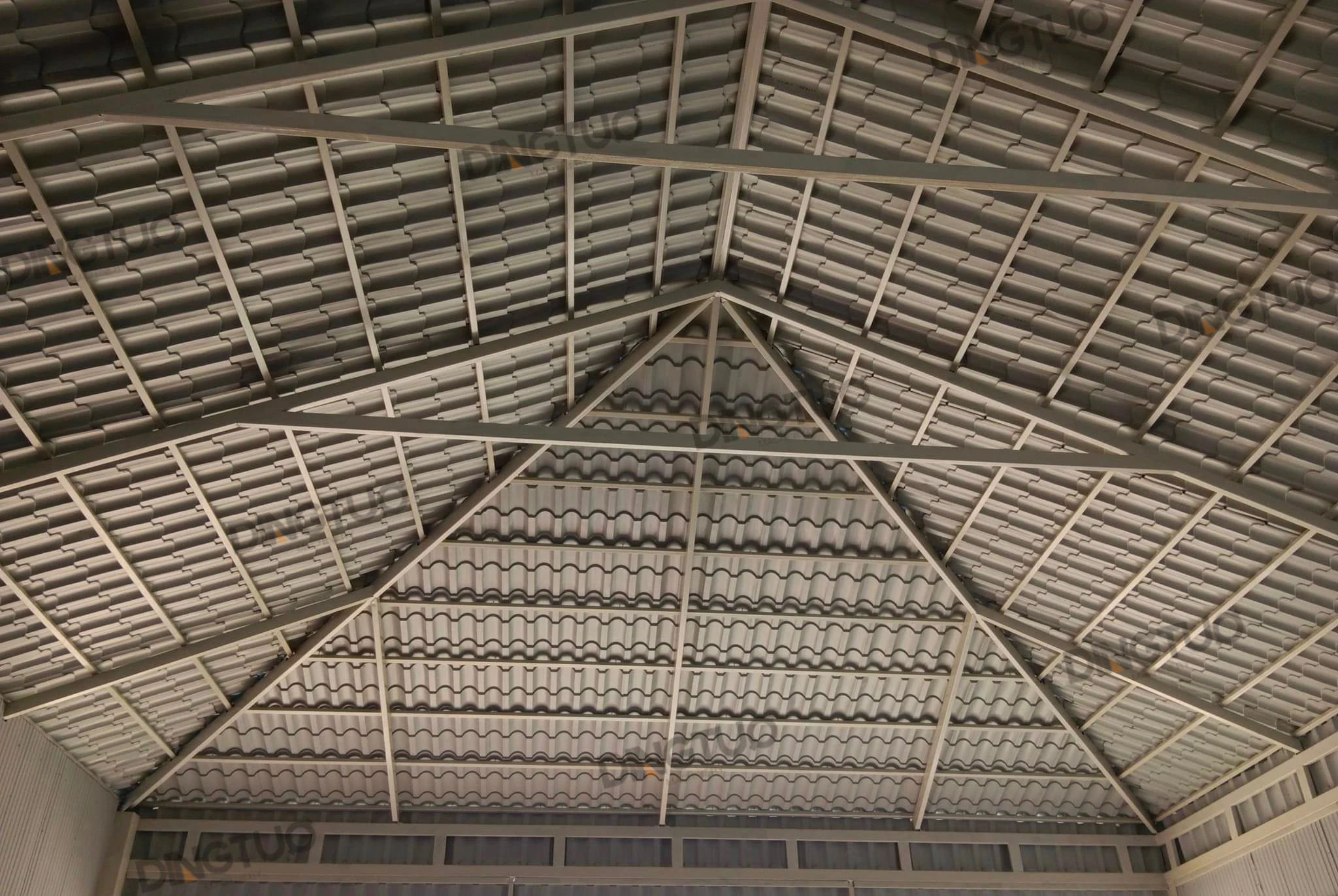

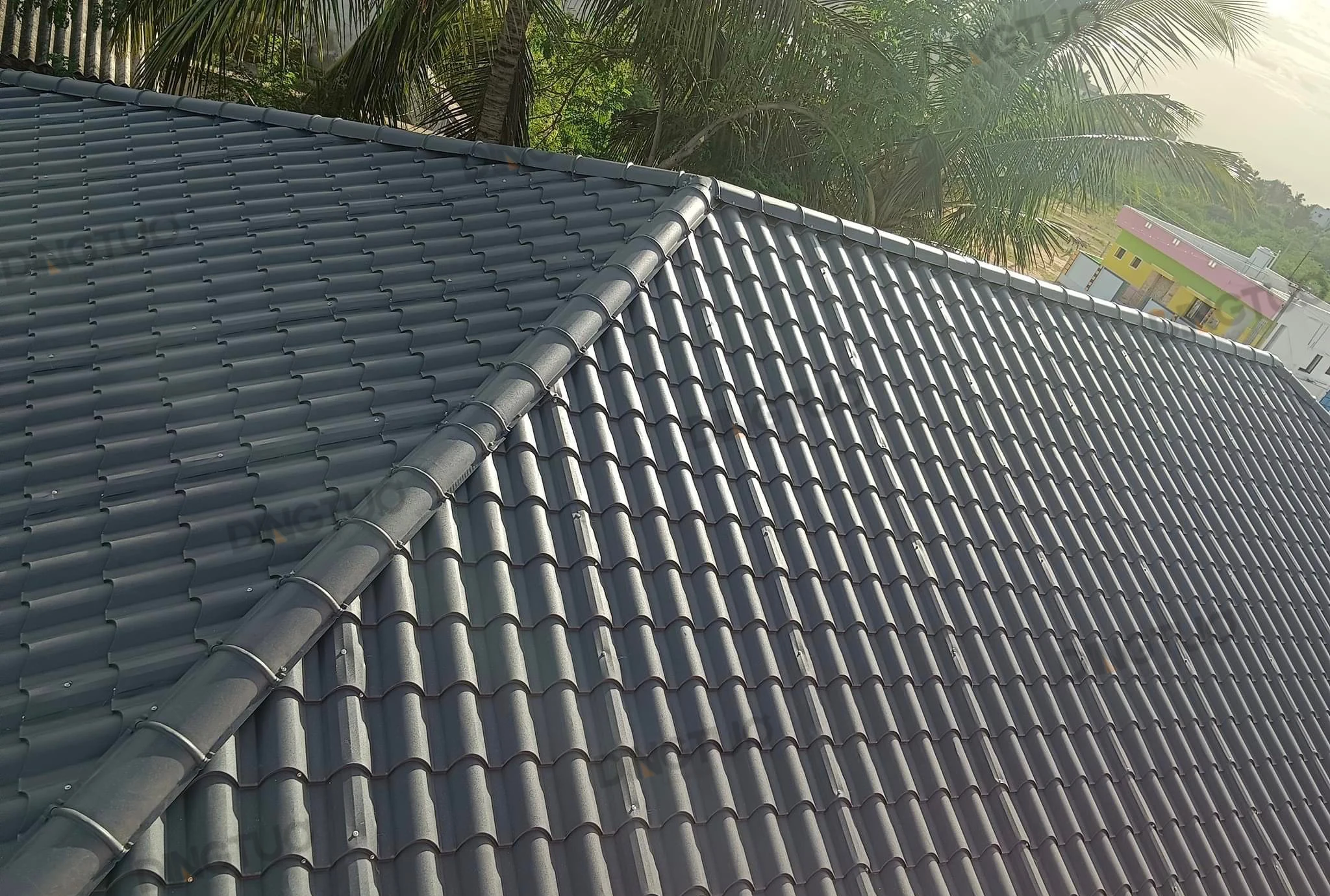

Successful Project
Projectin Argentina
Project in USA
Project in Dubai
RECOMMENDED PRODUCTS
CE certificate
CE Certificate
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
