K span no-beam roof panel roll forming machine
DT-MCBM-120W/240W portable construction machinery (one machine with multiple types) - UBM, K-span mic120/mic240 roll forming machine, vehicle-mounted large-span beamless arched roof panel forming machine, large-span color..
TEL : +86 13231741939
DETAILS
Product Overview

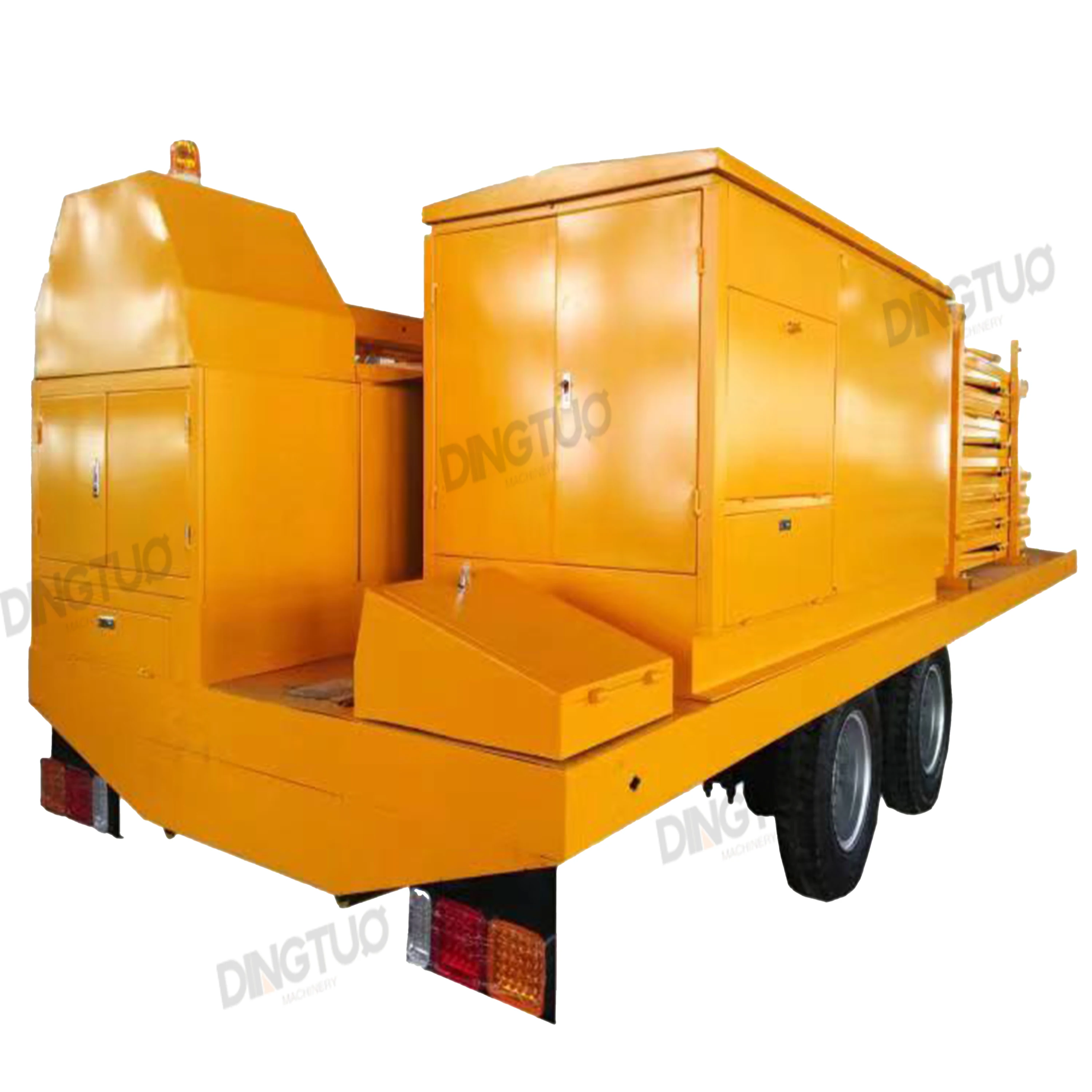

K span no-beam roof panel roll forming machine
DT-MCBM-120W/240W portable construction machinery (one machine with multiple types) - UBM, K-span mic120/mic240 roll forming machine, vehicle-mounted large-span beamless arched roof panel forming machine, large-span color steel plate beamless arched roof construction beamless arching machine
1. Dimensions: 9500mmX2270mmX2400mm
2. Total weight: about 12 tons
3. Control system: electronic control
4. Forming motor power: 7.5KW
5. Bending motor power: 4.0KW+1.5KW+1.5KW
6. Shearing motor power: 3.0KW
7. Roller material: 45# steel HRC58-62
8. Roller material: 45# steel
9. Blade material: mold steel 12#
10. Number of roller rows: 13 rows
11. Plate feed width: 914mm
12. Effective width: 610mm
13. Plate feed thickness: 0.6-1.6
14. Groove depth: 203mm
15. Forming plate output speed: straight plate: 15 meters per minute
16. Bending plate output speed: 13 meters per minute
17. Locking speed: 10 meters per minute
18. Span: 38m
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
1 HYDRAULIC DECOILER 1
2 FEEDING PLATFORM1
3 FORMING PART 1
4 ELECTRIC CUTTING PART 1
5 ELECTRIC CONTROL CABINET 1
6 HYDRAULIC PUMP STATION 1
7 RUN OUT TABLE 1
8 ACCESSORIES 1
PRODUCT CONFIGURATION
Decoiler
1Feeding width 0-1000mm
2 Inner diameter of steel coil 470-530mm, ±20mm
3 Bearing weight within 5 tons
4 Palm 3
5 Working Type Hydraulic tension coils ,active feeding
6 Hydraulic pump station motor power 3kw,380V, HUADE Brand
7 Base Frame material 300H beam welded
8 Box material 16mm steel plated welded
9 Supporting spindle made of thick-walled seamless steel pipe, diameter is 194*45mm
10 Hydraulic cylinder The coiling cylinder has a steel diameter of 125mm, one with rotating
11 Machine size 2.5m*1.6m*1.75m
12 Machine Weight 2.4 tons
COIL CAR PARAMETERS
1 Car Lifting Double oil cylinder, cylinder diameter 90mm, travel 240mmm
2 Car Moves Forward Model 450, hydraulic motor
3 Car Feeding Panel length: 1.25m, panel width: 1.1 m
4 Car Track L2.5m*W1.05m
5 Car Travel Height travel: 400mm, length stroke: 2.5 m
Car Weight 0.9 tons
Feeding platform
guide materials into the machine smoothly
forming part
1.Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome
2.Shaft: 45# high grade steel by CNC machine tools
3. spacers with nickle plated
Machine Side Panels
16mm thick / 350 H beam weldedbase frame
Machine spacers
spacers with nickle plated which can increase the machine wear-resistance

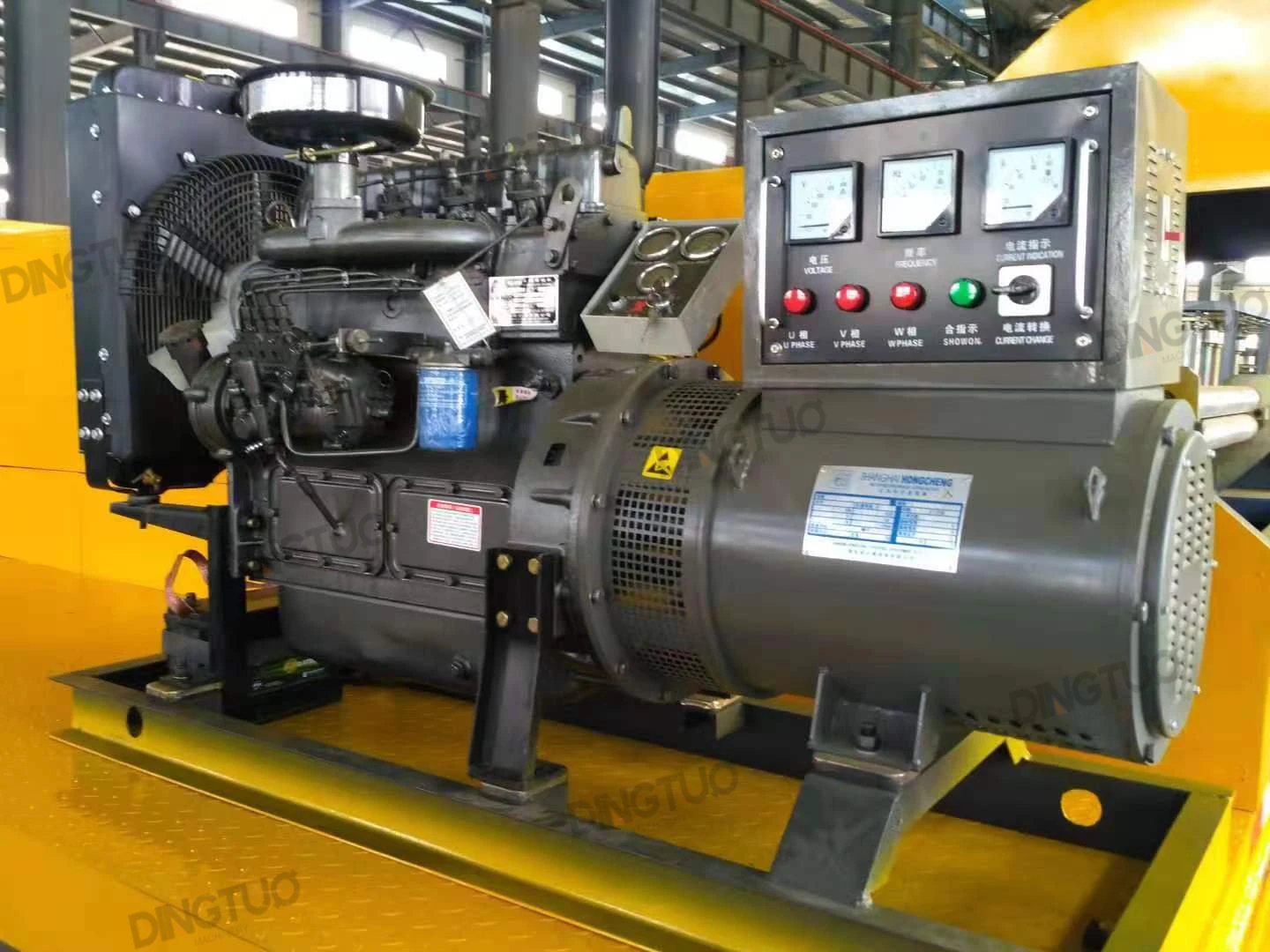

Inside Type Motor And Hydraulic Pump Station
1. main motor power:5.5 kw
2. Hydraulic motor power:4kw
electric control cabinet
The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Lengthmeasurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:220V, 3 Phases 60Hz （ voltage can becustomized as your needed)

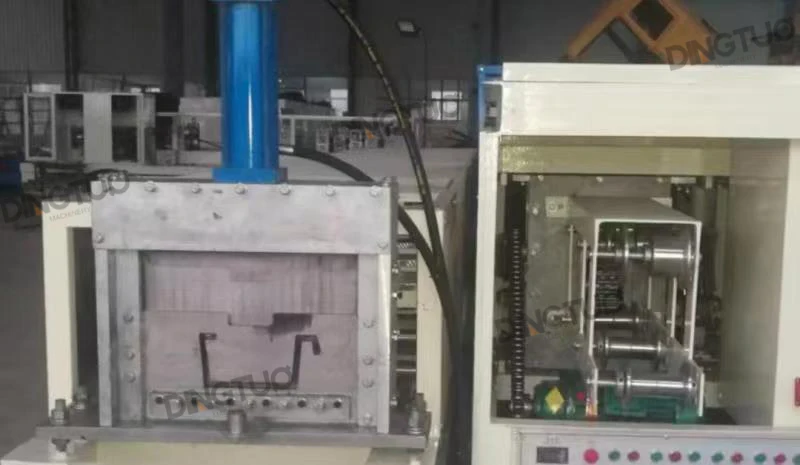

Automatic Hydraulic Cutter
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. 2.Power supply: 4kw hydraulic pump station 3.Frame: 350H beam welding 4.Stroke switch: non-contact photoelectric switch 5.Cut : cut the sheet after roll forming to required length 6.Length measuring: automatic length measuring 7. Blade material:Cr12 material with finishing
MACHINE RUN OUT TABLE
RECEIVE MATERIALS
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin Argentina
Project in USA
Project in Dubai
RECOMMENDED PRODUCTS
CE certificate
CE Certificate
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
