G550 full hard galvanized material Metal Corrugated Panel Profile Roof Forming Machine
Corrugated roof forming machines have emerged as game-changers in the roofing industry, offering unparalleled efficiency, precision, and cost-effectiveness. ..
TEL : +86 13231741939
DETAILS
Product Overview

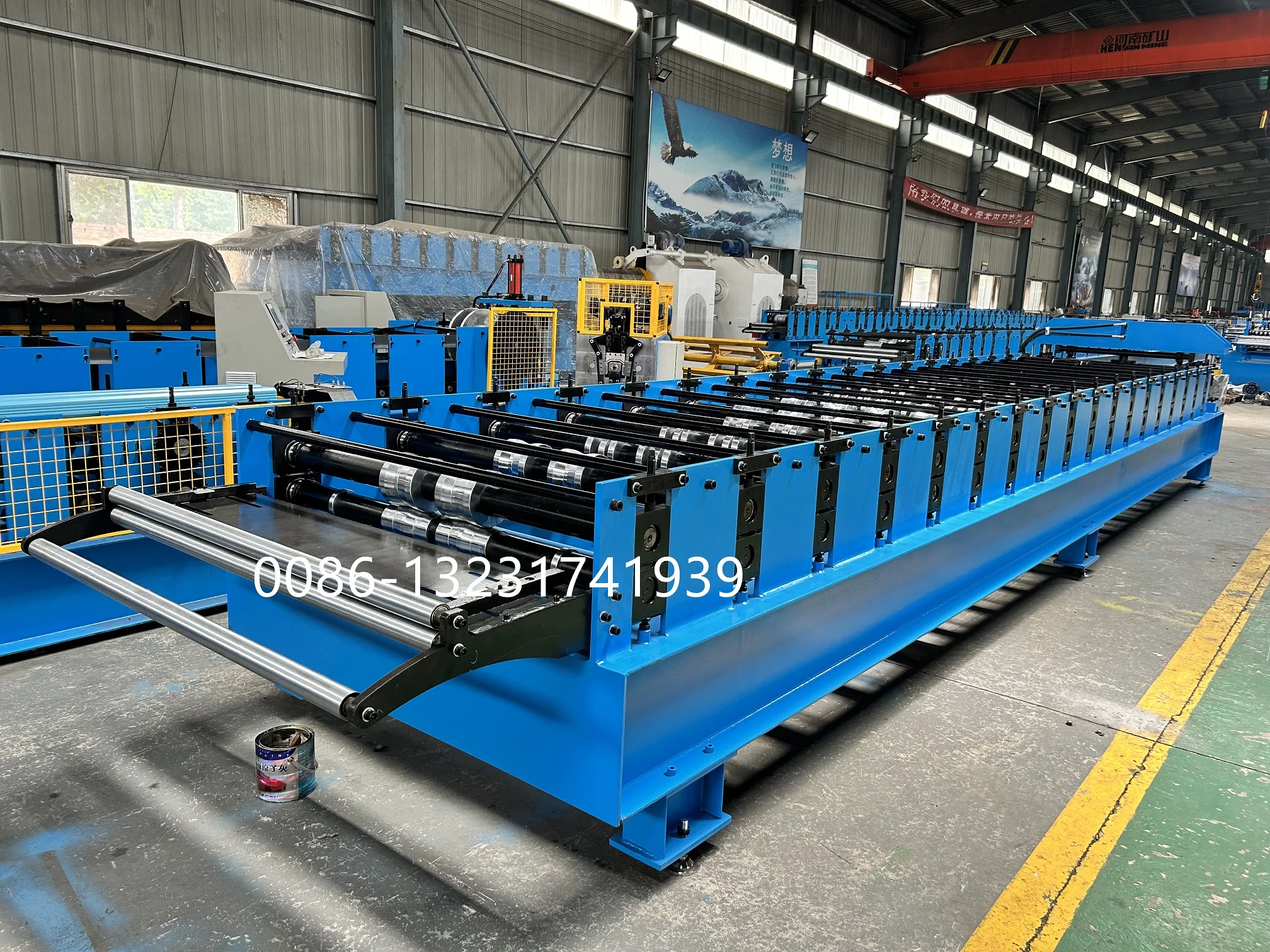

CUSTOMIZED CORRUGATED ROOFING SHEET ROLL FORMING MACHINE
Corrugated roof forming machines have emerged as game-changers in the roofing industry, offering unparalleled efficiency, precision, and cost-effectiveness. These advanced machines have transformed the way corrugated roofs are manufactured, making the process faster, more streamlined, and highly customizable. In this article, we will delve into the intricacies of corrugated roof forming machines, exploring their key features, benefits, and their significant impact on the roofing sector.
Corrugated roof forming machines employ cutting-edge technology and innovative designs to produce high-quality corrugated roofing sheets. Equipped with precision rollers, computerized controls, and automated systems, these machines ensure consistent shaping, precise measurements, and efficient production. The use of CAD/CAM software enables customization of corrugation patterns, allowing for a wide range of roofing designs to meet customer requirements.
One of the most significant advantages of corrugated roof forming machines is their ability to achieve high-speed production. These machines can rapidly process metal coils, forming corrugated roofing sheets with remarkable speed and accuracy. The automated feeding, cutting, and stacking systems minimize manual intervention, thereby reducing labor costs and increasing overall productivity. With their impressive production capacity, these machines cater to the growing demand for corrugated roofs in the construction industry.
Corrugated roof-forming machines offer immense versatility in terms of sheet dimensions, material types, and corrugation profiles. Whether it's galvanized steel, aluminum, or stainless steel, these machines can handle a wide range of materials, adapting to diverse roofing requirements. Moreover, they enable the customization of corrugation patterns, allowing for unique designs and aesthetics. This flexibility ensures that the roofing industry can meet the varied needs of architects, contractors, and homeowners alike.
By utilizing state-of-the-art technology, corrugated roof-forming machines ensure exceptional quality and durability of the produced roofing sheets. The precise shaping, uniform corrugation, and controlled tensioning during the manufacturing process result in strong, weather-resistant, and long-lasting roofs. These machines minimize the risk of human error, ensuring consistent quality across every sheet produced.
Investing in a corrugated roof-forming machine proves to be highly cost-effective in the long run. The automation and efficiency of these machines significantly reduce labor costs and material wastage, optimizing resource utilization. Moreover, their high-speed production capabilities enable manufacturers to meet deadlines and fulfill larger orders, ultimately maximizing return on investment (ROI) for roofing companies.
Corrugated roof-forming machines have revolutionized the roofing industry by offering advanced technology, high-speed production, versatility, and enhanced quality. Their ability to meet customization requirements, coupled with cost-effectiveness, makes them an indispensable asset for roofing manufacturers. As the construction industry continues to grow, these machines will play a pivotal role in meeting the rising demand for durable, aesthetically pleasing, and reliable corrugated roofs.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
PRODUCT CONFIGURATION
Decoiler
1Feeding width 0-1000mm
2 Inner diameter of steel coil 470-530mm, ±20mm
3 Bearing weight within 5 tons
4 Palm 3
5 Working Type Hydraulic tension coils ,active feeding
6 Hydraulic pump station motor power 3kw,380V, HUADE Brand
7 Base Frame material 300H beam welded
8 Box material 16mm steel plated welded
9 Supporting spindle made of thick-walled seamless steel pipe, diameter is 194*45mm
10 Hydraulic cylinder The coiling cylinder has a steel diameter of 125mm, one with rotating
11 Machine size 2.5m*1.6m*1.75m
12 Machine Weight 2.4 tons
COIL CAR PARAMETERS
1 Car Lifting Double oil cylinder, cylinder diameter 90mm, travel 240mmm
2 Car Moves Forward Model 450, hydraulic motor
3 Car Feeding Panel length: 1.25m, panel width: 1.1 m
4 Car Track L2.5m*W1.05m
5 Car Travel Height travel: 400mm, length stroke: 2.5 m
Car Weight 0.9 tons
Feeding platform
guide materials into the machine smoothly
forming part
1.Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome
2.Shaft: 45# high grade steel by CNC machine tools
3. spacers with nickle plated
Machine Side Panels
16mm thick / 350 H beam weldedbase frame
Machine spacers
spacers with nickle plated which can increase the machine wear-resistance
Inside Type Motor And Hydraulic Pump Station
1. main motor power:5.5 kw
2. Hydraulic motor power:4kw
electric control cabinet
The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Lengthmeasurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:220V, 3 Phases 60Hz （ voltage can becustomized as your needed)
Automatic Hydraulic Cutter
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. 2.Power supply: 4kw hydraulic pump station 3.Frame: 350H beam welding 4.Stroke switch: non-contact photoelectric switch 5.Cut : cut the sheet after roll forming to required length 6.Length measuring: automatic length measuring 7. Blade material:Cr12 material with finishing
MACHINE RUN OUT TABLE
RECEIVE MATERIALS
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin Argentina
Project in USA
Project in Dubai
RECOMMENDED PRODUCTS
CE certificate
CE Certificate
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
