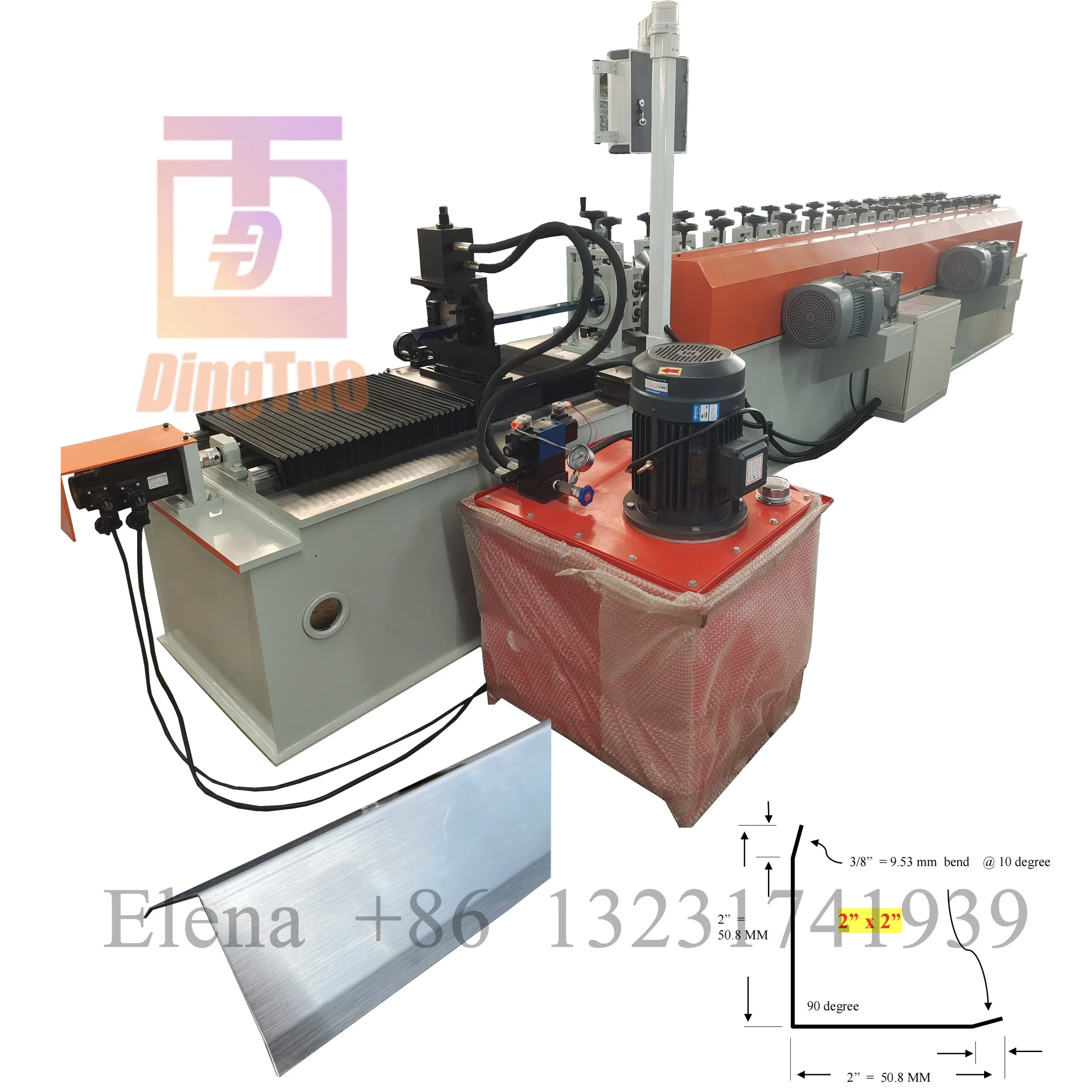

roll forming machine for making 304/316 Stainless Steel Corner Protection Profiles For Wall Corner Protection
The price is decided to your profile width sizes ,height sizes and thickness. ..
TEL : +86 13231741939
DETAILS
1.The price is decided to your profile width sizes ,height sizes and thickness. Maximum 2 '' sizes and maximum thickness 18 gauge , decided the machine needs to use bigger shafts, bigger motors, grade configuration. And the speed can do within 30m/min included the punching. 2.Firstly, the production line includes : 2.1:one passive Decoilers (pay attention,free to send you) 2.2: Roll Forming Machine(pay attention, this is the host roll forming machine ) 2.3: one run-out tables (pay attention,free to send you ) 3.Machine base frame material: Whole steel plate welded about the surface which will be made by CNC machine and surface will have good flatness and looks bright and beautiful.(pay attention: the machine base frame was not welded by square tubes) 4.Machine forming Station: 16 stations according to your profiles. (pay attention: this is the best suitable forming stations, neither more nor less about the forming stations) 5.Rollers material:Cr12 material with turning+quenching(hardness 58-62degrees)+grinding+fine turning treatment which has good quality and this type of processing can guarantee the rollers' hardness meet international standard HRC 58-62 degrees and has good were resistance.(pay attention: the roller material neither made of 45# steels nor bearing steels) 6.Machine stands: Wrought iron welding, 30mm thick which can have good stable , high procession and will not be deformed when machine running.(pay attention: the thickness was 30mm, not 20mm ) 7.Shaft diameter: 50mm diameter solid shafts (pay attention: the shafts are solid and the shaft diameter is 50mm, not 38mm or 40mm) 8.power: main motor power: 11kw hydraulic cutting motor power: 5.5kw none-stop servo tracking motor power:1.5kw (pay attention: We can guarantee your machine has enough power to make the machine running stable . ) 9.Transmission way : Gears which has the best stable performance. (pay attention: the machine is not chain transmission 10.Machine uncoiler type :free to send you . 11.Machine run out table : free to send you . 12.Voltage: 220V,60HZ,3 phases.(pay attention : Because your voltage is 220V which means the all motors of the machine need to be customized according to your voltage.So that this part will add some motor customized costs) 13.Machine Speed: the maximum machine speed included that punching can reach 30m/min.
Product Overview

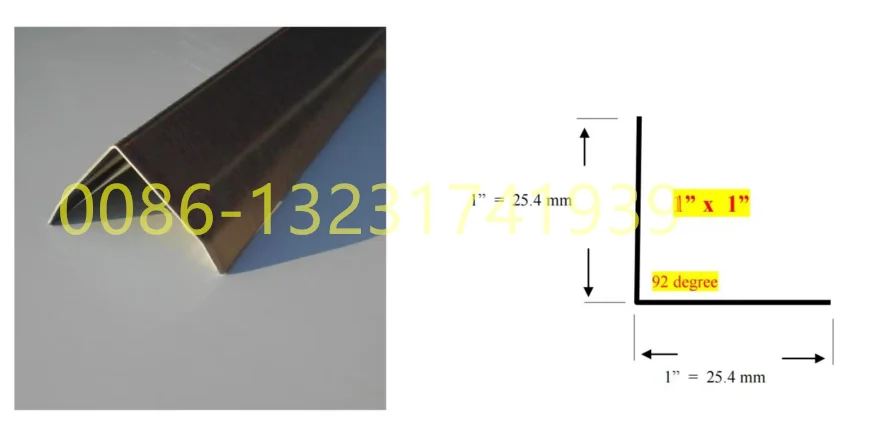

STAINLESS STEEL CORNER GUARDPROFILES APPLICATION

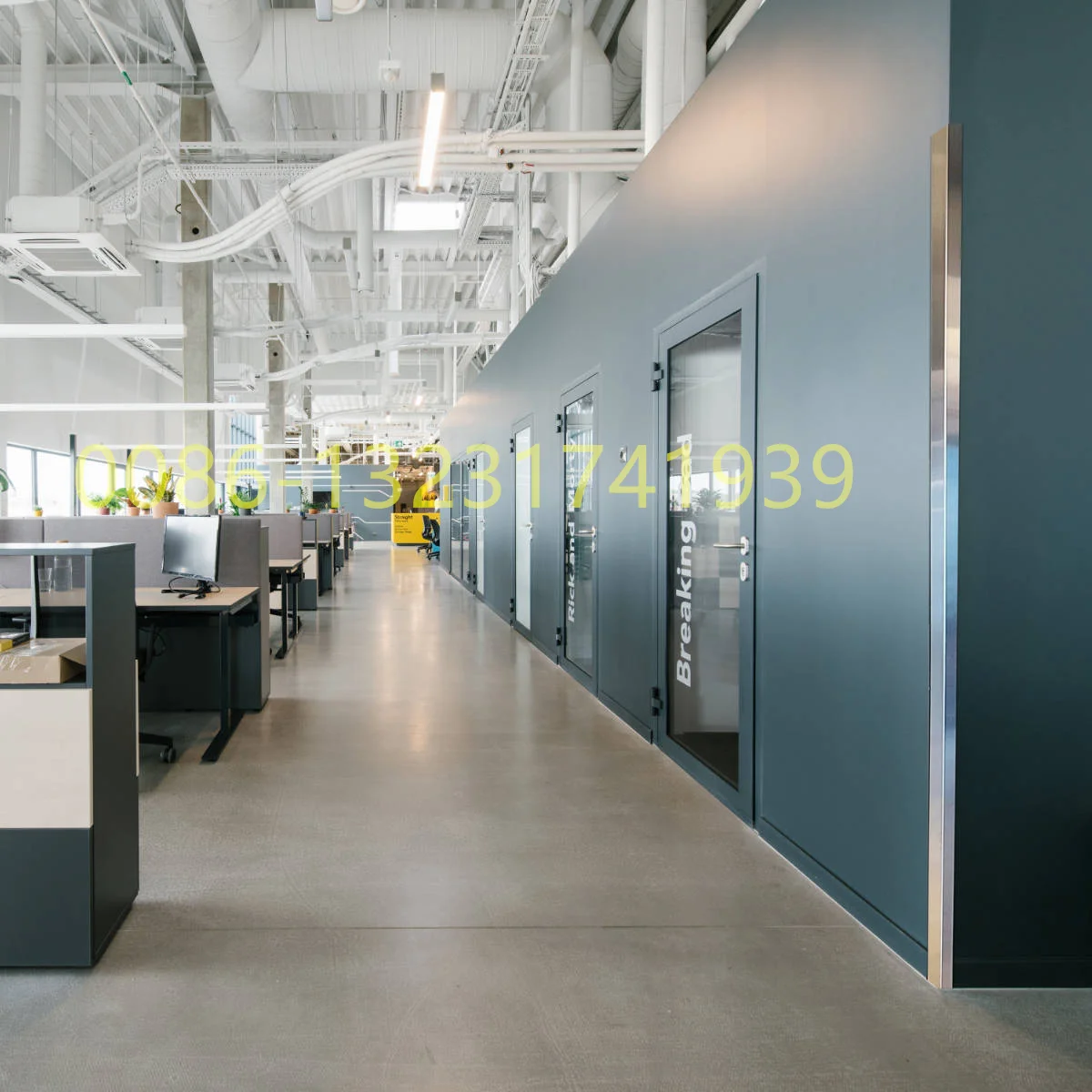

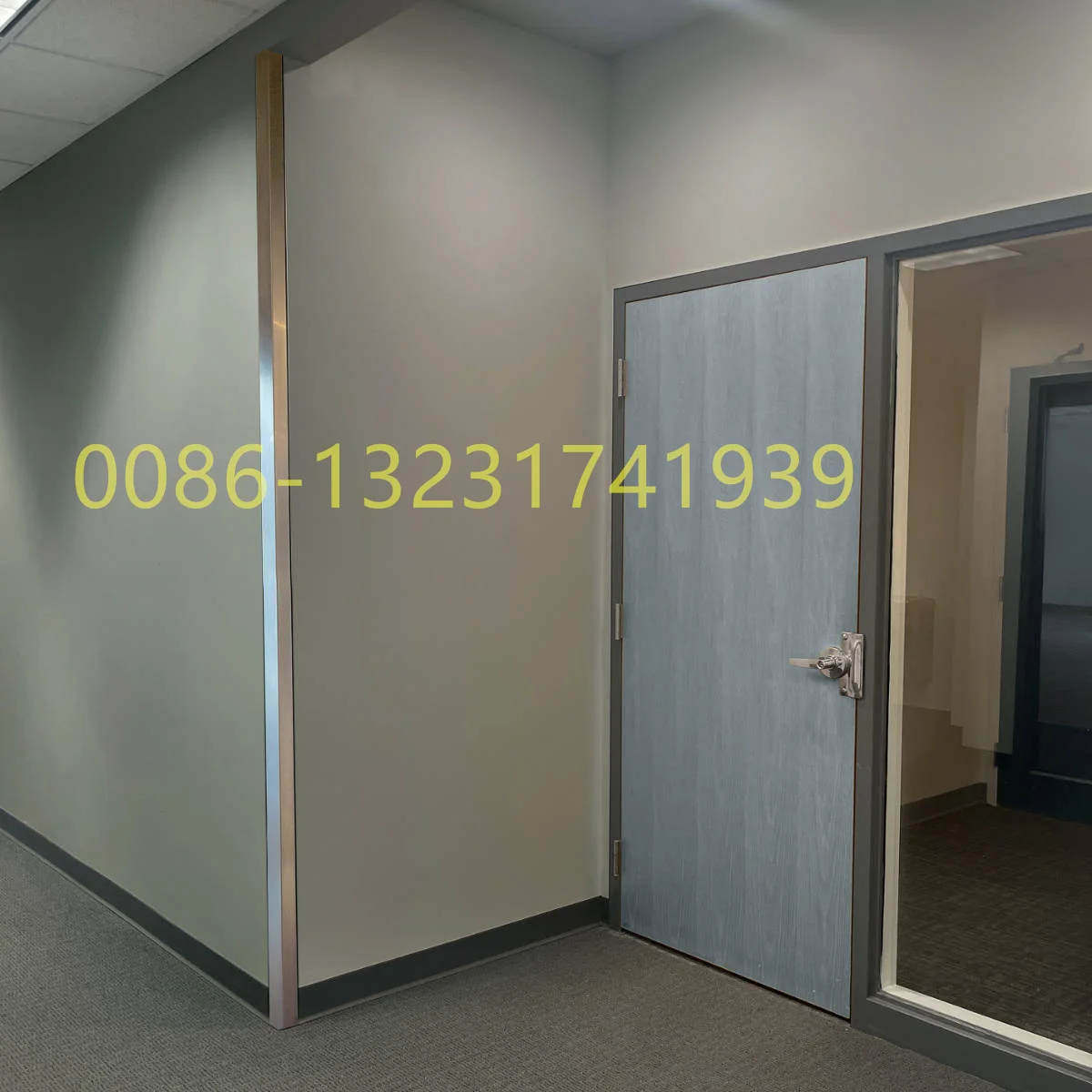

WALL PROTECTION COVER

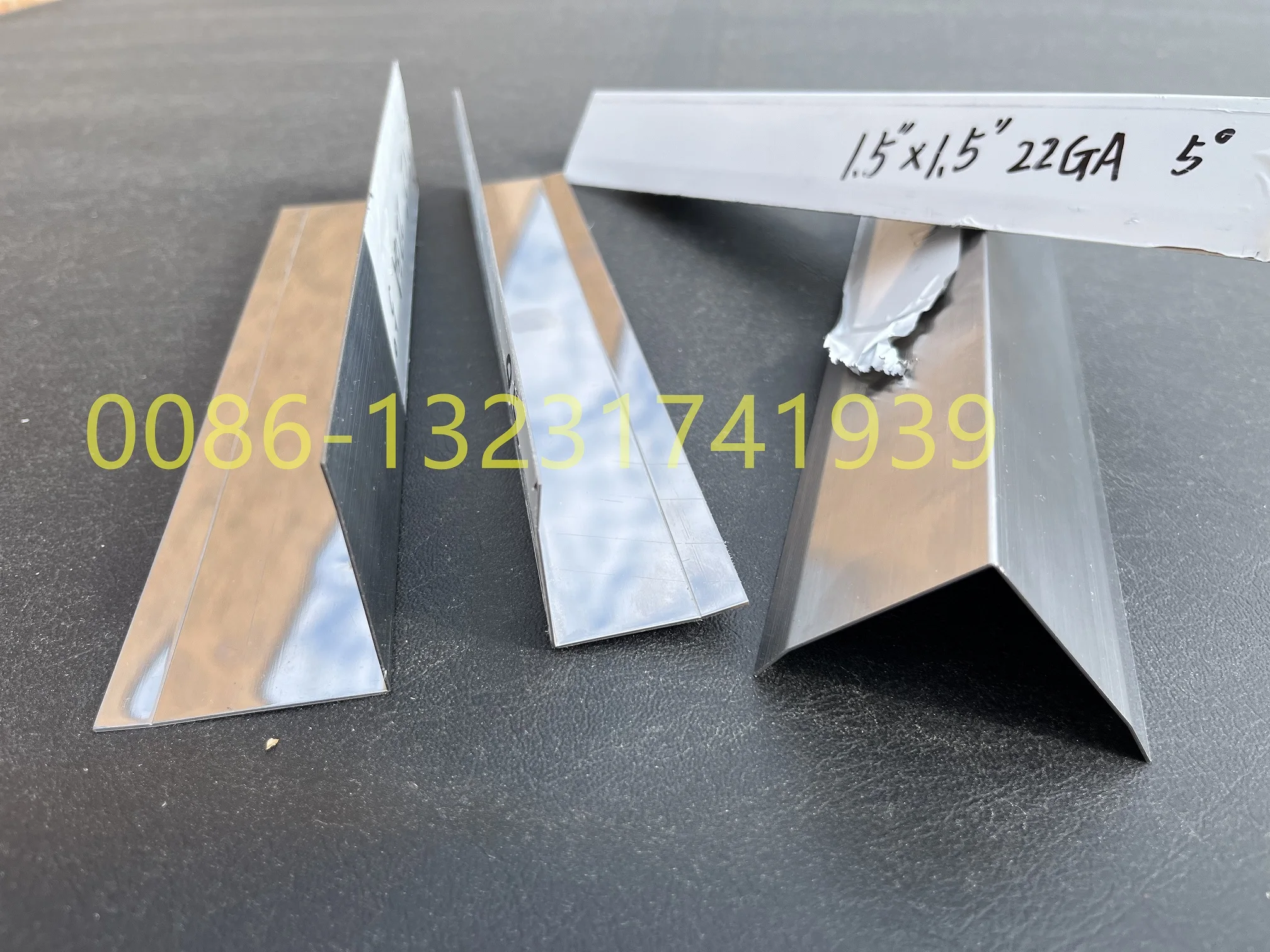

CORNER GUARD
MULTI-SIZE 1'' 1.5'' 2''
OUR DRYWALL STUD MACHINE PRICE EXPLANATION
1.The price is decided to your profile width sizes ,height sizes and thickness. Maximum 2 '' sizes and maximum thickness 18 gauge , decided the machine needs to use bigger shafts, bigger motors, grade configuration. And the speed can do within 30m/min included the punching. 2.Firstly, the production line includes : 2.1:one passive Decoilers (pay attention,free to send you) 2.2: Roll Forming Machine(pay attention, this is the host roll forming machine ) 2.3: one run-out tables (pay attention,free to send you ) 3.Machine base frame material: Whole steel plate welded about the surface which will be made by CNC machine and surface will have good flatness and looks bright and beautiful.(pay attention: the machine base frame was not welded by square tubes) 4.Machine forming Station: 16 stations according to your profiles. (pay attention: this is the best suitable forming stations, neither more nor less about the forming stations) 5.Rollers material:Cr12 material with turning+quenching(hardness 58-62degrees)+grinding+fine turning treatment which has good quality and this type of processing can guarantee the rollers' hardness meet international standard HRC 58-62 degrees and has good were resistance.(pay attention: the roller material neither made of 45# steels nor bearing steels) 6.Machine stands: Wrought iron welding, 30mm thick which can have good stable , high procession and will not be deformed when machine running.(pay attention: the thickness was 30mm, not 20mm ) 7.Shaft diameter: 50mm diameter solid shafts (pay attention: the shafts are solid and the shaft diameter is 50mm, not 38mm or 40mm) 8.power: main motor power: 11kw hydraulic cutting motor power: 5.5kw none-stop servo tracking motor power:1.5kw (pay attention: We can guarantee your machine has enough power to make the machine running stable . ) 9.Transmission way : Gears which has the best stable performance. (pay attention: the machine is not chain transmission 10.Machine uncoiler type :free to send you . 11.Machine run out table : free to send you . 12.Voltage: 220V,60HZ,3 phases.(pay attention : Because your voltage is 220V which means the all motors of the machine need to be customized according to your voltage.So that this part will add some motor customized costs) 13.Machine Speed: the maximum machine speed included that punching can reach 30m/min.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
1 3TONS DECOILER 1
PRODUCT CONFIGURATION
3 Tons Decoiler
Features:Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement;
Power: powered;
Power of the open and closure of segments: manual way;
Power of rotation of segment: manual;
Number of segment: 4;
Range of segment expansion:480 ~ 520mm;
Height of center of the mandrel: 0.65m;
Approximate Size: 1.5 m * 1.1m *1.2 m;
Speed control: By mechanical brake;
Methods of operation: mechanical;
Bearing Weight: 3Tons
Feeding platform
1.Features: Ensure smooth & feed material.
2.Components: steel plate platform, two pitching rollers, position stopping block.
3. The coil is guided in the correct position and passed to the roll forming equipment.
forming part
1.Rollers: design by senior engineers with Auto-cad software, manufactured with Cr12 steel by CNC machine tools and coated with hard chrome
2.Shaft:50 mm solid shafts
5.Machine Transmission:Gears transmission
6. Cutter : Cr12 with turning+quenching(hardness 58-62degrees)+grinding+fine turning treatment
7. Pump Station:5.5 kw
8. Servo tracking motor : 1.5kw
9. Machine main power:11kw
Machine Side Panels
1. Base frame: whole iron plates welded which can ensure the whole machine supporting strength.
2. Machine stands : 30mm thick
machine stands
machine stands
Transmission
Gears which has the best stable performance.
double K Serious motors
K serious motor and gears type reducer can keep machine running stable
Enough motor power ensure machine's running stable and long lifetime
Hydraulic Pump Station and servo motor
1. Hydraulic cutting motor power:5.5kw
2. Servo none-stop motor power:1.5kw
Cantilever type electric control cabinet
The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Lengthmeasurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:220V, 3 Phases 50Hz （ voltage can becustomized as your needed)
Automatic Hydraulic Cutter
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. 2.Power supply: 5.5kw hydraulic pump station 3.Frame: whole iron plates welded 4.Stroke switch: non-contact photoelectric switch 5.Cut : cut the sheet after roll forming to required length 6.Length measuring: automatic length measuring 7. Blade material:Cr12 material with finishing
MACHINE RUN OUT TABLE
RECEIVE MATERIALS
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin Argentina
Project in USA
Project in China
RECOMMENDED PRODUCTS
CE certificate
CE Certificate
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
