roof batten ceiling batten Greenhouse frame Omega Steel Profile Roll Forming Machine for Building support and reinforcement
The omega profile steel purlin is made of hot-dip galvanized steel strip coils, which are rolled by the omega purlin roll forming machine. ..
TEL : +86 13231741939
DETAILS
Product Overview

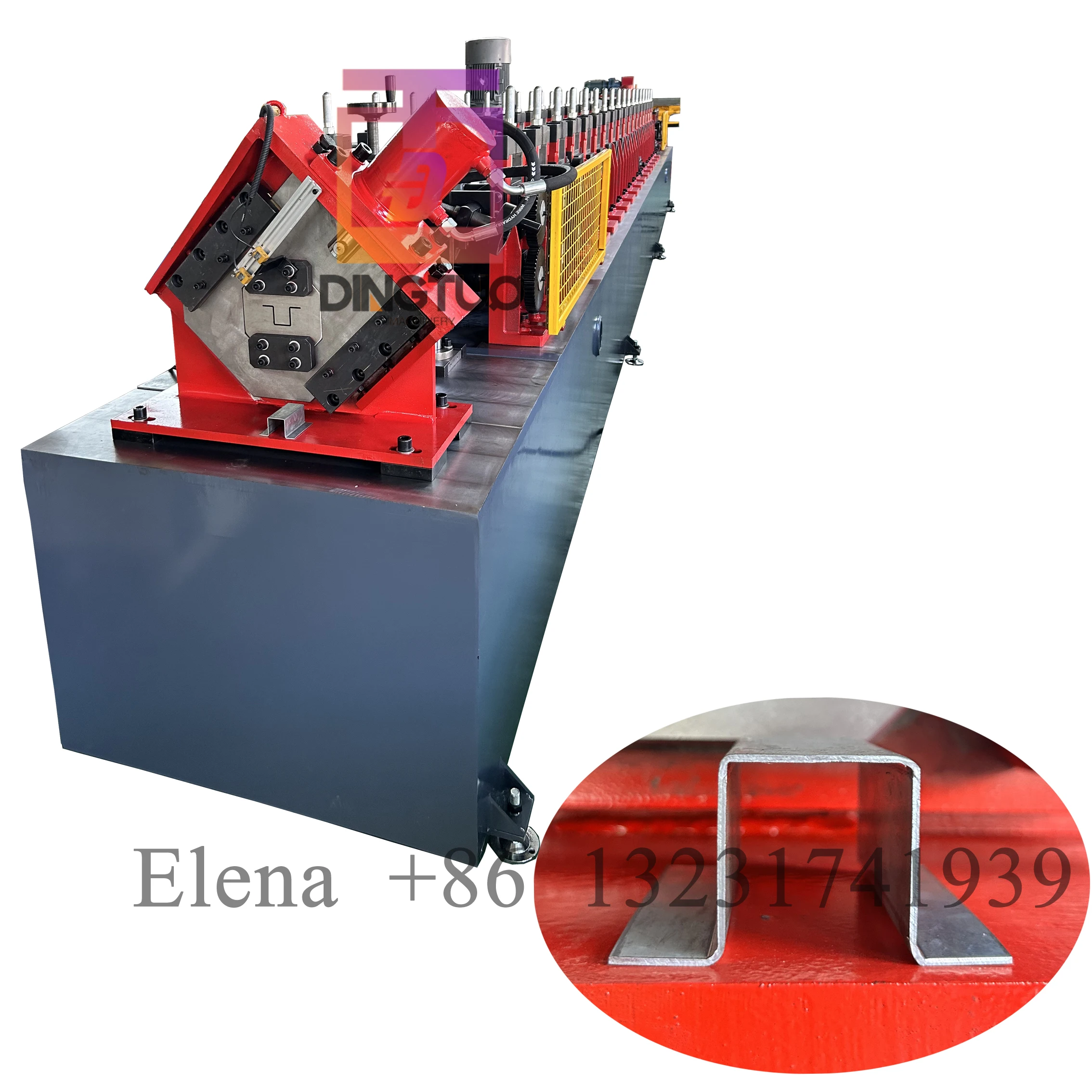

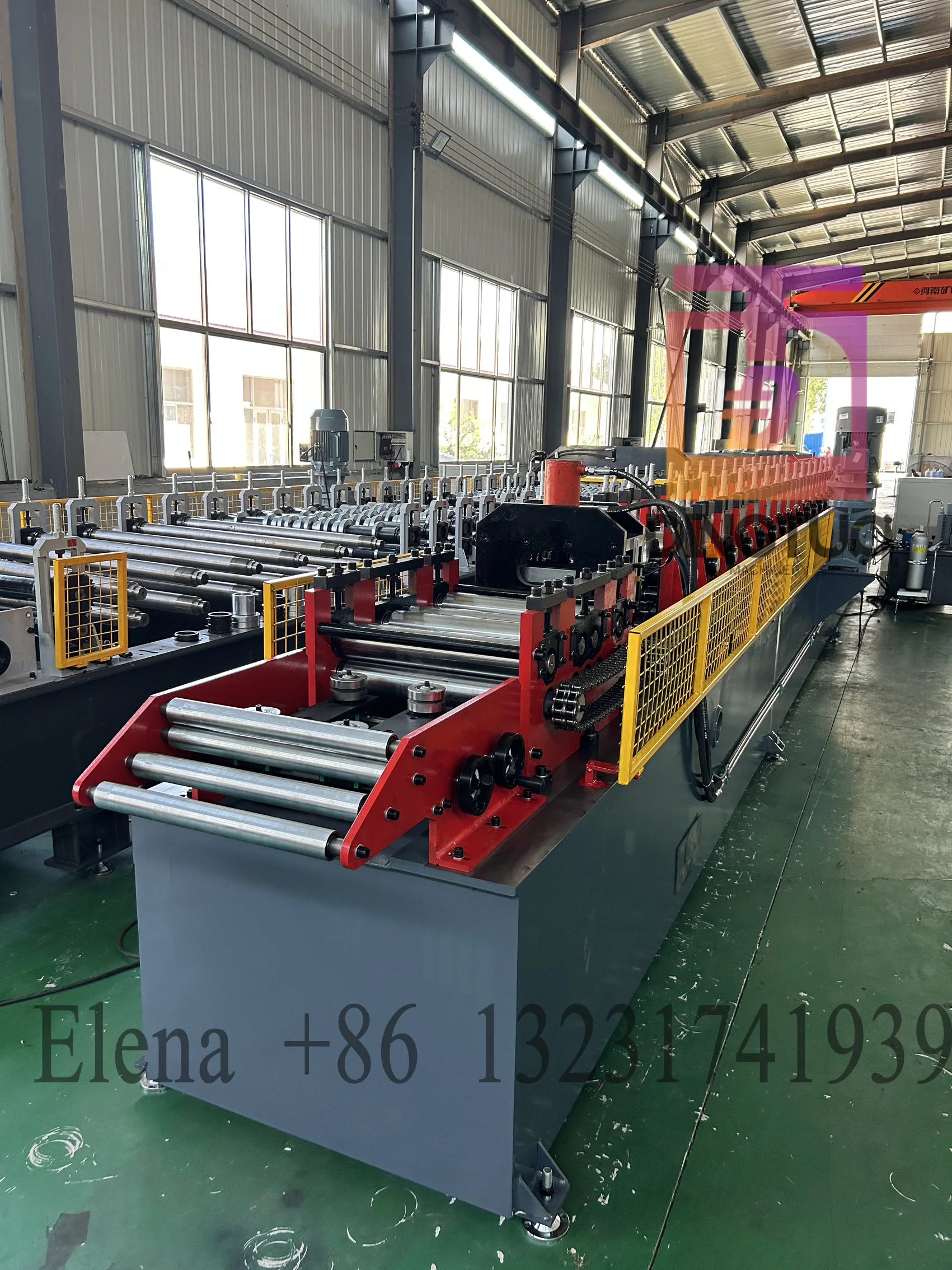

OMEGA PURLIN ROLL FORMING MACHINE
1.The omega keel forming machine is a light steel keel machine used to produce "omega purlin keels".Omega steel purlins are widely used and are mainly used for structural support and reinforcement of buildings. It is usually used to strengthen or improve the load-bearing capacity of buildings to achieve safer and more stable structural requirements. In addition, during the disposal and demolition process of buildings, several-shaped steel purlins are often used for temporary support and reinforcement to avoid the collapse of the building.
The omega profile steel purlin is made of hot-dip galvanized steel strip coils, which are rolled by the omega purlin roll forming machine. The omega steeel purlinthickness generally do 1.5mm, and the main models are 70*40, 50*30, and 38*25. Suitable for solar greenhouse frames, arch shed frames, etc. The omega-shaped steel frame has the characteristics of beautiful appearance, easy installation, no solder joints, corrosion resistance, large structural strength and load-bearing capacity, strong resistance to wind pressure and snow load, etc. It does not require uprights within 10 meters. It has been put into the market for many years and has been favored by the masses. generally recognized.
2. The roll forming machine is equipped with a fully automatic hydraulic decoiler, which automatically unwinds materials. The decoiler automatically matches the forming speed of the several-section steel machine; the several-section steel machine adopts a 110-type cast iron arch and chain drive (gearbox transmission is also optional). Equipped with an online punching device, the machine's rollers are made of Gcr15 bearing steel, and the roller material is wear-resistant and durable; the shearing is oblique shearing, so no waste is produced; the machine's electronic control configuration adopts Siemens configuration (other brand configurations are also optional) .
3. The omega roll forming machine can be customized according to customer needs. Welcome to provide layout drawings and machine configuration requirements to facilitate a more accurate quotation.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
PRODUCT CONFIGURATION

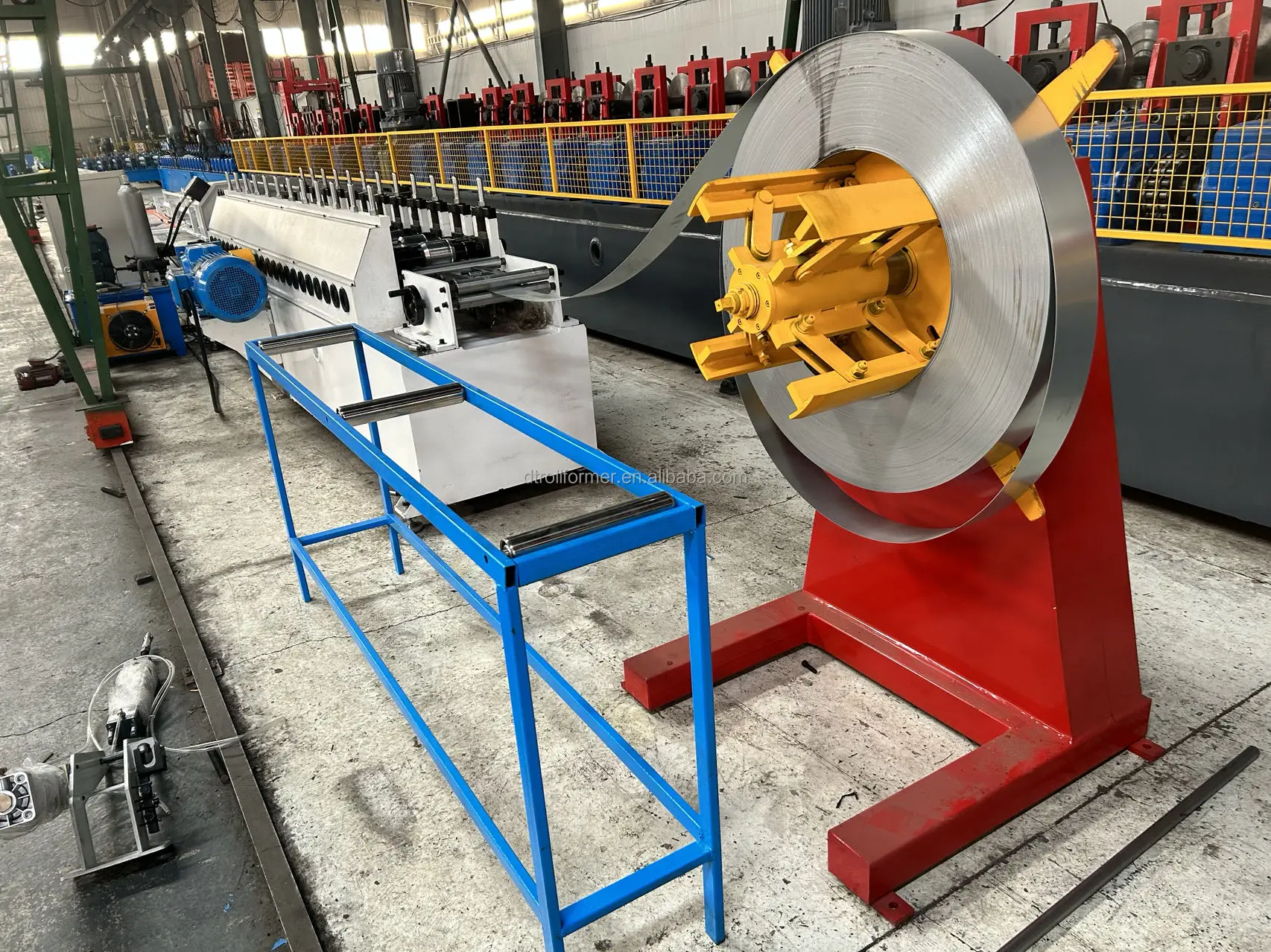

3 Tons Decoiler
Features:Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement;
Power: powered;
Power of the open and closure of segments: manual way;
Power of rotation of segment: manual;
Number of segment: 4;
Range of segment expansion:480 ~ 520mm;
Height of center of the mandrel: 0.65m;
Approximate Size: 1.5 m * 1.1m *1.2 m;
Speed control: By mechanical brake;
Methods of operation: mechanical;
Bearing Weight: 3Tons
Feeding platform
1.Features: Ensure smooth & feed material.
2.Components: steel plate platform, two pitching rollers, position stopping block.
3. The coil is guided in the correct position and passed to the roll forming equipment.
forming part

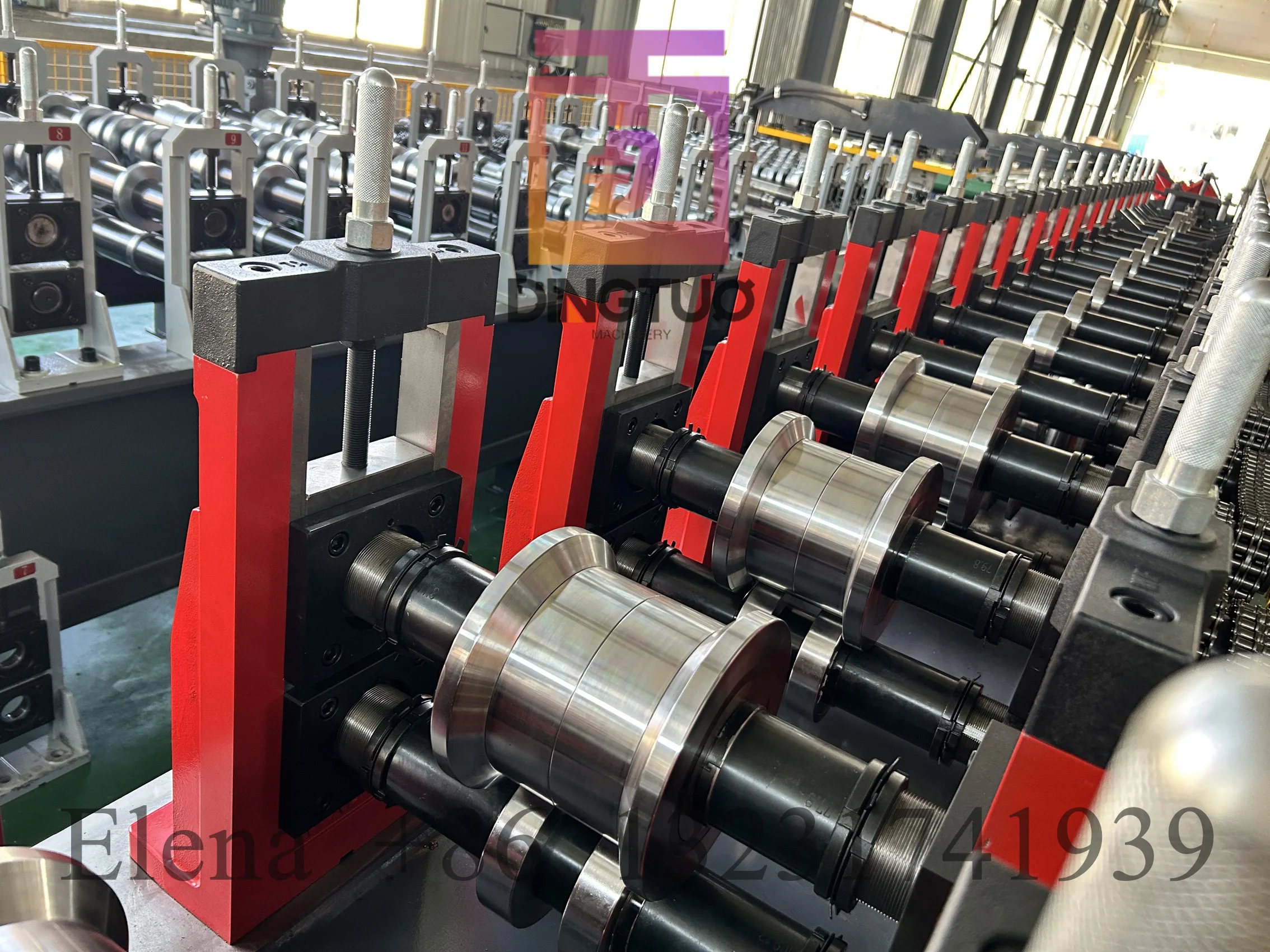

1.Rollers: design by senior engineers with Auto-cad software, manufactured with Cr12 steel by CNC machine tools and coated with hard chrome
2.Shaft:65 mm solid shafts
5.Machine Transmission:Gears transmission
6. Cutter : Cr12 with turning+quenching(hardness 58-62degrees)+grinding+fine turning treatment
7. Pump Station: 7.5 kw
8. Machine main power:15kw

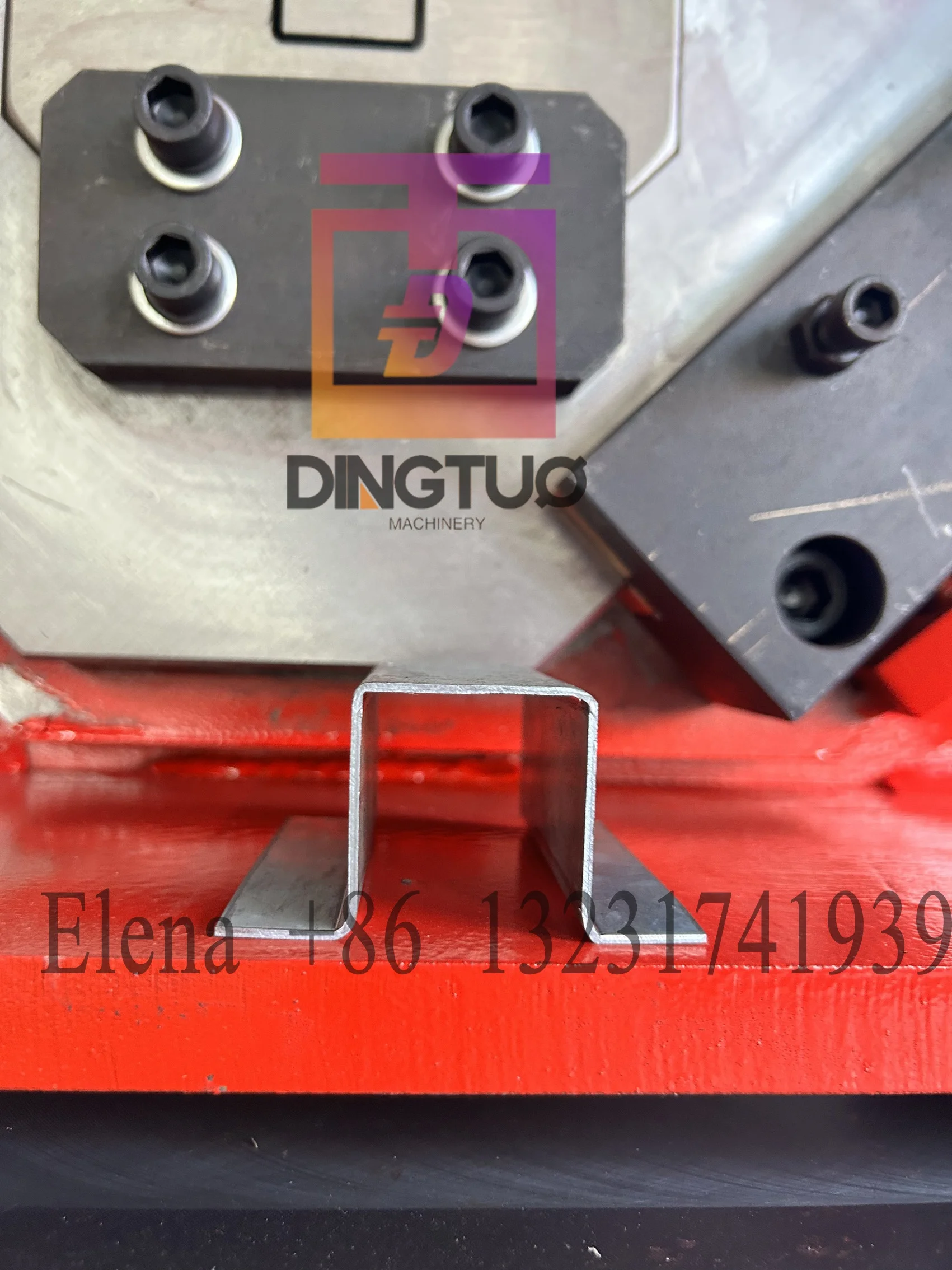

Punching part
punching shape can be customized as clients needed
Machine Side Panels
1. Base frame: whole iron plates welded which can ensure the whole machine supporting strength.
2. Machine stands : 110 model cast iron machine stands
Transmission

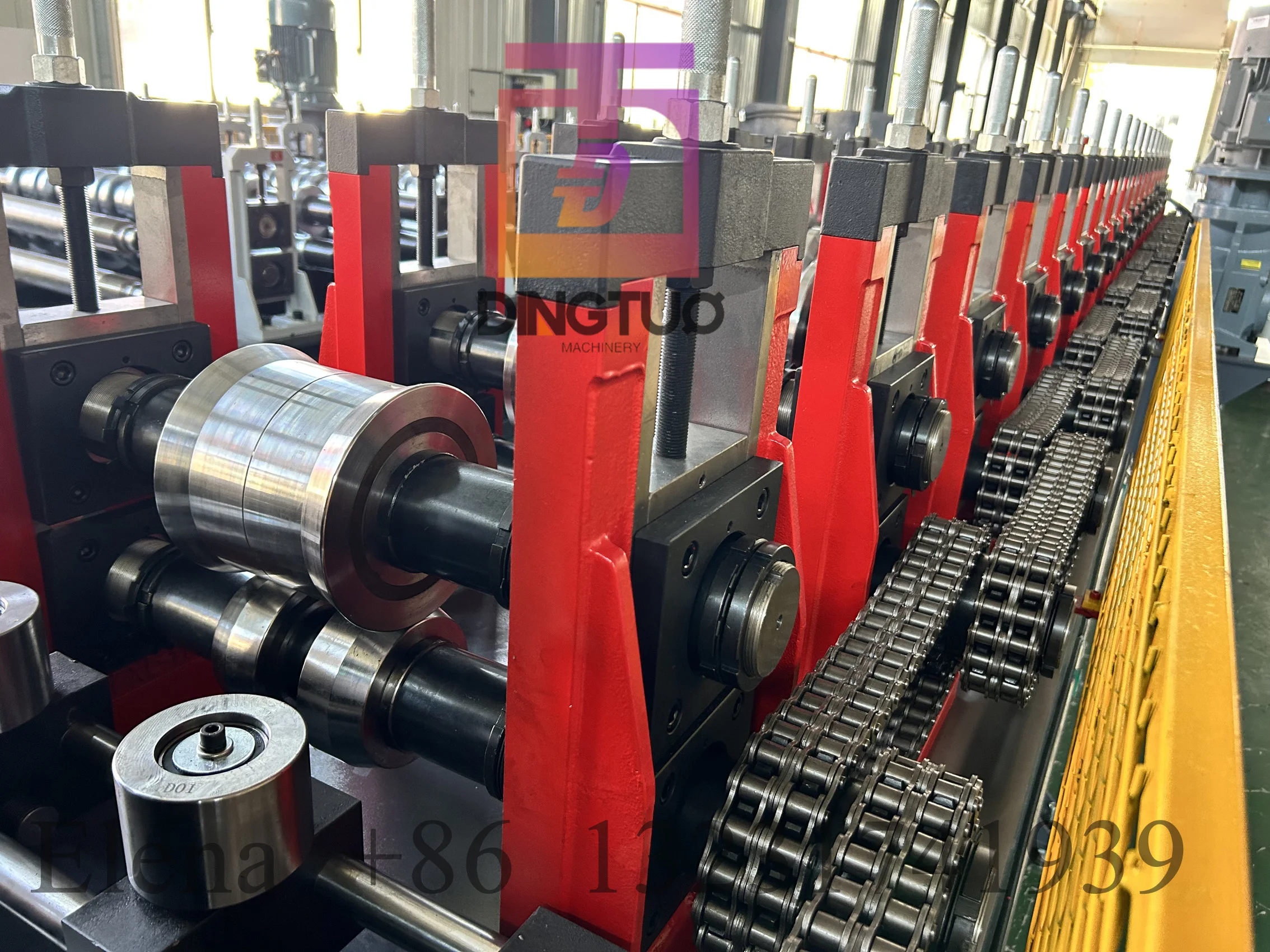

double row chains
K Serious motors
K serious motor and gears type reducer can keep machine running stable
Enough motor power ensure machine's running stable and long lifetime

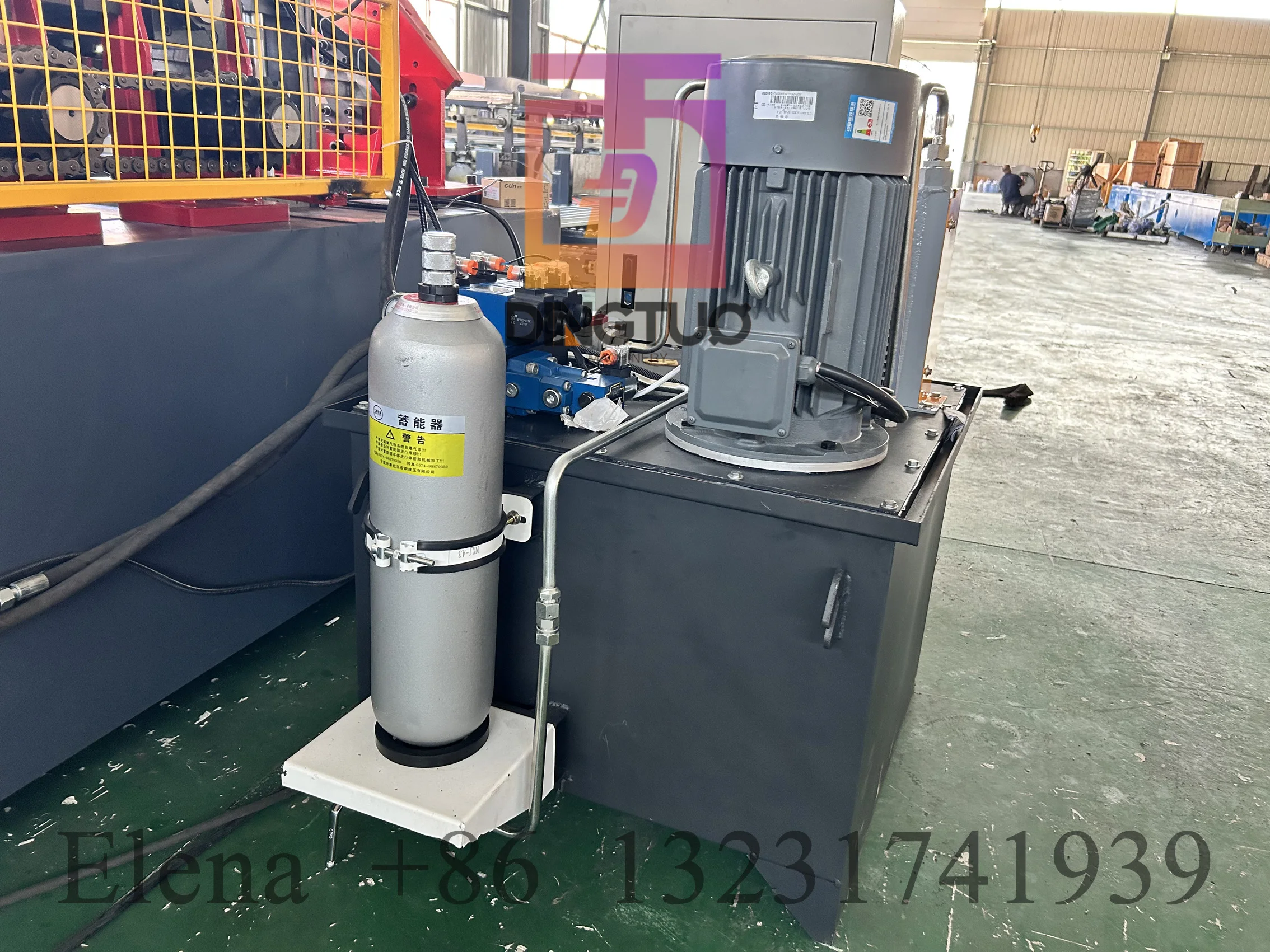

Hydraulic Pump Station with cooling fan and accumulator
1. Hydraulic pump station motor power : 7.5 kw
Electric control cabinet
SIEMENS BRANDS1.Control the cutting length automatically
2.Automatic Lengthmeasurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:380V, 3 Phases 50Hz （ voltage can becustomized as your needed)

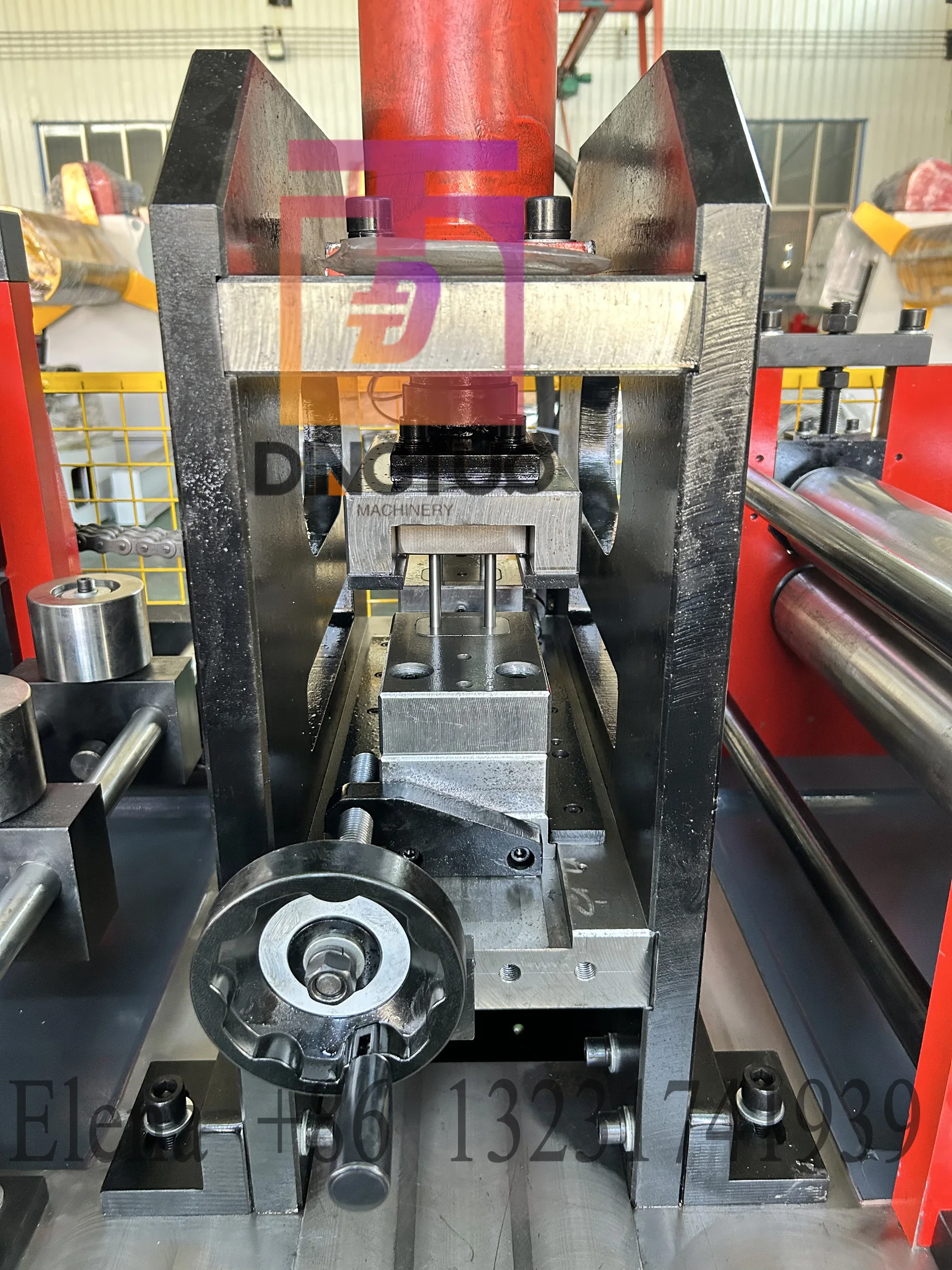

Automatic Hydraulic Cutter
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. 2. Bevel cut, no waste 3.Stroke switch: non-contact photoelectric switch 4.Cut : cut the sheet after roll forming to required length 5.Length measuring: automatic length measuring 6. Blade material:Cr12mov material with finishing
MACHINE RUN OUT TABLE
RECEIVE MATERIALS
Product packaging
