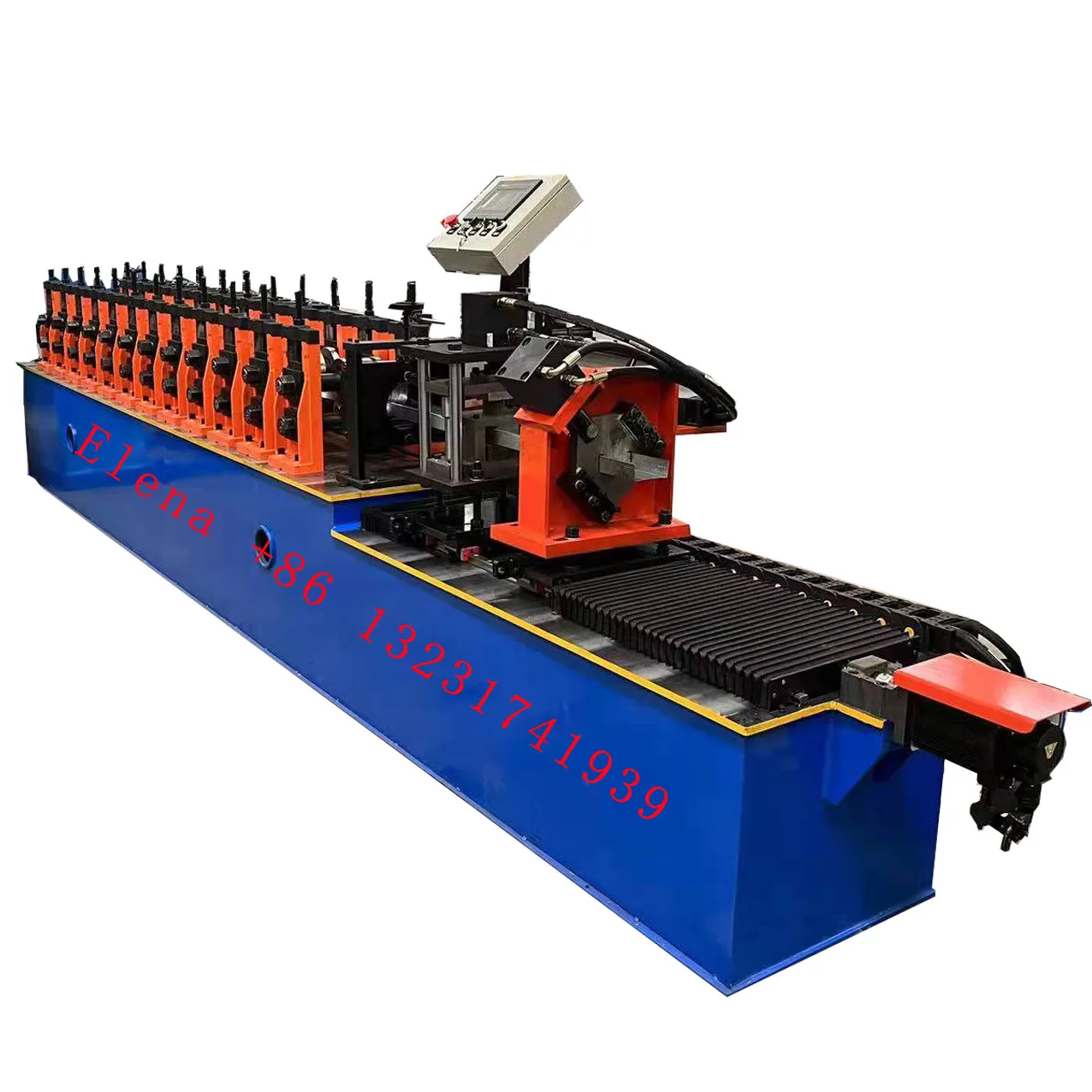

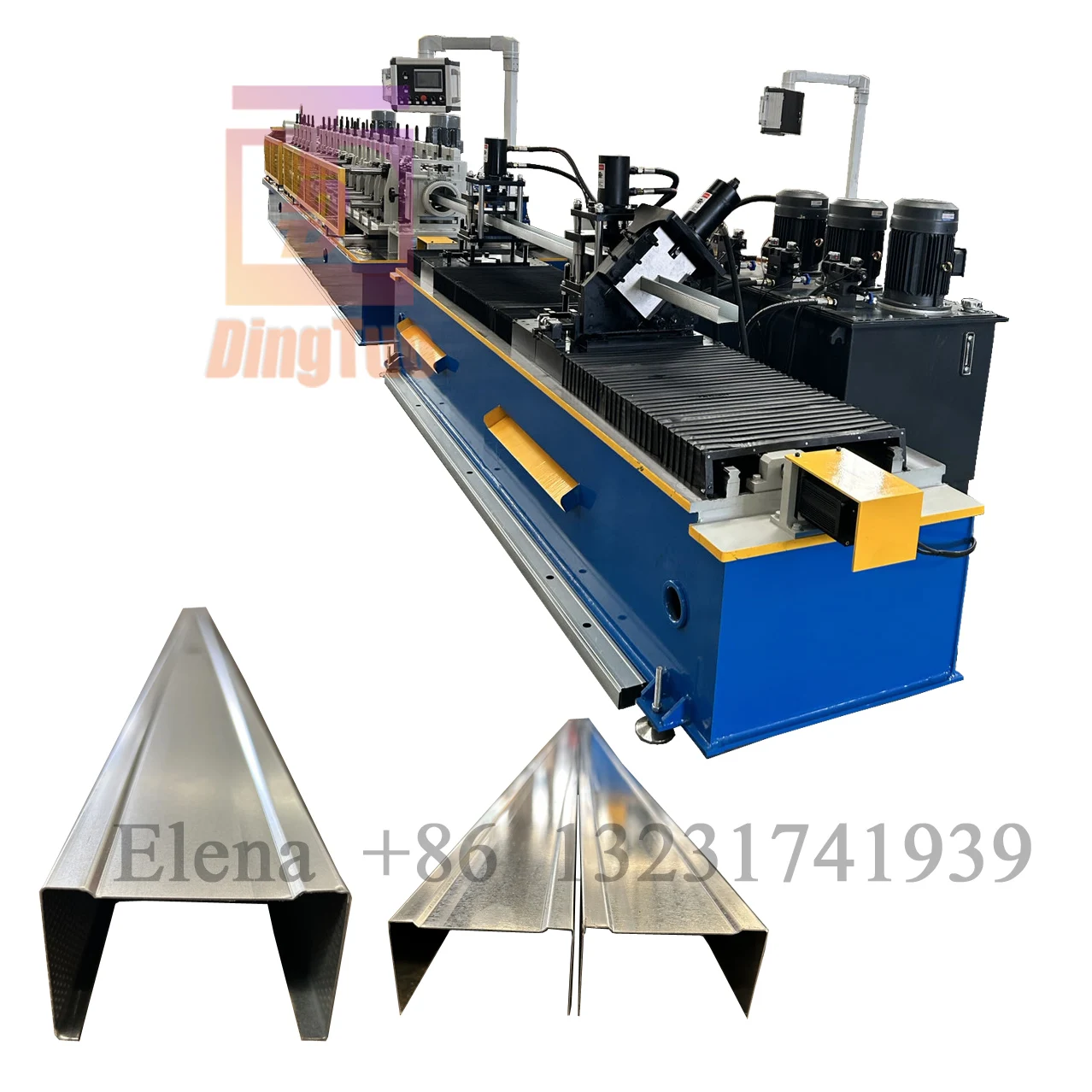

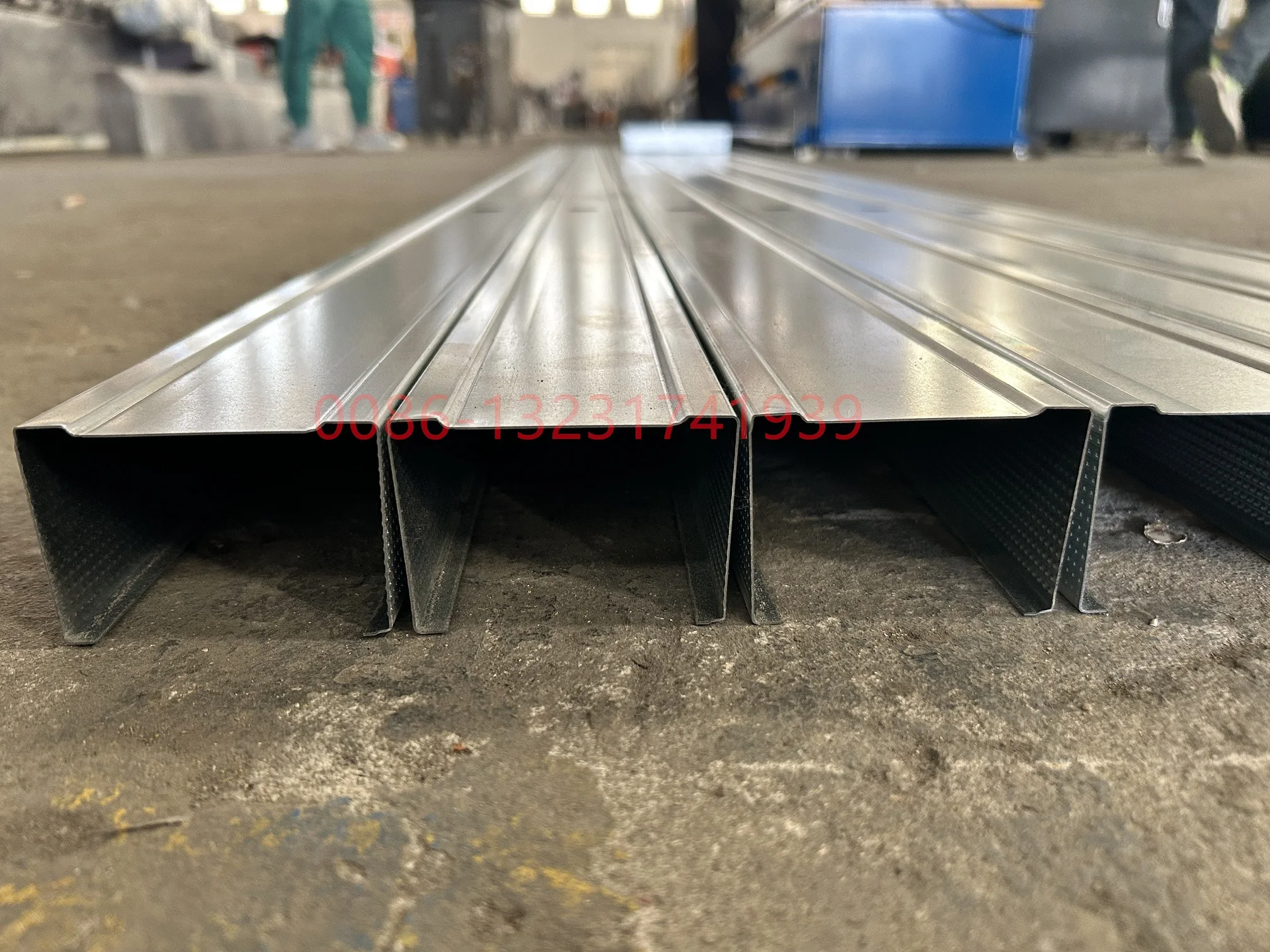

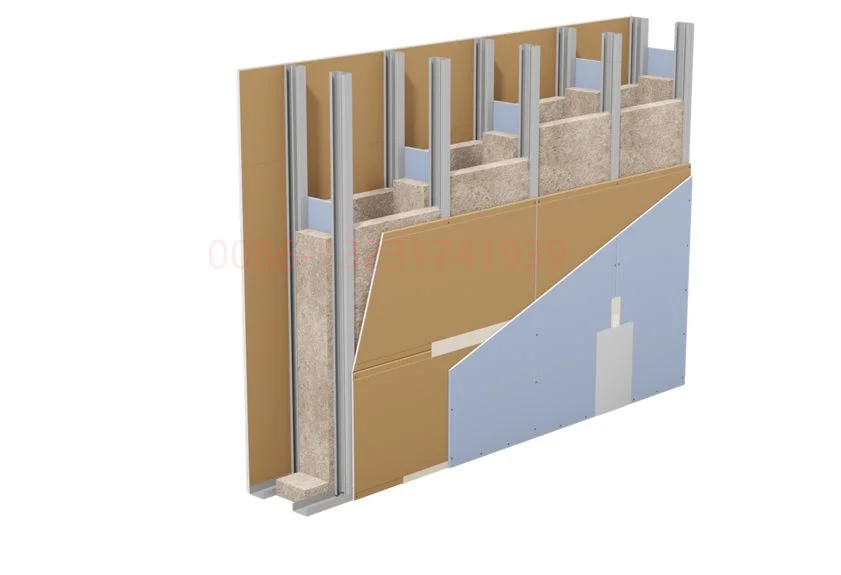

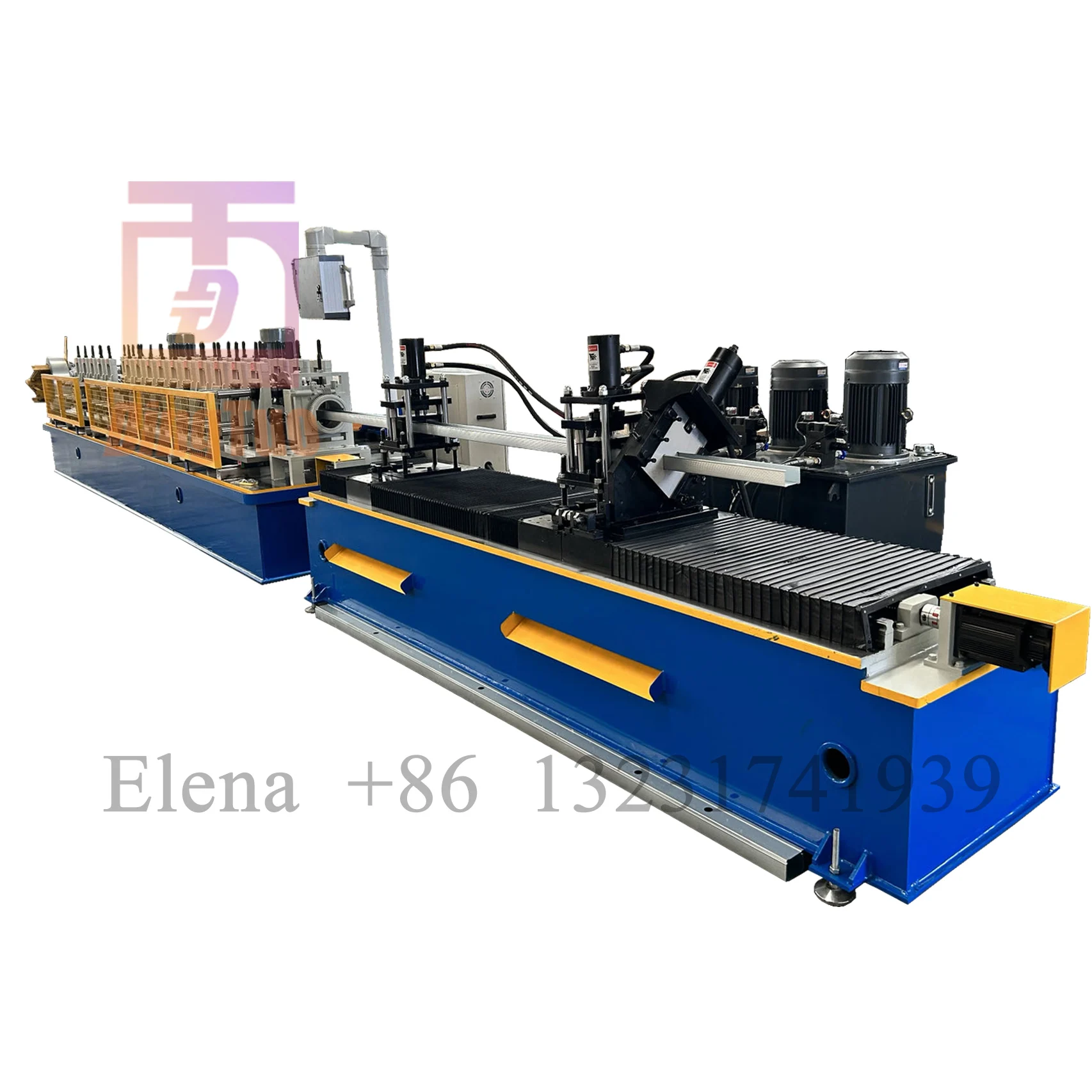

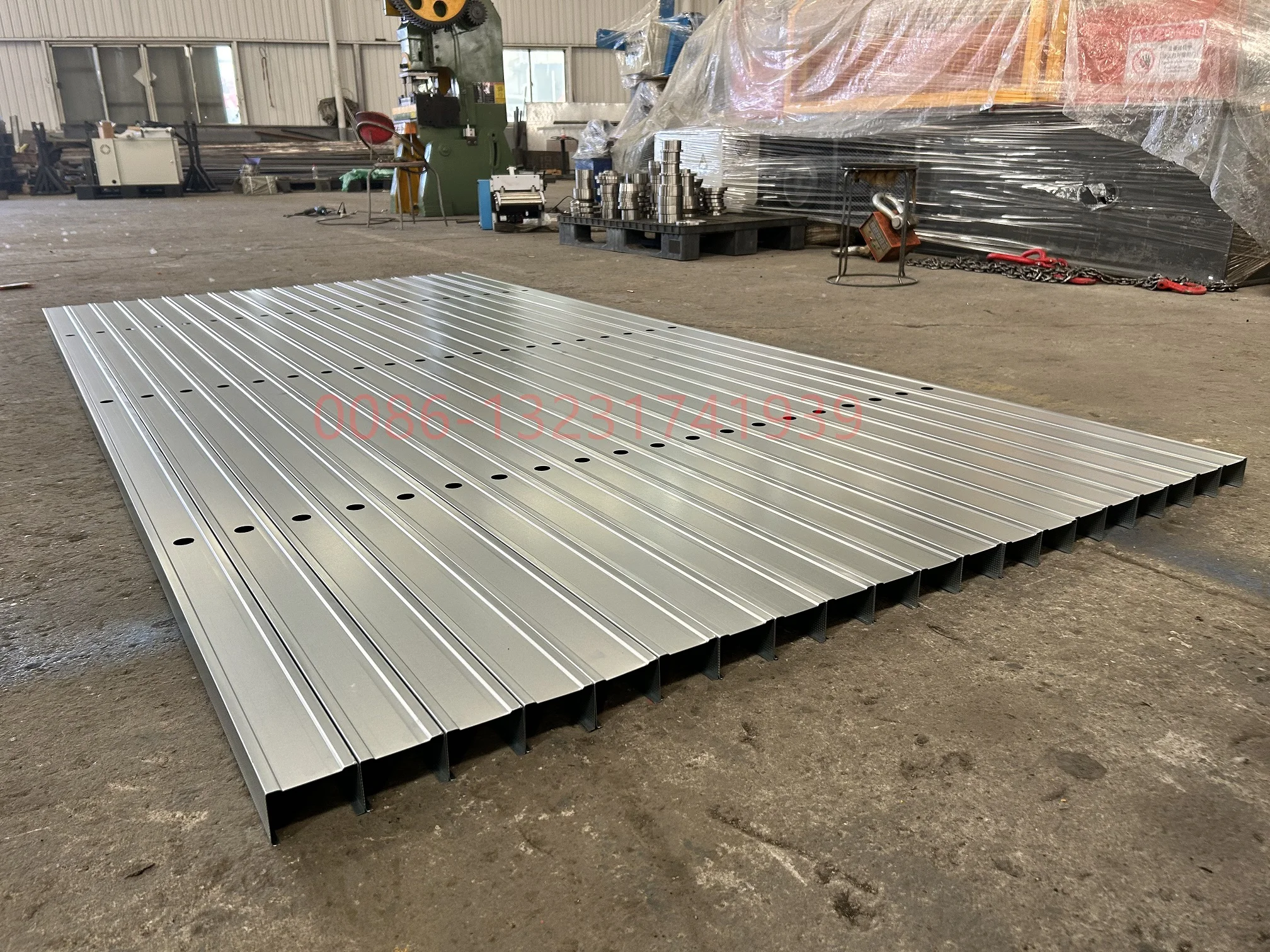

Gypsum board light steel keel roll forming machine metal stud and track roll forming machine light steel profile machine

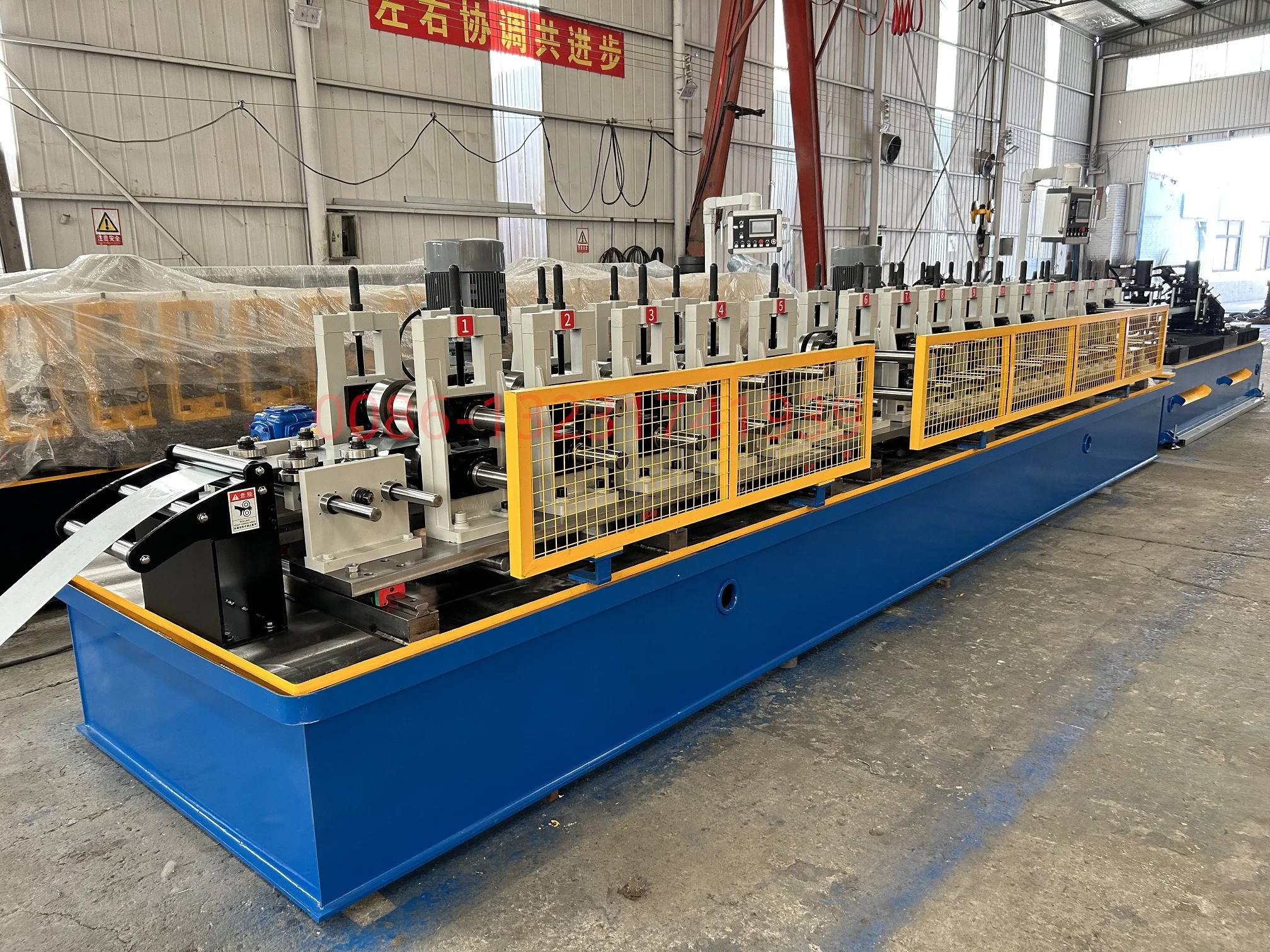

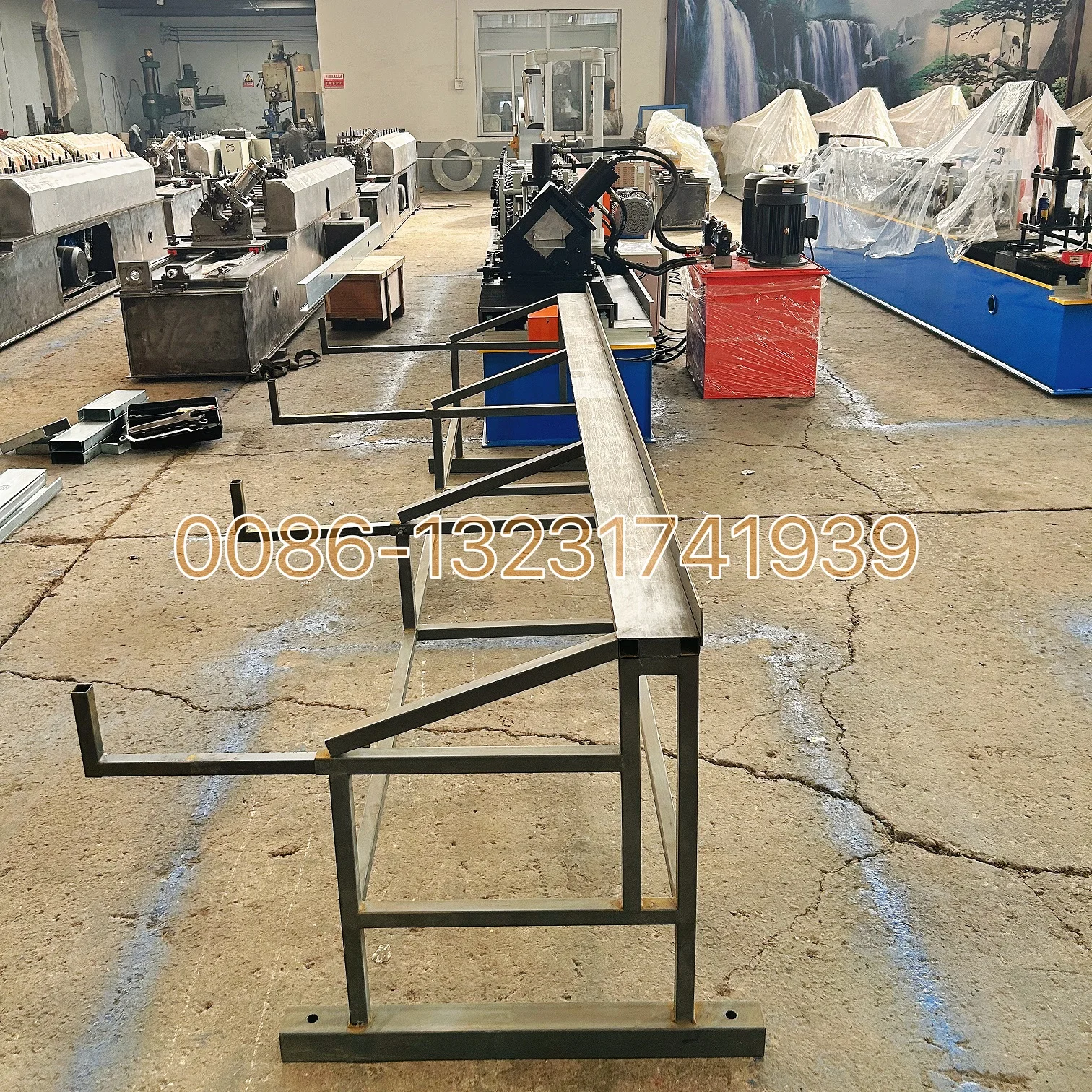

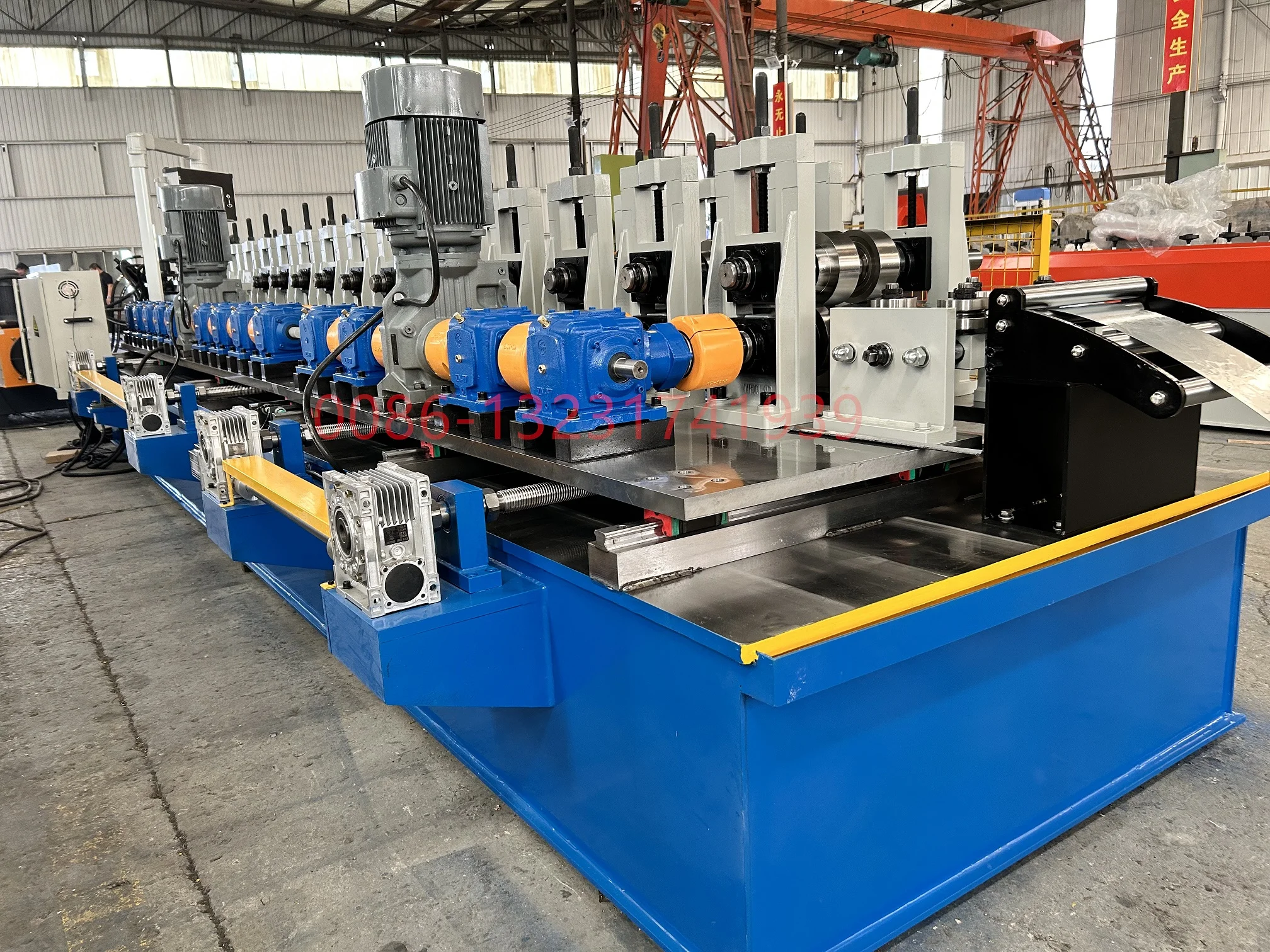

1.The price is decided to your profile width sizes ,height sizes and thickness. 50-75-100 sizes and maximum thickness 24 gauge , and automatic size changeable type decided the machine needs to use bigger shafts, bigger motors, grade configuration. And the speed can do within 50m/min included the punching. 2.Firstly, the production line includes : 2.1:one hydraulic Decoilers 2.2: Roll Forming Machine(pay attention, this is the host roll forming machine ) 2.3: one run-out tables (pay attention,free to send you ) 3.Machine base frame material: Whole steel plate welded about the surface which will be made by CNC machine and surface will have good flatness and looks bright and beautiful.(pay attention: the machine base frame was not welded by square tubes) 4.Machine forming Station: 15 stations according to your profiles. (pay attention: this is the best suitable forming stations, neither more nor less about the forming stations) 5.Rollers material:Cr12 material with turning+quenching(hardness 58-62degrees)+grinding+fine turning treatment which has good quality and this type of processing can guarantee the rollers' hardness meet international standard HRC 58-62 degrees and has good were resistance.(pay attention: the roller material neither made of 45# steels nor bearing steels) 6.Machine stands: cast iron machine stands7.Shaft diameter: 50mm diameter solid shafts (pay attention: the shafts are solid and the shaft diameter is 50mm, not 40mm) 8.power: Main servo motor power : 2*7.5 kw Automatic size changeable reducer part servo motor power : 2* 1.5kw Hydraulic cutting power :7.5kw Hydraulic pump station punching motor power : 5.5kw+5.5kw Main machine servo tracking none-stop motor power:2.3kw+2.3kw (41.1kw.h total ) (pay attention: We can guarantee your machine has enough power to make the machine running stable . ) 9.Transmission way : Gears boxes which has the best stable performance. (pay attention: the machine is not chain transmission 10.Machine uncoiler type :hydraulic 11.Machine run out table : free to send you . 12.Voltage: 380V,50HZ,3 phases.(pay attention : special voltage please tell me in advancebecause the all motors of the machine need to be customized according to your voltage.) 13.Machine Speed: we use 2 sets of punching devices and to make none-stop punching and cutting so with the perforation , the machine whole speed can reach 50m/min

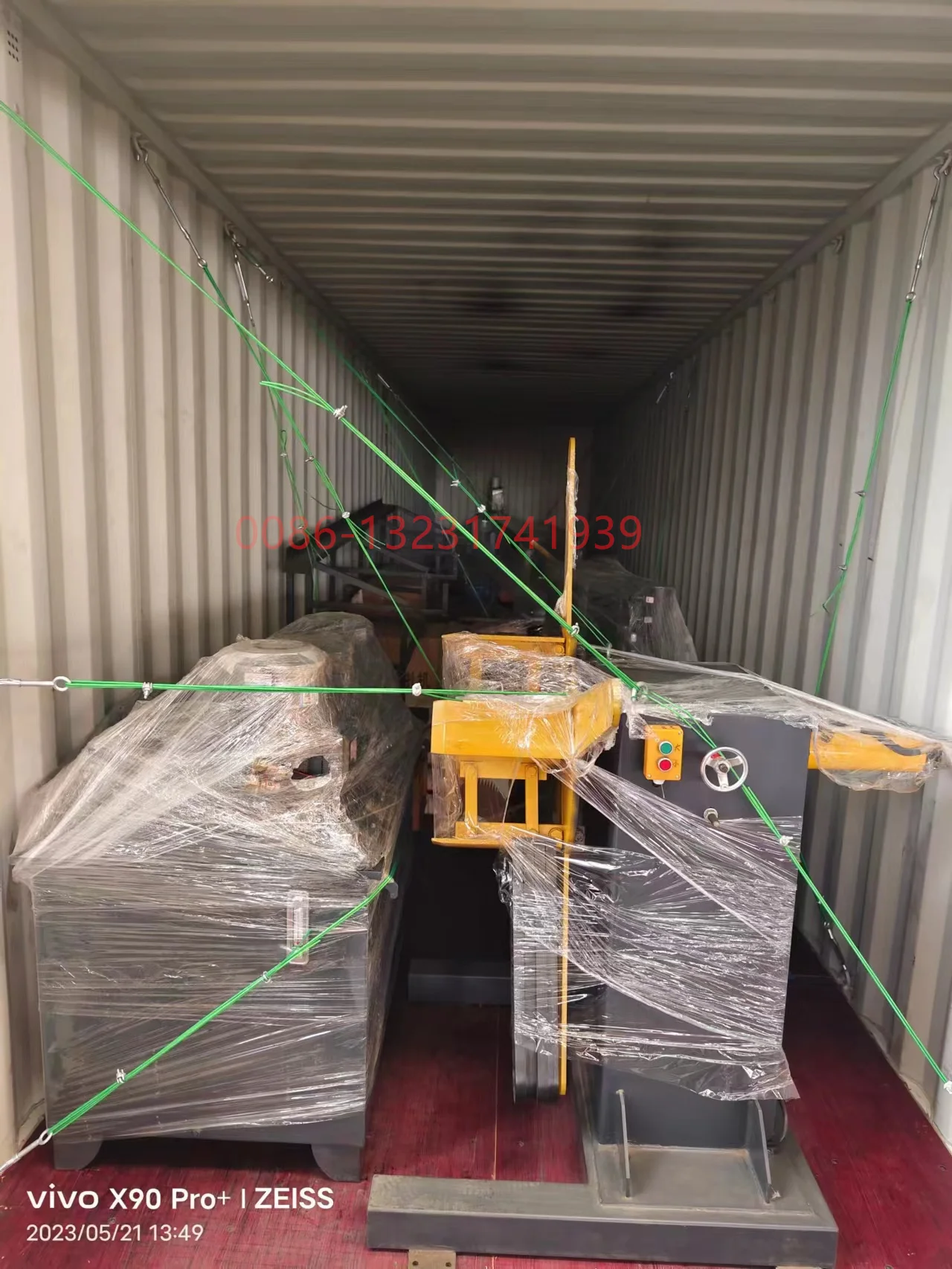

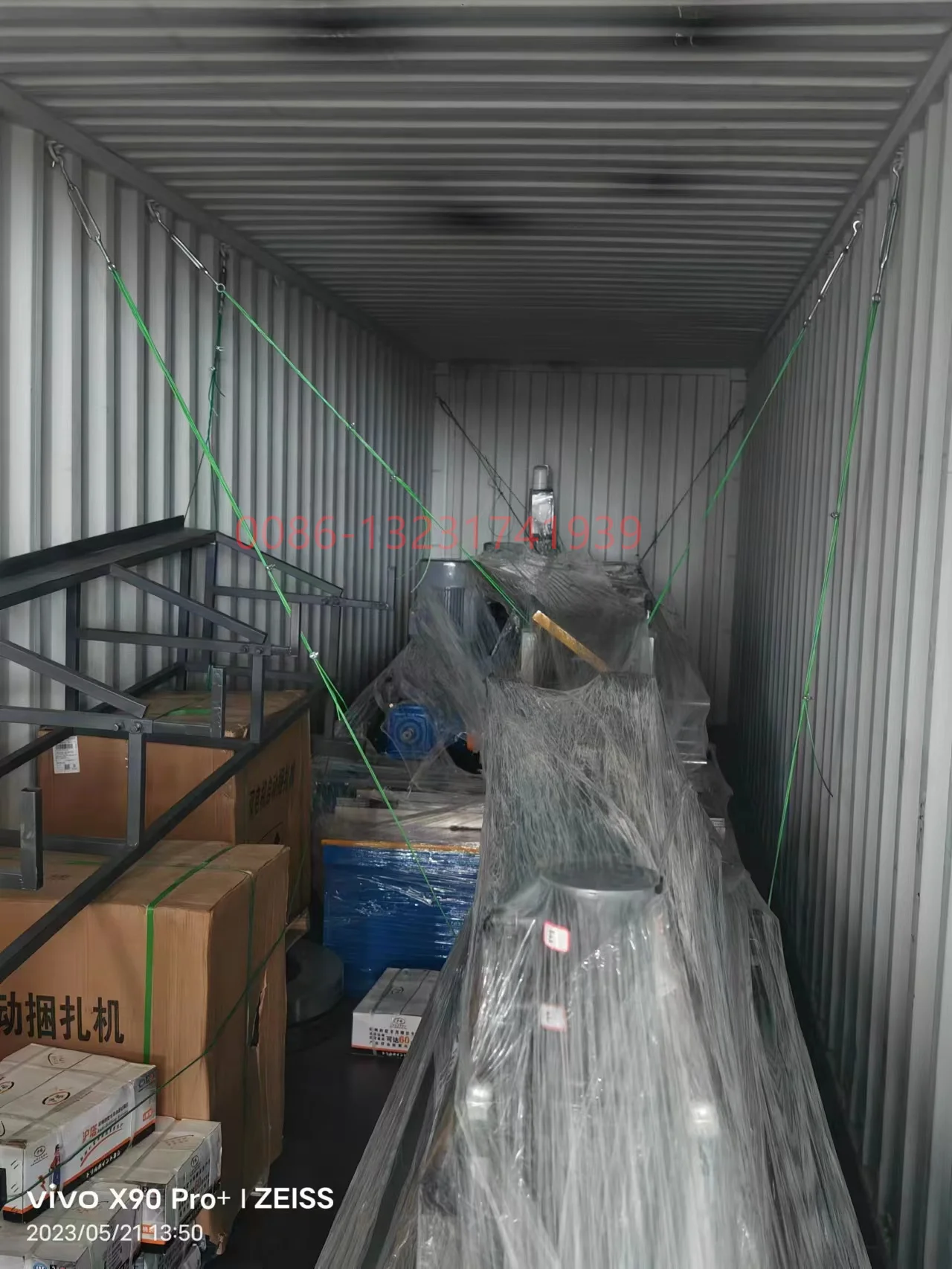

1. Package1). Container packing of the line suitable for overseas shipping 2). The subjects can be loaded by one 40ft FCL shipping. 3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading. 4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
