Metal forming elevator guide rail roll forming machine
Elevator guide rails are divided into three categories: solid guide rails, counterweight hollow guide rails and escalator guide rails...
TEL : +86 13231741939
DETAILS
Product Overview
T Type Elevator guide rail roll forming machine

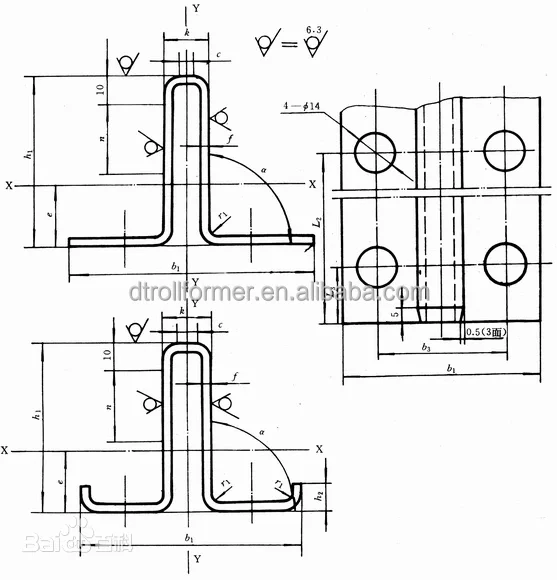

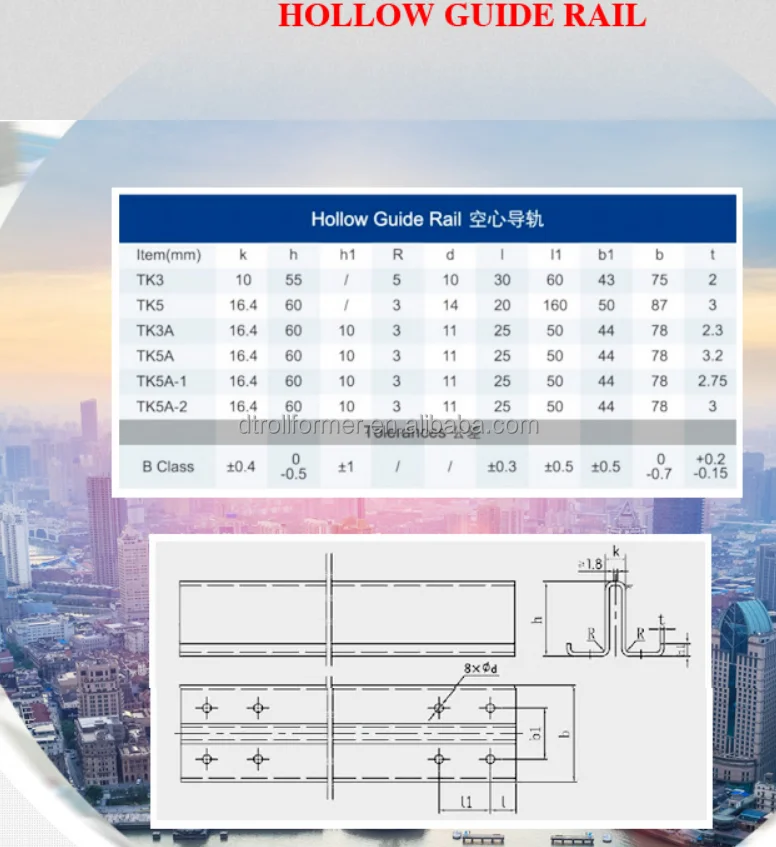

Elevator guide rails are divided into three categories: solid guide rails, counterweight hollow guide rails and escalator guide rails. Counterweight hollow guide rails are cold-bent rolled guide rails, which are formed by cold bending of rolled plates through multiple hole-shaped dies. They are mainly used to provide guidance for counterweights during elevator operation. Hollow guide rails can be divided into TK3 and TK5 according to the weight per meter, and can be divided into straight edge and flanged edge according to the shape of the guide rail end face, namely TK5 and TK优良.
Escalator guide rails are cold-bent rolled guide rails, which are mainly used for supporting and guiding the steps of escalators and moving walkways. Each escalator company uses escalator guide rails of various cross-sectional shapes according to its own design needs, that is, they all use their own escalator guide rail standards.

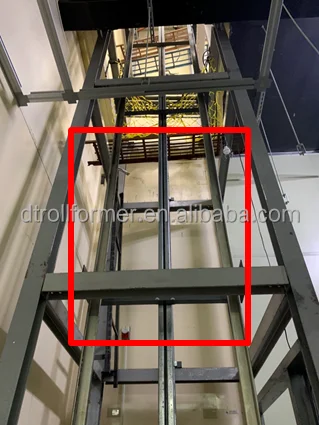

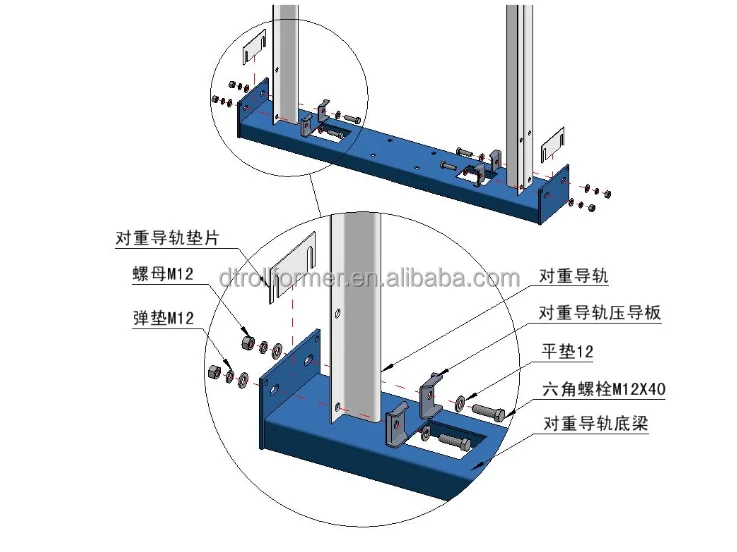

Elevator guide rails are safety rails for elevators to travel up and down in the hoistway. The guide rails are installed on the hoistway wall and are fixed to the hoistway wall by the guide rail frame and the guide rail bracket. The commonly used guide rails for elevators are "T"-shaped guide rails. It has the characteristics of strong rigidity, high reliability, safety and low cost. The guide rail surface must be smooth, without obvious uneven surfaces. Since the guide rail is the shuttle rail for the guide shoe and safety clamp on the elevator car, the gap must be ensured during installation. At the same time, the guide rail must bear the task of stopping the elevator when an overspeed accident occurs, so its rigidity cannot be ignored.
Elevator guide rails are two or more vertical or inclined rigid rails installed in the elevator shaft or between floors, ensuring that the car and counterweight move up and down along them, ensuring that the escalator and moving walkway steps move along them in an inclined or horizontal manner, and providing guidance for the elevator car, counterweight device or steps. From the definition of the guide rail, it can be seen that the guide rail is an important reference component for vertical elevators, automatic elevators, and moving walkway steps. It controls the running trajectory of the elevator car, escalator and moving walkway steps, and ensures the transmission of operation signals. It is also an important component related to elevator safety and operation quality.
1) Safety. The factors affecting the safety of elevator guide rails are mainly the material of the guide rails. If the guide rail material is too hard or uneven (partially too hard), the clamping will not get enough friction during the safety clamp braking, which will cause the brake to fail and the car to fall, the most serious condition in the elevator accident. The guide rail must also have sufficient strength to ensure the support of the car and the impact force during the safety clamp braking.
2) Comfort. There are several factors that affect the comfort of the elevator guide rail:
a. The connection accuracy of the guide rail: The connection accuracy of the solid guide rail is guaranteed by the end size of the guide rail and the symmetry of the yin and yang tenon. The connection accuracy of the hollow guide rail and the escalator guide rail is guaranteed by the end size of the guide rail and the form and position tolerance. The connection accuracy of the guide rail directly affects the stability and comfort of the elevator operation.
b. The roughness of the guide surface of the guide rail: The roughness of the guide surface of the guide rail directly affects whether the guide shoe can run smoothly on the guide surface, and also affects the storage of lubricating oil, thereby affecting the operation quality of the car.
c. Straightness and torsion of the guide rail: Any bending or torsion at any point on the guide rail will give the car a lateral force, affecting the car's up and down linear motion, making the car feel shaky. As the elevator speed increases, the car will vibrate, affecting comfort.
If you need this kind of counterweight hollow guide rails cold rolled forming machine , welcome to find us CANGZHOU DIGNTUO MACHINERY EQUIPMENT CO.,LTD.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
PRODUCT CONFIGURATION

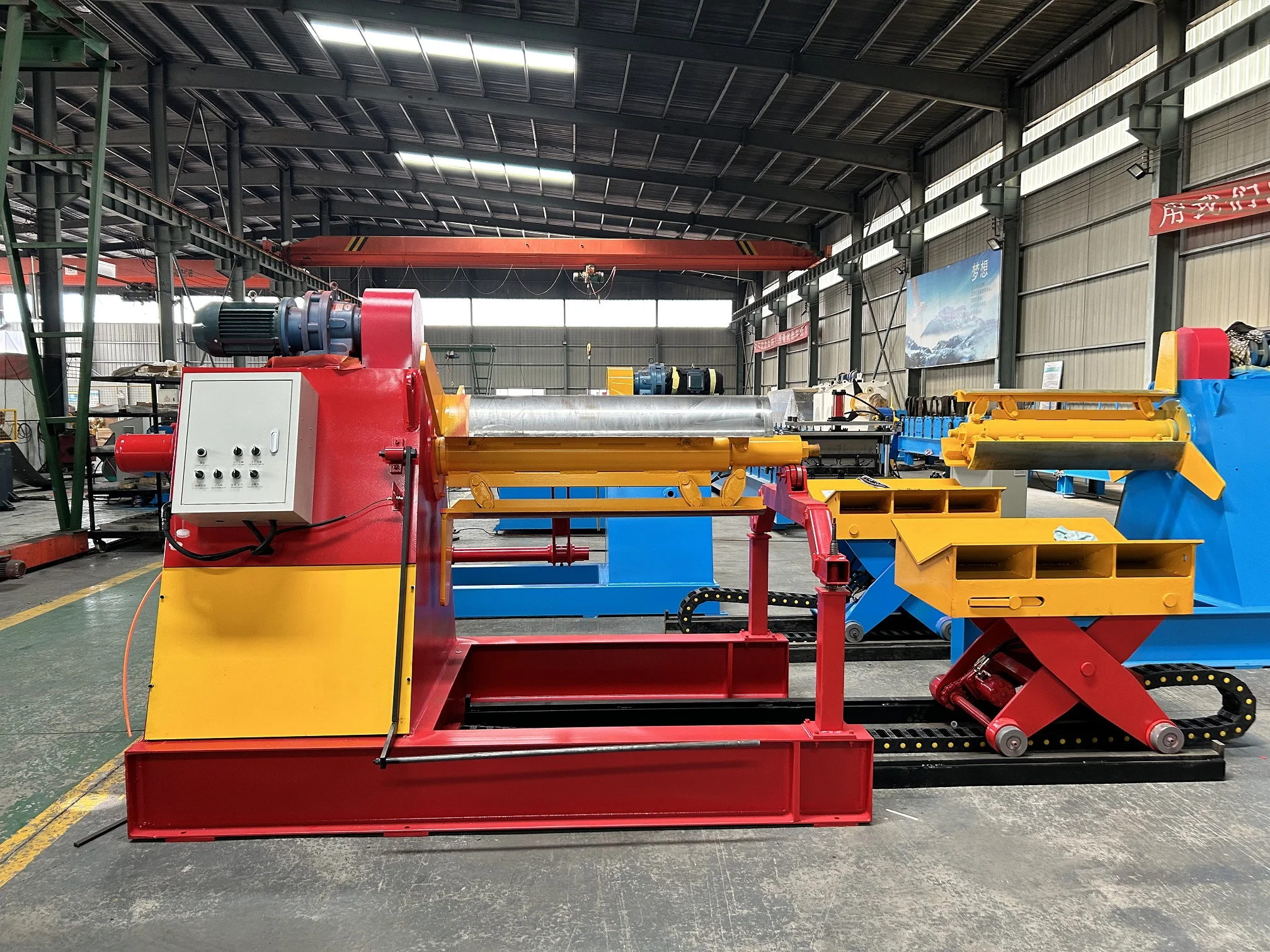

Hydraulic Decoiler
1Feeding width 0-1000mm
2 Inner diameter of steel coil 470-530mm, ±20mm
3 Bearing weight within 5 tons
4 Palm 3
5 Working Type Hydraulic tension coils ,active feeding
6 Hydraulic pump station motor power 3kw,380V, HUADE Brand
7 Base Frame material 300H beam welded
8 Box material 16mm steel plated welded
9 Supporting spindle made of thick-walled seamless steel pipe, diameter is 194*45mm
10 Hydraulic cylinder The coiling cylinder has a steel diameter of 125mm, one with rotating
11 Machine size 2.5m*1.6m*1.75m
12 Machine Weight 2.4 tons
COIL CAR PARAMETERS
1 Car Lifting Double oil cylinder, cylinder diameter 90mm, travel 240mmm
2 Car Moves Forward Model 450, hydraulic motor
3 Car Feeding Panel length: 1.25m, panel width: 1.1 m
4 Car Track L2.5m*W1.05m
5 Car Travel Height travel: 400mm, length stroke: 2.5 m
Car Weight 0.9 tons

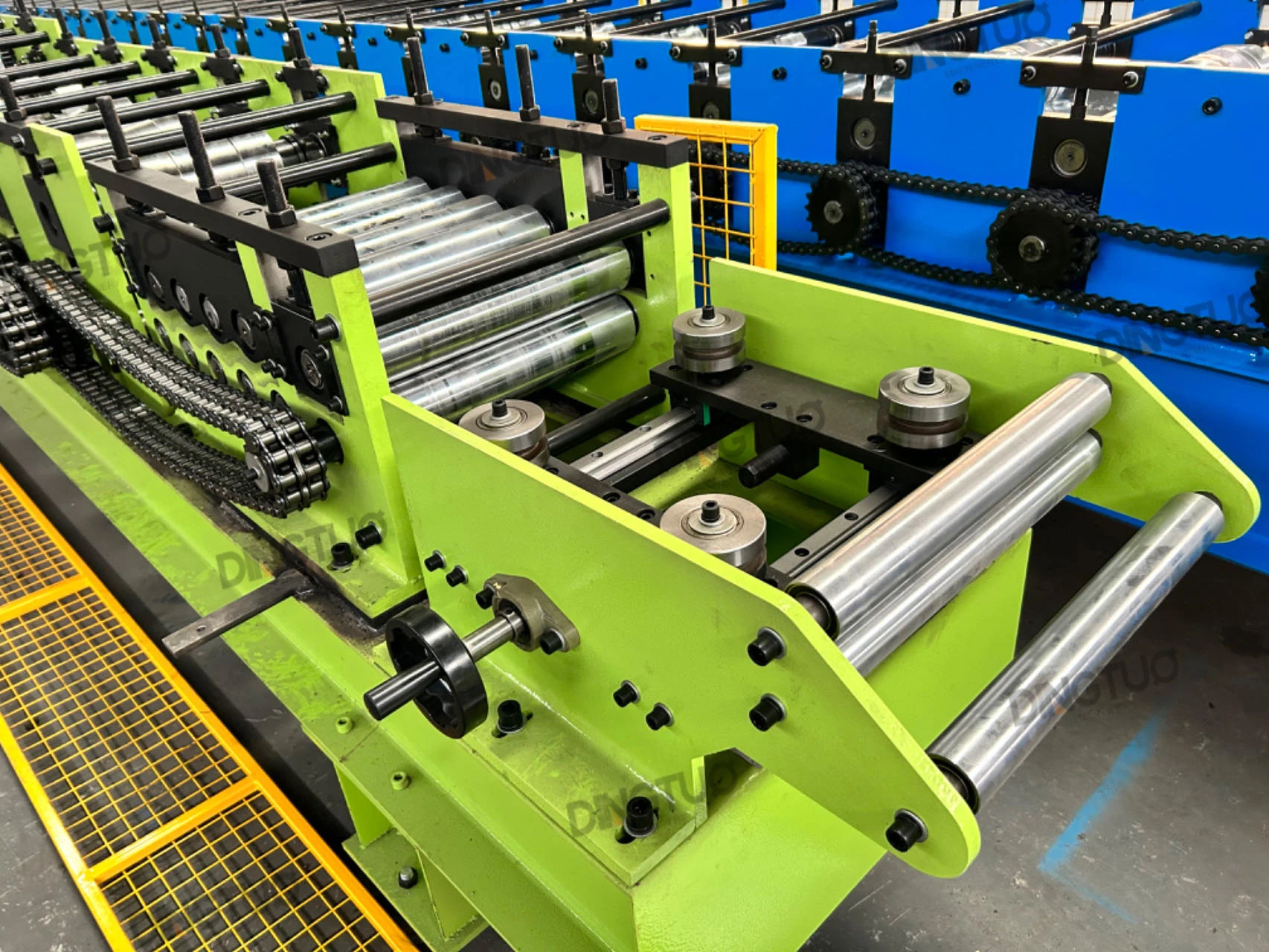

Feeding platform With Pre-Cutter
Pre-cutter function: Customers can cut it at any time when needed, which is very convenient to operate.

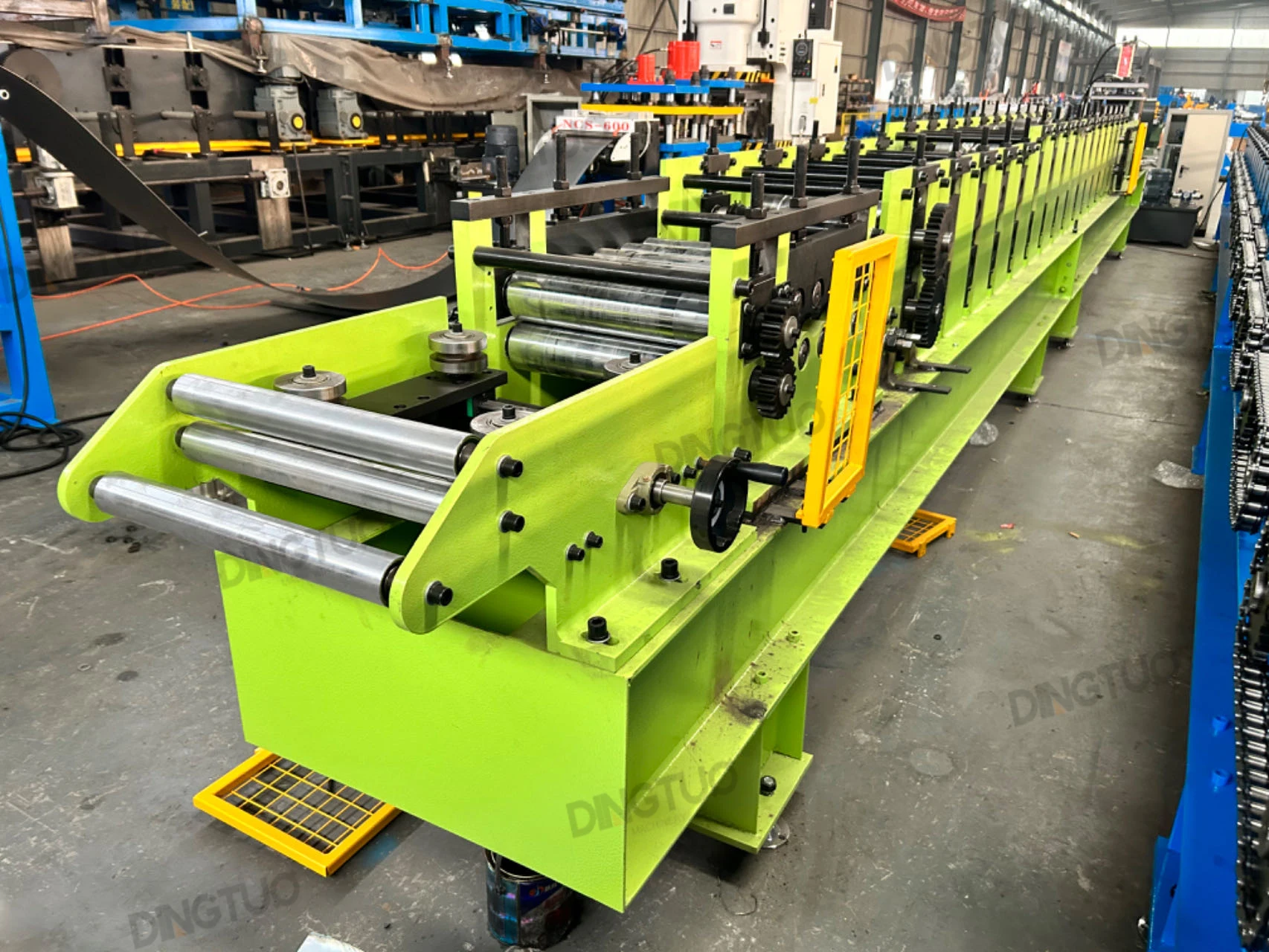

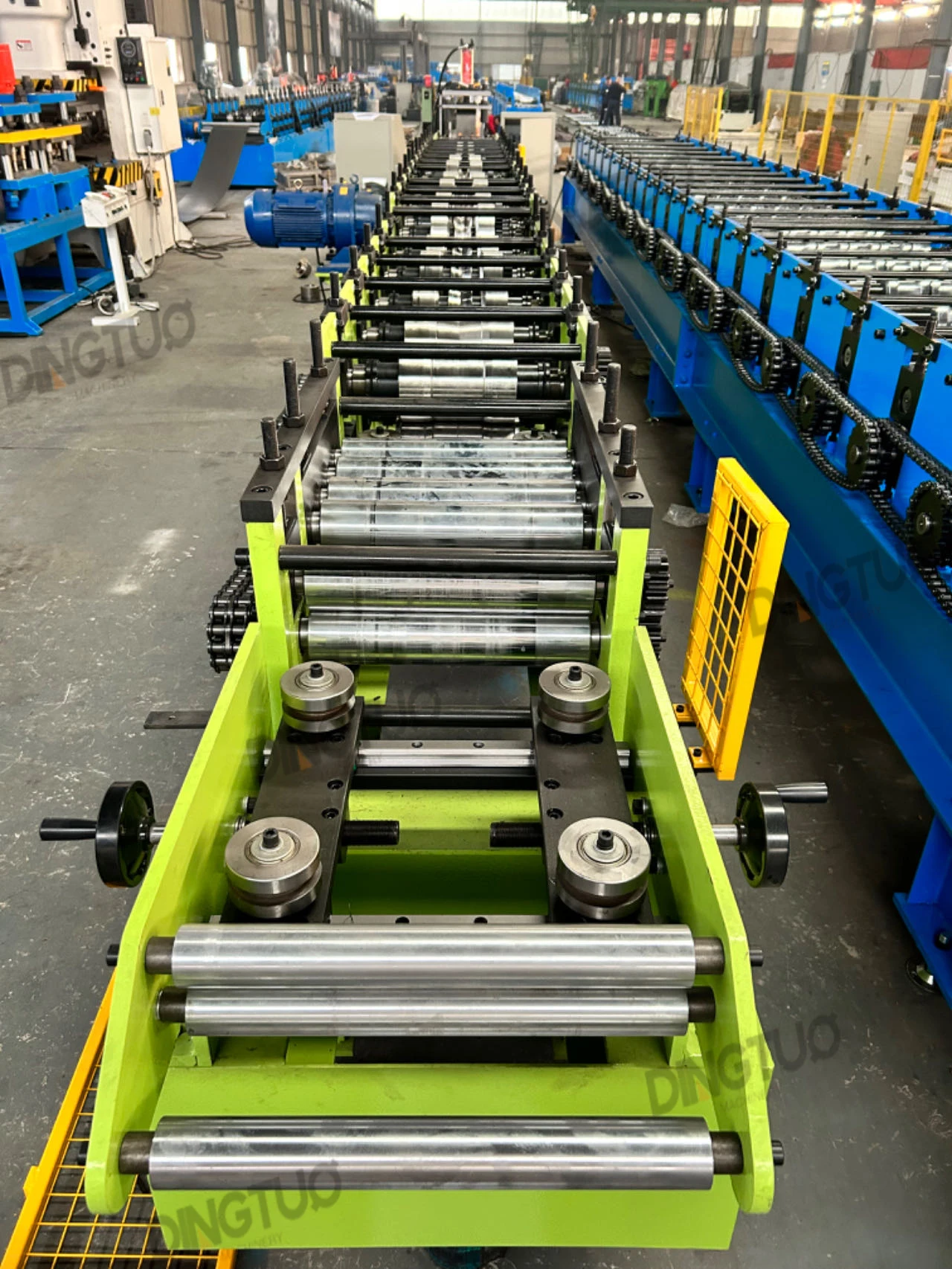

forming part

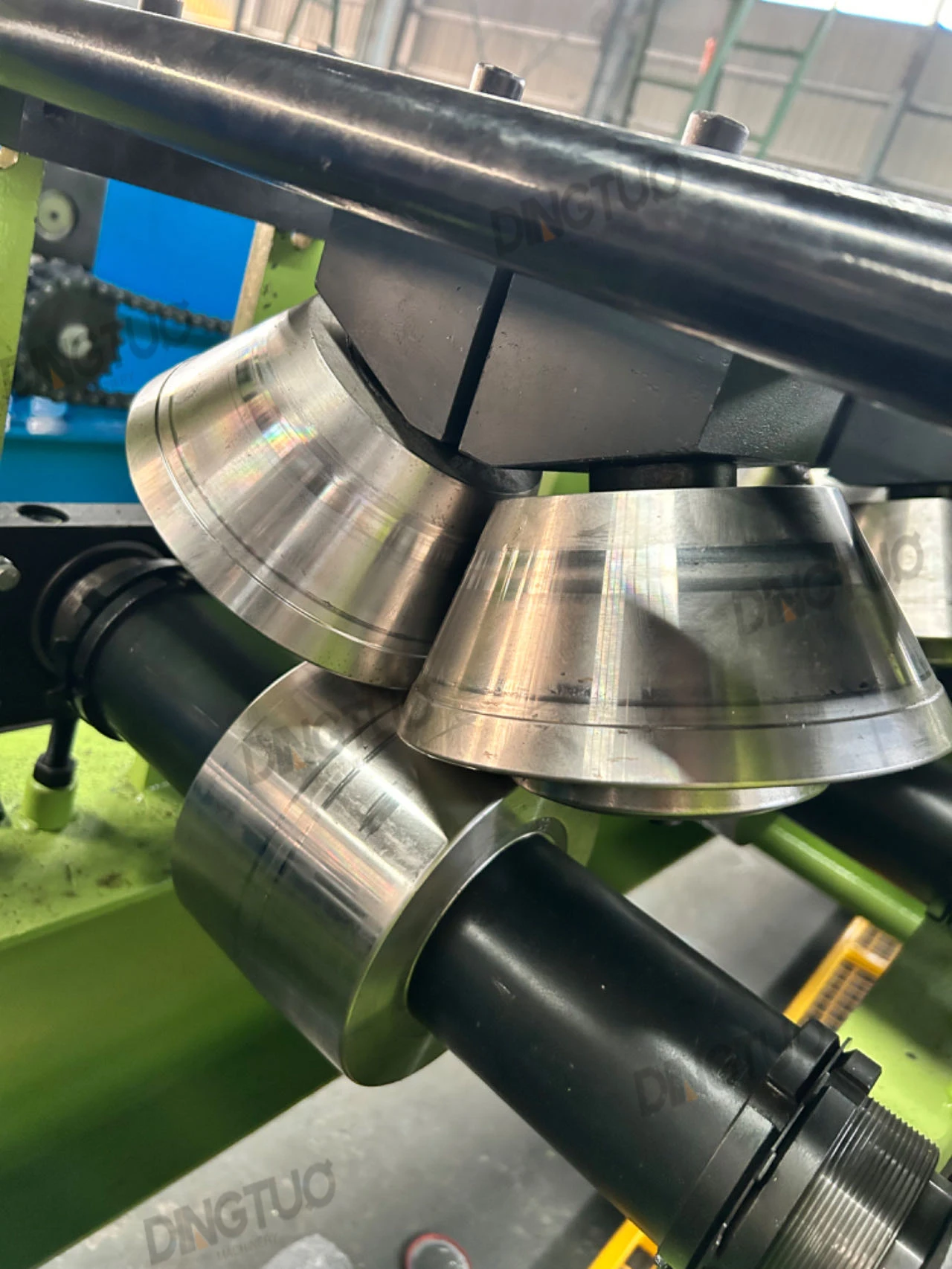

1.Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome
2.Shaft: 45# high grade steel by CNC machine tools
3. spacers with nickle plated
Machine Side Panels
16mm thick / 350 H beam weldedbase frame
Machine spacers
spacers with nickle plated which can increase the machine wear-resistance

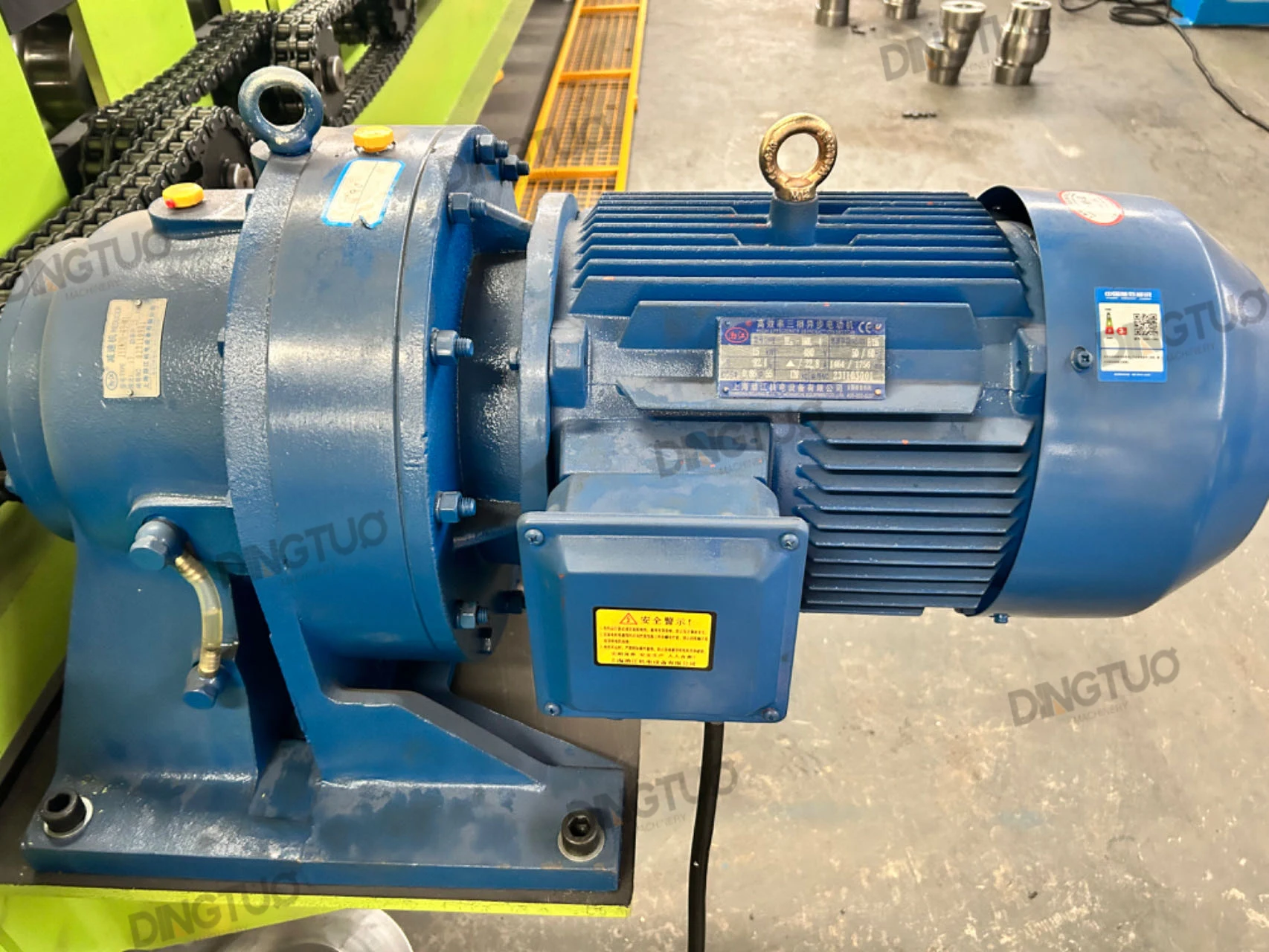

Inside Type Motor And Hydraulic Pump Station
1. main motor power:5.5 kw
2. Hydraulic motor power:4kw
electric control cabinet
The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Lengthmeasurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:220V, 3 Phases 60Hz （ voltage can becustomized as your needed)
Automatic Hydraulic Cutter
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. 2.Power supply: 4kw hydraulic pump station 3.Frame: 350H beam welding 4.Stroke switch: non-contact photoelectric switch 5.Cut : cut the sheet after roll forming to required length 6.Length measuring: automatic length measuring 7. Blade material:Cr12 material with finishing
MACHINE RUN OUT TABLE
RECEIVE MATERIALS
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin Argentina
Project in USA
Project in Dubai
RECOMMENDED PRODUCTS
CE certificate
CE Certificate
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
