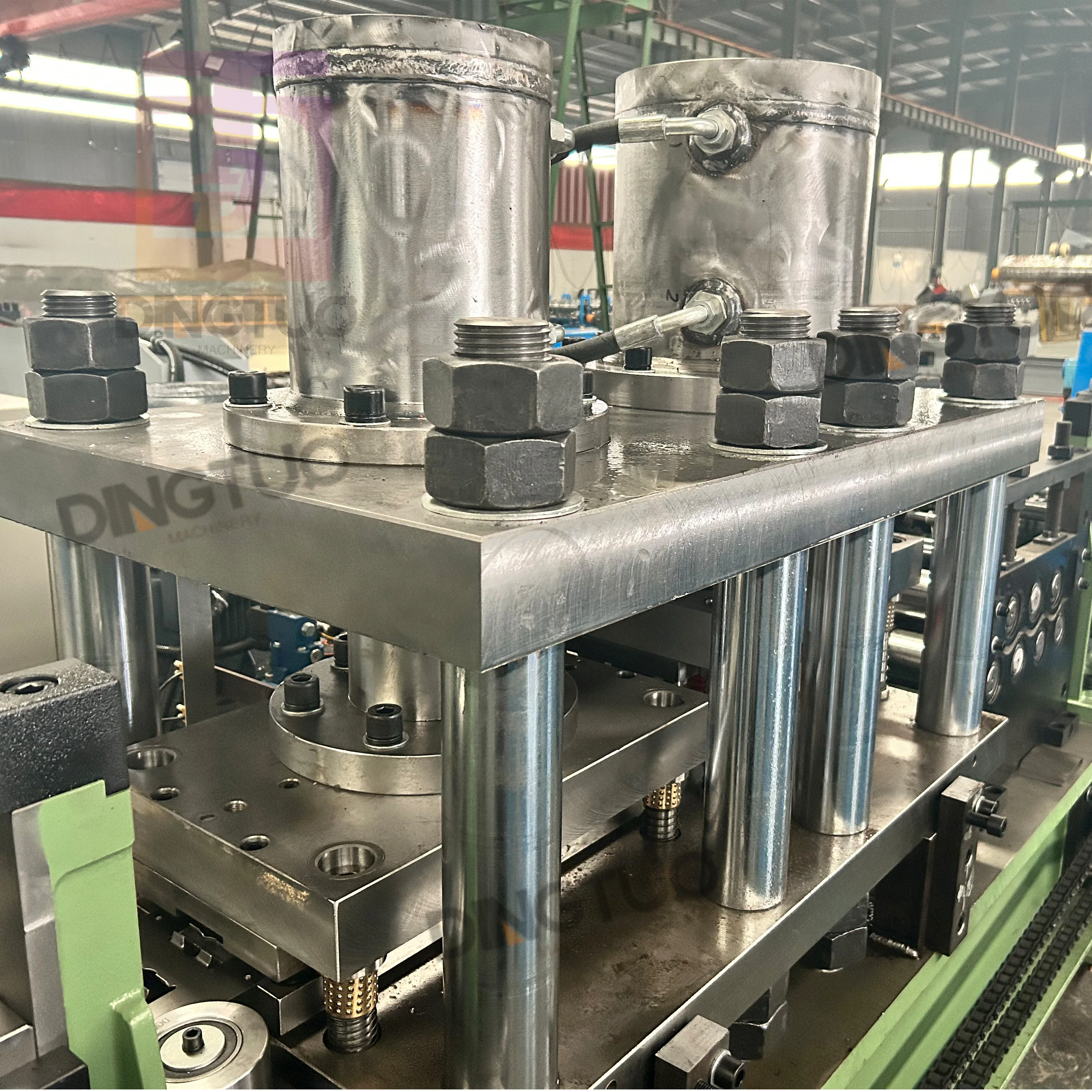

3Online punching 1
4 Forming system with ribs 1
5 Transmission system 1
6 Hydraulic guillotine 1
7 Support table 1
8 Hydraulic pump station 1
9 Control box 1
10 Spare parts and tools 1
roll forming machine for making E Track Horizontal Rail Accessory E Track Tie Down Rail for Cargo
Universal lashing rails for horizontal installation, for the reliable securing of load units in closed vehicles...
TEL : +86 13231741939
DETAILS
Product Overview
Universal lashing rails for horizontal installation, for the reliable securing of load units in closed vehicles used for truck
Universal lashing rails for horizontal installation, for the reliable securing of load units in closed vehicles.
Carriage guard plate material: stainless steel/galvanized iron

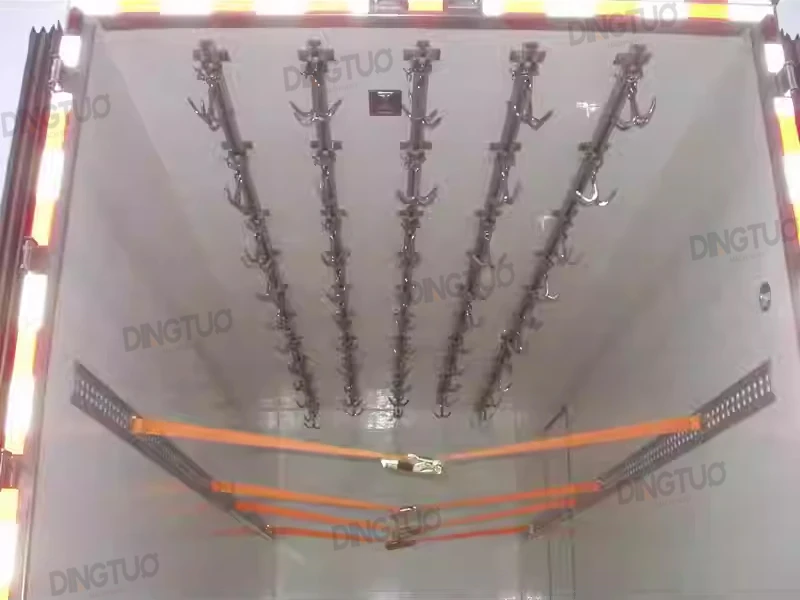

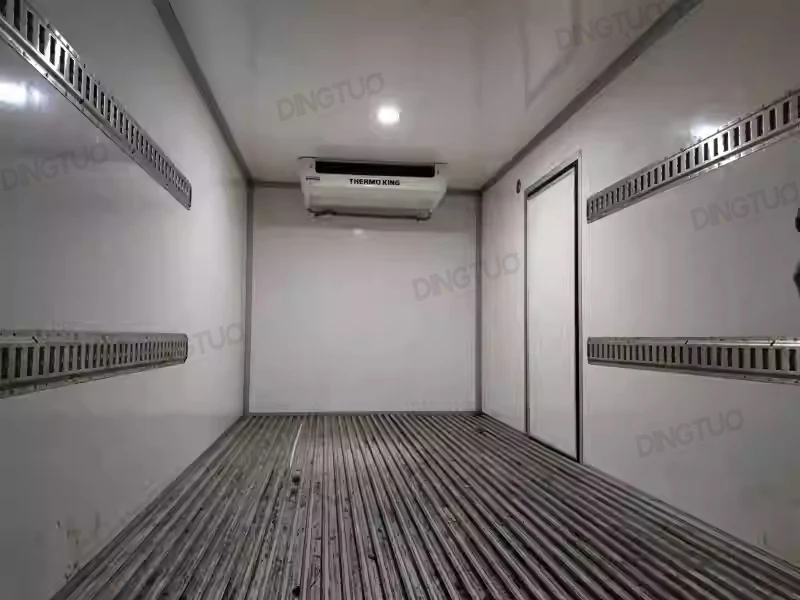

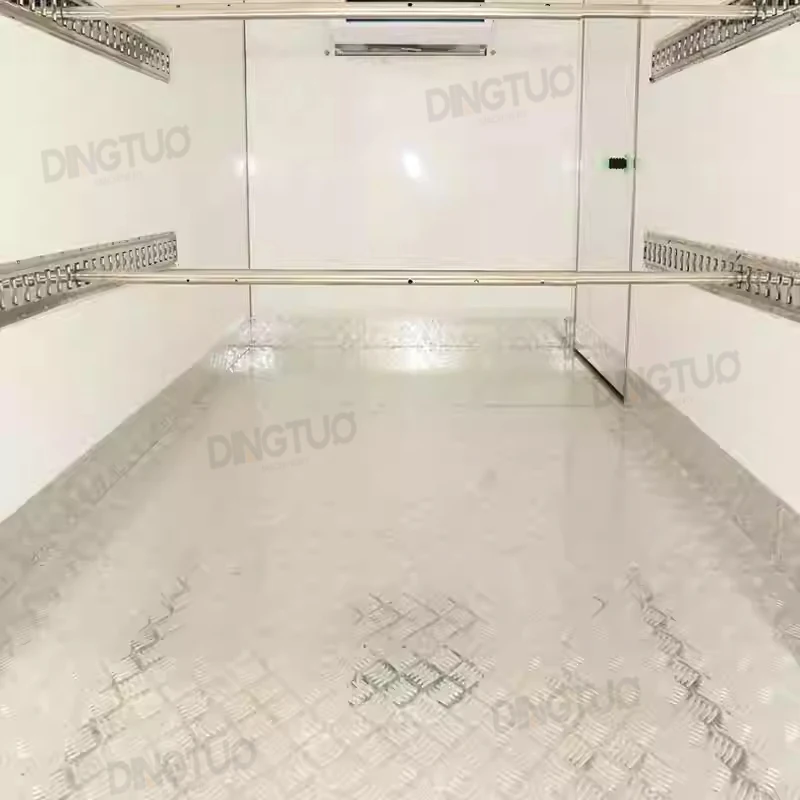

Scope of application: refrigerated carriages, truck carriages, dry truck carriages, etc.
Various cargo box guard plates for logistics transportation are mainly used for various containers and various box trucks to support, isolate, limit, lock and other functions for the transported goods to prevent the goods from collapsing and being damaged. Very popular in the logistics industryRefrigerated truck compartment partition card slot forming machine consists of a loading rack, a feeding platform, online punching, roll forming, shearing, a pump station, and a receiving rack. The structure of the equipment is a medium plate welding structure, and can also be made into a cast iron arch structure according to customer requirements. The size and model of the profile can be customized.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity (set)
1 5hydraulic decoiler 1
2 Guiding device 1
PRODUCT CONFIGURATION

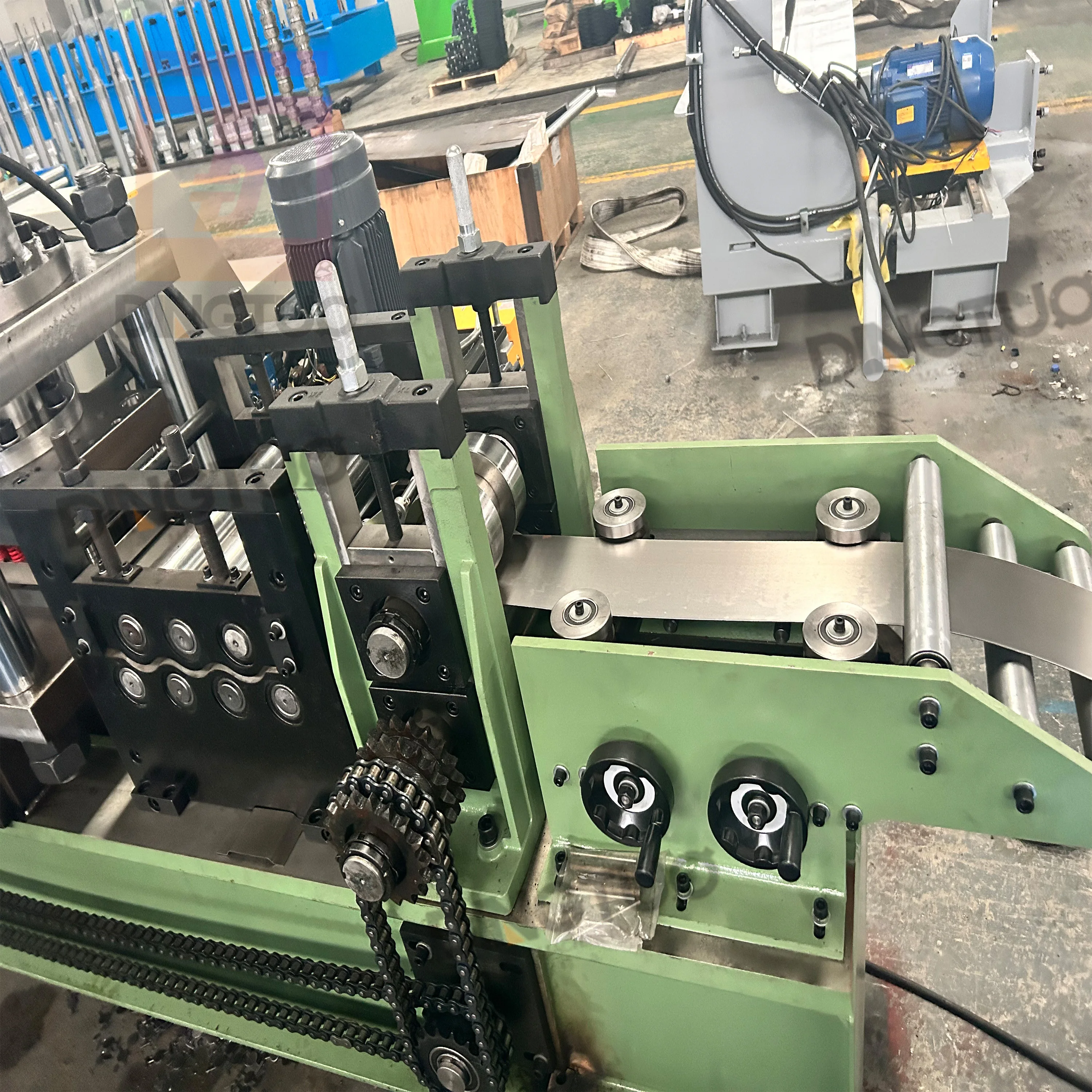

Feeding platform：
Based on the right feeding platform, different feeding widths can be adjusted by adjusting the screws and nuts on the left platform. Enter the forming section with the left edge of the material in line with the left wheel.

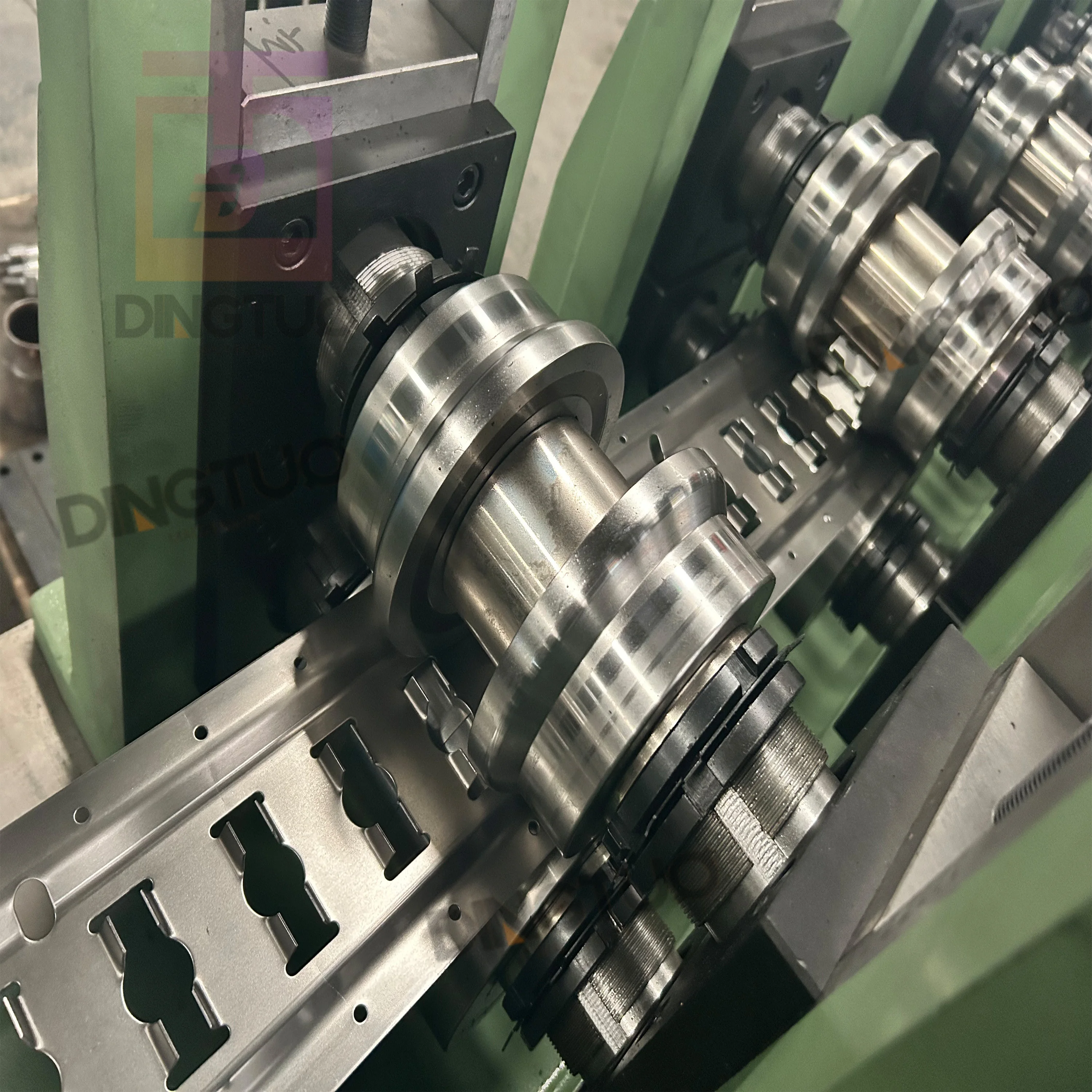

Forming rollers:
16 stations
Gcr15 # steel finishing and the surface is plated with hard chrome and polished
75mm solid shafts
45# steel processed
Electric control cabinet:
stand type
Delta brans or XIEJIE brand
or customzied brands

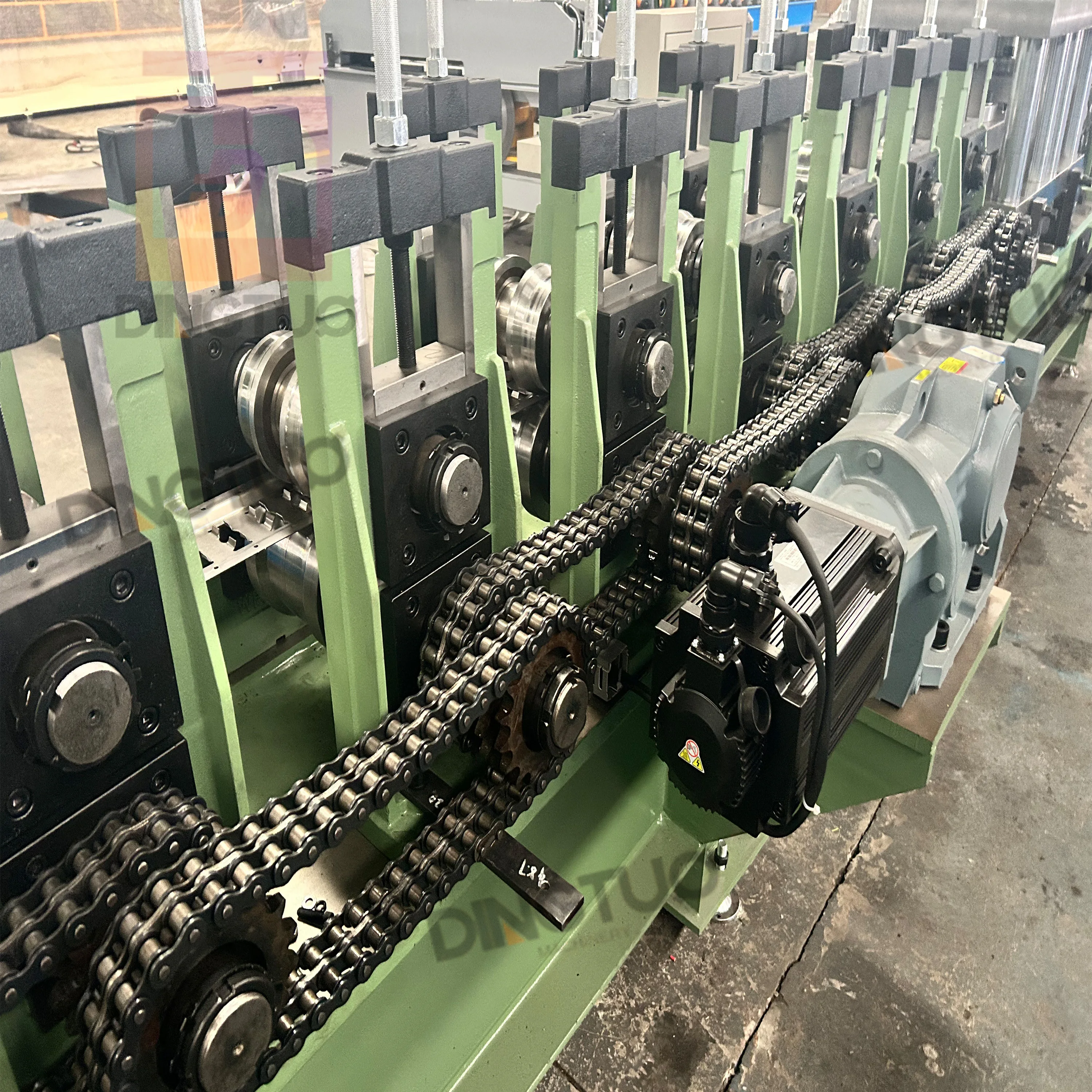

motor :
motor will be put inside the machine base frame which can save the clients' workshop space
2*11kw motors will provide enough power to the 3mm container house 3-wave panels roll forming machine.
Automatic hydraulic cutting
strong enough knife holder to ensure the cutting stability and ensure the finihsed products effects
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin CANADA
Project in USA
Project in CHILE
RECOMMENDED PRODUCTS
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by LCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time25-30 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
