Fully automatic Carriage Panel roll forming machine

A carriage panel roll forming machine is specialized equipment used in the manufacturing process to shape metal sheets into specific panel designs. ..

TEL : +86 13231741939

DETAILS

Product Overview

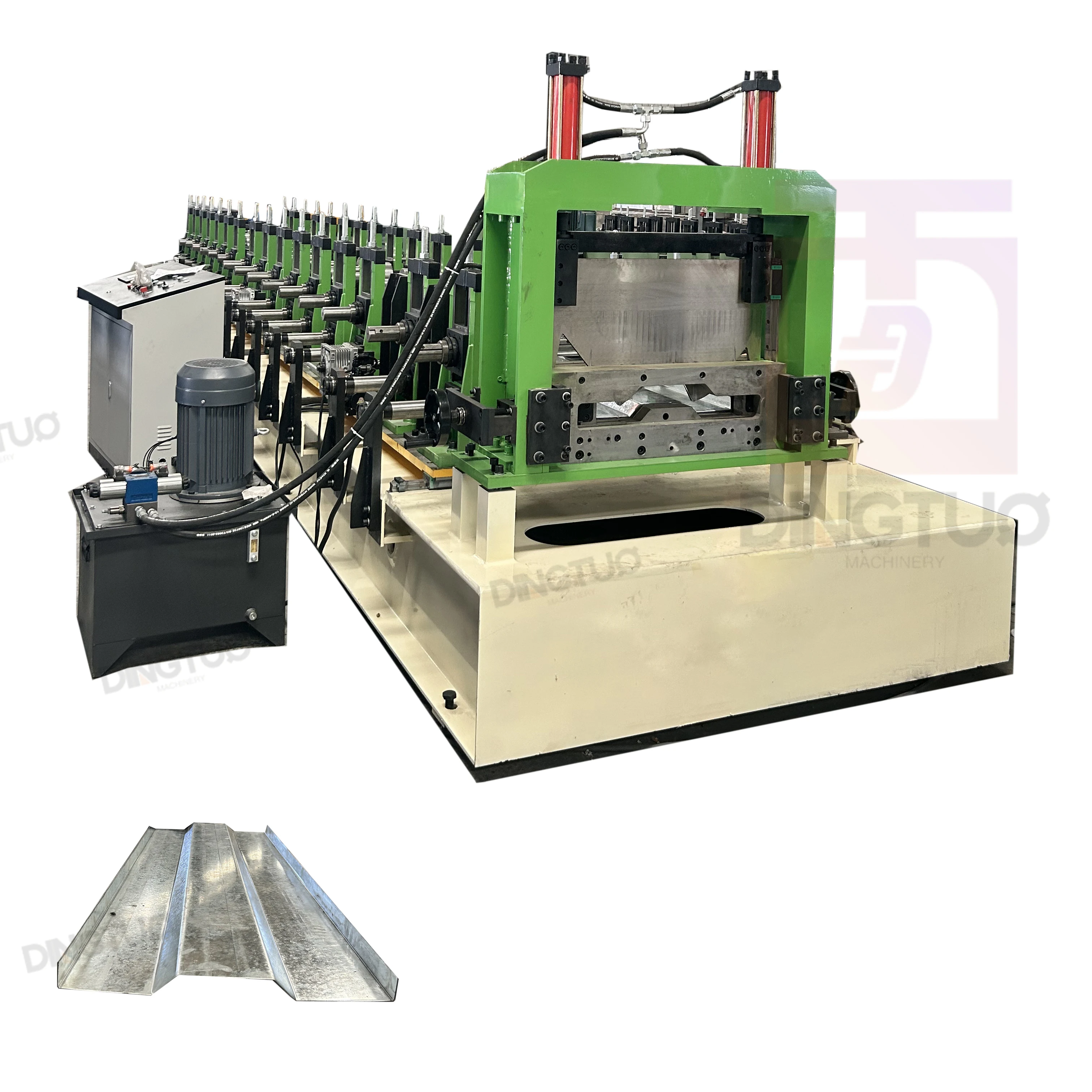

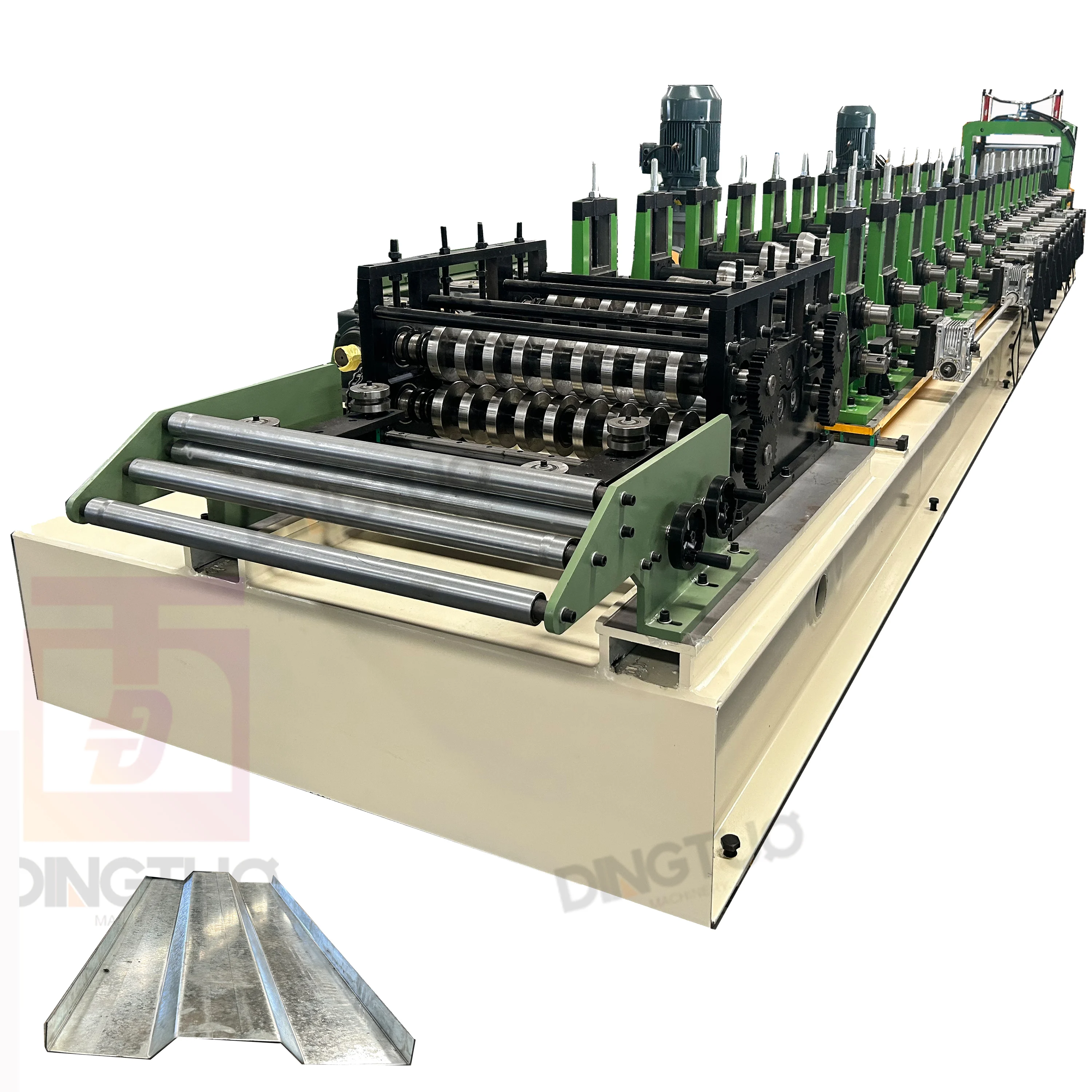

3 in 1 size automatic changeable car body panel roll forming machine with stepless shear

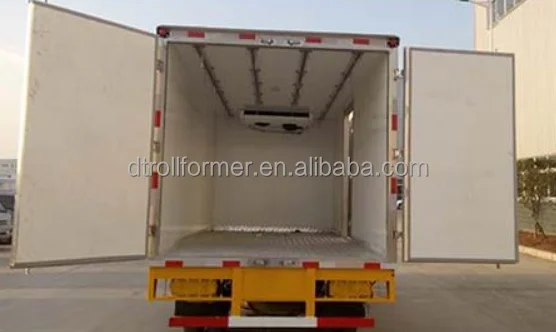

A carriage panel roll forming machine is specialized equipment used in the manufacturing process to shape metal sheets into specific panel designs. This type of machine is often used in the automotive industry to produce parts like carriage panels, which are components of the body of a vehicle.
Advantages:
Efficiency: Capable of continuous production with minimal downtime.
Precision: Produces consistent and accurate parts.
Versatility: Can be customized to produce different shapes and sizes of panels.
Applications:
Automotive industry for body panels and structural components.
Construction industry for metal roofing, wall panels, and framing components.
Appliances and other industries requiring metal panels.

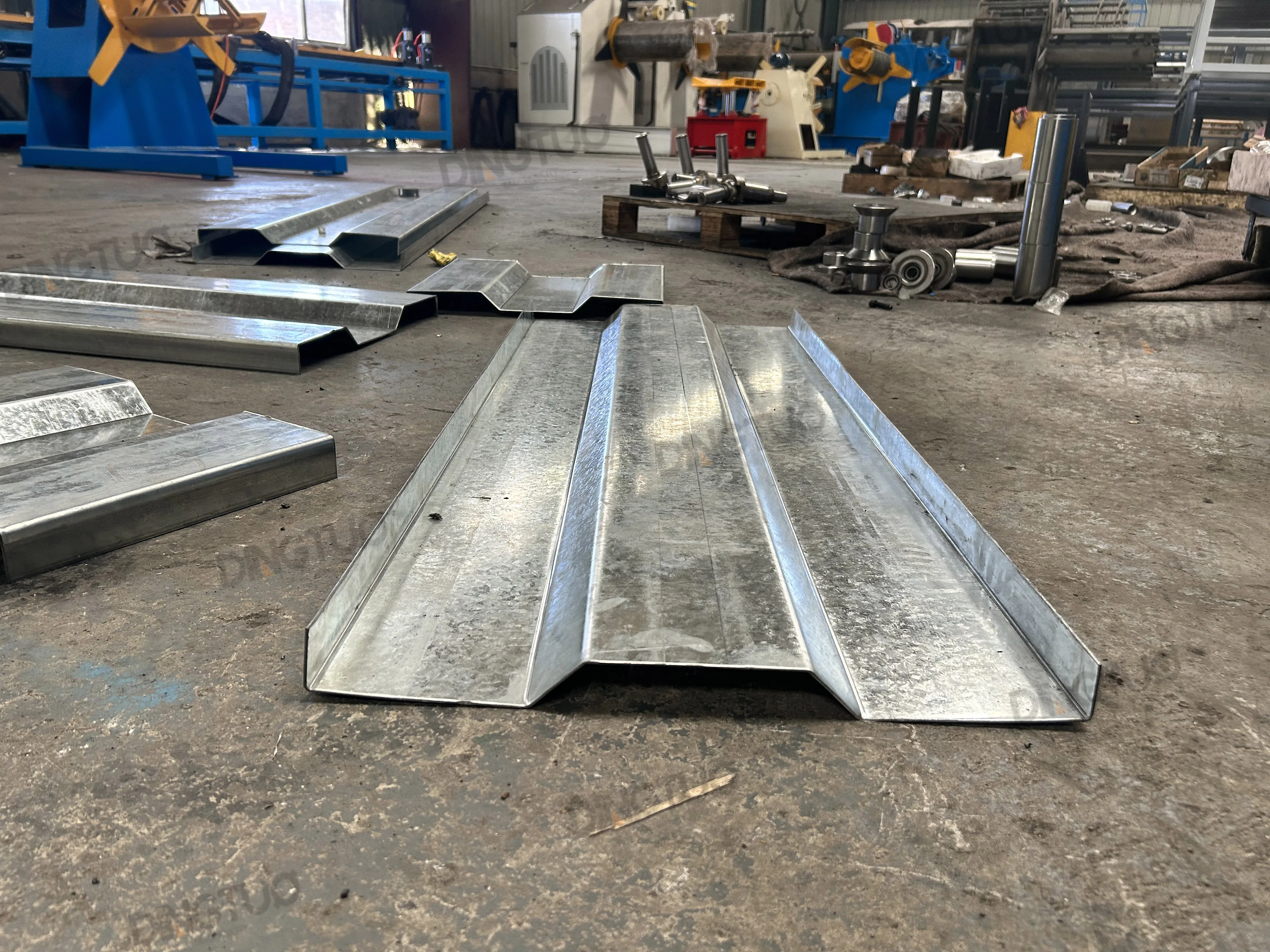

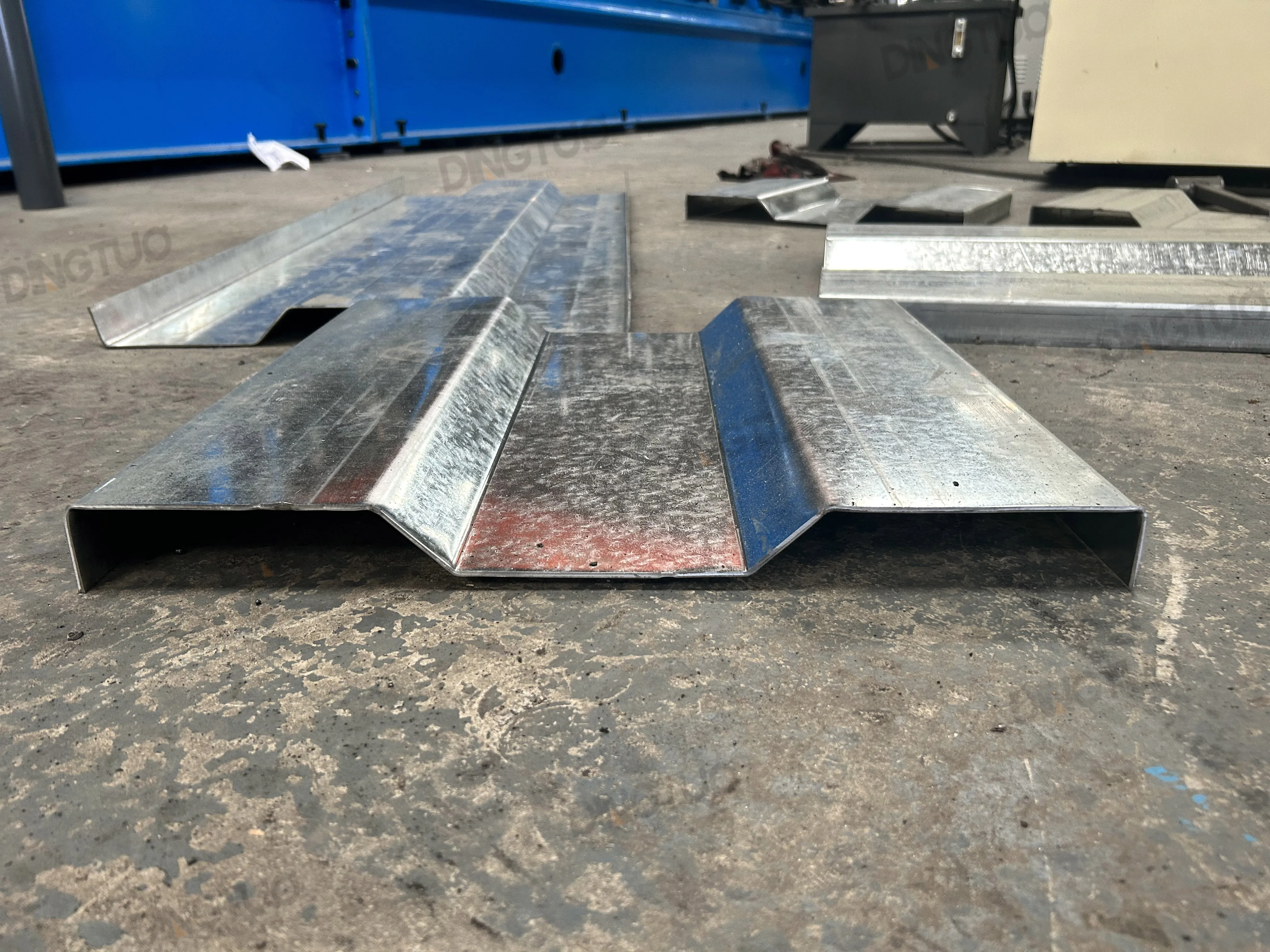

M34 / 400-600 is a profile for making car side panels. Our car body panel roll forming machine can make 3 sizes with one machine and the size is fully automatically adjusted. The shearing adopts a stepless shearing structure. When the customer changes the size of the profiles, there is no need to change the blade, which is more convenient for the customer to operate. The car body panel making machine adopts gearbox transmission and cast iron machine stands which structure is stable, the performance is stable, and the quality of the machine can be guaranteed. Customers in need are welcome to place orders.

FEATURES AT A GLANCE

00:0000:45

PRODUCT SPECIFICATIONS

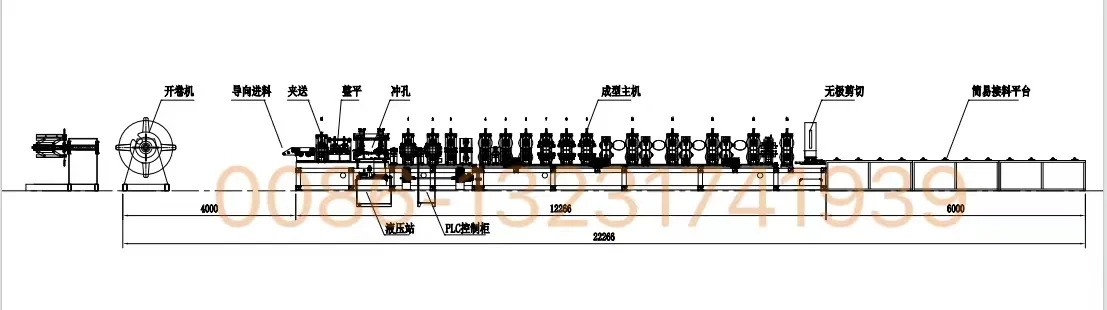

MACHINE COMPONENTS

NO.	Description	 Quantity (set)
  10T Hydraulic decoiler 1
  Feeding platform part 1
  pitch shafts and leveling part 1
  Punching unit1
  Forming system with ribs 1
  Transmission system 1
  None blade changeable cutter 1
  Run Out table 1
  Hydraulic pump station 1
  Control box 1
  Spare parts and tools 1

No	Item	Parameter	Note
1	raw material	galvanized steel ST37
2	raw material thickness	2.5-3 mm
3	bottom width	400-600mm	can customized . If you need , welcome to connect Ms.Elena 0086-13231741939
4	height /web	38mm	can customized . If you need , welcome to connect Ms.Elena 0086-13231741939
5	Decoiler	5T Hydraulic decoiler	can customized . If you need , welcome to connect Ms.Elena 0086-13231741939
6	Pitch Shafts	Cast Iron Type and with one electric clutch	No need lift or press pitch rollers after feeding material manually
8	Leveling Part	Upper 2 and lower 3	9 rollers * 100mm diamter iron shaft
9	Forming Shafts	90 mm	According to sheet sizes and thickness to choose the shaft diameter. Any requests , welcome to connect Ms.Elena 0086-13231741939
10	machine forming station	20	customzied as clients' sheet's sizes
11	machine stands	140 type cast iron machine stands equipped	higher cost machine stands , strong type , stable type

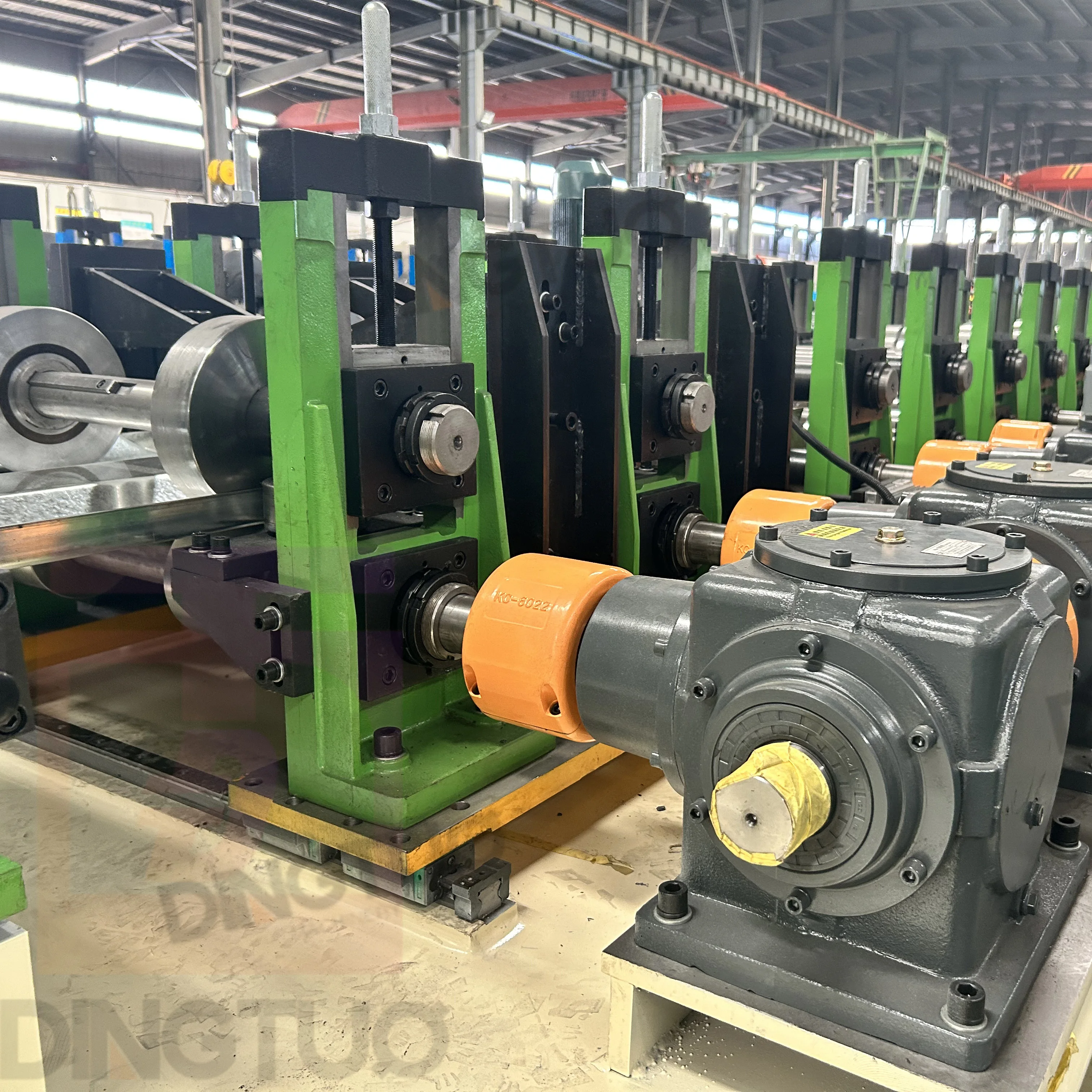

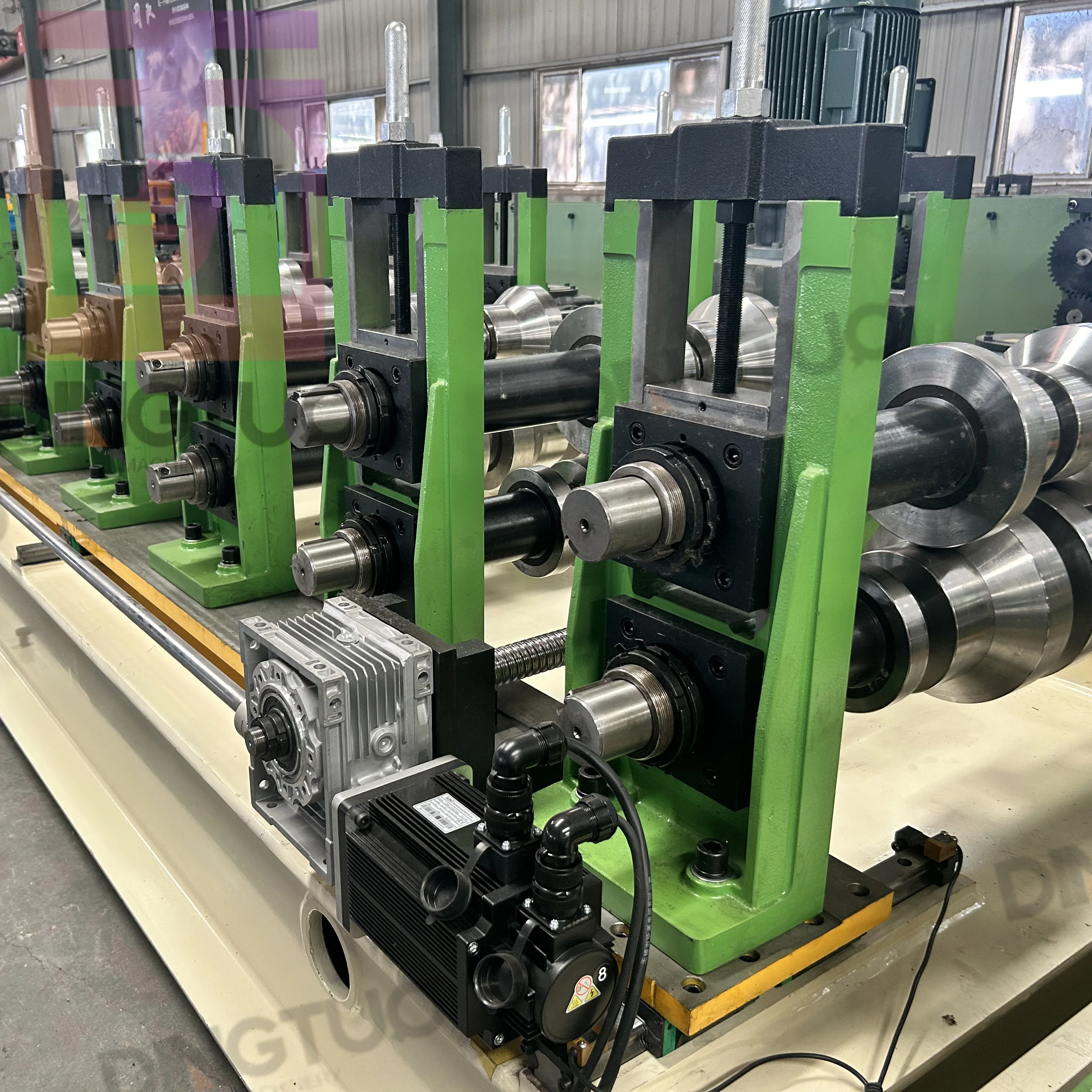

12	size changeable type	1 sets of size changeable servo motors , which can be changed by control panel automatically.	servo motor size changeable which can do stable and accurate size changeable
13	machine base frame	whole iron plates welding steel 700mm height ,the thickness of the table top is 30 mm, the thickness of the side plate is 10 mm	the whole is sanded and derusted after welding, and the table top is processed by CNC gantry milling
14	machine power	18.5KW(main motor power)+ 11 kw ( hydraulic pump station cutting motors) + 2.2 kw ( size changeable servo motor )	31.7 kw.h K serious reducer which can make machine run stable
15	machine speed	20 m / min	we can do 20 m / min higher speed machine.Any needs , welcome to connect Ms.Elena 0086-13231741939
16	machine transmission way	gear boxes transmission	230type gear boxes
17	roller material	Gcr15 bearing # steel finishing and the surface is plated with hard chrome and polished
18	Blade material	Cr12 mov material with turning+quenching (hardness 58-62degrees)+grinding+fine turning treatment
19	Length counting method	OMRON (JAPAN ) brand encoder
20	Electric Control brands	DELTA PLC/touch screen/inverter	can do other brands as clients' requests
21	Pneumatic material receiving rack	1 set	6.1m length . Can do automatic stacker as your needed
22	Voltage	380V,50HZ,3 Phases or customized	voltage can be customzied as clients' request. Any requests , welcome to connect Ms.Elena 0086-13231741939
23	machine size	L20 m * W 2 m * H 2.2 m
24	machine weight	18000 KGS

PRODUCT CONFIGURATION

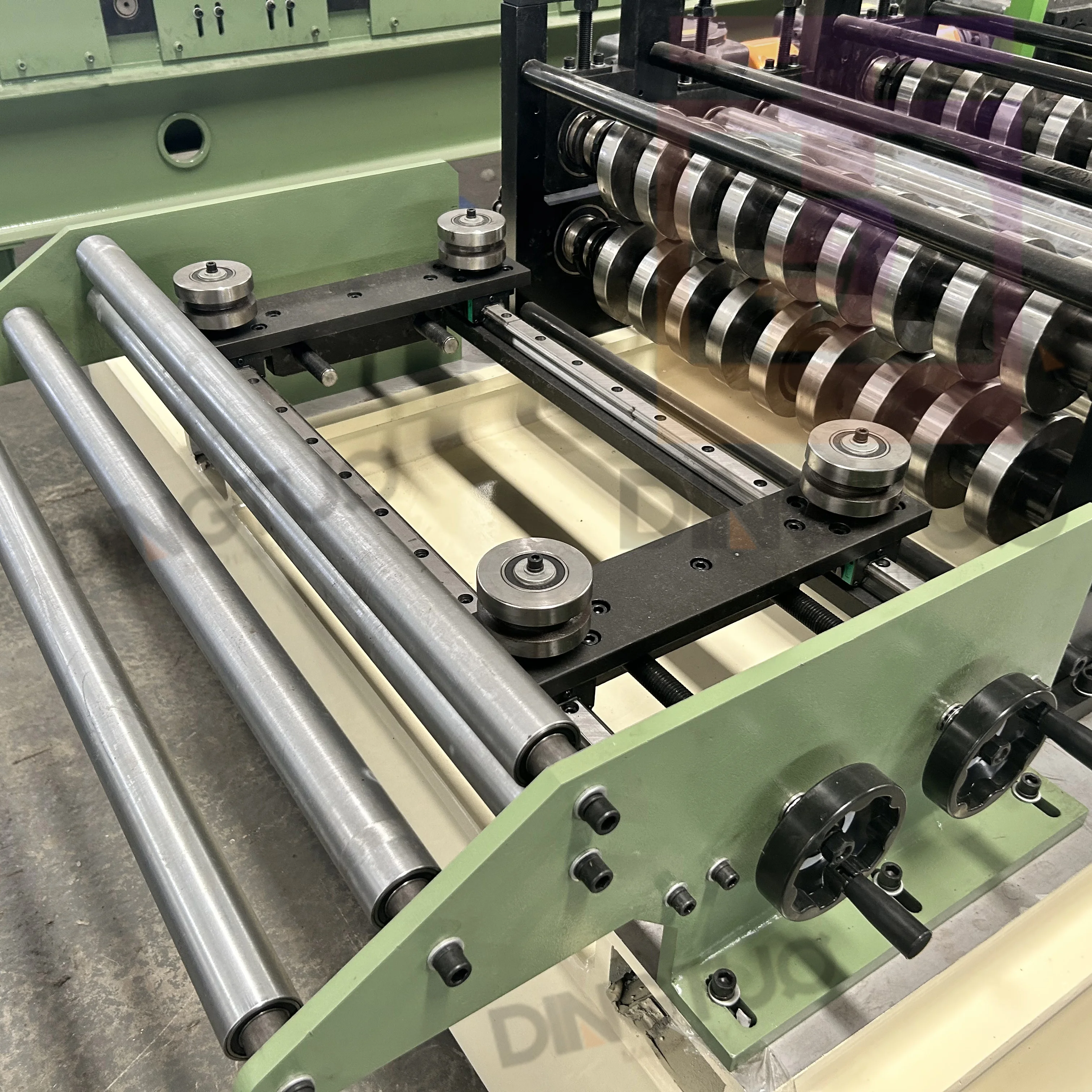

Feeding platformhigher quality feeding platform

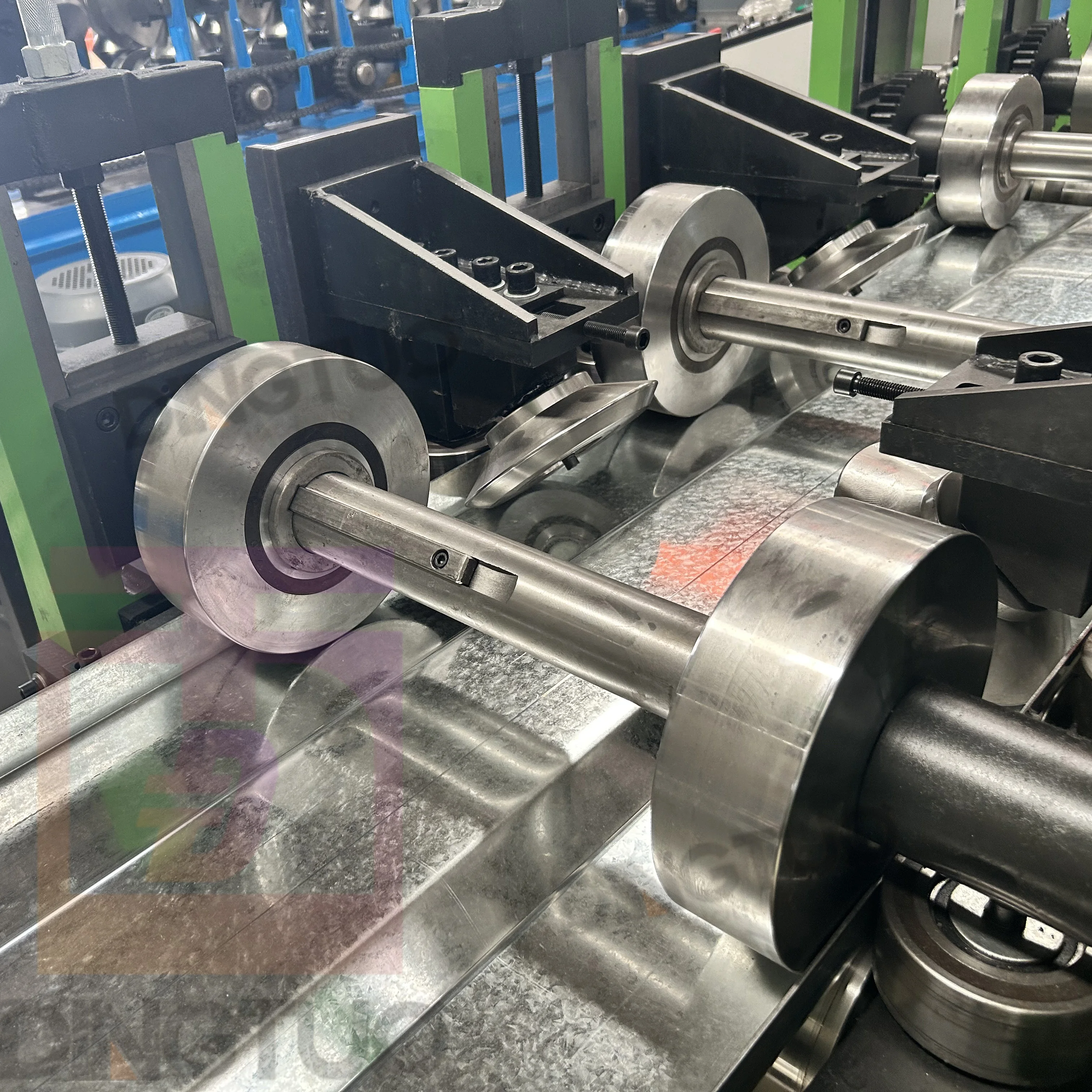

Forming rollers:14 stations ;
rollers material : Gcr15 # steel finishing and the surface is plated with hard chrome and polished;
70 mm solid shafts with 45# steel processed.

Electric control cabinet:stand type
Delta brands or customized brands

Cast Iron Machine Stands

160 typestable type

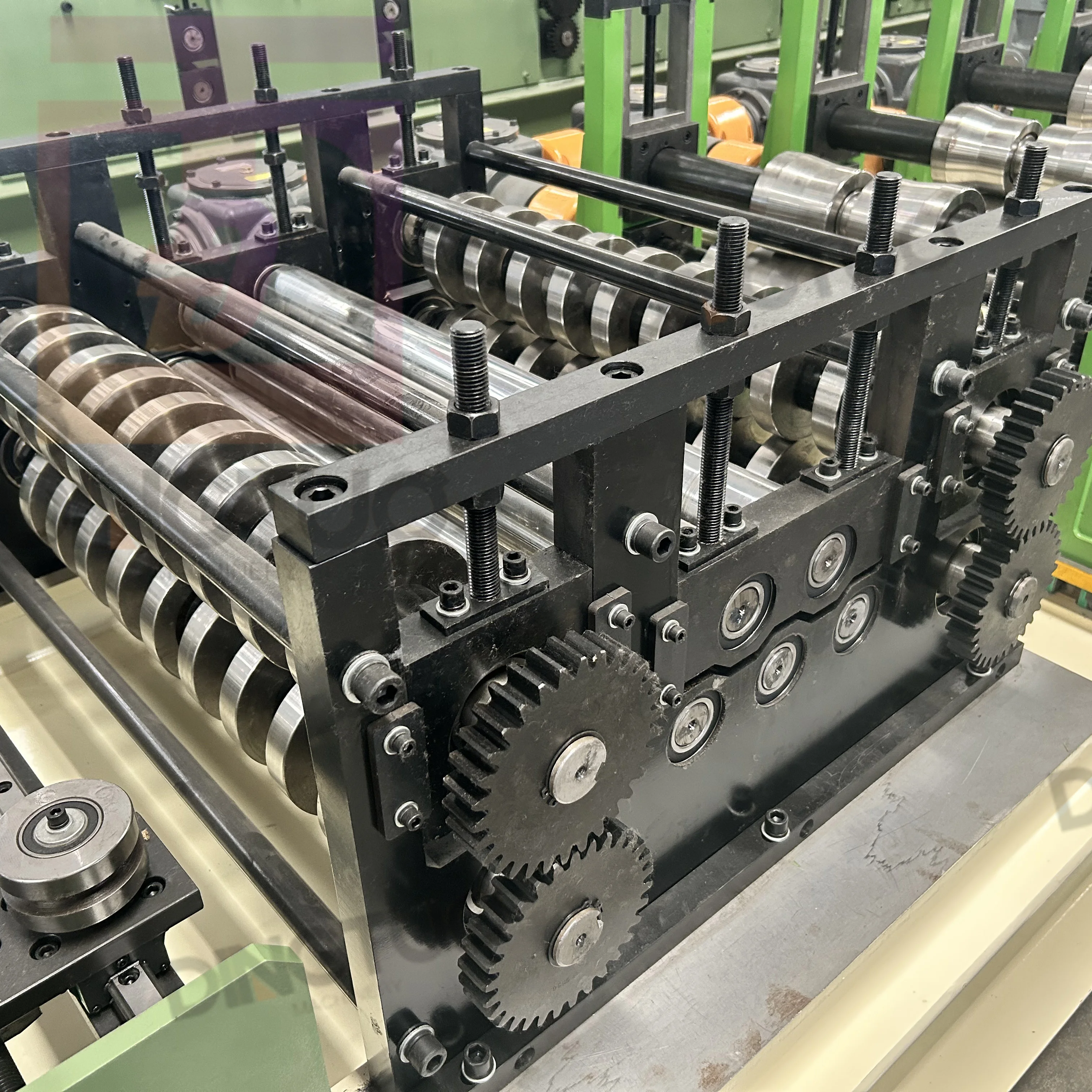

leveling unit

Upper 2 and lower 3

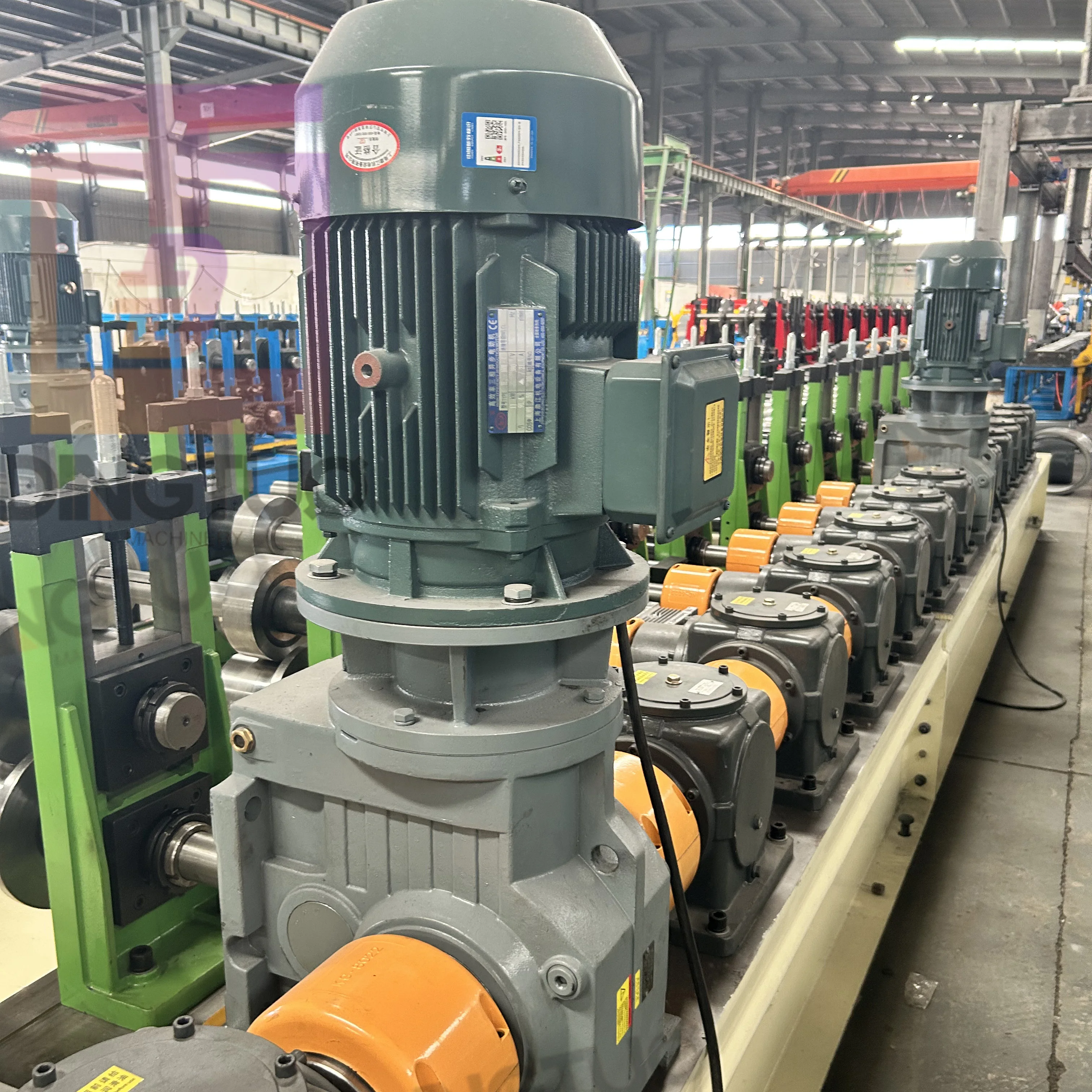

motor :

2*22 kw K serious motor which can run the machine stable

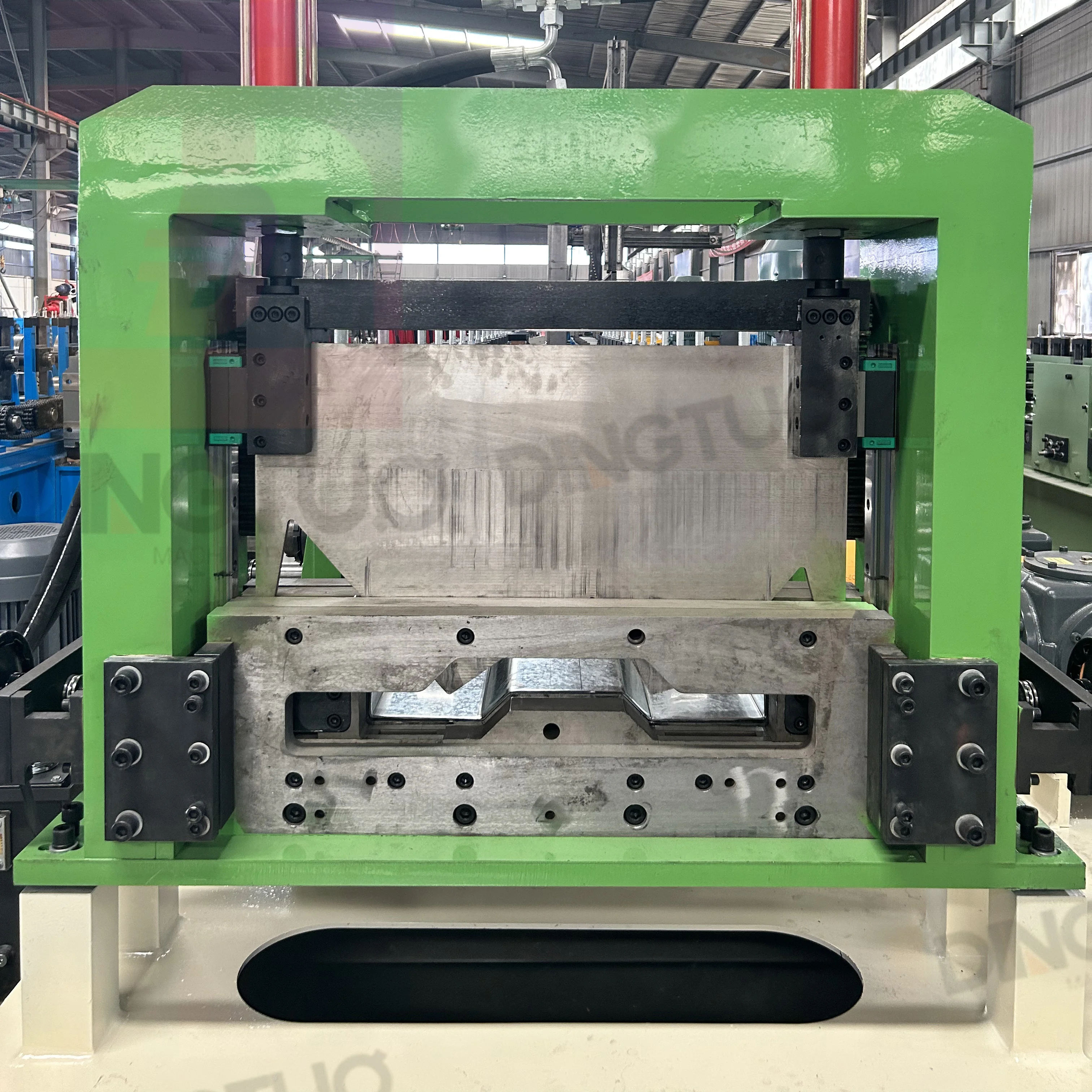

Automatic hydraulic cutting

strong enough knife holder to ensure the cutting stability and ensure the finished products effectsCan do various sizes without changing blades

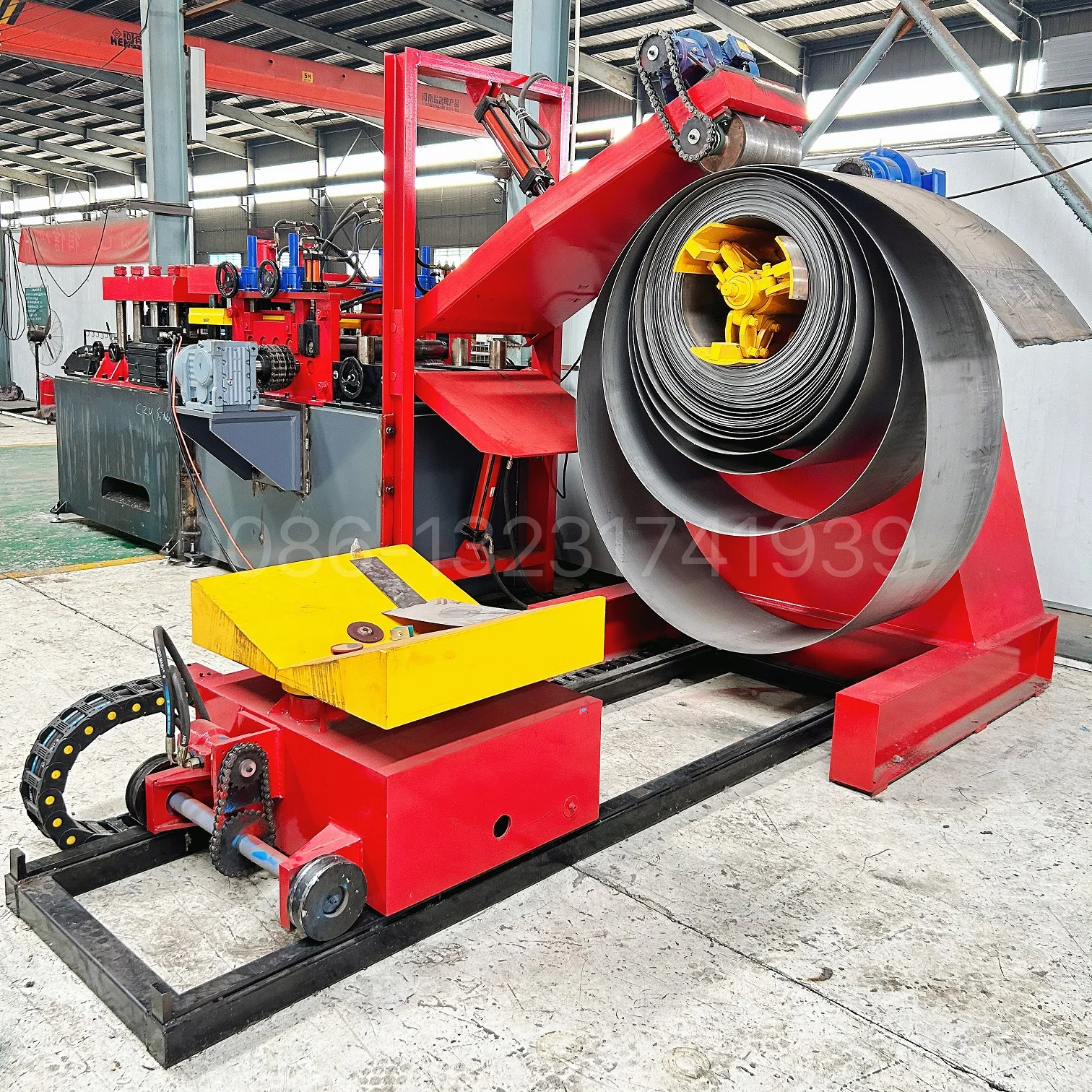

10T box type decoiler

Range of segment expansion:480 ~ 508mm;Maximum coil outer diameter:1800mm
Bearing Weight: 10 Tons
Feeding method: active feeding,
Tension method: hydraulic roll up
Anti-unwinding device: pressing arm ，brake

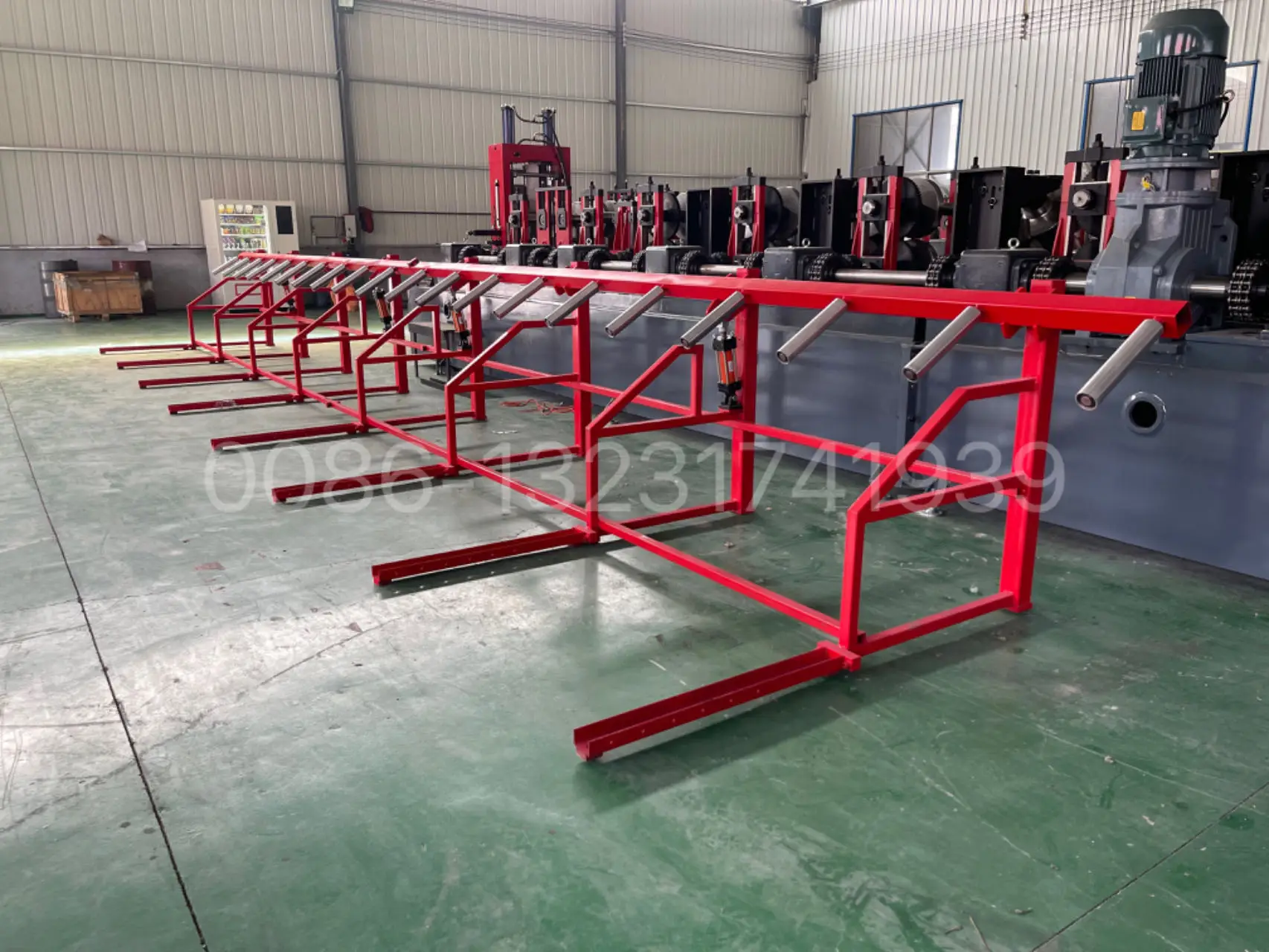

Pneumatic material run out table

6.1 m length Pneumatic type run out table

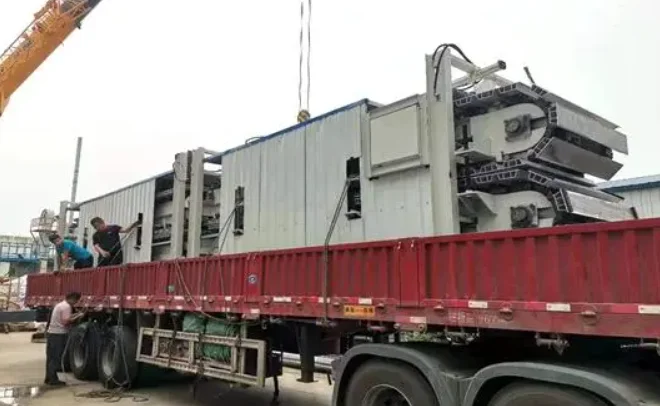

Product packaging

SALES AND SERVICE NETWORK

Successful Project

Projectin CANADA

Project in USA

Project in UAE

RECOMMENDED PRODUCTS

EXHIBITION AND CLIENTS

SAMPLE ROOM

FAQ

1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 20ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time25-30 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.

4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
 Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
