Product Overview

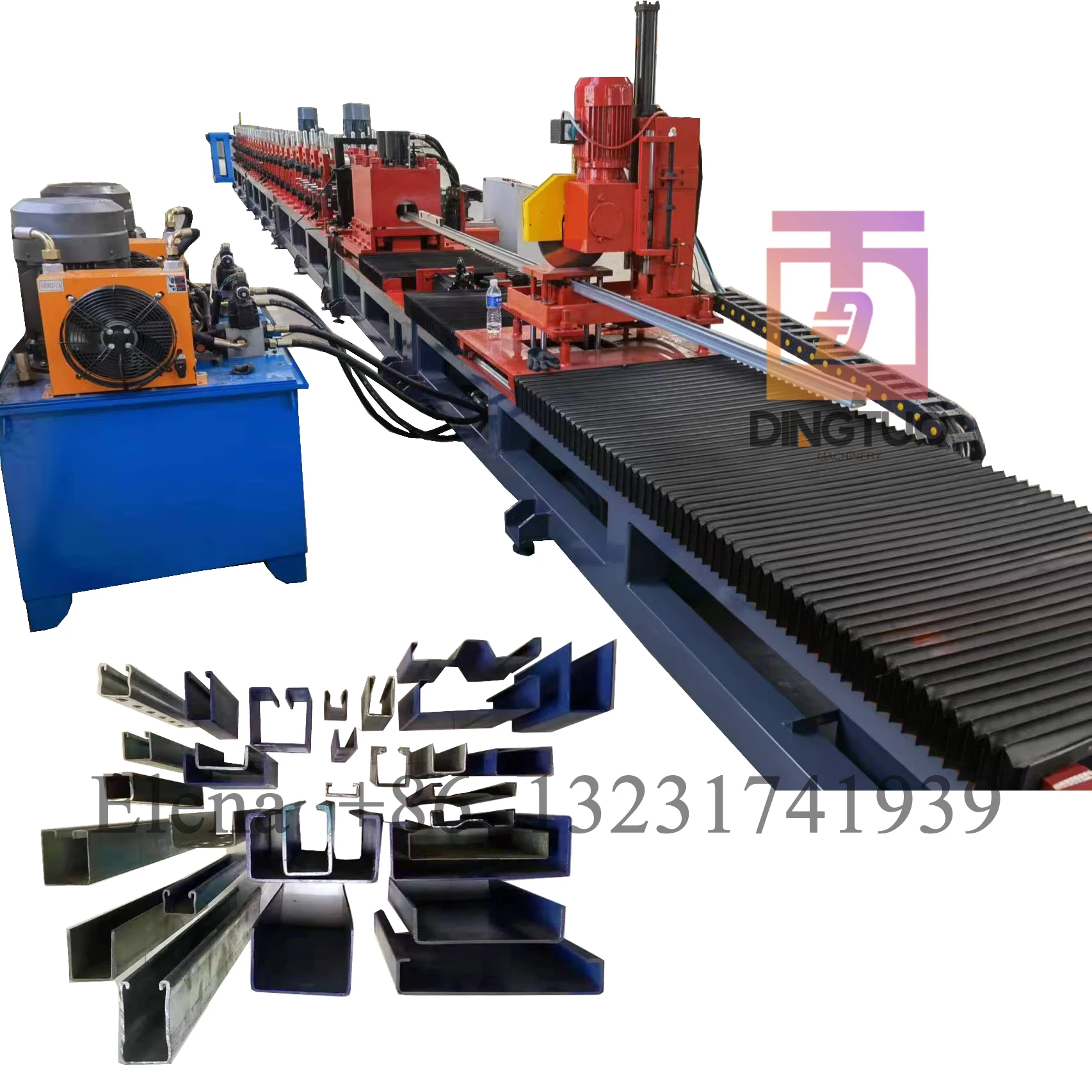

20-25m/minhigh speed 41mm*41mm C U Solar Photovoltaic (PV) Support Roll Forming Machine

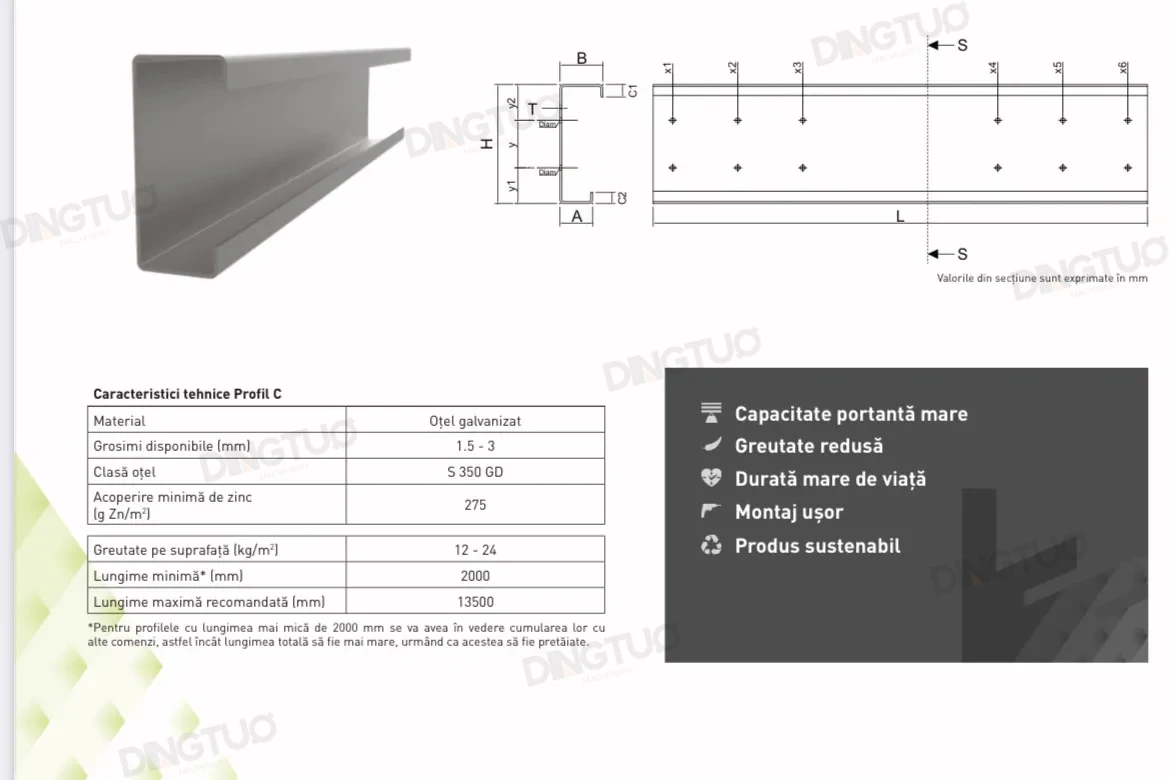

From the perspective of photovoltaic power station construction, the wind resistance of photovoltaic power stations is mostly determined by photovoltaic brackets and counterweights. Solar photovoltaic brackets are special brackets designed for placing, installing and fixing solar panels in solar photovoltaic power generation systems. General materials include aluminum alloy, carbon steel and stainless steel. Theoretically, the maximum wind resistance of solar brackets is 216 kilometers per hour (17-level typhoon), and the maximum wind resistance of solar tracking brackets is 150 kilometers per hour (greater than 13-level typhoon). The size specifications of photovoltaic C-shaped steel include width, height and thickness. Among them, the width is generally 40mm, 41mm, 80mm, etc., the height is generally 21, 41mm, 51mm, 62mm, 72mm, 82mm, etc., and the thickness is generally 1.5mm, 1.8mm, 2.0mm, 2.5mm, etc. Our photovoltaic bracket equipment can produce 41X21 41X41 models

FEATURES AT A GLANCE

00:0000:33

PRODUCT SPECIFICATIONS

MACHINE COMPONENTS

NO.	Description	 Quantity (set)1  10T Hydraulic decoiler 1
2  Feeding platform part 1
3  pitch shafts and leveling
part 1
4  Punching unit1
5  Forming system with ribs 1
6  Transmission system 1
7  None blade changeable cutter 1
8  Run Out table 1
9  Hydraulic pump station 1
10  Control box 1
11  Spare parts and tools 1

No	Item	Parameter	Note
1	raw material	galvanized steel / black strips / carbon steel
2	raw material thickness	1.5-2.5mm
3	bottom width	41mm	can customized . If you need , welcome to connect Ms.Elena 0086-13231741939
4	height /web	21mm/41mm/52mm/62mm/72mm	can customized . If you need , welcome to connect Ms.Elena 0086-13231741939
5	lip	20 mm - 30 mm	can customized . If you need , welcome to connect Ms.Elena 0086-13231741939
6	Decoiler	10T Hydraulic decoiler	can customized . If you need , welcome to connect Ms.Elena 0086-13231741939
7	Pitch Shafts	Cast Iron Type and with one electric clutch	No need lift or press pitch rollers after feeding material manually
8	Leveling Part	Upper 4 and lower 5	9 rollers * 100mm diamter iron shaft
9	Forming Shafts	120 mm	According to sheet sizes and thickness to choose the shaft diameter. Any requests , welcome to connect Ms.Elena 0086-13231741939
10	machine forming station	22	customzied as clients' sheet's sizes
11	machine stands	1. 55mm thick cast iron type machine stands(The position of the slider and the bearing hole are processed by a precision machining center)	higher cost machine stands , strong type , stable type
12	size changeable type	3 sets of size changeable servo motors , which can be changed by control panel automatically.	servo motor size changeable which can do stable and accurate size changeable
13	machine base frame	whole iron plates welding steel 700mm height ,the thickness of the table top is 30 mm, the thickness of the side plate is 10 mm	the whole is sanded and derusted after welding, and the table top is processed by CNC gantry milling
14	machine power	26 kw+10KW	36kw K serious reducer which can make machine run stable
15	machine speed	25 m / min	we can do 20 m / min higher speed machine.Any needs , welcome to connect Ms.Elena 0086-13231741939
16	machine transmission way	gear boxes transmission	230type gear boxes
17	roller material	CR12 mold steel material, after rough machining, vacuum treatment HRC58-60 degrees, then fine grinding hole, CNC numerical control finishing roll, to maintain high precision and hardness of the roll
18	Blade material	Cr12 mov material with turning+quenching (hardness 58-62degrees)+grinding+fine turning treatment
19	Length counting method	OMRON (JAPAN ) brand encoder
20	Electric Control brands	DELTA PLC/touch screen/inverter	can do other brands as clients' requests
21	Pneumatic material receiving rack	1 set	6.1m length . Can do automatic stacker as your needed
22	Voltage	380V,50HZ,3 Phases or customized	voltage can be customzied as clients' request. Any requests , welcome to connect Ms.Elena 0086-13231741939
23	machine size	L20 m * W 2 m * H 2.2 m
24	machine weight	30000 KGS

PRODUCT CONFIGURATION

Feeding platform & pitch shafts with electric clutch & leveling unit ：higher quality feeding platform
pitch shafts with electric clutch : no need lift or press pitch rollers after feeding material manually

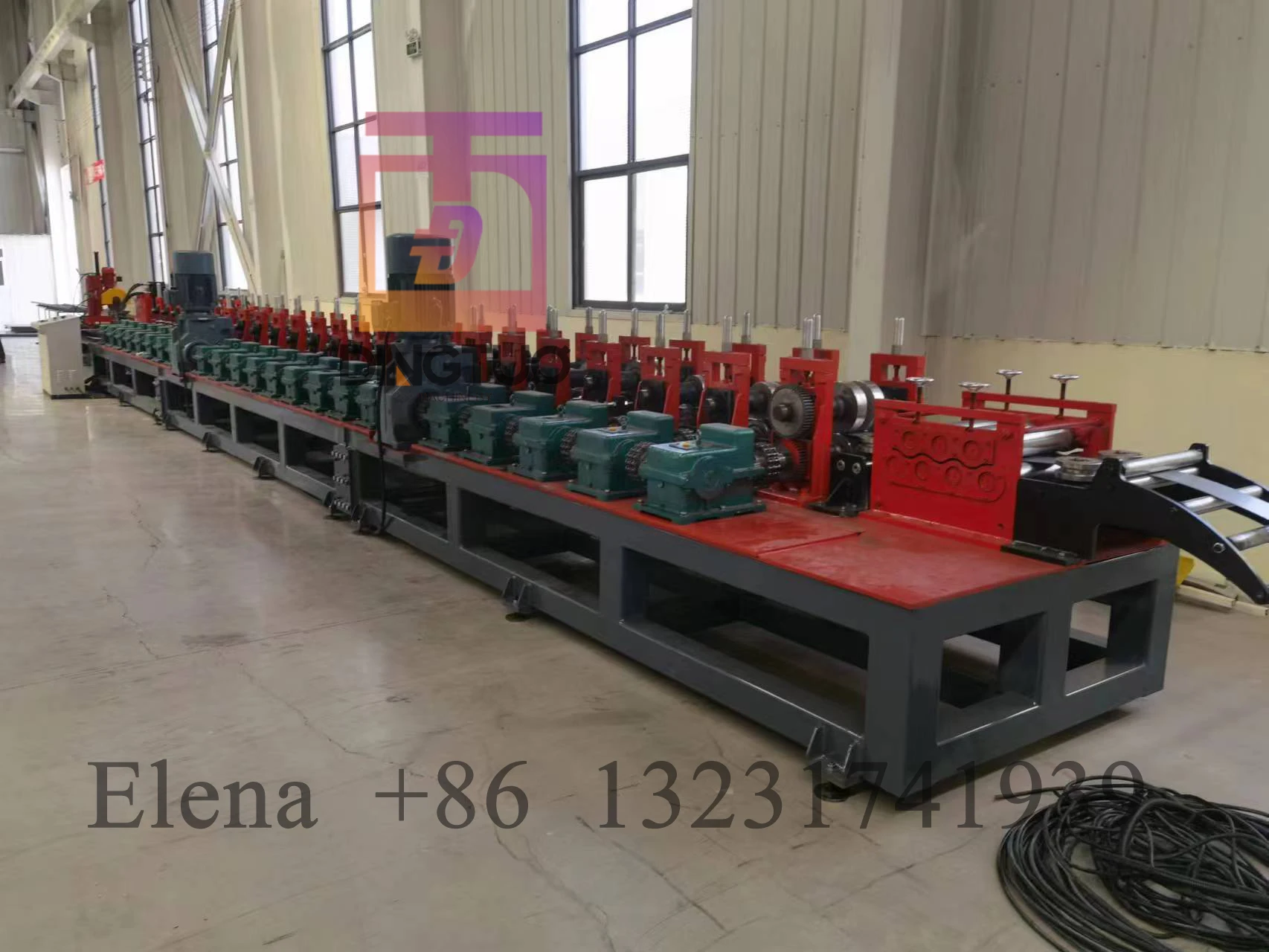

Forming rollers:22 stations ;
rollers material : Gcr15 # steel finishing and the surface is plated with hard chrome and polished;
70 mm solid shafts with 45# steel processed.

Electric control cabinet:stand type
Delta brands or customized brands

10T box type decoiler

Range of segment expansion:480 ~ 508mm;Maximum coil outer diameter:1800mm
Bearing Weight: 10 Tons
Feeding method: active feeding,
Tension method: hydraulic roll up
Anti-unwinding device: pressing arm ，brake

Pneumatic material run out table

6.1 m length Pneumatic type run out table

Product packaging
