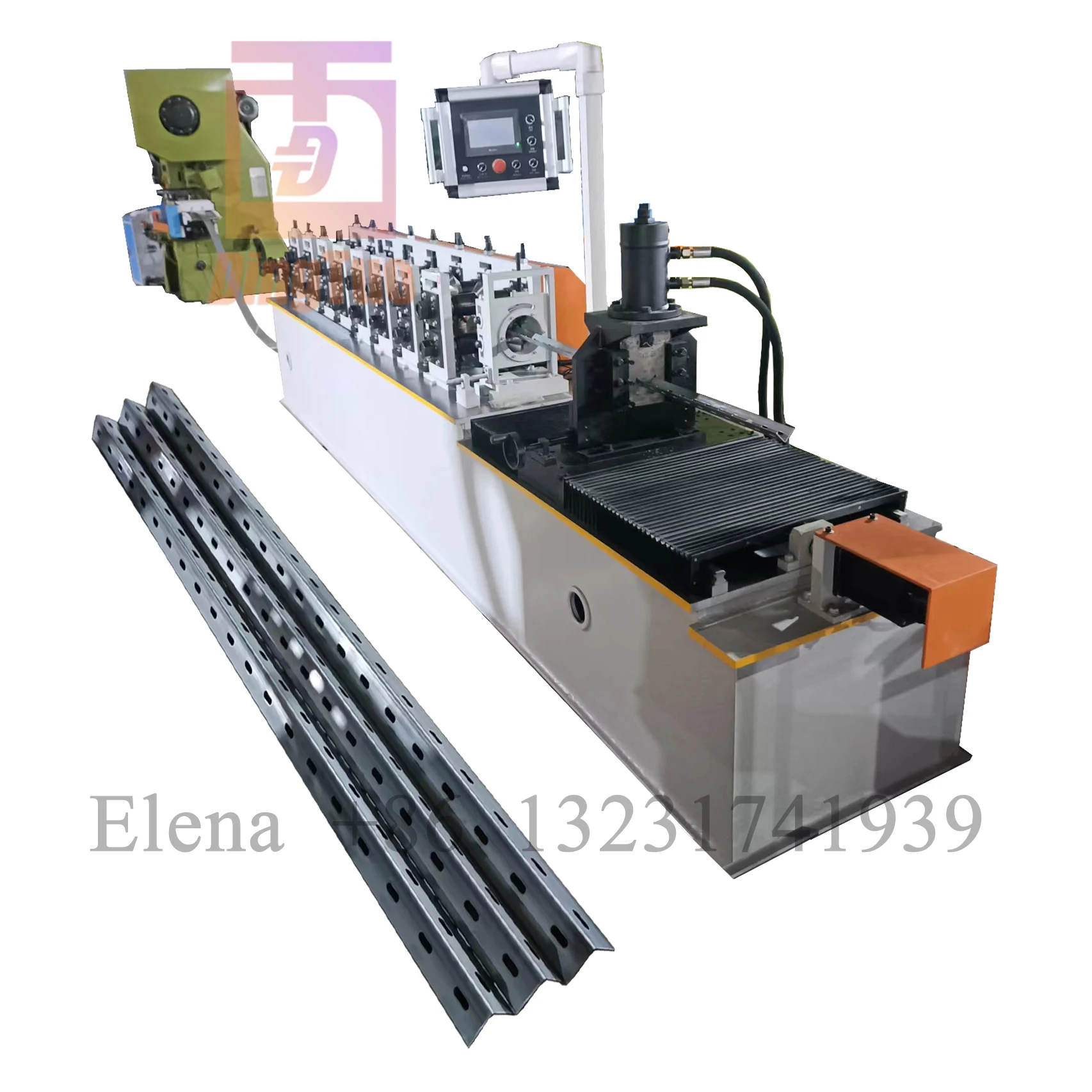

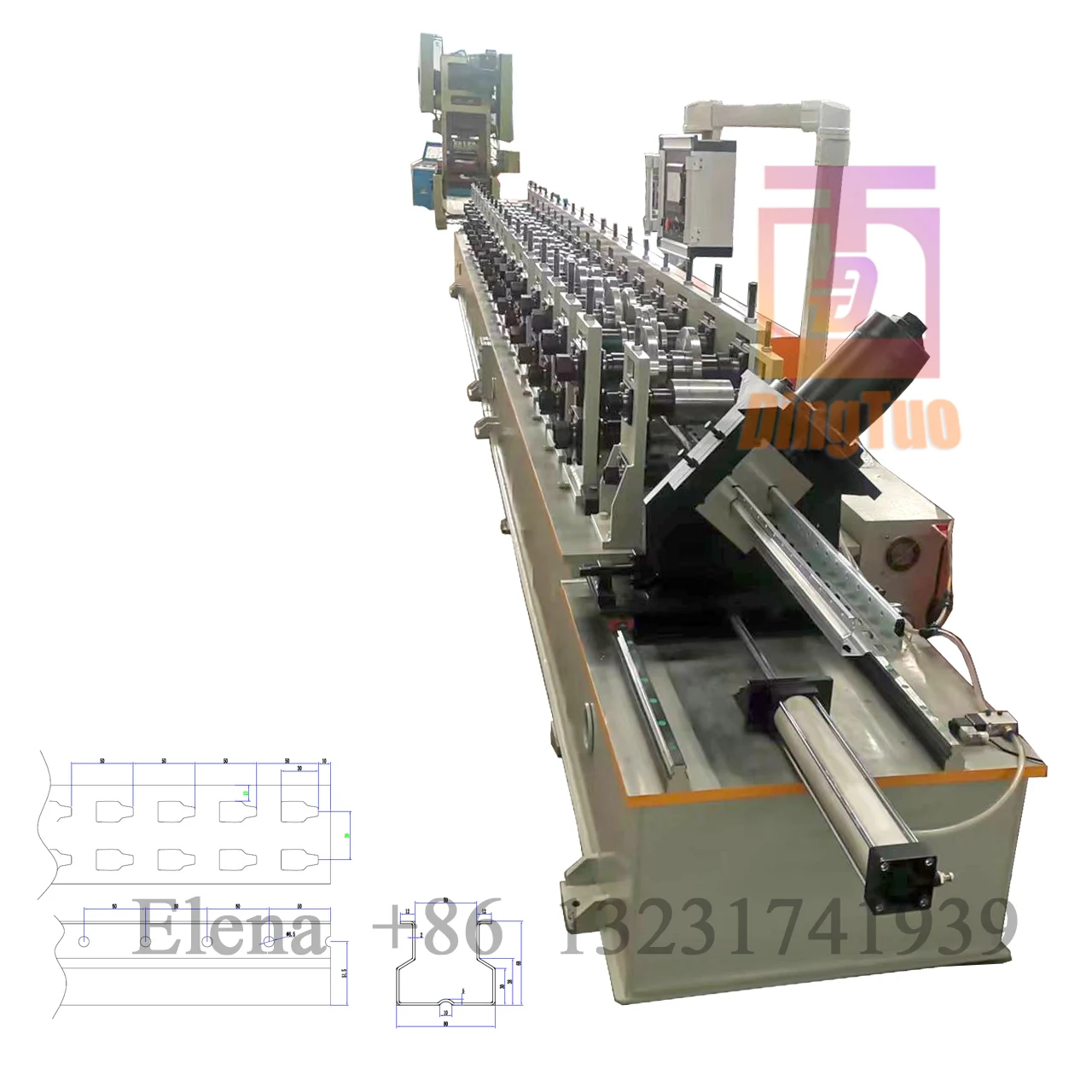

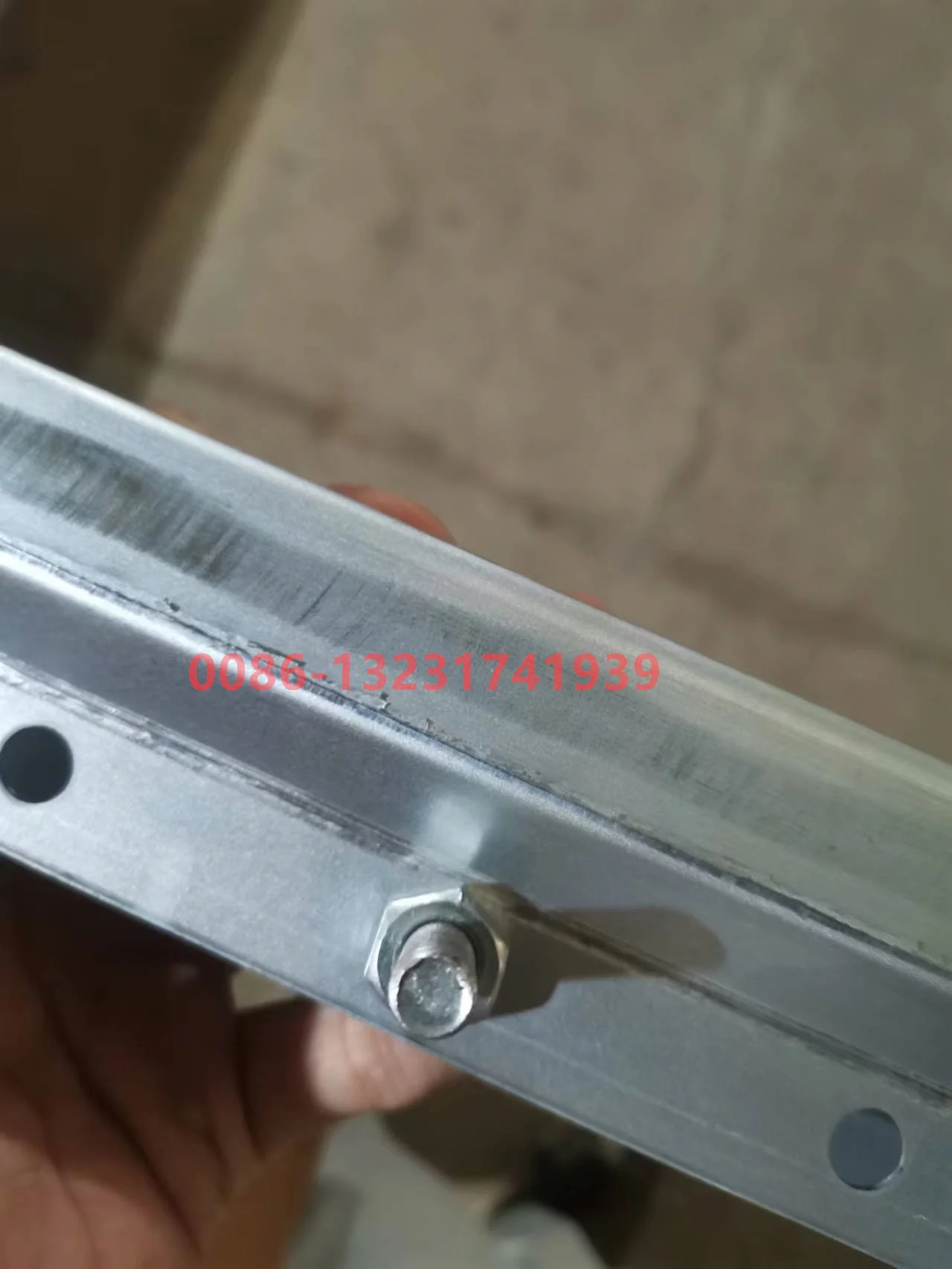

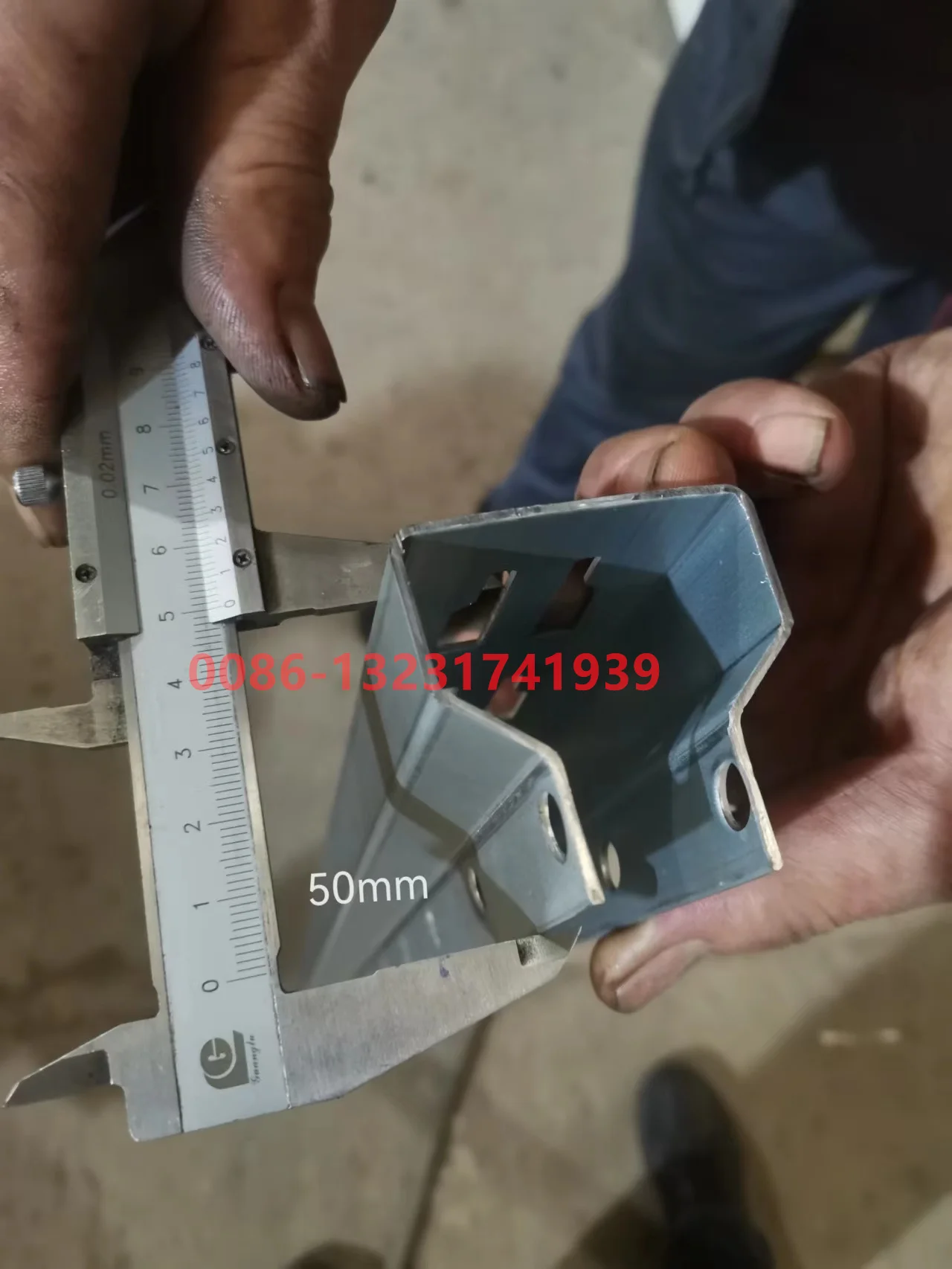

50*50 STEEL SHELF COLUMNROLL FORMING MACHINE

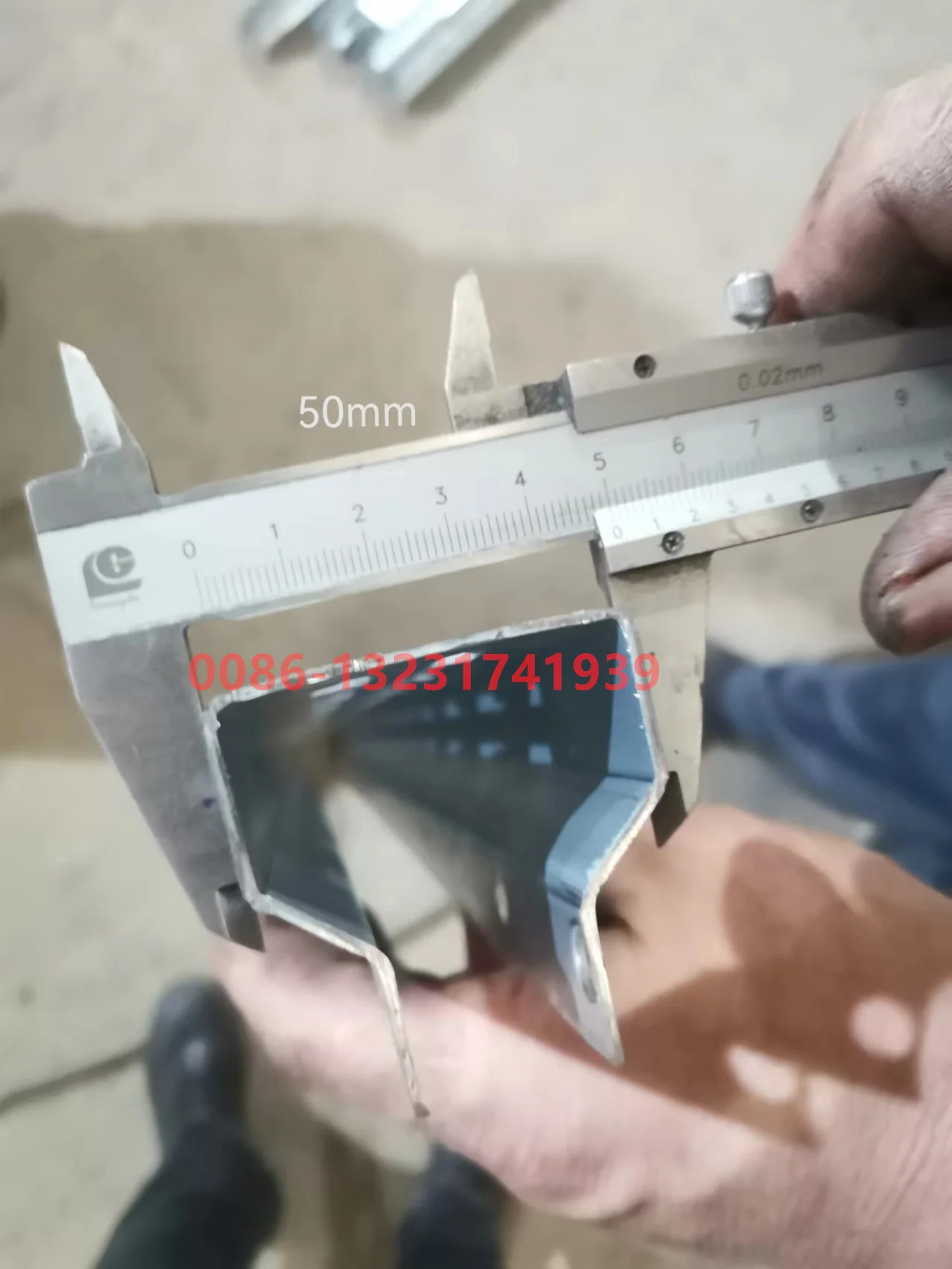

50*50 storage rack column roll forming machine for shelf columns

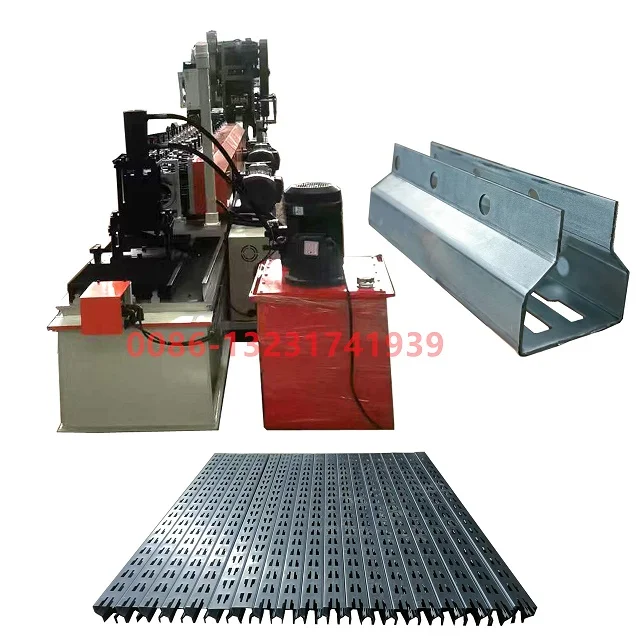

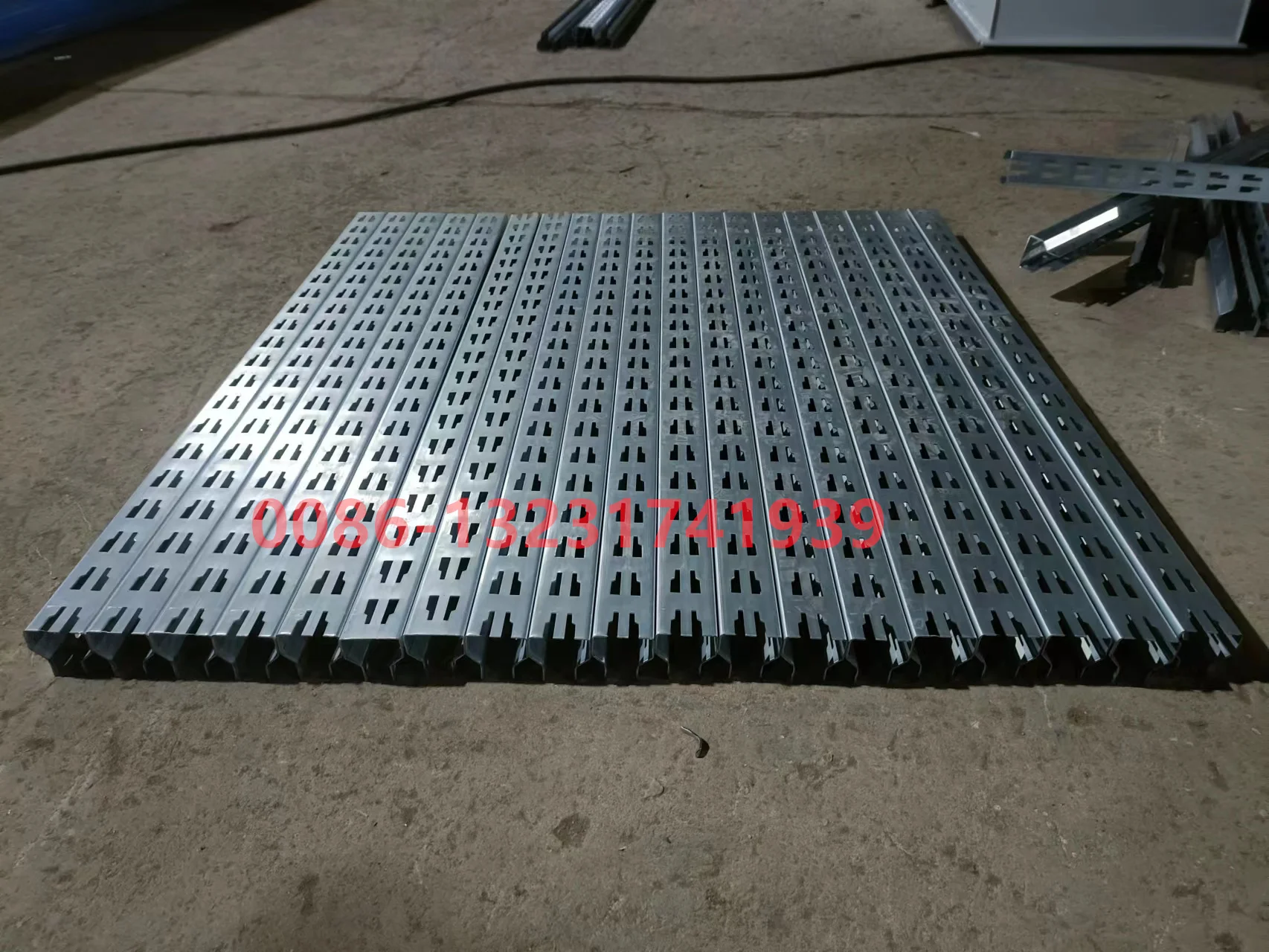

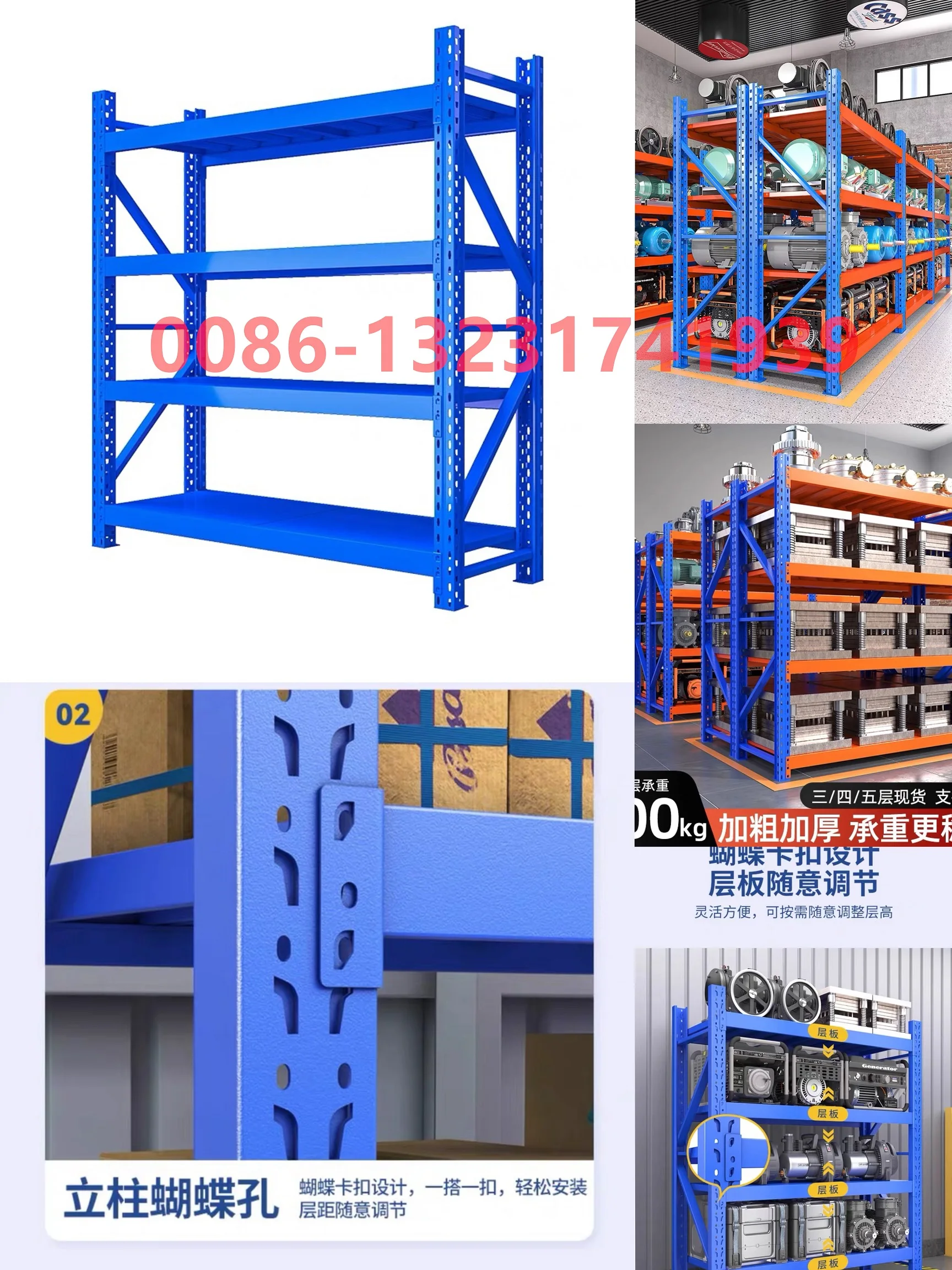

YX50-50 shelf column forming machine is a shelf column equipment used to produce one of the shelf series components. The finished product is "shelf column". "Shelf columns" are mostly used as one of the light shelf components in warehouses, supermarkets and large and small shopping malls for cargo display, display, and product display.
OUR UPRIGHT COLUMN ROLL FORMING MACHINE PRICE EXPLANATION
1.The price is decided to your profile width sizes ,height sizes and thickness. maximum 2 mm thick decided all machine parts should use bigger type. 2.Firstly, the production line includes : 2.1:one passive/hydraulic decoiler (pay attention,manual decoiler free to send you)
2.2: one leveling machine
2.3:one 63 tons YANGLI brand punch ( pay attention , punch brand is YANGLI )
2.3: one servo feeder with electric control cabinet

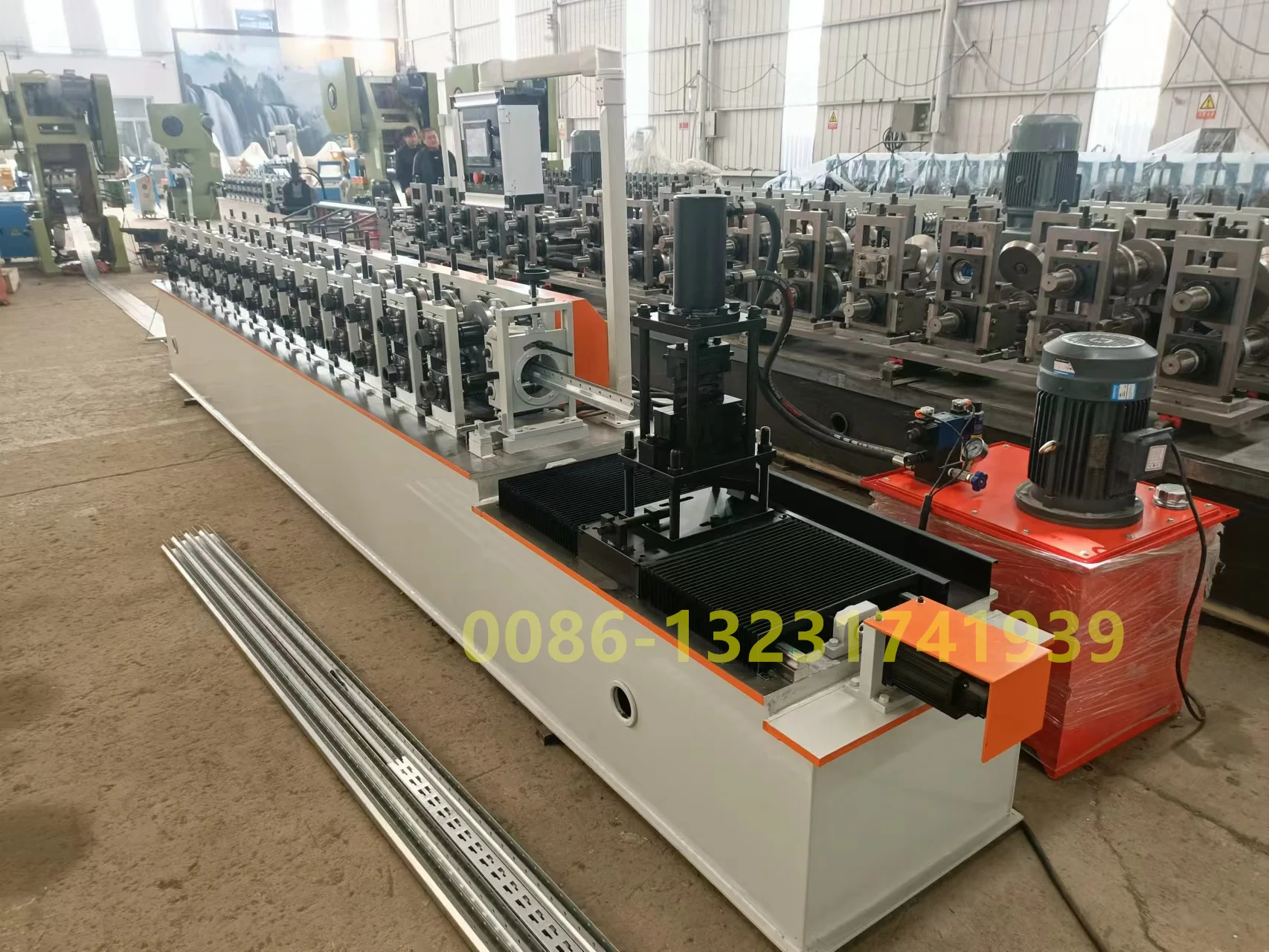

2.4: Roll Forming Machine(pay attention, this is the host roll forming machine )
2.5: one run-out tables (pay attention,free to send you )
3.Machine base frame material: Whole steel plate welded about the surface which will be made by CNC machine and surface will have good flatness and looks bright and beautiful.(pay attention: the machine base frame was not welded by square tubes)4.Machine forming Station: 14 stations according to your profiles. (pay attention: this is the best suitable forming stations, neither more nor less about the forming stations)
5.Rollers material : Cr12 material with turning+quenching(hardness 58-62 degrees)+grinding+fine turning treatment which has good quality and this type of processing can guarantee the rollers' hardness meet international standard HRC 58-62 degrees and has good were resistance.(pay attention: the roller material neither made of 45# steels nor bearing steels)6.Machine stands: Wrought iron welding, 35 mm thick which can have good stable , high procession and will not be deformed when machine running.(pay attention: the thickness was 35 mm, not 30 mm or 20 mm )
7.Shaft diameter: 60 mm diameter solid shafts (pay attention: the shafts are solid and the shaft diameter is 60 mm, not 50 mm or 40 mm)
8.power: main motor power: 15 kw( pay attention : Motor uses K serious type )
hydraulic cutting motor power: 7.5 kw
none-stop servo tracking motor power:2.3 kw
(pay attention: We can guarantee your machine has enough power to make the machine running stable . )
9.Transmission way : Gears which has the best stable performance. (pay attention: the machine is not chain transmission
10.Machine uncoiler type :free to send you .
11.Machine run out table : free to send you .
12.Voltage: CUSTOMIZED .(pay attention : If your voltage is not 380 V , all other voltages we called customized voltagewhich means the all motors of the machine need to be customized according to your voltage.So that this part will add some motor customized costs)
13.Machine Speed: the maximum machine speed included that punching can reach 17m/min.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MACHINE COMPONENTS
NO. Description Quantity
1 2 IN 1DECOILERAND LEVELLER 1
2 63 tons YANGLI BRAND punch 1
3 SERVO FEEDER1
4 FEEDING PLATFORM1
5 FORMING PART 1
6 NONE-STOP CUTTING PART1
7 ELECTRIC CONTROL CABINET1
8 HYDRAULIC PUMP STATION1
9 RUN OUT TABLE1
10 ACCESSORIES1
11 SERVO NON-STOP PUNCHINGMOTOR1
PRODUCT CONFIGURATION
2 in 1 decoiler and leveling machine
3 tons capacity
because the profile has slotted holes so that should have the leveling machine to make material flatness so that can punch well.
2 in 1 decoiler and leveling device will save much space .
punch machine
YANGLI brand

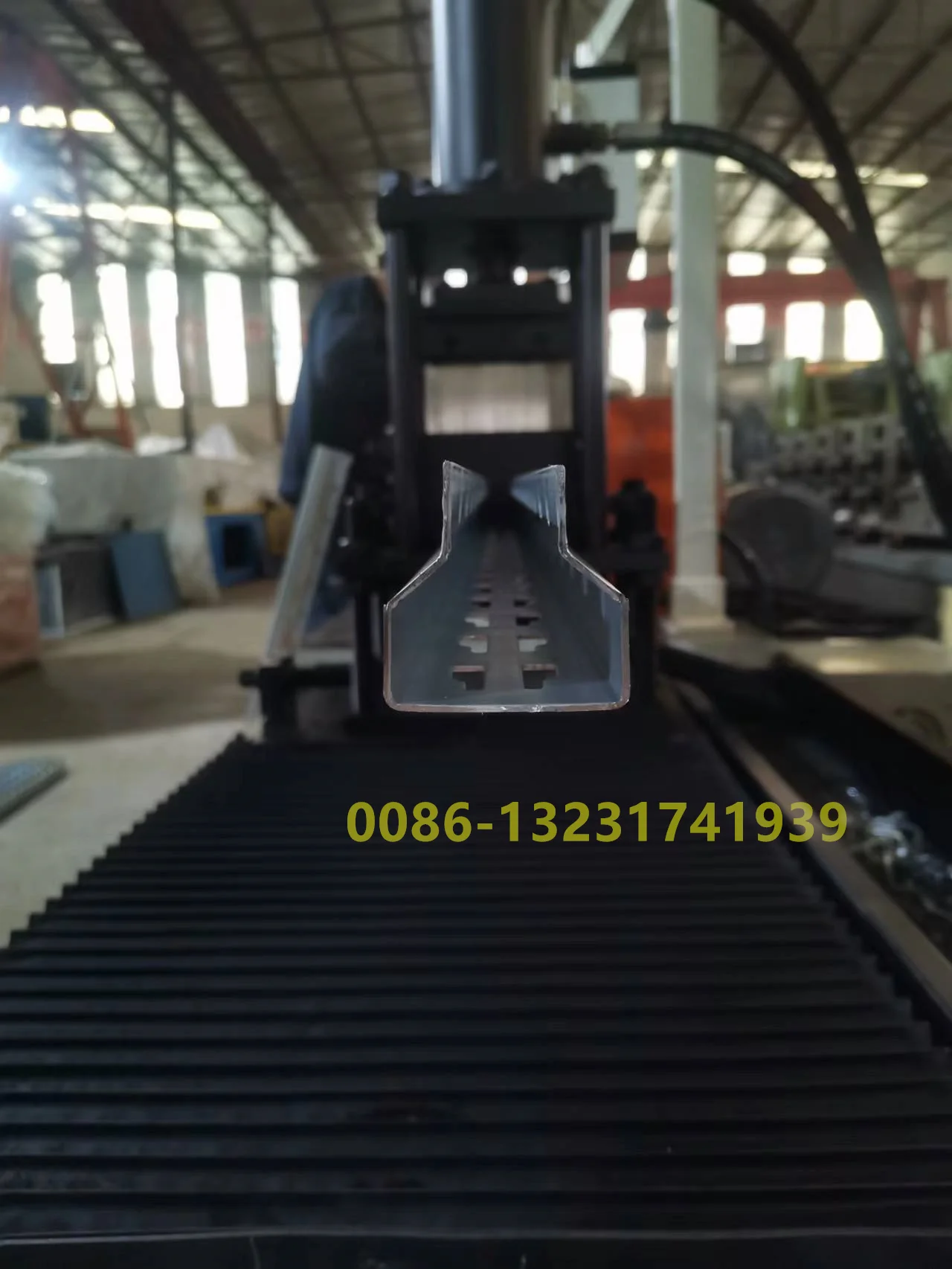

forming part
1.Rollers: design by senior engineers with Auto-cad software, manufactured with Cr12 steel by CNC machine tools and coated with hard chrome
2.Shaft:50 mm solid shafts
5.Machine Transmission:Gears transmission
6. Cutter : Cr12 with turning+quenching(hardness 58-62degrees)+grinding+fine turning treatment
7. Pump Station:7.5 kw
8. Servo tracking motor : 2.3kw
9. Machine main power:15kw
Machine Side Panels
1. Base frame: whole iron plates welded which can ensure the whole machine supporting strength.
2. Machine stands : 35mm thick
machine stands
machine stands
Transmission
gears transmission
Hydraulic Pump Station with cooling fan and servo motor
1. Hydraulic cutting motor power:7.5kw
2. Servo none-stop motor power:1.5kw
Cantilever type electric control cabinet
The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Lengthmeasurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:220V, 3 Phases 50Hz （ voltage can becustomized as your needed)
Automatic Hydraulic Cutter
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. 2.Power supply: 7.5kw hydraulic pump station 3.Frame: whole iron plates welded 4.Stroke switch: non-contact photoelectric switch 5.Cut : cut the sheet after roll forming to required length 6.Length measuring: automatic length measuring 7. Blade material:Cr12 material with finishing
MACHINE RUN OUT TABLE
RECEIVE MATERIALS
Product packaging
SALES AND SERVICE NETWORK
Successful Project
Projectin Argentina
Project in USA
Project in Russia
RECOMMENDED PRODUCTS
CE certificate
CE Certificate
EXHIBITION AND CLIENTS
SAMPLE ROOM
FAQ
1. Package1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.2. Delivery Time50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.3. Payment30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty 15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
